Ankle Joint External Fixator
- Includes Rod-Rod Coupling, Rod-Pin Coupling, Ankle Joint, Apex Pin Self-drilling
- Designed for external fixation of the ankle joint
- Easy to order and receive within 7 days
- High-quality materials for optimal performance
- Ideal for orthopedic surgeons and patients in need of ankle joint fixation
- SKU
- 7100-19
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ankle Joint External Fixator
Complete external fixation system designed for precise ankle joint stabilization. Includes rod-rod coupling, rod-pin coupling, ankle joint articulation, and self-drilling apex pins. Engineered for optimal performance and ease of use in complex ankle trauma and reconstruction procedures.
Clinical overview
The Ankle Joint External Fixator (7100-19) is a comprehensive external fixation system specifically engineered for ankle joint stabilization in trauma, fracture management, and reconstructive procedures. The system combines rigid rod-rod and rod-pin couplings with a dedicated ankle joint articulation module, enabling surgeons to achieve precise multi-planar control and early mobilization when clinically appropriate.
Self-drilling apex pins in multiple sizes (3×120mm and 5×150mm) facilitate rapid percutaneous pin placement with minimal soft-tissue trauma. The modular design allows customization to patient anatomy and surgical approach, making it suitable for complex ankle injuries including pilon fractures, syndesmotic injuries, and revision cases.
Key features & surgeon benefits
Ankle Joint Module
- Dedicated 8mm ankle joint articulation for controlled motion
- Enables early range-of-motion protocols when appropriate
- Reduces stiffness and improves functional outcomes
Rapid Pin Placement
- Self-drilling apex pins eliminate pre-drilling steps
- Multiple pin sizes (3mm and 5mm) for varied anatomy
- Modular coupling system simplifies assembly and adjustment
Complete Kit Value
- All essential components included in single order
- Reduces need for supplementary purchases
- Fast 7-day delivery minimizes case delays
Modular Design
- Rod-rod and rod-pin couplings allow flexible configuration
- Compatible with Hoffman-type external fixator systems
- OEM customisation available for specific protocols
Technical specifications
| Indications | Ankle joint external fixation, trauma, fracture management, reconstruction |
|---|---|
| Sizes / range | 8mm rods, 5/6mm pin couplings, 3–5mm pin diameters, 120–150mm pin lengths |
| Material | Stainless steel, high-grade alloy |
| Sterilisation | Autoclavable, steam sterilization compatible |
| Packaging | Complete kit in sterile packaging |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-1901 | Rod-Rod Coupling (8mm Rod) | 1 |
| 7100-1902 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 4 |
| 7100-1903 | Ankle Joint 8mm | 1 |
| 7100-1906 | Apex Pin Self-drilling 5×150mm | 4 |
| 7100-1907 | Apex Pin Self-drilling 3×120mm | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your surgical program. Standard delivery within 7 days.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →
Femoral External Fixator
- Complete femoral external fixator system - Includes tube-rod coupling, compression distraction tube, pin clamp, angled post, and self-drilling apex pins - Easy ordering for patients and orthopedic surgeons - Quality components for effective fixation - Quick delivery in 7 days
Femoral External Fixator
- Comprehensive femoral external fixator kit - Includes tube-rod coupling, compression distraction tube, various clamps and pins - Equipped with 30-degree angled posts for secure fixation - Apex pins provided are self-drilling for convenience - Ideal for orthopedic surgeons and patients requiring femoral fracture stabilization
Knee Joint External Fixator
- Complete set for knee joint external fixation - Includes rod-rod and rod-pin couplings - Features a 30 degree angled post for stability - Comes with self-drilling apex pins for easy application - Quick delivery in 7 days for patient and surgeon convenience
Ankle Joint External Fixator
- Ankle Joint External Fixator for stabilizing and supporting ankle injuries - Includes Rod-Rod Coupling, Rod-Pin Coupling, Aluminum Connecting Rods, and Apex Pins - High-quality materials for durability and effectiveness - Easy to order for patients and orthopedic surgeons - Fast 7-day delivery for quick treatment and recovery
Pelvic External Fixator
- Complete set for pelvic external fixation surgery - Includes rod-rod coupling, pin clamp, angled post, connecting rods, and self-drilling pins - High-quality materials for reliable performance - Easy ordering process for patients and surgeons - Fast delivery within 7 days
Proximal Femur External Fixator
- The Proximal Femur External Fixator includes a Rod-Rod Coupling (8mm Rod) for stabilization. - It also features a 5-Hole Pin Clamp (5/6mm Pin) to secure the fixation. - With 30 Degree Angled Post 8mm for optimal positioning during surgery. - Includes Aluminum Connecting Rods in 8*300mm size for structural support. - Comes with Apex Pins (5*150mm and 5*180mm) for additional reinforcement.

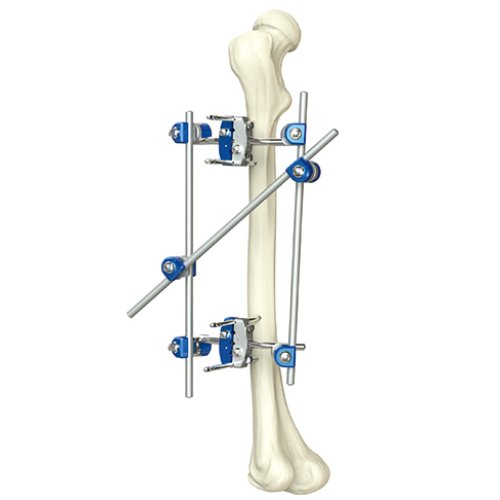

Tibia & Percone External Fixator
