BJ1302 Popularized bone drill (System 1000)
- Autoclavable bone drill for trauma surgery
- Imported motor for low noise and high speed operation
- Output power of 105w, speed range of 0-960 r.p.m
- Features a torque of 2.9 Nm and operates at 14.4V voltage
- Comes with a handpiece, battery, charger, chuck, and more
- SKU
- 9BC5BB435C57
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

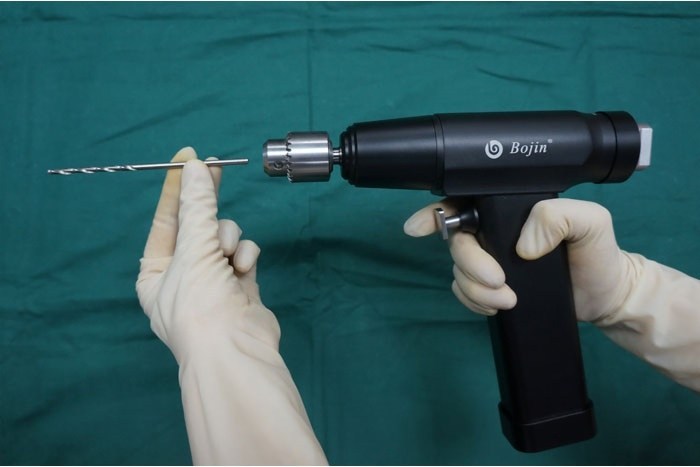

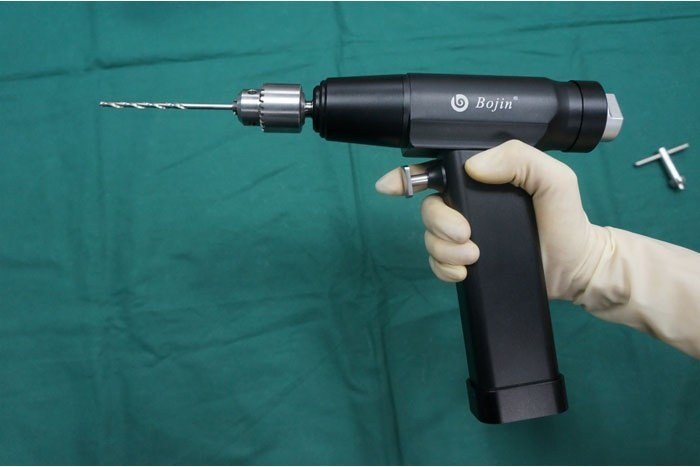

BJ1302 Popularized Bone Drill (System 1000)
Fully autoclavable cordless bone drill engineered for trauma plate and screw fixation. Features imported low-noise motor, 105W output power, variable speed control (0–960 rpm), and ergonomic design for extended surgical procedures with minimal fatigue.
Clinical overview
The BJ1302 is a purpose-built cordless bone drill designed for high-volume trauma surgery. With its imported motor delivering consistent low-noise operation (≤40 dB), the handpiece provides surgeons with precise control during plate and screw fixation procedures. The fully autoclavable design (135°C, 1.6 MPa) ensures complete sterilisation without compromising motor integrity, eliminating bacilli and viruses resistant to dry-heat sterilisation.
Ergonomic construction minimises hand fatigue during extended procedures, while the variable-speed control (0–960 rpm) and 2.9 Nm torque accommodate diverse drilling applications—from standard cortical fixation to specialised acetabular reaming and cannulated screw placement. The environment-friendly nickel-metal hydride battery provides reliable power delivery with minimal self-discharge when properly stored between cases.
Key features & surgeon benefits
Full Autoclavability
- Handpiece fully autoclavable at 135°C (improved type ≤155°C)
- Eliminates bacilli and viruses resistant to dry-heat methods
- No cross-contamination risk; ready for next case immediately
Precision & Control
- Variable speed 0–960 rpm for diverse surgical applications
- 2.9 Nm torque suitable for cortical and cancellous bone
- Low noise (≤40 dB) reduces OR fatigue and improves focus
Cordless Convenience
- Rapid battery charging; minimal downtime between cases
- Ergonomic handpiece design reduces surgeon hand fatigue
- Aseptic battery transfer ring maintains sterile field
Durability & Support
- Imported motor with proven long service life
- 1-year handpiece warranty; 3-month battery/consumables warranty
- Comprehensive documentation and clinical support included
Technical specifications
| Output Power | 105 W |
|---|---|
| Speed Range | 0–960 rpm |
| Torque | 2.9 Nm |
| Operating Voltage | 14.4 V |
| Noise Level | ≤40 dB |
| Sterilisation Temperature | 135°C (improved type ≤155°C) |
| Sterilisation Pressure | 1.6 MPa |
| Indications | Drilling holes for plate and screw fixation during trauma surgery |
| Sizes / Range | Standard handpiece; compatible with drill bits up to 6 mm diameter |
| Material | Medical-grade stainless steel (handpiece); nickel-metal hydride battery |

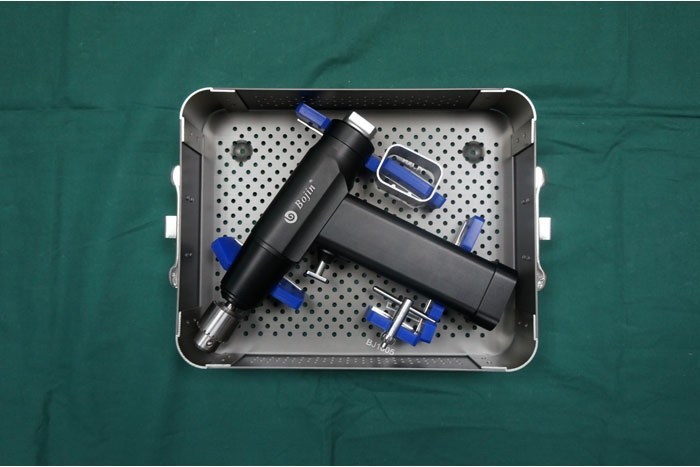

| Packaging | Complete kit with handpiece, battery, charger, chuck, aseptic transfer ring, manual, and warranty card |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

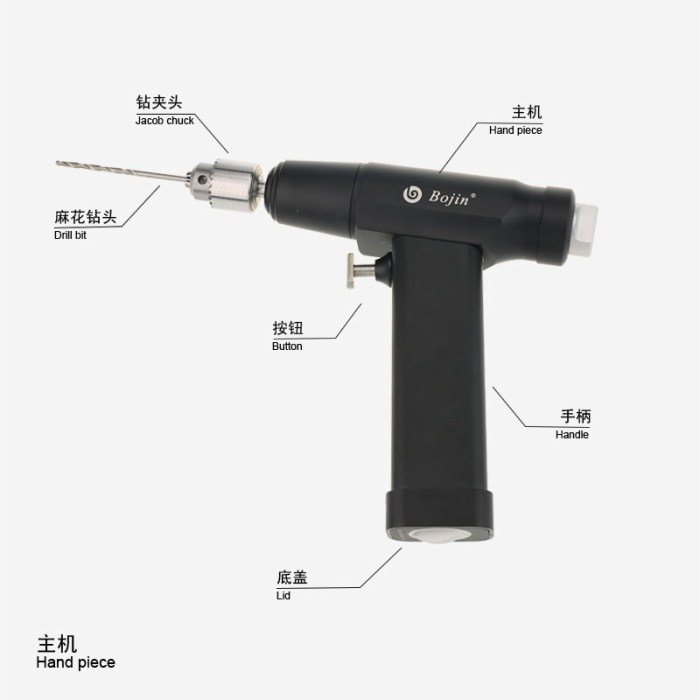

| Handpiece | BJ1302 cordless bone drill handpiece with ergonomic design | 1 |
| Battery | 14.4 V nickel-metal hydride rechargeable battery | 1 |
| Charger | Fast-charge battery charger unit | 1 |

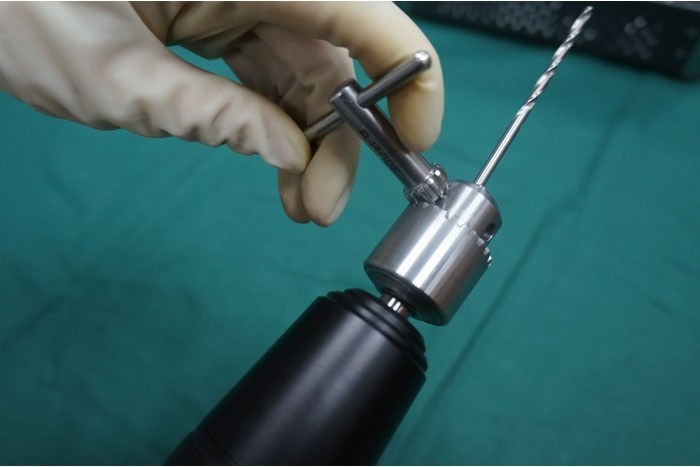

| Chuck | Universal drill bit chuck (up to 6 mm) | 1 |
| Aseptic Battery Transfer Ring | Sterile field-compatible battery coupling | 1 |
| Operating Manual | Comprehensive user and clinical guide | 1 |
| Guarantee Card | Warranty documentation and registration | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and customisation options for the BJ1302 System 1000. We offer rapid delivery and comprehensive clinical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
BJ1109 Reciprocating saw (System 1000)
- The BJ1109 Reciprocating saw is designed for knee and hip surgeries operated by robots - Features an autoclavable design with imported motor for low noise and quick cutting - Specifications include an output power of ≥90w and oscillations up to 15000 osc/min - Comes with a warranty of 2 years for the handpiece and 3 months for consumable items - Advantages include autoclavable power tool, environment-friendly battery, and low noise operation
BJ1108 Overhaul saw (System 1000)
With the perfect shape of ergonomic design,whole unit is autoclavable,motor is imported,low noise, steadily and quickly cutting,no damage for soft tissue,long service life,be warranty for 2 years.
BJ1107B Acetabulum reaming drill (System 1000)
- The BJ1107B Acetabulum reaming drill is designed for acetabulum reaming in joint surgery - Features ergonomic design, autoclavable components, and imported motor for low noise and high torque - Customizable interface for different shafts and reamers, ensuring convenient and quick tool connecting - Output power of ≥75w, with speed ranging from 0-280 rpm and torque of 6.5 Nm - Comes with a standard configuration including handpiece, battery, charger, aseptic battery transfer ring, manual, and guarantee card
BJ1106 Sternum saw (System 1000)
- The BJ1106 Sternum saw is designed for thoracic surgery applications - Features ergonomic design and autoclavable components for easy cleaning - Powerful motor with low noise operation for efficient cutting - Comes with a 2-year warranty for peace of mind - Includes a handpiece, battery, charger, saw blade, and other essential accessories
BJ1105 Cranial Bur (System 1000)
- Autoclavable cranial bur designed for cranial surgery - Imported motor for low noise, high speed operation - Output power ≥90w with speed up to 60000 r.p.m - Includes handpiece, battery, charger, bur blade, and more - 2-year warranty on handpiece; 3-month warranty on battery
BJ1104 Cranial drill (System 1000)
- Powerful cranial drill for cranial surgery - Autoclavable and long-lasting with imported motor - Warranty for 2 years - Output power ≥105w, speed 0-1000 r.p.m, torque 3.3 Nm - Low noise design with ≤40 db

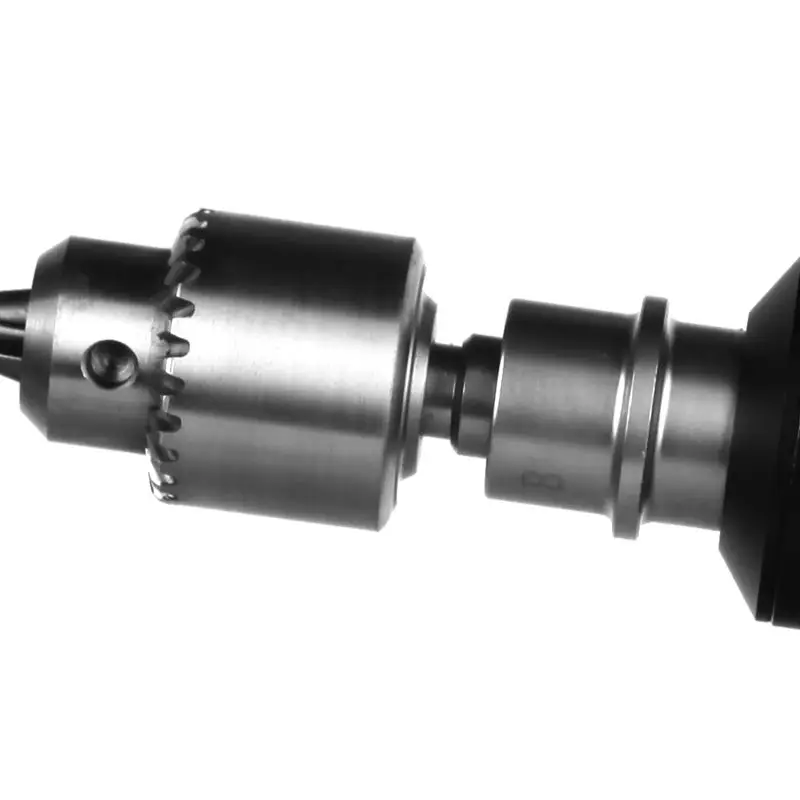

BJ1103B/D Dual function canulate drill (System 1000)
