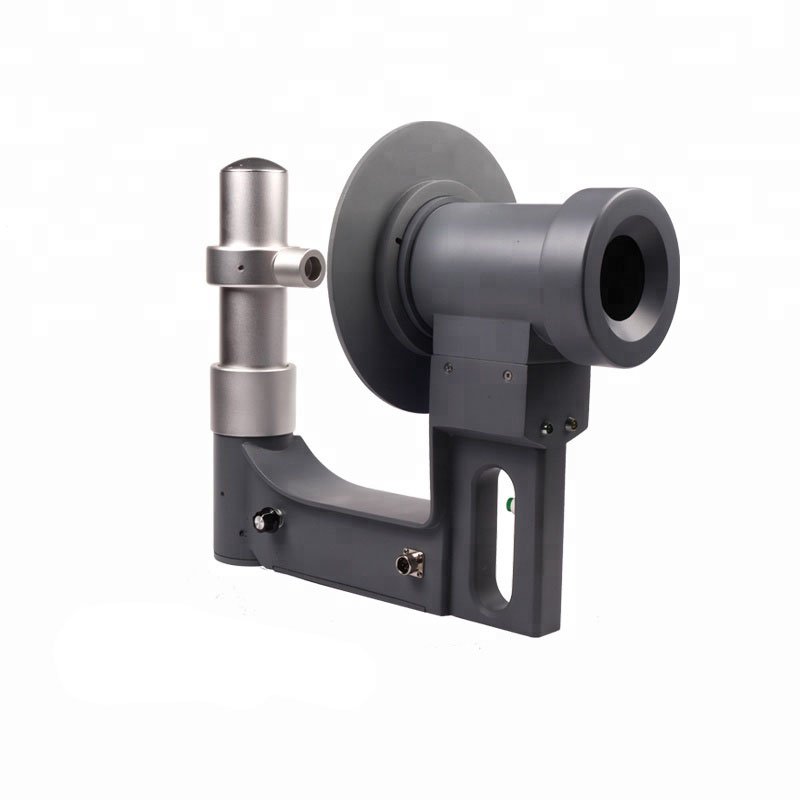

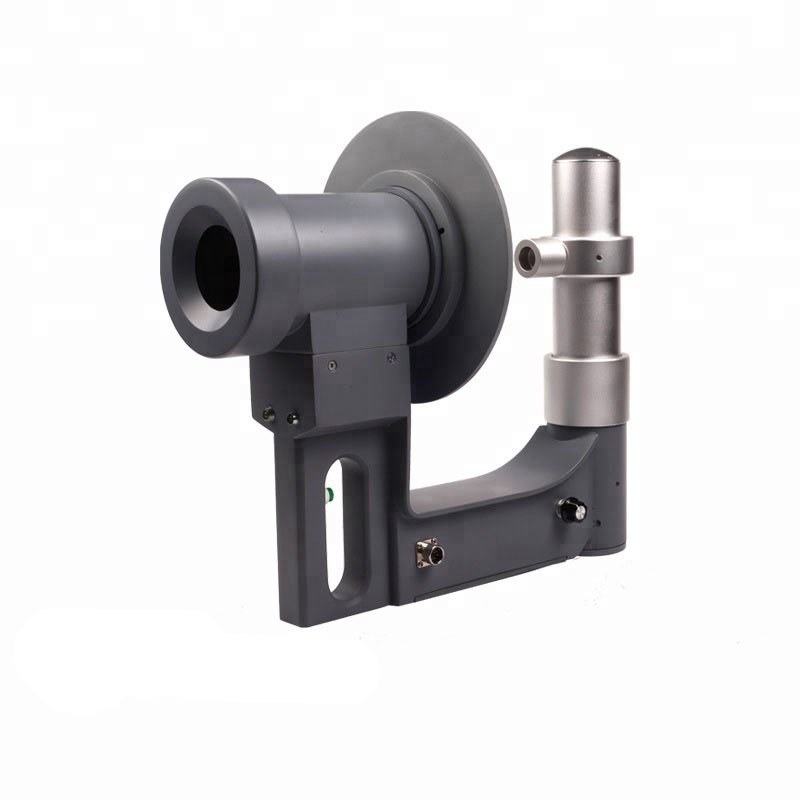

BJI-2P Portable X-ray Fluoroscopy Instrument
- High gain, high sensitivity, and high resolution image intensifer, offer your newer visual feeling.
- Can work at any time without the darkroom and protecting.
- Low radiation dose, reliable protection simple structure, small volume and light weight.
- Can connect with monitor and computer.
Download Catalogue
Original price was: $4,350.00.$4,290.00Current price is: $4,290.00.
Guaranteed Safe Checkout
Features & Compatibility
BJI-2P Portable X-ray Fluoroscopy Instrument
High-resolution portable fluoroscopy system delivering real-time imaging guidance without darkroom requirements. Compact, lightweight design with low radiation dose protection—ideal for intraoperative guidance, fracture reduction, and emergency field applications.
Clinical overview
The BJI-2P is a high-performance portable fluoroscopy system engineered for surgeons requiring real-time imaging guidance in diverse clinical and field settings. Whether in the operating room, emergency department, or remote location, this instrument delivers high-resolution imaging with minimal radiation exposure. The advanced image intensifier provides superior contrast and clarity, enabling precise visualization during fracture reduction, intramedullary nailing, foreign body removal, and other orthopedic procedures.
Designed for maximum portability without compromising image quality, the BJI-2P operates independently of darkroom facilities and integrates seamlessly with standard monitors and computer systems. Its robust construction, low power consumption (250 VA), and compact handheld case make it an essential tool for trauma centers, field hospitals, military medical units, and remote surgical teams.
Key features & surgeon benefits
Superior Resolution & Sensitivity
- High-gain, high-sensitivity image intensifier for enhanced visual clarity
- 50 lp/cm imaging resolution with ≥6 grey scale levels
- Φ50 mm field of vision optimized for extremity and trauma imaging
Flexible, Darkroom-Free Operation
- Operates without darkroom or protective shielding requirements
- Real-time monitor and computer integration for immediate image review
- Lightweight (8 kg) with handheld case for bedside, OR, and field use
Low Radiation Dose Protection
- X-ray leakage <1 mGy/hour at 50 cm (any angle)
- Optimized 60 kV / 0.35 mA tube parameters minimize patient and staff exposure
- Reliable protection with simple, proven structure
Multi-Specialty Applications
- Orthopedic trauma: fracture reduction, nailing, fixation verification
- Pediatric imaging, gynecological screening, industrial inspection
- Emergency field use, sporting events, remote and maritime environments
Technical specifications
| Model | BJI-2P |
|---|---|
| Field of Vision | Φ50 mm |
| Imaging Resolution | 50 lp/cm |
| Maximum Object Thickness | 140 mm |
| Screen Brightness | As applicable |
| X-ray Tube Voltage / Current | 60 kV / 0.35 mA |
| X-ray Leakage (50 cm, any angle) | <1 mGy/hour |
| Grey Scale | ≥6 levels |
| Power Supply | 90–240 V, 50 or 60 Hz |
| Power Consumption | 250 VA |
| Net Weight | 8 kg |
| Gross Weight | 13 kg |
| Handheld Case Dimensions | 66 × 53 × 22 cm |
| Display Options | Monitor or computer output |
| Primary Application | Four limbs, orthopedic trauma, intraoperative guidance |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| BJI-2P Fluoroscopy Unit | Portable X-ray fluoroscopy system with integrated image intensifier | 1 |
| Power Cable | Universal AC power cable (90–240 V, 50/60 Hz) | 1 |
| Video Output Cable | Monitor/computer connection cable | 1 |
| Handheld Protective Case | Padded carrying case with foam insert | 1 |
| User Manual & Documentation | Technical specifications, safety guidelines, operation instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a demonstration, or discuss customization options for your surgical facility or field medical program.
