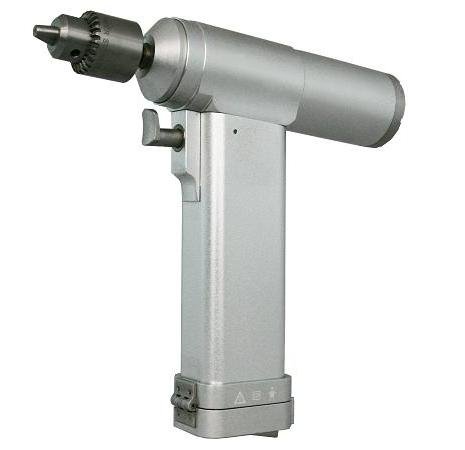

Bone Drill Model OTS-2
- The Bone Drill Model OTS-2 includes a handpiece, 2 batteries, an electrical charger, sterilizing channels, and 2 drill bits packaged in an aluminum box.
- The main unit can be sterilized by high temperature and high pressure up to 135C for safe and hygienic use.
- It features a powerful and portable design with variable speed control for precise and stable operation.
- The motor, made in Switzerland, allows for forward and opposite running directions, suitable for all kinds of joint operations.
- Technical data includes a working voltage of 14.4V, output power of 80W, and a charging time of half an hour for efficient performance.
- SKU
- OTS-2
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Bone Drill Model OTS-2
A powerful, portable cordless bone drill system engineered for precision in joint surgery. Features variable speed control, Swiss-made motor technology, and full sterilization capability up to 135°C for safe, hygienic operation across all orthopedic applications.
Clinical overview
The Bone Drill Model OTS-2 is a cordless, battery-powered surgical drill system designed for precision bone work in orthopedic and trauma procedures. The handpiece features a Swiss-engineered motor with variable speed control from 0–1200 RPM, enabling surgeons to select optimal cutting speeds for different bone densities and surgical phases. The system operates in both forward and reverse directions, providing flexibility for complex joint operations. Full sterilization capability up to 135°C via high temperature and high pressure ensures compliance with infection control protocols. The complete system includes two rechargeable 14.4V batteries with 30-minute charging cycles, an electrical charger, sterilizing channels, and two drill bits, all packaged in a durable aluminum case for portability and protection in the operating room.Key features & surgeon benefits
Precision & Power
- Variable speed control 0–1200 RPM without step increments
- Swiss-made motor for reliability and consistent torque
- Forward and reverse rotation for versatile surgical approaches
Cordless Convenience
- Two rechargeable 14.4V batteries with 1-hour runtime each
- 30-minute rapid charging for minimal OR downtime
- Portable aluminum case for easy transport and storage
Full Sterilization
- Handpiece sterilizable up to 135°C high-pressure steam
- Batteries do not require sterilization
- Integrated sterilizing channels for complete decontamination
Multi-Specialty Use
- Suitable for all types of joint operations
- Orthopedic and trauma surgery applications
- Includes 2 drill bits; additional bits available
Technical specifications
| Indications | All types of joint operations, orthopedic and trauma surgery |
|---|---|
| Sizes / range | Single handpiece system; 2 drill bits included |
| Material | Stainless steel handpiece, aluminum housing |
| Sterilisation | High temperature and high pressure up to 135°C |
| Packaging | Aluminum carrying case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
Motor & power specifications
| Parameter | Specification |
|---|---|
| Motor working voltage | 14.4V DC |
| Output power | 80W |
| Speed range | 0–1200 RPM (variable, ±20%) |
| Rotation direction | Forward and reverse |
| Noise level | 70 dB |
| Battery voltage | 14.4V |
| Battery runtime | 1 hour per charge |
| Charger input | AC 110V–240V, 50Hz |
| Charger output | 14.4V DC |
| Charging time | 30 minutes |
Standard system composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Cordless bone drill motor unit with chuck | 1 |
| Battery | Rechargeable 14.4V lithium-ion battery | 2 |
| Charger | Electrical charger (AC 110V–240V input) | 1 |
| Drill bits | Surgical drill bits (size and type as applicable) | 2 |
| Sterilizing channels | Integrated sterilization pathway components | As applicable |
| Carrying case | Aluminum protective case with foam insert | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your surgical facility.Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

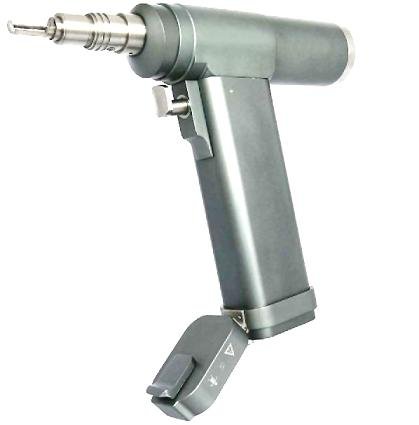

Cranial Bur Model OTS-9
- Powerful and portable cranial bur for neurosurgery - Motor made in Switzerland for precise and stable performance - Variable speed control without steps, up to 50000 RPM - Sterilizable main unit for high temperature and pressure up to 135℃ - Long-lasting battery with over 1 hour capacity

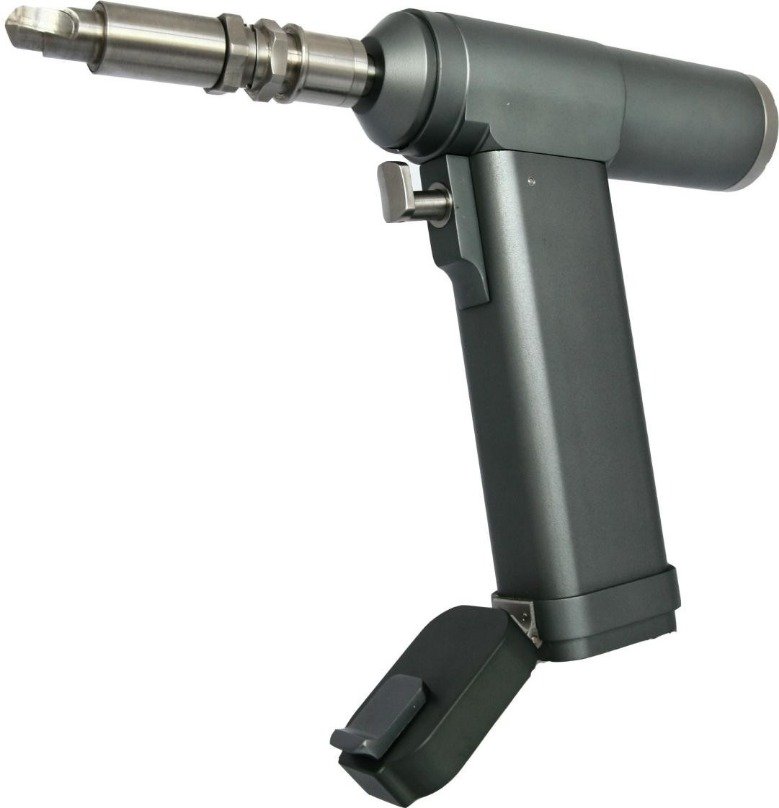

Self-Stopped Cranial Drill Model OTS-8
- Self-Stopped Cranial Drill Model OTS-8 for neurosurgery - Powerful and portable with variable speed control - Swiss-made motor for precision and stability - Self-stopped feature for increased safety during operations - Battery with 1-hour capacity and quick half-hour charge - Can be sterilized up to 135℃ for optimal hygiene
Bone Reciprocating Saw Model OTS-7
- Powerful reciprocating saw designed for bone surgeries - Ingenious design to ensure precise and efficient cutting - Reliable performance for consistent results - Ideal for various surgical procedures - Must-have tool for orthopedic surgeries

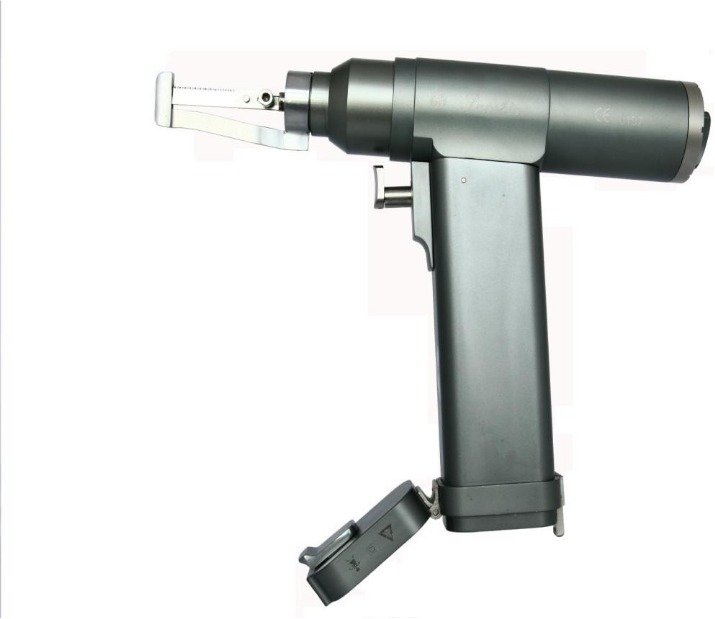

Sternum Saw Model OTS-6
- Ingenious design for precise thoracic operations - Powerful motor for efficient cutting - Safe operation for patient's well-being - Reliable performance for surgical procedures - Specifically designed for sternum operations
Acetabulum Burnishing Reamer Model OTS-5
- The Acetabulum Burnishing Reamer Model OTS-5 is designed for joint operations - It operates at a low speed but offers great torque for efficient performance - It can be easily connected to various acetabulum burnishing tools and medullary cavity expanding tools - High-quality construction ensures durability and reliable performance - Perfect for orthopedic surgeons looking for precision and versatility in their instruments

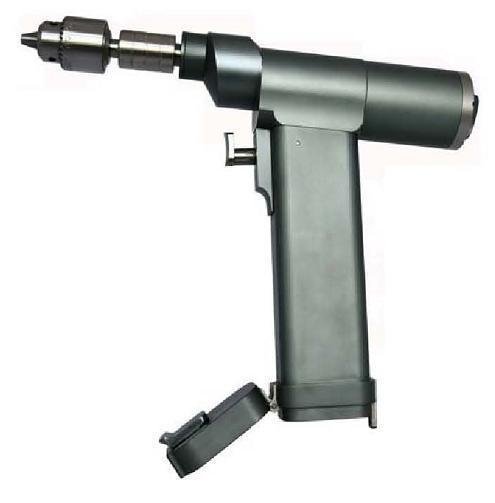

Dual Function Cannulated Drill Model OTS-4
