PFNA Nail Instrument Set
- Medical Use Only
- 2 Years Warranty
- 3-5 Days Delivery Time
$2,390.00
Guaranteed Safe Checkout
Features & Compatibility
PFNA Nail Instrument Set
Comprehensive surgical instrument set designed for proximal femoral nail antirotation (PFNA) procedures. Complete with 62 precision-engineered components for proximal and distal locking, soft tissue protection, and reliable intramedullary fixation. Engineered for trauma and orthopedic surgeons requiring a complete, organized solution for femoral nailing.
Clinical overview
The PFNA Nail Instrument Set is a complete, modular surgical system for minimally invasive intramedullary fixation of proximal femoral fractures. This comprehensive 62-piece set includes all necessary instruments for template development, guide pin placement, proximal and distal locking, soft tissue protection, and nail removal. Designed for trauma surgeons and orthopedic specialists, the system supports both standard and long nail applications with flexible positioning and locking options.
Each component is precision-manufactured from medical-grade stainless steel and titanium alloy, fully sterilizable, and organized in a dedicated instrument box for efficient OR workflow. The set accommodates multiple nail diameters and locking configurations, enabling surgeons to adapt technique to patient anatomy and fracture pattern.
Key features & surgeon benefits
Complete surgical pathway
- 62 precision instruments covering all procedural steps
- Proximal and distal locking options for anatomic flexibility
- Soft tissue protection devices integrated throughout
Optimized OR efficiency
- Organized instrument box with logical component arrangement
- Quick-coupling handles and standardized wrench sizes reduce setup time
- Dedicated depth gauges and positioning devices minimize fluoroscopy time
Long-term value
- 2-year manufacturer warranty with lifetime technical support
- Durable stainless steel and titanium construction withstands repeated sterilization
- Modular design allows selective component replacement without full set replacement
Adaptable to your needs
- Available in multiple nail diameter and locking configurations
- OEM customization and component substitution supported
- Compatible with standard surgical power tools and manual instrumentation
Technical specifications
| Indications | Proximal femoral fractures, femoral shaft fractures, intertrochanteric and subtrochanteric fractures, femoral nonunion |
|---|---|
| Sizes / range | Proximal guide sleeves φ16.5, φ11.2; Distal locking φ11, φ8.2, φ4.3; Guide pins φ3.2, φ2.8, φ2.5; Thread pins φ3.2×400 mm |
| Material | Medical-grade stainless steel, titanium alloy |
| Sterilisation | Steam autoclavable — all components |
| Packaging | Dedicated instrument box with foam-lined compartments |
| Warranty | 2 Year Manufacturer Warranty |

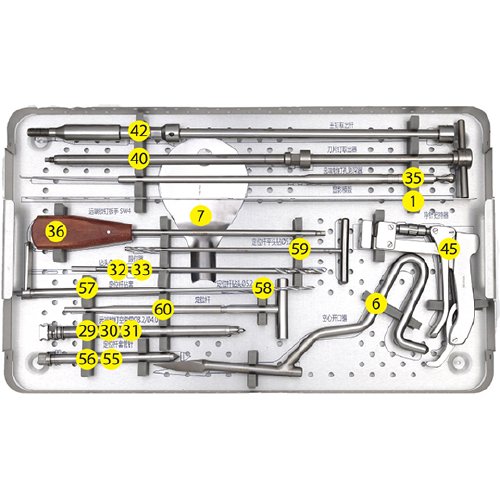

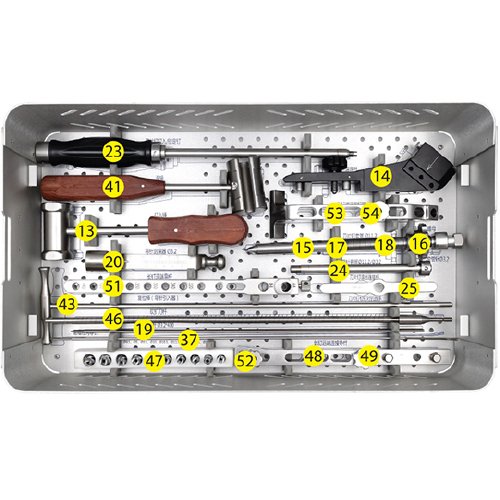

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Template for Development | 1 |
| 2 | Guide Sleeve φ16.5 | 1 |
| 3 | Guide Pin Sleeve φ16.5/φ3.2 | 1 |
| 4 | Handle with Quick Coupling | 1 |
| 5 | Proximal Hollow Drill Bit φ16.5/φ3.2 | 1 |
| 6 | Hollow Open Tapper | 1 |
| 7 | Protected Plate for Soft Tissue | 1 |
| 8 | Handle | 1 |
| 9 | Connecting Bolt M10×1.5/SW8 | 1 |
| 10 | Universal Wrench of Connecting Bolt SW8 | 1 |
| 11 | Main Pin Impactor | 1 |
| 12 | Open Wrench SW11 | 1 |
| 13 | Impactor Hammer | 1 |
| 14 | Proximal Guide Bar | 1 |
| 15 | Guide Sleeve φ11.2 | 1 |
| 16 | Support/Compression Nut | 1 |
| 17 | Guide Sleeve for Pins φ11.2/φ3.2 | 1 |
| 18 | Pins φ3.2 | 1 |
| 19 | Thread Pin φ3.2×400 mm | 1 |
| 20 | Depth Gauge φ3.2 | 1 |
| 21 | Proximal Hollow Position Stopper φ10.6/φ3.2 | 1 |
| 22 | Position Stopper | 1 |
| 23 | Screwdriver M7×1 L/SW4.5/φ3.2 | 1 |
| 24 | Connector | 1 |
| 25 | Wrench | 1 |
| 26 | Distal Guide Bar 180 | 1 |
| 27 | Distal Guide Bar 240 | 1 |
| 28 | Distal 90 Degree Guide Bar 180/240 | 1 |
| 29 | Distal Locking Pin Sleeve φ11/φ8.2 | 1 |
| 30 | Soft Tissue Separating Device φ8.2/φ4.3 | 1 |
| 31 | Sleeve Pin φ4.3 | 1 |
| 32 | Drill Bit φ4.3 | 1 |
| 33 | Position Stopper φ4.3/SW3 | 1 |
| 34 | Small Wrench SW3/φ4 | 1 |
| 35 | Distal Locking Holes Depth Gauge | 1 |
| 36 | Distal Locking Screw Wrench SW4 | 1 |
| 37 | Tail Hook Guide Pin φ2.8 | 1 |
| 38 | Tail Hollow Screwdriver φ2.8/SW6.5/SW11 | 1 |
| 39 | Tail Hollow Sleeve/Extension Rod SW11 | 1 |
| 40 | Blade Nail Device M7×1 L/SW4.5 | 1 |
| 41 | Sliding Hammer | 1 |
| 42 | Nail Remove Rod M10×1.5 | 1 |
| 43 | Reduction Rod (Guide Pin Leading Device) | 1 |
| 44 | Ball Head Guide Pin φ2.5/φ4 | 1 |
| 45 | Guide Pin Control Device | 1 |
| 46 | Soft Expansion Tool Rod φ2.5/φ8 | 1 |
| 47 | Soft Expansion Metallurgy φ8–φ13 | 1 |
| 48 | Long Nail Distal Connection Guide Pin | 1 |
| 49 | Long Nail Distal Connection Guide Bar Lock Wheels M8×1/SW5 | 1 |
| 50 | Locking Wheel Spanner | 1 |
| 51 | Long Nail Distal Guide Bar | 1 |
| 52 | Long Nail Distal Guide Pin Locking Wheels M8×1/SW5 | 1 |
| 53 | Long Nail Distal Positioning Frame | 1 |
| 54 | Long Nail Distal Positioning Frame Lock Wheels M6/SW5 | 1 |
| 55 | Positioning Pipe φ10/φ8.1 | 1 |
| 56 | Positioning Stem Bushing Needle φ8.1 | 1 |
| 57 | Positioning Stem Drilling Sheath φ8.1/φ5.2 | 1 |
| 58 | Positioning Drill Rod φ5.2 | 1 |
| 59 | Positioning Stem Flats Drill φ5.2 | 1 |
| 60 | Positioning Rod φ8.1/φ5.2 | 1 |
| 61 | Positioning Card | 1 |
| 62 | Instrument Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a formal quote, arrange a product demonstration, or discuss customization options for the PFNA Nail Instrument Set. We offer fast delivery and comprehensive technical support.
