Medical Pneumatic Micro Drill MMD100
- SKU
- OD-MMD100
- Brand
- Ortholimited
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

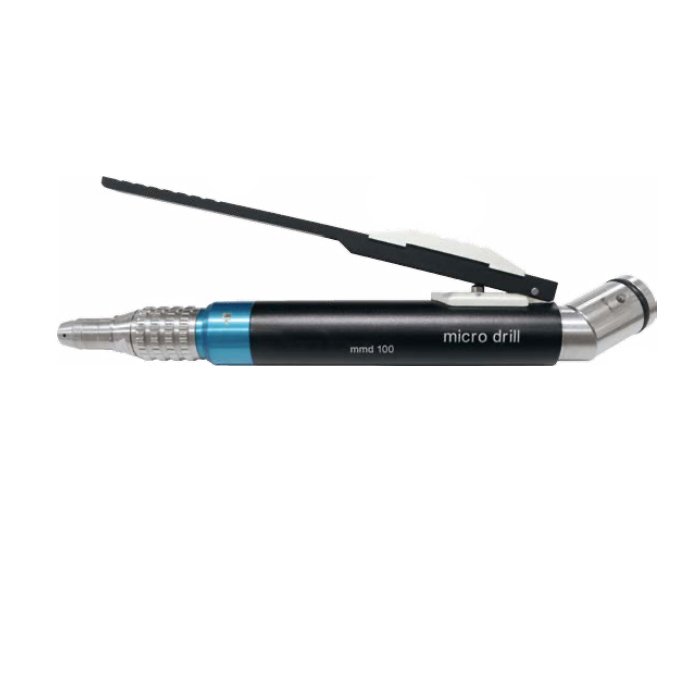

Medical Pneumatic Micro Drill MMD100
High-precision pneumatic micro drill engineered for orthopedic, trauma, and cranio-maxillofacial surgical applications. Variable speed control from 0–45,000 rpm with instant stop capability and safety-mode protection ensures optimal control and surgeon confidence in delicate procedures.
Clinical overview
The Medical Pneumatic Micro Drill MMD100 is a precision instrument designed for surgeons requiring reliable, variable-speed drilling in orthopedic, trauma, and cranio-maxillofacial procedures. With a lightweight design (175 g) and intuitive slide-switch control, the MMD100 delivers consistent performance across a wide range of surgical applications. The gradually adjustable running speed and instant stop-upon-release mechanism provide surgeons with superior control and tactile feedback during critical bone work.
Operating at 90–110 psi (7–8 kgf/cm²) with variable speeds from 0–45,000 rpm, the MMD100 accommodates both high-speed cutting and low-speed precision work. Safety-mode protection ensures the drill does not operate unintentionally, reducing risk during setup and changeover. The burguard and bur installation system is straightforward, minimizing operative time and allowing rapid instrument exchange.
Key features & surgeon benefits
Variable Speed Control
- 0–45,000 rpm range for versatile surgical applications
- Gradually adjustable speed with intuitive slide-switch interface
- Instant stop upon release for precise control
Ergonomic & Intuitive Design
- Lightweight at 175 g for reduced hand fatigue
- Easy burguard and bur installation
- Safety-mode protection prevents unintended operation
Pneumatic Engineering
- Operating pressure 90–110 psi (7–8 kgf/cm²)
- Hose connector for flexible OR setup
- FDA and CE approved for regulatory compliance
Adaptable Configuration
- OEM and custom configurations available
- Compatible with standard pneumatic systems
- Bespoke specifications upon request
Technical specifications
| Indications | Orthopedic, trauma, and cranio-maxillofacial surgery |
|---|---|
| Speed range | 0–45,000 rpm (variable) |
| Net weight | 175 g |
| Operating pressure | 90–110 psi (7–8 kgf/cm²) |
| Control | Slide switch with safety mode; gradually adjustable speed; instant stop upon release |
| Connection | Hose connector for pneumatic systems |
| Regulatory approval | FDA and CE approved |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Pneumatic Micro Drill MMD100 | Main unit with slide-switch control and safety mode | 1 |
| Burguard | Protective guard for bur installation | 1 |
| Hose connector | Pneumatic connection to air supply | 1 |
Get in touch for pricing & availability
The Medical Pneumatic Micro Drill MMD100 is available with free shipping and FDA/CE approval. Contact our sales team today for competitive pricing, technical specifications, and custom configuration options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
