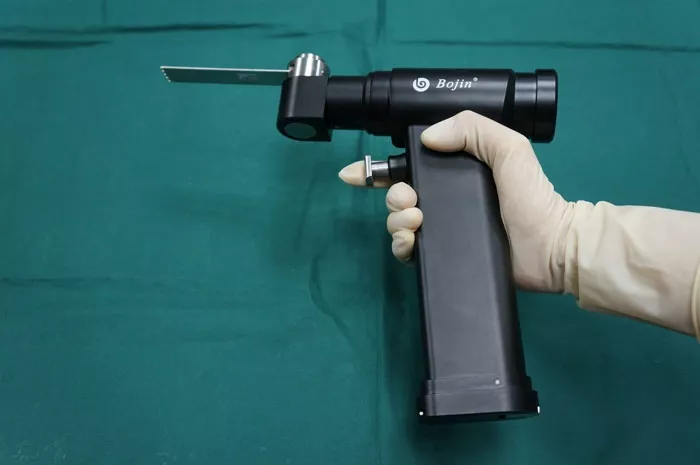

BJ1401 Sagittal Saw (System 1400)
– The BJ1401 Sagittal Saw is designed for cutting bone during joint surgery
– Features include an ergonomic design, autoclavable unit, imported motor for low noise operation
– Offers a variety of saw blade thickness and lengths for customization
– Output power of ≥90w with oscillations up to 15000 osc/min
– Comes with a one-year warranty and standard configuration includes one handpiece, two batteries, and three saw blades.
$1,390.00
Guaranteed Safe Checkout
Features & Compatibility
BJ1401 Sagittal Saw (System 1400)
Precision bone cutting for joint surgery with ergonomic design, autoclavable construction, and imported low-noise motor. Delivers ≥90W output power with oscillations up to 15,000 osc/min for steady, damage-free cutting of soft tissue.
Clinical overview
The BJ1401 Sagittal Saw is engineered for precision bone cutting in joint surgery applications. Its ergonomic design reduces surgeon fatigue during extended procedures, while the fully autoclavable construction ensures complete sterilization at 135°C (or up to 155°C for improved models) with 1.6 MPa pressure, eliminating bacilli and viruses resistant to standard sterilization methods.
The imported motor delivers consistent, low-noise operation with oscillations up to 15,000 osc/min and ≥90W output power, enabling steady, controlled cutting without damage to adjacent soft tissue. Available in multiple blade configurations (70–100mm lengths, 0.8–1.27mm thickness), the system adapts to diverse surgical approaches and can be customized to meet specific institutional requirements.
Key features & surgeon benefits
Optimized for Surgical Comfort
- Ergonomic handpiece design reduces fatigue during prolonged use
- Lightweight, balanced construction for improved control and precision
- Low noise operation (≤75 dB) minimizes OR stress
Reliable Cutting Power
- ≥90W output power with 0–15,000 osc/min variable speed
- Steady, controlled oscillation prevents tissue trauma
- Imported motor ensures consistent performance and long service life
Fully Autoclavable System
- Complete handpiece autoclavable at 135°C (improved type ≤155°C)
- Environment-friendly nickel-metal hydride batteries
- Aseptic battery transfer ring included for safe handling

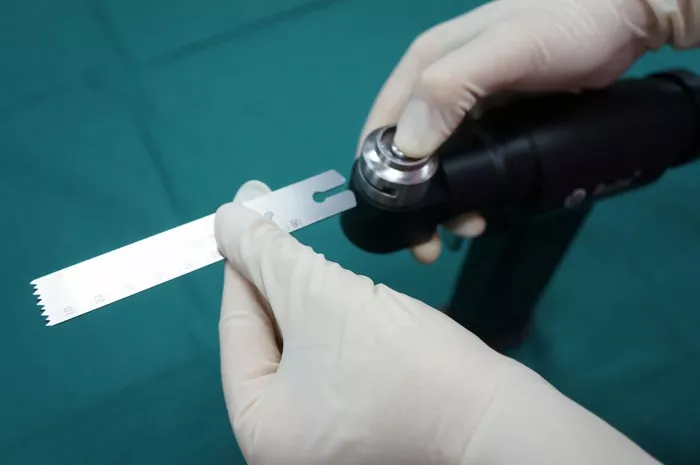

Flexible Blade Options
- Multiple blade lengths: 70mm, 90mm, 100mm
- Multiple blade thicknesses: 0.8mm, 1.0mm, 1.2mm, 1.27mm
- Custom blade configurations available per surgical protocol
Technical specifications
| Indications | Bone cutting during joint surgery |
|---|---|
| Sizes / range | Blade lengths: 70mm, 90mm, 100mm; Blade thickness: 0.8mm, 1.0mm, 1.2mm, 1.27mm |
| Material | Medical stainless steel handpiece; nickel-metal hydride batteries |
| Output power | ≥90W |
| Oscillations | 0–15,000 osc/min |
| Operating voltage | 9.6V |
| Noise level | ≤75 dB |
| Sterilisation | 135°C autoclavable (Improved type ≤155°C, 1.6 MPa) |
| Packaging | Handpiece, 2 batteries, charger, 3 saw blades, aseptic battery transfer ring, operating manual, guarantee card |
| Warranty | Handpiece: 1 year; Batteries & consumables: 3 months |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

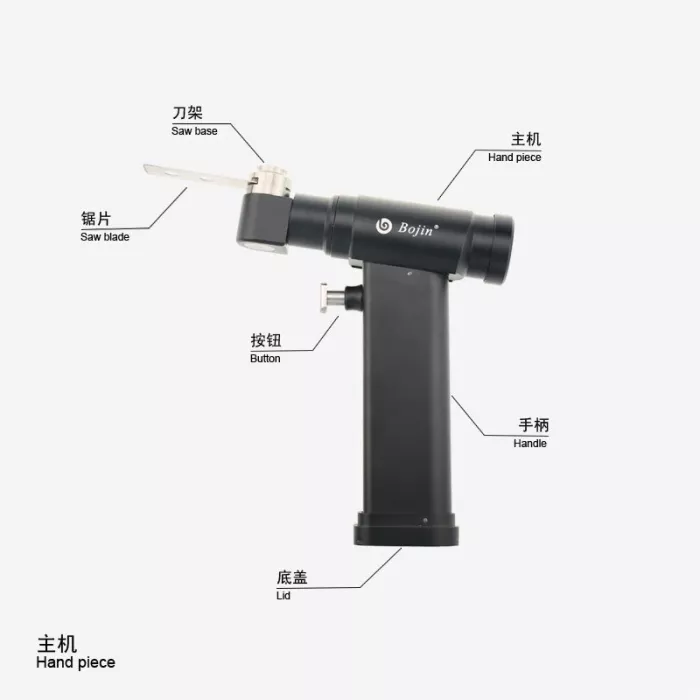

| Handpiece | BJ1401 sagittal saw handpiece, autoclavable | 1 |

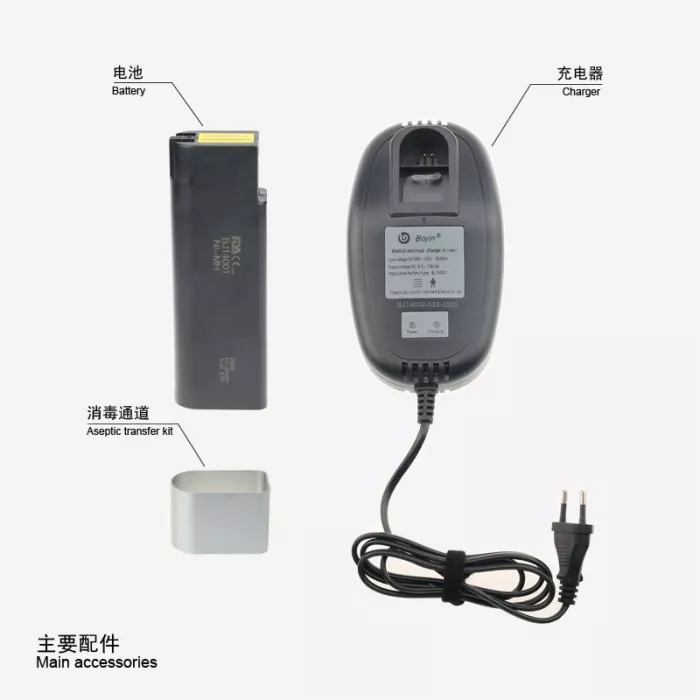

| Battery | Nickel-metal hydride rechargeable battery, 9.6V | 2 |
| Charger | Battery charger unit | 1 |
| Saw blade | Medical stainless steel saw blade (assorted lengths/thickness) | 3 |
| Battery transfer ring | Aseptic battery transfer ring for safe handling | 1 |
| Documentation | Operating manual and guarantee card | 1 set |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a technical demonstration of the BJ1401 Sagittal Saw for your surgical facility.
