BJ1407B Acetabulum Reaming Drill (System 1400)
- Dual function acetabulum reaming drill for joint surgery
- High torque output power of ≥75w
- Speed range from 0-280 r.p.m for precise operation
- Low noise level of ≤40 db for a quiet operation environment
- Autoclavable for sterilization at 135°C
- Comes with one handpiece, battery, charger, and warranty card
- Environment friendly nickel-metal hydride battery for extended usability
- SKU
- 75C430C5FEC1
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
BJ1407B Acetabulum Reaming Drill (System 1400)
Dual-function acetabulum reaming drill engineered for precision joint surgery. High torque output (≥75W), variable speed control (0–280 rpm), and fully autoclavable design ensure reliable performance in demanding surgical environments with minimal noise (≤40 dB).
Clinical overview

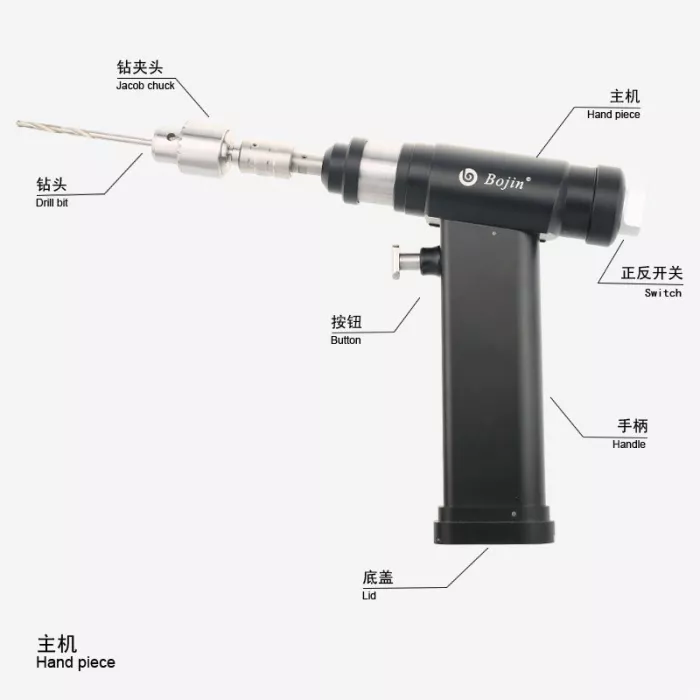

The BJ1407B is a purpose-built acetabulum reaming drill designed for high-precision joint surgery applications. With an ergonomic handpiece design and imported motor technology, this system delivers consistent, controlled reaming performance. The fully autoclavable construction (135°C / 1.6 MPa) ensures complete sterilization of all components except the battery, meeting stringent infection control protocols. Low noise operation (≤40 dB) creates a quieter surgical environment while maintaining high torque output (6.5 Nm) for efficient bone reaming.
The system features variable speed control (0–280 rpm) optimized for acetabulum reaming procedures, allowing surgeons to adjust rotational speed for different bone densities and reaming stages. The environment-friendly nickel-metal hydride battery provides extended runtime and can be easily removed post-operatively to preserve battery longevity. Quick-connect tool interfaces enable rapid changeover between different reamers and shaft configurations, reducing operative time and improving workflow efficiency.
Key features & surgeon benefits
High Torque, Precise Control
- 6.5 Nm torque output for efficient reaming
- Variable speed 0–280 rpm for bone density adaptation
- ≥75W motor power ensures consistent performance
Ergonomic & Efficient

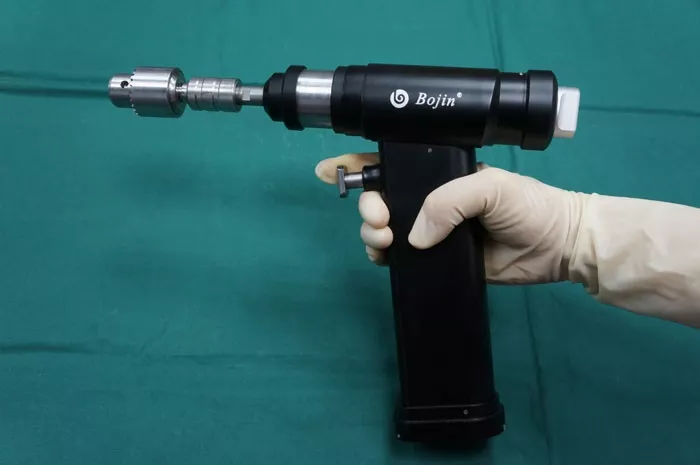

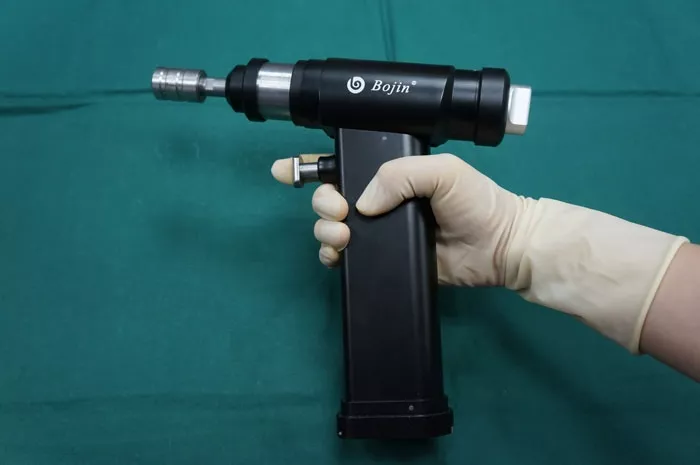

- Ergonomic handpiece design reduces surgeon fatigue

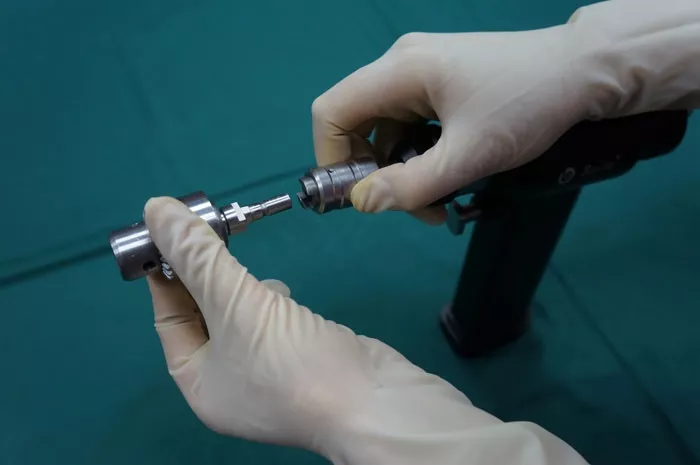

- Quick-connect interfaces for rapid tool changeover
- Low noise operation (≤40 dB) for quieter OR environment
Fully Autoclavable Design
- Complete handpiece autoclavable at 135°C (improved type ≤155°C)
- 1.6 MPa pressure sterilization kills resistant pathogens
- Battery removable for separate handling and longevity
Flexible Interface Options
- Custom shaft and reamer interfaces available
- Compatible with facility-specific instrumentation
- OEM customization upon request
Technical specifications
| Indications | Acetabulum reaming in joint replacement and revision surgery |
|---|---|
| Output Power | ≥75 W |
| Speed Range | 0–280 rpm |
| Torque | 6.5 Nm |
| Operating Voltage | 9.6 V |
| Noise Level | ≤40 dB |
| Sterilisation | Autoclavable at 135°C (improved type ≤155°C), 1.6 MPa |
| Material | Medical-grade stainless steel handpiece; nickel-metal hydride battery |

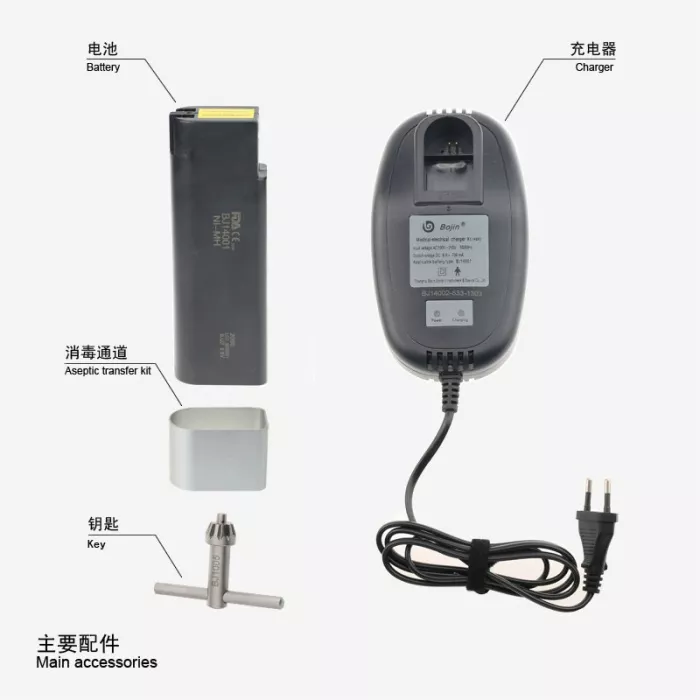

| Packaging | Handpiece, battery, charger, aseptic battery transfer ring, operating manual, warranty card |
| Warranty | 2 Year Manufacturer Warranty (handpiece 1 year; battery & consumables 3 months) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | BJ1407B acetabulum reaming drill unit | 1 |
| Battery | Nickel-metal hydride rechargeable battery (9.6 V) | 1 |
| Charger | Battery charger unit | 1 |
| Aseptic Battery Transfer Ring | For safe battery handling during sterilization | 1 |
| Operating Manual | User and maintenance instructions | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a clinical demonstration of the BJ1407B system. We provide fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
