BJ4102 Bone drill (System 4000)
- Autoclavable bone drill for trauma surgery
- 110w output power with high speed and low noise
- 2-year warranty on the motor
- Comes with one handpiece, battery, charger, and more
- Environmentally friendly nickel-metal hydride battery
- SKU
- D645A1D6A79D
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

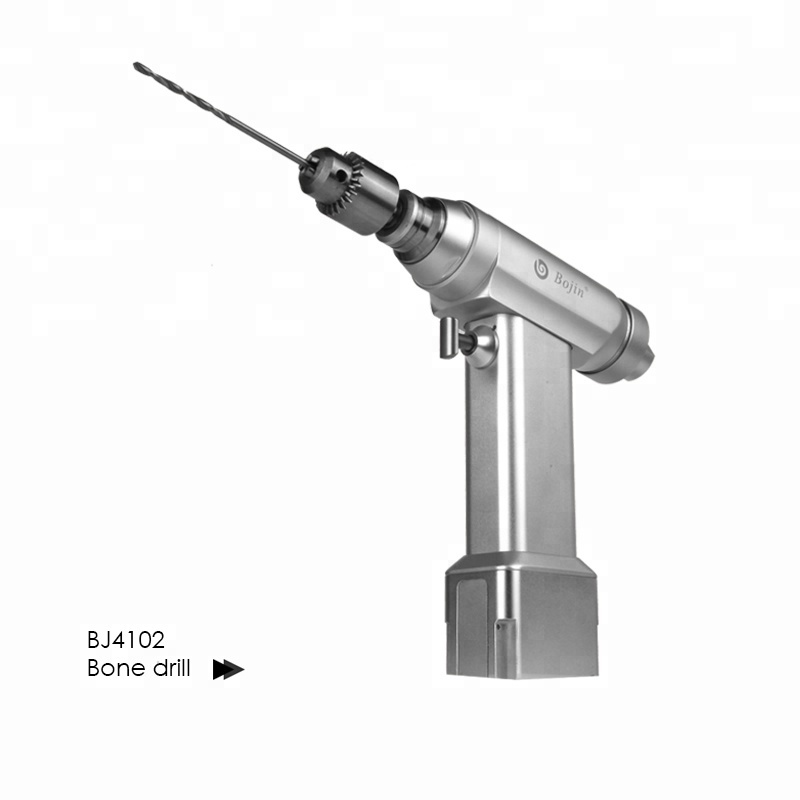

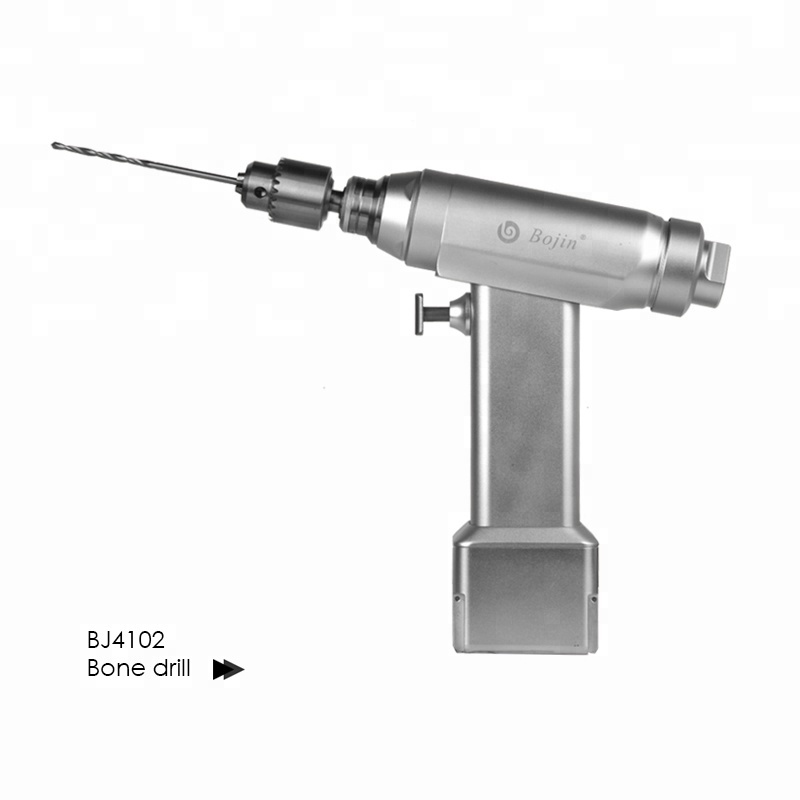

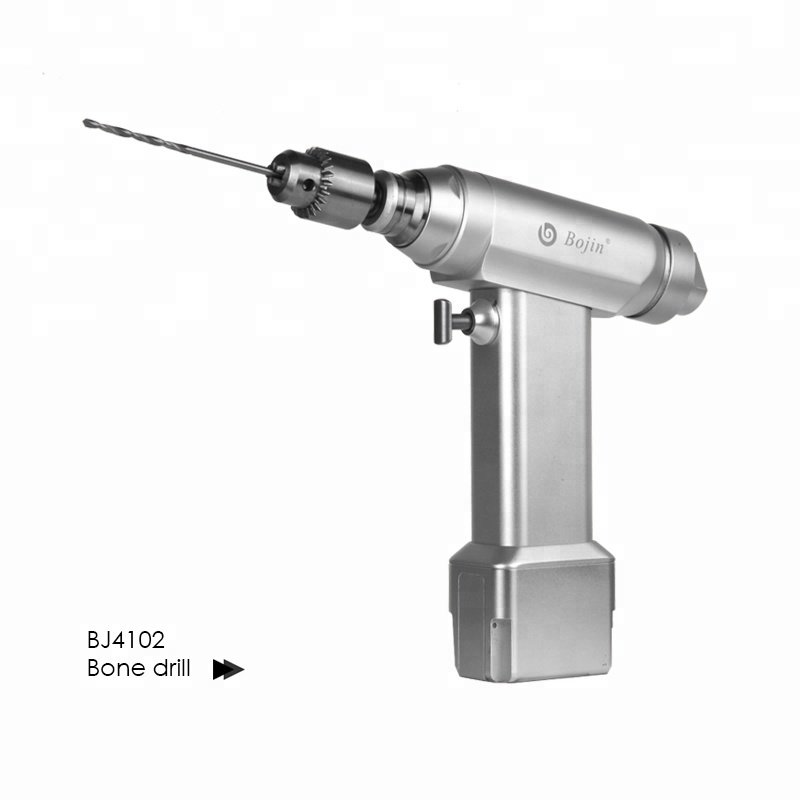

BJ4102 Bone Drill (System 4000)
Autoclavable bone drill engineered for trauma plate and screw fixation. 110W output power delivers high-speed, low-noise performance with ergonomic design and imported motor technology. Reliable, durable, and built for the operating theatre.
Clinical overview
The BJ4102 bone drill is purpose-designed for trauma surgery applications requiring reliable, high-precision drilling of bone for plate and screw fixation. With an imported motor delivering 110W output power at 1100 rpm and 3.2 Nm torque, the system provides consistent performance across varied bone densities. The ergonomic handpiece design reduces surgeon fatigue during extended procedures, while the low-noise operation (≤75 dB) maintains a controlled surgical environment.
Full autoclavability at 155°C ensures rapid turnaround between cases and eliminates cross-contamination risk. The environmentally friendly nickel-metal hydride battery system provides reliable cordless operation without the environmental burden of disposable power sources. Two-year manufacturer warranty on the motor and comprehensive technical support ensure long-term clinical and economic value.
Key features & surgeon benefits
High-Speed, Low-Noise Operation
- 110W output power with 1100 rpm speed
- 3.2 Nm torque for consistent drilling through cortical and cancellous bone
- ≤75 dB noise level for controlled OR environment
Full Autoclavability
- Entire handpiece autoclavable at 155°C, 1.6 MPa
- Rapid sterilisation cycle reduces case turnover time
- Eliminates pathogen transmission between procedures
Eco-Friendly Power System
- Nickel-metal hydride battery technology reduces environmental impact
- Rechargeable system eliminates single-use battery waste
- 14.4V operation with fast charger included in standard kit
Surgeon-Centric Design
- Balanced handpiece reduces fatigue during prolonged use
- Intuitive controls for seamless workflow integration
- Aseptic battery transfer ring maintains sterile field
Technical specifications
| Output Power | 110W |
|---|---|
| Speed (rpm) | 1100 |
| Torque (Nm) | 3.2 |
| Operating Voltage | 14.4V |
| Noise Level (dB) | ≤75 |
| Sterilisation Temperature | 155°C (handpiece only) |
| Sterilisation Pressure | 1.6 MPa |
| Indications | Drilling holes for plate and screw fixation in trauma surgery |
| Drill Bit Capacity | Up to 6mm |
| Battery Type | Nickel-Metal Hydride (NiMH) |
| Packaging | Handpiece, battery, charger, aseptic transfer ring, operating manual, guarantee card |
| Warranty | 2 Year Manufacturer Warranty (handpiece); 3 months (battery and consumables) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | BJ4102 bone drill handpiece with ergonomic design | 1 |
| Battery | 14.4V Nickel-Metal Hydride rechargeable battery | 1 |
| Charger | Fast charger for 14.4V battery | 1 |
| Aseptic Transfer Ring | Sterile battery transfer ring for maintaining aseptic field | 1 |
| Operating Manual | Comprehensive user and maintenance guide | 1 |
| Guarantee Card | 2-year warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and customisation options for the BJ4102 bone drill system. We provide rapid delivery and comprehensive technical support to ensure seamless integration into your surgical programme.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
