BJ4103 Canulate drill(System 4000)
- Autoclavable cannulated drill for K-wires or intramedullary interlocking nail surgery
- Imported motor for low noise operation
- High speed with proper alignment for precise procedures
- 2-year warranty for peace of mind
- Includes handpiece, battery, charger, transfer ring, manual, and guarantee card
- SKU
- 18CE7FBF8F51
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

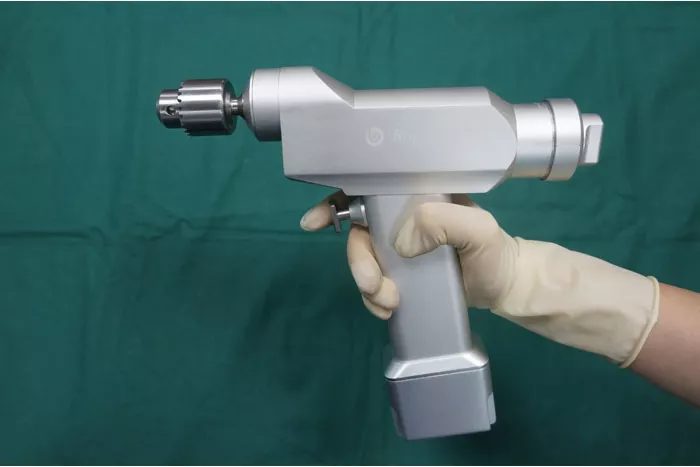

BJ4103 Cannulated Drill (System 4000)
Autoclavable cordless cannulated drill for K-wire and intramedullary interlocking nail surgery. Imported motor delivers low-noise, high-speed operation with precise alignment. Ergonomic design, complete with handpiece, battery, charger, and transfer ring.
Clinical overview
The BJ4103 is a fully autoclavable cordless cannulated drill designed for precision K-wire fixation and intramedullary interlocking nail procedures. The ergonomic handpiece integrates an imported low-noise motor with high-speed capability and superior alignment, enabling consistent, controlled drilling in trauma and arthroscopic applications. The system operates at variable speeds (0–630 rpm standard, 0–1000 rpm customisable) with 3.6 Nm torque and ≥90 W output power, delivering reliable performance across a range of surgical scenarios.
Complete sterilisation compatibility at 155°C (improved type) ensures the entire handpiece can be processed through standard autoclave cycles without degradation. The nickel-metal hydride battery system provides extended runtime with minimal self-discharge, while the aseptic transfer ring maintains sterility during handpiece exchange. Low operational noise (≤40 dB) and balanced weight distribution reduce surgeon fatigue during extended procedures.
Key features & surgeon benefits
Full Autoclave Compatibility
- Entire handpiece autoclavable at 155°C
- 1.6 MPa pressure rated for standard steam cycles
- Eliminates cross-contamination risk
Precision & Control
- High-speed motor with proper alignment for accurate drilling
- Variable speed control (0–630 rpm standard)
- 3.6 Nm torque for consistent bone engagement
Cordless Convenience
- Rapid battery charge cycle with included charger

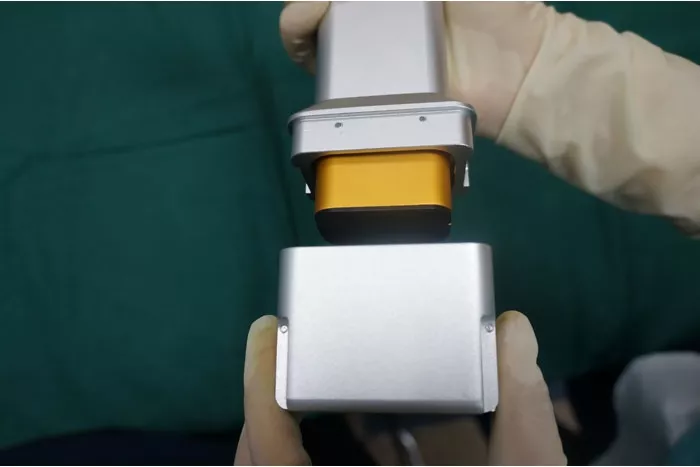

- Aseptic transfer ring for sterile handpiece exchange
- Low operational noise (≤40 dB) for OR comfort
Long Service Life
- Imported motor engineered for durability
- 2-year handpiece warranty; 3-month battery warranty
- Environment-friendly nickel-metal hydride battery
Technical specifications
| Indications | K-wire fixation, intramedullary interlocking nail surgery, arthroscopic procedures |
|---|---|
| Output Power | ≥90 W |
| Speed (rpm) | 0–630 (standard) / 0–1000 (customisable) |
| Torque | 3.6 Nm |
| Operating Voltage | 14.4 V |
| Noise Level | ≤40 dB |
| Sterilisation Temperature | 155°C (improved type) |
| Sterilisation Pressure | 1.6 MPa |
| Material | Stainless steel handpiece, nickel-metal hydride battery |
| Packaging | Handpiece, battery, charger, aseptic transfer ring, operating manual, guarantee card |
| Warranty | 2 Year Handpiece Warranty; 3 Month Battery & Consumables Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

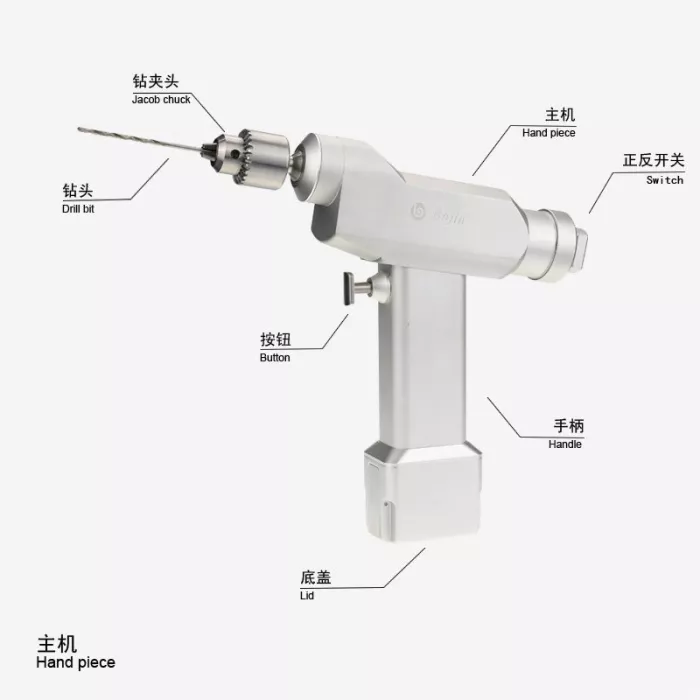

| Handpiece | Cordless cannulated drill handpiece with ergonomic design | 1 |

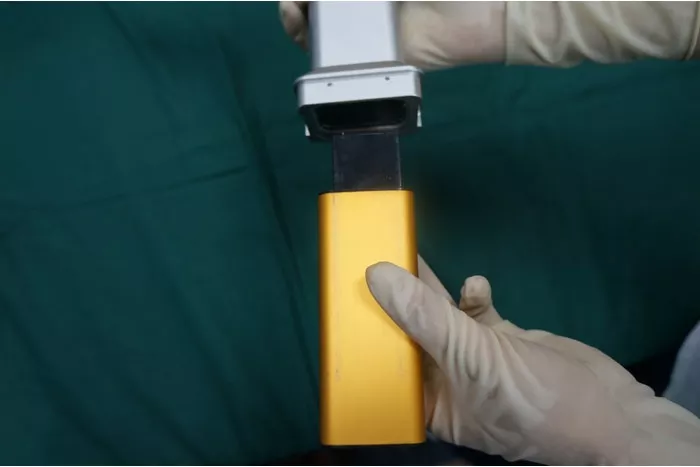

| Battery | Nickel-metal hydride rechargeable battery (14.4 V) | 1 |
| Charger | Battery charger with standard mains connection | 1 |
| Transfer Ring | Aseptic battery transfer ring for sterile handpiece exchange | 1 |
| Operating Manual | Multilingual instruction manual with sterilisation & maintenance guidelines | 1 |
| Guarantee Card | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options (including variable speed configurations), or arrange a clinical demonstration of the BJ4103 Cannulated Drill System.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
