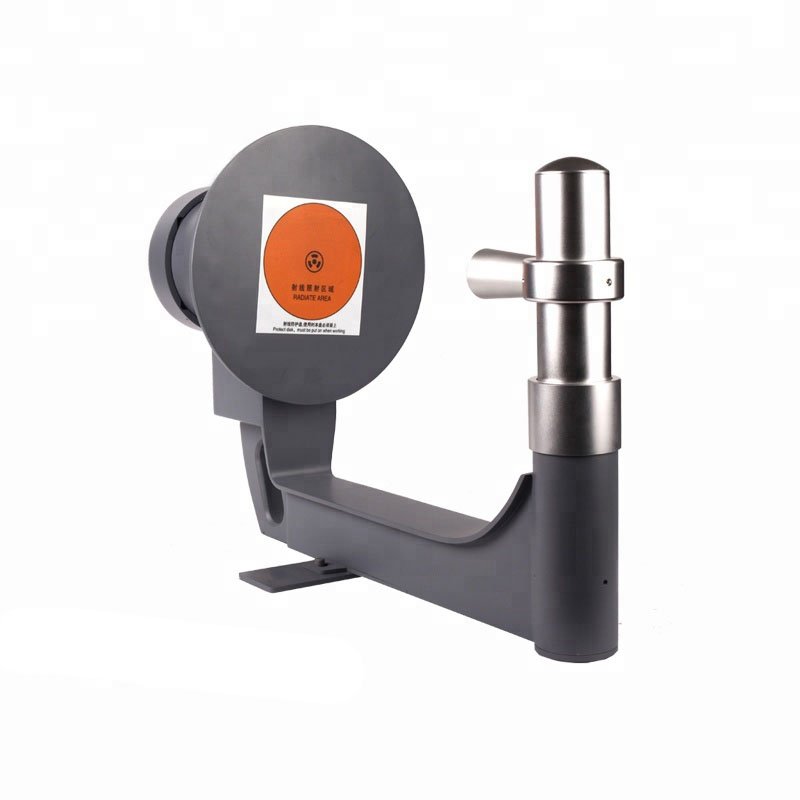

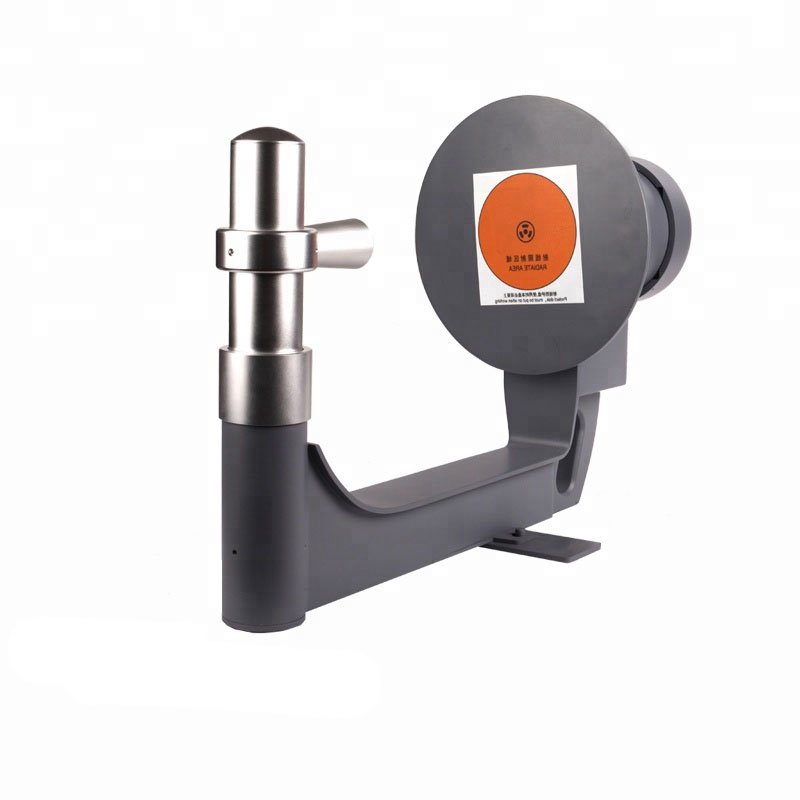

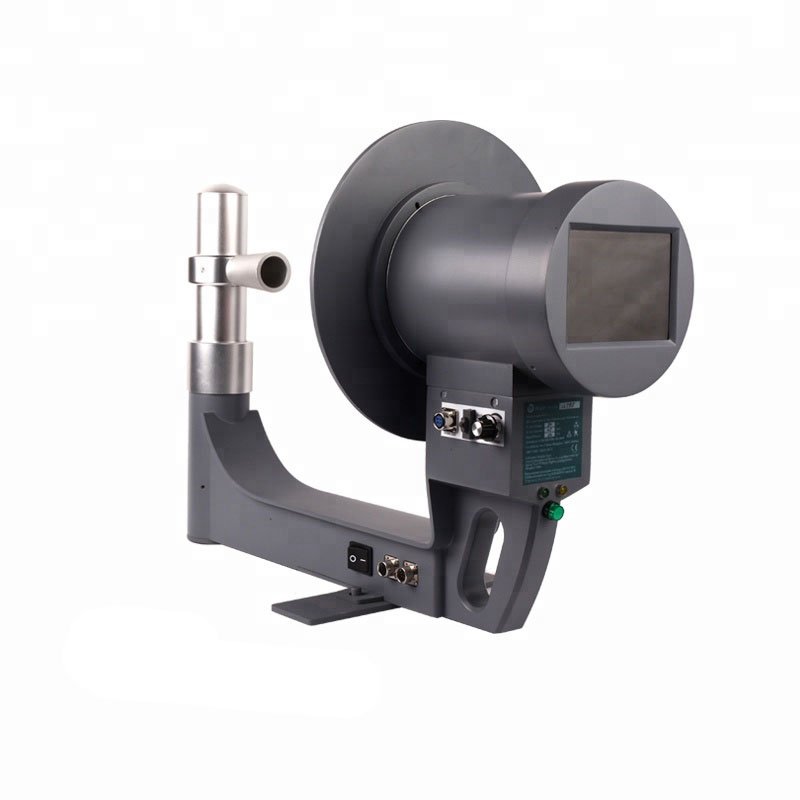

BJI-2J Portable X-ray Fluoroscopy Instrument
- High gain, high sensitivity, and high resolution image intensifer, offer your newer visual feeling.
- Can work at any time without the darkroom and protecting.
- Low radiation dose, reliable protection simple structure, small volume and light weight.
- Can connect with monitor and computer.
Download Catalogue
Original price was: $7,970.00.$7,790.00Current price is: $7,790.00.
Guaranteed Safe Checkout
Features & Compatibility
BJI-2J Portable X-ray Fluoroscopy Instrument
High-performance portable X-ray fluoroscopy system with advanced image intensifier technology. Delivers exceptional image resolution and low radiation dose in a compact, lightweight design suitable for intraoperative guidance, emergency treatment, and field applications.
Clinical overview
The BJI-2J is a high-performance portable X-ray fluoroscopy system engineered for surgeons and clinicians who require real-time imaging guidance in diverse clinical settings. Whether in the operating room, emergency department, or remote field location, this instrument delivers exceptional image quality with minimal radiation exposure. Its compact form factor and lightweight construction make it ideal for intraoperative fracture reduction, fixation verification, intramedullary nail placement, foreign body localization, and repeat examinations during complex procedures.
The advanced image intensifier provides high gain, high sensitivity, and superior resolution (30 lp/cm), eliminating the need for darkroom preparation. Direct monitor and computer connectivity enable seamless integration into existing surgical workflows and documentation systems. With a maximum objective thickness of 300mm and field of vision of Φ100mm, the system accommodates a wide range of anatomical regions and clinical applications.
Key features & surgeon benefits
Superior Resolution & Sensitivity
- High-gain image intensifier with 30 lp/cm resolution
- Exceptional contrast and grey scale (≥6 levels)
- Real-time visualization without darkroom requirement
Seamless Integration & Portability
- Lightweight (8 kg net) handheld design for OR and field use
- Direct monitor and computer connectivity for documentation
- Compact carrying case (66×53×22 cm) for transport
Low Radiation Dose & Efficiency
- Minimal X-ray leakage (<1 mGy/hour at 50 cm)
- Reduced procedure time with real-time guidance
- Lower operational costs with 250 VA power consumption
Multi-Specialty Applications
- Four-limb orthopedic imaging and guidance
- Emergency and remote-site trauma management
- Pediatric X-ray, industrial inspection, and research use
Technical specifications
| Model | BJI-2J |
|---|---|
| Field of Vision | Φ100 mm |
| Imaging Resolution | 30 lp/cm |
| Maximum Objective Thickness | 300 mm |
| Screen Brightness | Applicable |
| X-ray Tube Voltage / Current | 75 kV / 0.35 mA |
| X-ray Leakage | <1 mGy/hour (50 cm from tube, any angle) |
| Grey Scale | ≥6 levels |
| Power Supply | 90–240 V, 50 or 60 Hz |
| Power Consumption | 250 VA |
| Net Weight | 8 kg |
| Gross Weight | 13 kg |
| Handheld Case Dimensions | 66 × 53 × 22 cm |
| Display Output | Monitor and computer compatible |
| Primary Application | Four-limb orthopedic imaging |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| BJI-2J Fluoroscopy Unit | Portable X-ray fluoroscopy system with image intensifier | 1 |
| Handheld Case | Protective carrying case for transport and storage | 1 |
| Power Cable | Universal voltage input (90–240 V, 50/60 Hz) | 1 |
| Monitor/Computer Interface Cable | For real-time image display and documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a demonstration, or discuss custom configurations for your surgical program or facility.
Email: info@orthopedicdrills.com
