CapnoVet Hand Held CO2 Monitor
- SKU
- OD-00435
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CapnoVet Hand Held CO2 Monitor
Portable sidestream EtCO2 sensor with integrated SpO2 monitoring. Compact design connects via single eight-pin plug. Ideal for clinical and emergency respiratory assessment, CPR monitoring, and endotracheal tube verification.
Clinical overview
The CapnoVet Hand Held CO2 Monitor is a portable capnography system designed for real-time respiratory assessment in clinical and emergency settings. Using NDIR single-beam optics with dual-wavelength technology, the device provides rapid, accurate EtCO2 measurement without moving parts, ensuring reliability in demanding environments. The integrated SpO2 monitoring capability enables comprehensive respiratory and oxygenation assessment from a single compact device.
Key clinical applications include monitoring respiratory status during cardiopulmonary resuscitation, assisting intubation and extubation decisions, verifying endotracheal tube placement, detecting accidental extubation, confirming ventilation adequacy during transport, and analyzing sleep-related respiratory conditions. The 5.0-inch colorful TFT LCD display provides clear waveform visualization and trend data, while dual-color LED indicators (yellow/red) and audible alarms alert clinicians to critical changes in real time.
Key features & surgeon benefits
Comprehensive Respiratory Assessment
- Simultaneous SpO2, pulse rate, EtCO2, and respiratory rate monitoring
- Real-time waveform display on 5.0" colorful TFT LCD
- Rapid initialization: CO2 scan visible in 5 seconds
Portable & User-Friendly Design
- Handheld form factor with single eight-pin connection to host
- No host space occupation—minimal setup footprint
- Dual-color LED and audible alarm system for immediate alerts
Advanced Software & Analysis
- 255-hour historical data replay via USB to PC
- Professional data analysis software with unlimited patient storage
- EtCO2 and SpO2 trend tables and graphical reporting
Flexible SpO2 Sensor Options
- Adult hard-shell and soft-shell sensors
- Neonatal and pediatric sensor configurations
- Multi-site Y-type and external cable options available
Technical specifications
| Indications | CPR monitoring, intubation/extubation assessment, ET tube placement verification, accidental extubation detection, ventilation verification during transport, sleep condition analysis |
|---|---|
| Display | 5.0" colorful TFT LCD with real-time waveform and trend data |
| CO2 Measurement Range | 0–99 mmHg; 0–13% respiratory rate 2–150 bpm |
| CO2 Resolution | 0.1 mmHg (0–40 mmHg); 0.25 mmHg (40–99 mmHg); Respiratory rate 1 bpm |
| CO2 Precision | ±2 mmHg (0–40 mmHg); ±5% of reading (40–99 mmHg); Respiratory rate ±1 bpm |
| CO2 Sample Rate | 50 mL/min ±10 mL/min |
| CO2 Initialization | 5 seconds to display CO2 scan wave |
| SpO2 Measurement Range | 0–100%; Pulse rate 35–254 BPM |
| SpO2 Accuracy | ±2% (70–100%); Pulse rate ±2 or ±2 BPM |
| Apnea Alarm Time | 10–60 seconds (adjustable) |
| Battery | 4 × 3.7V rechargeable lithium (2200 mAh); 10 hours operation; 4 hours recharge |
| Power Interface | 12VDC power socket; Mini USB socket for data transfer |
| Alarms | Two-color LED (yellow/red) patient alarm indicator; audible alarm via loudspeaker |
| Data Storage | 255-hour historical replay; unlimited patient data via USB software |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CO2 Sample Line | Sidestream sampling line for capnography measurement | 1 |
| Nasal Tube | Nasal cannula for CO2 sampling | 1 |
| Power Adapter | 12VDC power supply unit | 1 |
| Water-trap Column | Condensation trap for sample line protection | 1 |
| Airway Adapter | Adapter for endotracheal tube connection | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical applications, or explore SpO2 sensor customization options. We offer fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
MD910 Veterinary Syringe Pump
FREE SHIPPING! Delivery in 3 Days MD910 Syringe Pump is a kind of certain rate and constant volume micro syringe pump. It through microprocessor’s accurate control over precision stepper motor, produces horizontal movement thrust via mechanical driving devices to drive the piston rod of syringe. The syringe pump has sensors which can accurately control the injection rate of disposable syringe and the injection process.
MD-T1 Veterinary Fluid Blood Warmer
FREE SHIPPING! Delivery in 3 Days MD-T1 Fluid warmer is an ultra compact and lightweight heater for all IV fluids. Helps to decrease the temperature difference between the animal and the IV liquid. The animal needs less energy for maintaining his body temperature.
SonovetID Veterinary Ultrasound Scanner with RFID Technology Handheld 6 Inch Color Display
FREE SHIPPING! Delivery in 3 Days SonovetID Veterinary ultrasound scanner with RFID technology handheld ultrasound scanner 6"color Display, Portable RFID veterinary ultrasound machines Combined LF/UHF rfid metal tag for animal SonovetID vet/animal ultrasound scanner,for pigs,poultry,poultry foot,sheep,cats,dogs,cattle

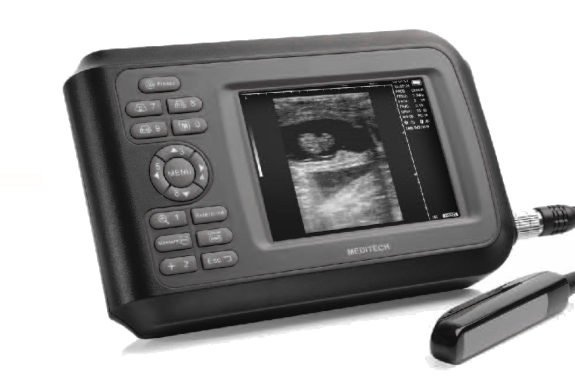

Sonovet Palm Veterinary Ultrasound Scanner with Rectal Probe
🚚 FREE SHIPPING | 3-Day Delivery The Sonovet Palm Veterinary Ultrasound Scanner is an ultra-lightweight (1.3kg) and portable imaging solution, designed for exceptional clarity and precision . Featuring interchangeable probes for versatile diagnostics, this compact, battery-powered scanner ensures accurate and reliable animal pregnancy detection anytime, anywhere. Perfect for veterinary hospitals, clinics, and field use .

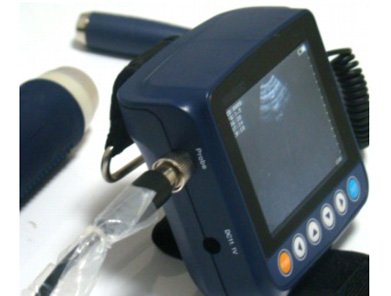

MiniScan Veterinary Mini Ultrasound Scanner Designed For Small And Large Animal Pregnancy
