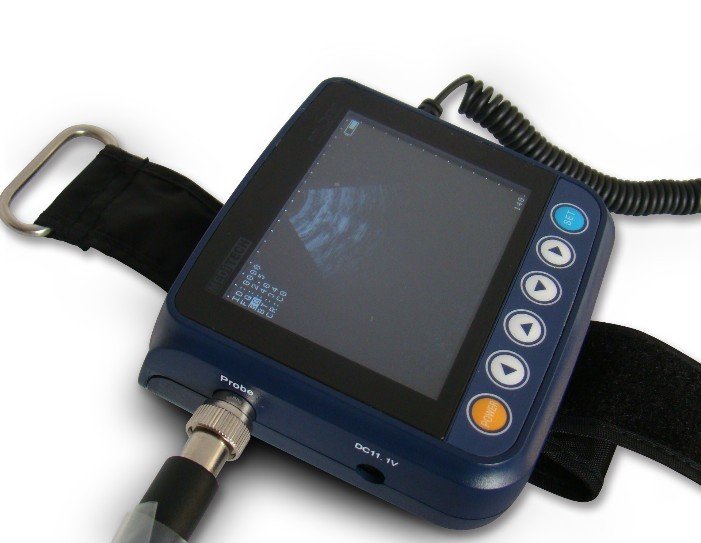

MiniScan Veterinary Mini Ultrasound Scanner Designed For Small And Large Animal Pregnancy
🚚 FREE SHIPPING! Fast 3-Day Delivery 🚀
The MiniScan Mini Ultrasound Scanner is designed for accurate pregnancy detection in both small and large animals, including pigs, cows, sheep, dogs, cats, and more.
✔ High-quality imaging with a compact, user-friendly design
✔ Lightweight & ergonomic for easy handling in the field
✔ Long-lasting battery – Over 2.5 hours of continuous operation with instant power-up
✔ Waterproof & dustproof probe – Easy to clean under running water
- SKU
- OD-00436
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
MiniScan Veterinary Mini Ultrasound Scanner
Portable, high-precision ultrasound imaging designed for accurate pregnancy detection and fertility diagnostics in small and large animals. Compact 340g device with 3.5-inch TFT LCD screen, multi-frequency waterproof probe, and 2.5+ hours battery life for reliable field performance.
Clinical overview
The MiniScan Veterinary Mini Ultrasound Scanner is a cutting-edge, portable ultrasound system engineered for accurate and efficient fertility and pregnancy diagnostics in animals, including horses, cattle, sheep, deer, and goats. Built for field use, it is water-resistant, dust-tight, and highly durable, ensuring reliable performance in various environmental conditions. Weighing only 340g, this compact device delivers high-resolution imaging on a 3.5-inch TFT LCD screen with 640 x 480 pixels, providing clear and detailed ultrasound images for confident clinical decision-making.
The multi-frequency waterproof probe with adjustable 2.5/3.5/5.0MHz frequencies enables versatile scanning across different tissue depths and animal species. With built-in memory for up to 128 frames and species-specific OB measurements for cattle, pigs, goats, sheep, dogs, and cats, the MiniScan is the ideal tool for veterinarians and livestock professionals seeking unparalleled image clarity, portability, and durability in both clinic and field settings.
Key features & surgeon benefits
High-Resolution Display
- 3.5-inch color TFT LCD screen with 640 x 480 pixels
- 256 shades of gray for superior image clarity
- Multi-frequency probe: 2.5/3.5/5.0MHz for versatile scanning
- Scan depth up to 160mm with 78° scan angle
Lightweight & Field-Ready
- Compact design weighing only 340g with battery
- Dimensions: 171mm × 93mm × 62mm for easy transport
- Waterproof and dustproof probe for outdoor use
- Includes carrying case for secure transport
Extended Operating Time
- Rechargeable Li-ion battery: 2.5+ hours continuous use
- Quick 2-hour full recharge cycle
- AC Adapter (110V-240V, 50/60Hz) included
- Optional car lighter adapter for mobile clinics
Species-Specific Diagnostics
- OB measurements for cattle, pigs, goats, sheep, dogs, and cats
- Distance, area, volume, and heart rate measurements
- Frame storage: up to 128 images for documentation
- Instant power-up for rapid deployment
Technical specifications
| Indications | Pregnancy detection, fertility diagnostics, and reproductive imaging in horses, cattle, sheep, deer, goats, pigs, dogs, cats, and other animals |
|---|---|
| Screen | 3.5-inch color TFT LCD, 640 x 480 pixels |
| Probe Type | Multi-frequency mechanical sector probe |
| Frequency Options | 2.5/3.5/5.0MHz |
| Scan Depth | Up to 160mm |
| Scan Angle | 78° |
| Gray Levels | 256 shades |
| Memory | Stores up to 128 frames |
| OB Measurements | Species-specific measurements for cattle, pigs, goats, sheep, dogs, and cats |
| Battery Life | 2.5+ hours continuous use |
| Recharge Time | 2 hours full recharge |
| Weight | 340g (with battery) |
| Device Dimensions | 171mm × 93mm × 62mm |
| Operating Temperature | Wide range for field durability |
| Probe | Waterproof and dustproof; easy cleaning under running water |
| Warranty | 2 Year Manufacturer Warranty (1 Year for Probe) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Veterinary MiniScan Main Unit | Portable ultrasound scanner with 3.5-inch TFT LCD display | 1 |
| Multi-Frequency Waterproof Ultrasound Probe | 2.5/3.5/5.0MHz mechanical sector probe with waterproof housing | 1 |
| Rechargeable Lithium-Ion Battery Pack | Li-ion battery providing 2.5+ hours continuous operation | 1 |
| AC Adapter | 110V-240V, 50/60Hz universal power adapter | 1 |
| Wrist Bandage | Secure wrist strap for ergonomic handheld use | 1 |
| Carrying Case | Protective case for transport and storage | 1 |
| Factory Warranty Documentation | 2 Year warranty (1 Year for probe) and user manual | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss custom configurations, or arrange a product demonstration. We offer fast 3-day delivery and comprehensive technical support for all veterinary ultrasound systems.
Email: [email protected]
Delivery: FREE SHIPPING with fast 3-day delivery available
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
