DHS & DCS Plate Instrument Set
Comprehensive surgical instrument set for dynamic hip screw and dynamic condylar screw procedures. Complete with drilling guides, taps, reamers, impactors, and depth measurement tools for reliable fixation in proximal femur and distal femur fracture management.
Clinical overview
The DHS & DCS Plate Instrument Set is a complete surgical solution for fixation of proximal and distal femoral fractures using dynamic compression principles. This comprehensive kit includes all essential instruments for drilling, tapping, measuring, and impacting, enabling surgeons to perform reliable, reproducible procedures with minimal operative time.
The set combines precision drilling guides, multiple tap sizes, depth measurement devices, and specialized impactors to support both DHS (Dynamic Hip Screw) and DCS (Dynamic Condylar Screw) techniques. Supplied in a protective aluminium case for instrument integrity and easy transport to the operating theatre.
Key features & surgeon benefits
Complete Surgical Workflow
- 22 precision instruments in one set
- Covers drilling, tapping, measuring, and impaction
- Dual angle guides for DHS (135Β°) and DCS (95Β°) applications
Efficient Operative Technique
- Quick-coupling T-handle for rapid instrument changes
- Neutral and load drill guides for precise positioning
- Depth gauge and lag screw measuring device for accurate implant sizing
Cost-Effective Solution
- Single comprehensive set eliminates need for multiple purchases
- Durable stainless steel construction ensures long service life
- Protective aluminium case preserves instrument condition
Flexible Configuration
- Available as complete set or individual component ordering
- OEM packaging and custom case configurations available
- Compatible with standard surgical power tools and hand instruments
Technical specifications
| Indications | Proximal femur fractures (DHS), distal femur fractures (DCS) |
|---|---|
| Sizes / range | Drill bits: Ξ¦2.5, Ξ¦3.2, Ξ¦4.5, Ξ¦6.5mm; Taps: 4.5mm, 6.5mm, 12mm; K-wires: Ξ¦2.5Γ225mm |
| Material | Stainless steel instruments, aluminium protective case |
| Sterilisation | Steam sterilisable; supplied non-sterile |

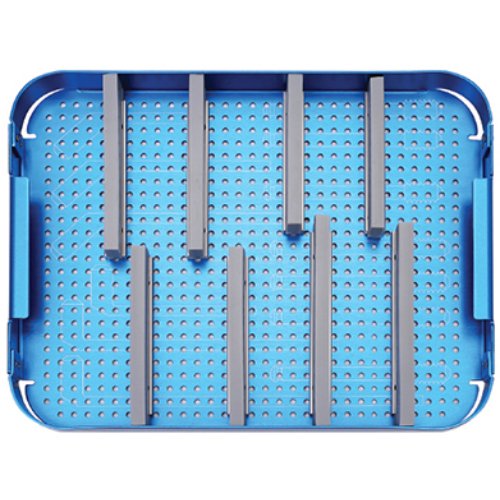

| Packaging | Protective aluminium case with foam inserts |
| Warranty | 2 Year Manufacturer Warranty |

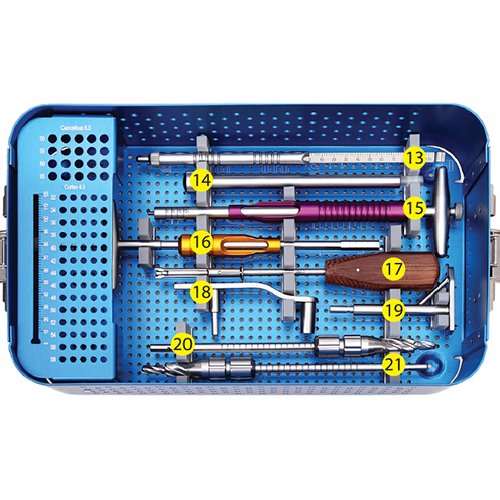

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | T-handle Quick Coupling | 1 |
| 2 | Tap Cortical 4.5mm | 1 |
| 3 | Double Drill Sleeve (Ξ¦4.5/Ξ¦6.5) | 1 |
| 4 | Double Drill Sleeve (Ξ¦4.5/Ξ¦3.2) | 1 |
| 5 | Neutral and Load Drill Guide Ξ¦2.5 | 1 |
| 6 | Tap Cancellous 6.5mm | 1 |
| 7 | Drill Bit Ξ¦4.5Γ150mm | 2 |
| 8 | Drill Bit Ξ¦3.2Γ150mm | 2 |
| 9 | Lag Screw Depth Measuring Device | 1 |
| 10 | Tap Cancellous 12mm | 1 |
| 11 | Threaded K-wire Ξ¦2.5Γ225mm | 3 |
| 12 | DHS/DCS Impactor Large | 1 |
| 13 | Depth Gauge (0β100mm) | 1 |
| 14 | DHS/DCS Impactor Small | 1 |
| 15 | DHS/DCS Wrench, Purple Sleeve | 1 |
| 16 | DHS/DCS Wrench, Golden Sleeve | 1 |
| 17 | Screwdriver Hexagonal 3.5mm | 1 |
| 18 | DCS Angle Guide 95 Degree | 1 |
| 19 | DHS Angle Guide 135 Degree | 1 |
| 20 | DHS Reamer | 1 |
| 21 | DCS Reamer | 1 |
| 22 | Aluminium Box | 1 |
