Orthopromed
Large Fragment Instrument Set
4.0(2 reviews)- Medical Use Only
- 2 Years Warranty
- 3-5 Days Delivery Time
- SKU
- 4200-02
- Brand
- Orthopromed
- Availability
- In stock
- β Warranty included
- β Worldwide shipping
Trauma Instrument Set
Large Fragment Instrument Set
Comprehensive surgical instrument set designed for large fragment fixation procedures. This complete kit includes drill guides, taps, depth gauges, reduction forceps, and specialized trauma instruments to support efficient and precise fracture management in orthopedic trauma surgery.
Ordering Ref.
4200-02
Configuration20-piece set
MaterialStainless steel, silicon handles
ApplicationTrauma & orthopedic surgery
Customisation and OEM configurations available on request. Contact sales for bulk orders and institutional pricing.
Clinical overview
The Large Fragment Instrument Set is a complete surgical solution for orthopedic trauma procedures requiring precise fracture reduction and fixation. This comprehensive kit combines essential drilling, tapping, reduction, and fixation instruments in a single, organized aluminium case, enabling surgeons to manage large fragment fractures with confidence and efficiency.
Each instrument is manufactured to exacting standards using premium stainless steel and ergonomic handles to minimize fatigue during extended surgical procedures. The set includes neutral and load drill guides, dual-diameter drill and tap guiders, multiple drill bits, depth gauges, reduction forceps, bone holding forceps, retractors, and specialized extraction and countersinking toolsβeverything required for a complete trauma fixation workflow.
Key features & surgeon benefits
Coverage
Complete Fixation Workflow
- 20-piece integrated instrument set covering all phases of fracture fixation
- Dual drill guides (Ξ¦3.2 and Ξ¦4.5/Ξ¦6.5) for flexible surgical planning
- Matched drill bits, taps, and depth gauges for consistent hole preparation
Workflow
Efficient Surgical Execution
- Pre-organized aluminium case reduces setup time and instrument searching
- Ergonomic silicon handles and reduction forceps minimize surgeon fatigue
- Self-centering bone holding forceps (Γ2) ensure stable fragment positioning
Economics
Cost-Effective Solution
- Single comprehensive set eliminates need for multiple instrument purchases
- Durable stainless steel construction ensures long service life and repeated sterilization
- Competitive pricing with 2-year manufacturer warranty and lifetime support
Customisation
Adaptable to Your Needs
- OEM and custom configurations available for institutional requirements
- Individual instruments can be ordered separately for replacement or expansion
- Bulk pricing and dedicated support for hospital and surgical center partnerships
Technical specifications
| Indications | Large fragment fracture fixation, trauma surgery, orthopedic reduction and fixation procedures |
|---|---|
| Sizes / range | Ξ¦3.2 mm to Ξ¦8.0 mm; drill bits 115 mm length; forceps 200β270 mm; depth gauge 0β90 mm |
| Material | Stainless steel instruments; silicon ergonomic handles; aluminium storage case |
| Sterilisation | Steam sterilisable; supplied in protective aluminium case |
| Packaging | Organized aluminium case with foam insert for secure instrument storage and transport |
| Warranty | 2 Year Manufacturer Warranty |

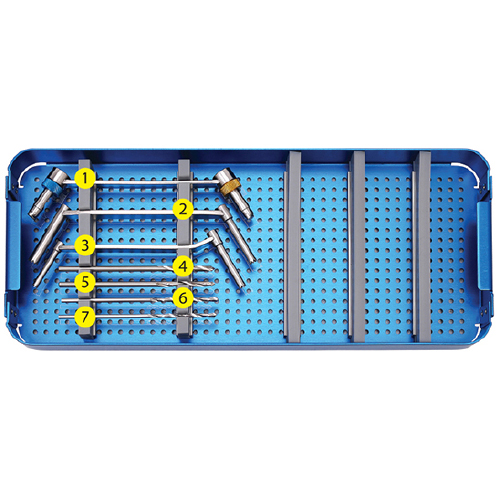

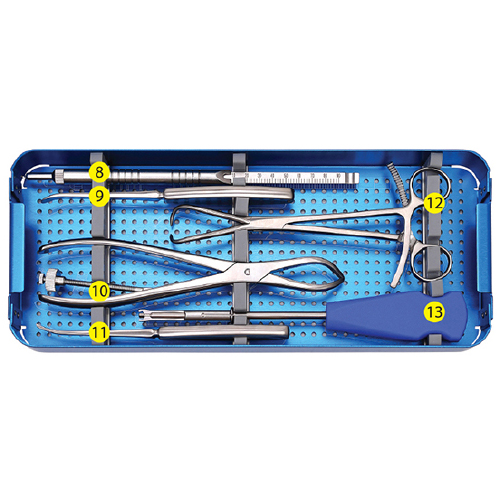

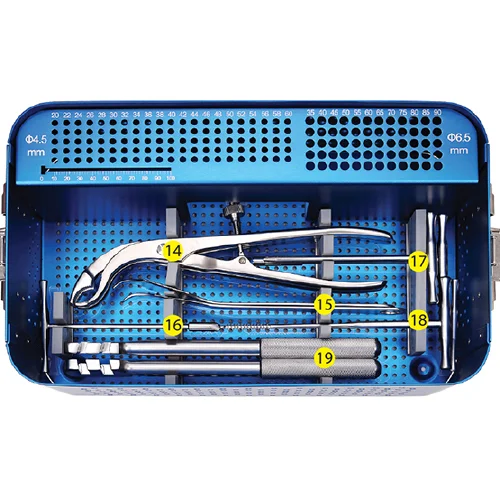

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Neutral and Load Drill Guide Ξ¦3.2 | 1 |
| 2 | Drill & Tap Guider (Ξ¦4.5/Ξ¦6.5) | 1 |
| 3 | Drill & Tap Guider (Ξ¦3.2/Ξ¦4.5) | 1 |
| 4 | Drill Bit (Ξ¦4.5Γ115 mm) | 1 |
| 5 | Drill Bit (Ξ¦4.5Γ115 mm) | 1 |
| 6 | Drill Bit (Ξ¦3.2Γ115 mm) | 1 |
| 7 | Drill Bit (Ξ¦3.2Γ115 mm) | 1 |
| 8 | Depth Gauge (0β90 mm) | 1 |
| 9 | Periosteal Elevator 15 mm | 1 |
| 10 | Oblique Reduction Forcep (230 mm) | 1 |
| 11 | Periosteal Elevator 8 mm | 1 |
| 12 | Sharp Reduction Forcep (200 mm) | 1 |
| 13 | Silicon Handle Screwdriver Hexagonal 3.5 mm | 1 |
| 14 | Self-centering Bone Holding Forcep (270 mm) | 2 |
| 15 | Retractor Width 40 mm / 18 mm | 1 |
| 16 | Countersink Ξ¦8.0 | 1 |
| 17 | Hollow Reamer Ξ¦8.0 | 1 |
| 17 | Extraction Screw Hexagonal 3.5 mm Conical | 1 |
| 18 | Tap Cortex 4.5 mm | 1 |
| 18 | Tap Cancellous 6.5 mm | 1 |
| 19 | Bending Iron | 1 |
| 20 | Aluminium Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a product demonstration. We offer fast delivery, institutional pricing, and comprehensive technical support.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty β all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork β usually within one business day.
Customer reviews
4.0Β· 2 reviewsHighly recommended
Picked this up on a colleague's recommendation and setup was straightforward with clear documentation. It feels solid and properly engineered. Happy to recommend it to colleagues.
Elena White, Procurement LeadApr 13, 2025
Related products
See all β
Orthopromed

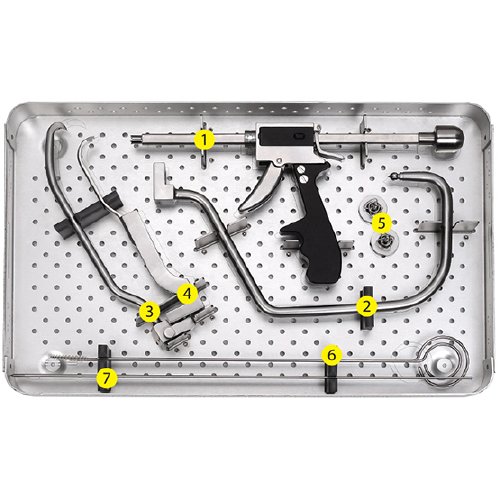

Collinear Reduction Clamp Instrument Set
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,590.00
Orthopromed
Surgical Screw Removal Instrument Set, Universal Orthopedic Screw Extraction
4.3(3)
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,790.00
$1,590.00
Orthopromed

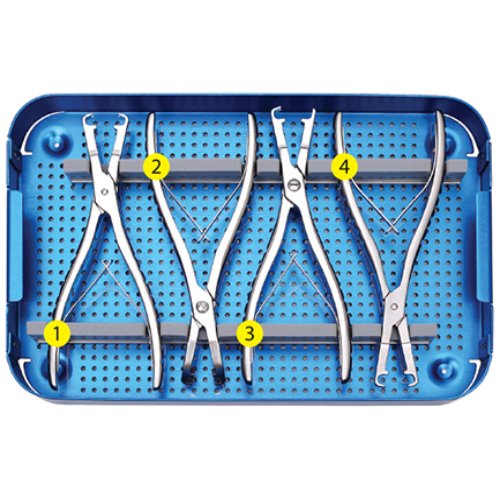

Rib Plate Instrument Set
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,290.00
Orthopromed
Pelvic Reconstruction Plate Instrument Set
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,390.00
Orthopromed

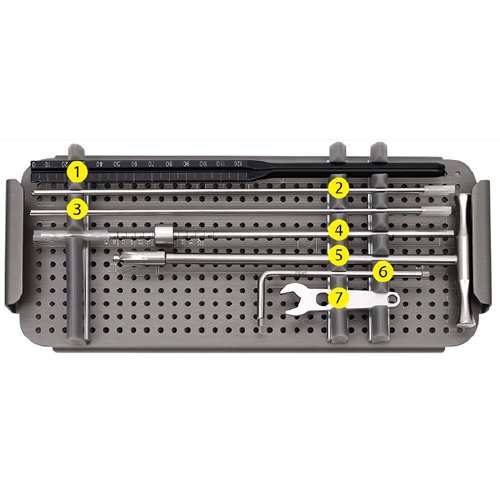

6.5mm Cannulated Screw Instrument Set
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,490.00
Orthopromed

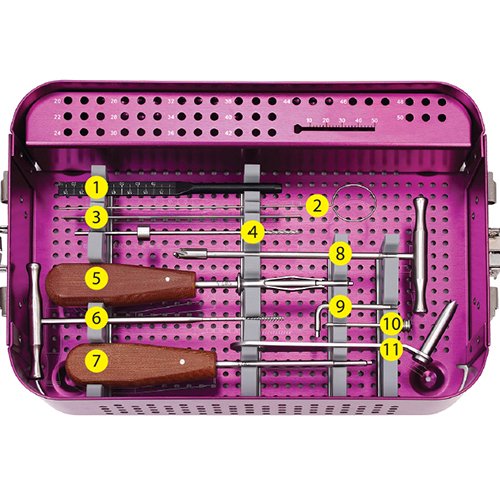

4.0mm Cannulated Screw Instrument Set
Medical Use Only 2 Years Warranty 3-5 Days Delivery Time
$1,490.00
Orthopromed

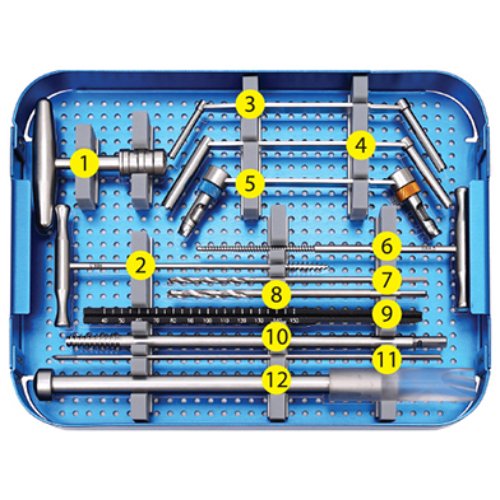

DHS & DCS Plate Instrument Set
