Hoffmann External Fixation Large Fragment Set
4.7(3 reviews)- The Hoffmann External Fixation Large Fragment Set includes a variety of components for effective bone fixation.

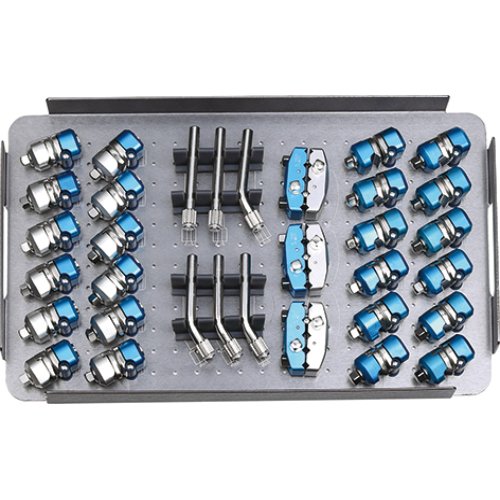

- Features rod-pin and rod-rod couplings for stability.
- Includes angled and straight posts for customized applications.
- Comes with self-drilling apex pins in various lengths for secure fixation.

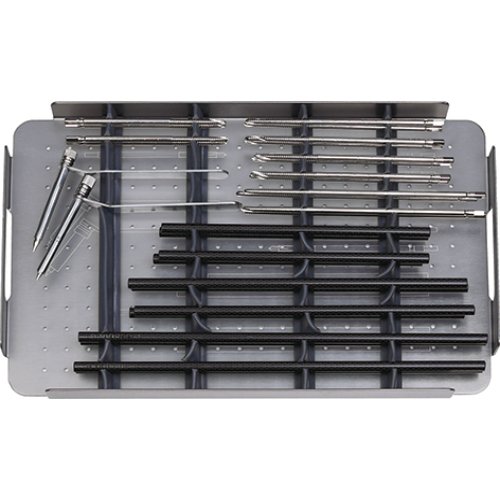

- Contains carbon fiber connecting rods in different lengths for versatility.

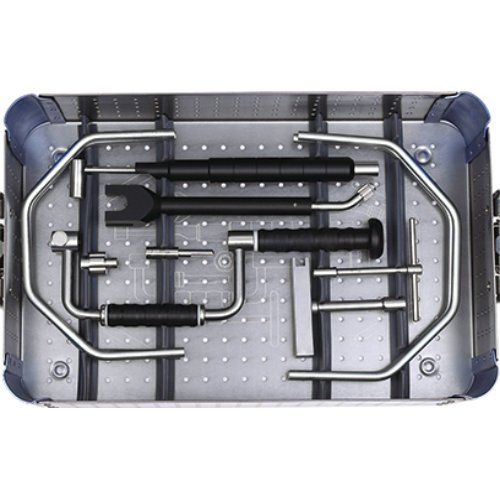

- Includes essential tools like a reduction wrench, adjustment wheel, and drill sleeve.
- All components are neatly organized in an aluminum box for convenient storage and transport.
- SKU
- 7100-02
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Tags
External Fixation System
Hoffmann External Fixation Large Fragment Set
A comprehensive modular external fixation system designed for versatile bone fixation in trauma and orthopedic surgery. Features rod-pin and rod-rod couplings, multiple post configurations, self-drilling apex pins in varied lengths, and carbon fiber connecting rods for optimal stability and reduced patient burden.
Ordering Ref.
7100-02
ConfigurationComplete Set with Tools
MaterialStainless Steel, Carbon Fiber
ApplicationTrauma & Orthopedic Surgery
Complete kit includes 22 components organized in aluminum storage box. Customization and OEM configurations available upon request.
Clinical overview
The Hoffmann External Fixation Large Fragment Set is a modular system engineered for precise and stable bone fixation in complex trauma and orthopedic cases. The system combines rigid coupling mechanisms with flexible rod configurations to accommodate diverse anatomical requirements and surgical approaches. Self-drilling apex pins eliminate the need for separate drilling steps, reducing operative time and improving pin placement accuracy.
Carbon fiber connecting rods provide superior strength-to-weight ratio, minimizing patient discomfort during the healing phase while maintaining structural integrity. The inclusion of angled and straight posts enables three-dimensional frame construction, allowing surgeons to achieve optimal reduction and alignment in multi-planar fractures. Complete instrumentation and dedicated tools ensure efficient assembly and adjustment throughout the treatment period.
Key features & surgeon benefits
Fixation Stability
Dual Coupling System
- Rod-pin couplings (5/6mm pin, 8mm rod) for secure pin-to-frame attachment
- Rod-rod couplings for rigid frame-to-frame connections
- 5-hole pin clamps for multi-pin configurations and enhanced load distribution
Surgical Workflow
Efficient Assembly & Adjustment
- Self-drilling apex pins eliminate separate drilling; available in three lengths (120mm, 150mm, 180mm)
- Dedicated reduction wrench and adjustment wheel for intraoperative and postoperative fine-tuning
- Arc drilling stand and apex pin chuck for precise pin placement and angulation control
Versatility
Modular Frame Design
- Multiple post options: 30° angled and straight posts for 3D frame construction
- Carbon fiber connecting rods in three lengths (200mm, 250mm, 300mm) for customized span
- Semi-circular rods (180mm, 200mm) for curved or anatomically contoured applications
Patient Comfort
Lightweight & Durable
- Carbon fiber rods reduce overall frame weight without compromising strength
- Stainless steel components ensure corrosion resistance and long-term durability
- Compact aluminum storage box facilitates transport and organized component management
Technical specifications
| Indications | Fracture fixation, bone stabilization, trauma surgery, orthopedic reconstruction, multi-planar fractures |
|---|---|
| Sizes / range | Apex pins: 5×120mm, 5×150mm, 5×180mm; Connecting rods: 8×200mm, 8×250mm, 8×300mm; Semi-circular rods: 8×180mm, 8×200mm |
| Material | Stainless steel (couplings, posts, clamps, tools); Carbon fiber (connecting rods); Aluminum (storage box) |
| Sterilisation | Autoclavable — steam sterilization at 121°C, 15 minutes minimum |
| Packaging | Complete set in aluminum storage box with foam insert for component organization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 12 |
| 2 | Rod-Rod Coupling (8mm Rod) | 12 |
| 3 | 5-Hole Pin Clamp (5/6mm Pin) | 3 |
| 4 | 30 Degree Angled Post 8mm | 2 |
| 5 | Straight Post 8mm | 4 |
| 6 | Apex Pin Self-drilling 5×120mm | 4 |
| 7 | Apex Pin Self-drilling 5×150mm | 8 |
| 8 | Apex Pin Self-drilling 5×180mm | 4 |
| 9 | Drill Sleeve | 2 |
| 10 | Carbon Fiber Connecting Rod 8×200mm | 4 |
| 11 | Carbon Fiber Connecting Rod 8×250mm | 4 |
| 12 | Carbon Fiber Connecting Rod 8×300mm | 4 |
| 13 | Semi Circular Rod 8×180mm | 1 |
| 14 | Semi Circular Rod 8×200mm | 1 |
| 15 | Reduction Wrench | 1 |
| 16 | Wrench with Extension Bar | 1 |
| 17 | Adjust Wheel | 1 |
| 18 | Apex Pin Chuck | 1 |
| 19 | Arc Drilling Stand | 1 |
| 20 | T-shaped Clamp Wrench 7# | 1 |
| 21 | T-shaped Pin Wrench 5mm | 1 |
| 22 | Aluminum Box | 1 |
