A comprehensive, battery-powered surgical system combining drilling and sawing capabilities in one versatile platform. Includes 4 interchangeable attachments, 4 batteries, 4 saw blades, 2 chargers, and all accessories needed for immediate clinical deployment. FREE SHIPPING included.
The Orthopedic Multifunctional Power Tool Drill and Saw Complete Set delivers dual functionality in a single, ergonomic platform. Engineered for demanding surgical environments, this system combines precision drilling with high-frequency bone sawing, eliminating the need for multiple instruments and reducing operative time. The robust design features excellent sealing, protecting the motor during high-temperature sterilisation cycles (134°C–138°C), ensuring longevity and reliability across hundreds of procedures.

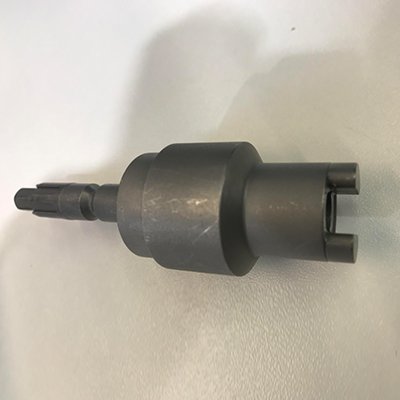

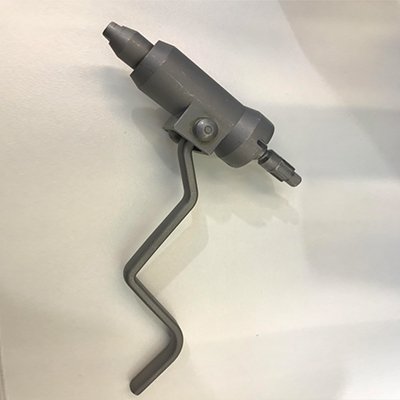

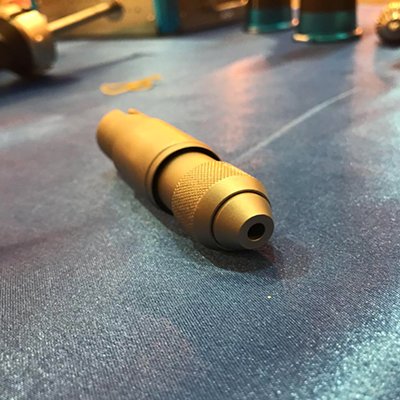

With four interchangeable attachment options—Jacob chuck, automatic chuck, Hudson quick coupling, and AO quick coupling—surgeons gain flexibility to adapt the handpiece to their preferred workflow. The included reamer attachment expands capability for contouring and enlargement tasks. Powered by four 14.4 V, 1800 mA/h batteries with dual chargers, the system maintains continuous OR availability without downtime.
| Indications | Orthopedic trauma, spine surgery, cranio-maxillofacial procedures, bone drilling and cutting |
|---|---|
| Drill speed | 0–1200 RPM |
| Drill torque | 0–13 N·m |
| Saw frequency | 15,000 oscillations/min |
| Output power | ≥120 W |
| Battery capacity | 14.4 V, 1800 mA/h (qty 4) |
| Chargers included | 2 |
| Input voltage | 110 V–240 V / 50 Hz |
| Sterilisation | 134°C–138°C autoclave compatible |
| Material | Stainless steel, composite |
| Packaging | Standard export packing |
| Warranty | Handpiece 18 months; Battery 3 months; Lifetime maintenance support |
| Item | Description | Qty |
|---|---|---|

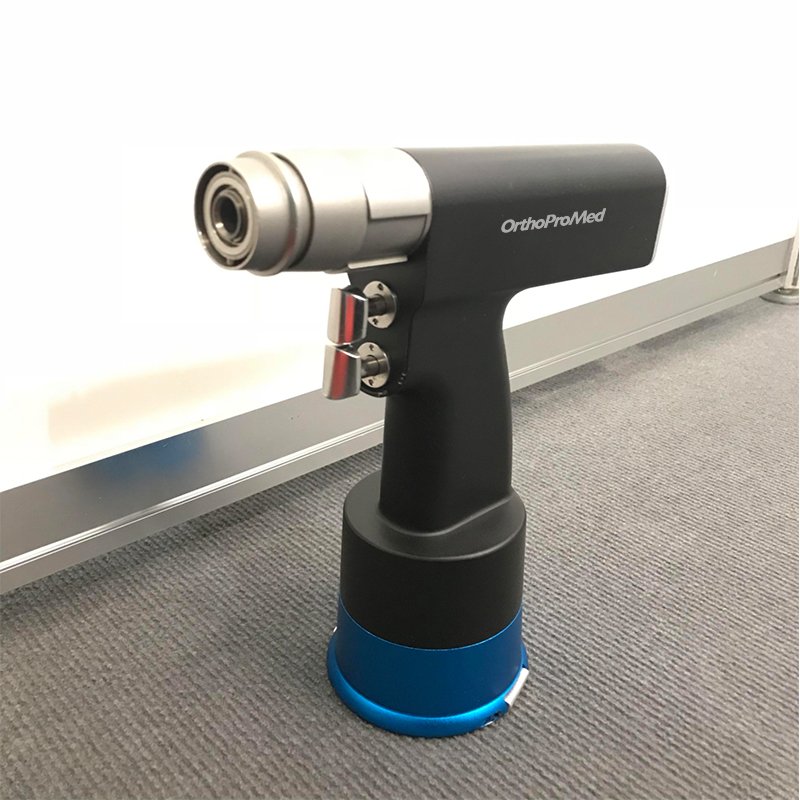

| Handpiece | Multifunctional drill and saw unit | 1 |

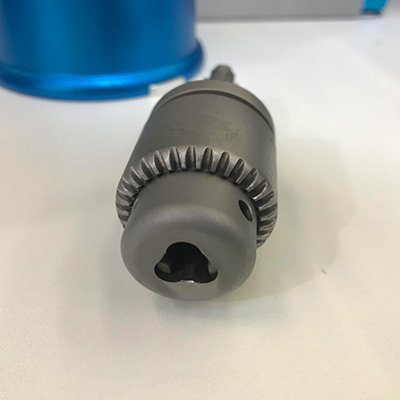

| Jacob Chuck | Quick-change chuck attachment | 1 |

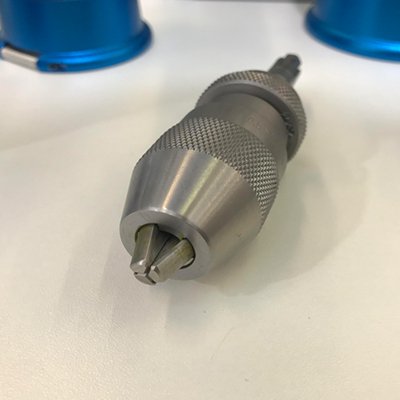

| Automatic Chuck | Automatic chuck attachment | 1 |
| Hudson Quick Coupling | Hudson-compatible quick coupling | 1 |
| AO Quick Coupling | AO-compatible quick coupling | 1 |
| Reamer Attachment | Hudson reamer for bone contouring | 1 |
| Battery | 14.4 V, 1800 mA/h lithium-ion | 4 |
| Charger | Dual-channel charger | 2 |
| Saw Blade | Surgical bone saw blade | 4 |
| Sterile Ring | Sterile protective ring | 2 |
| Chuck Key | Chuck adjustment key | 1 |
Contact our sales team to discuss system configuration, volume pricing, and delivery timelines. We offer flexible payment terms and comprehensive technical support for all installations.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
