Medical Ultrasound Wireless Ultrasound Device Convex And Linear MUD-8000
- Small size, easy to carry out.
- Fully wireless, no cable.
- Waterproof, suitable for sterilization.
- Remote control function.
- Android/iOS compatibility, download the app, start using!
- SKU
- MUD-8000
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

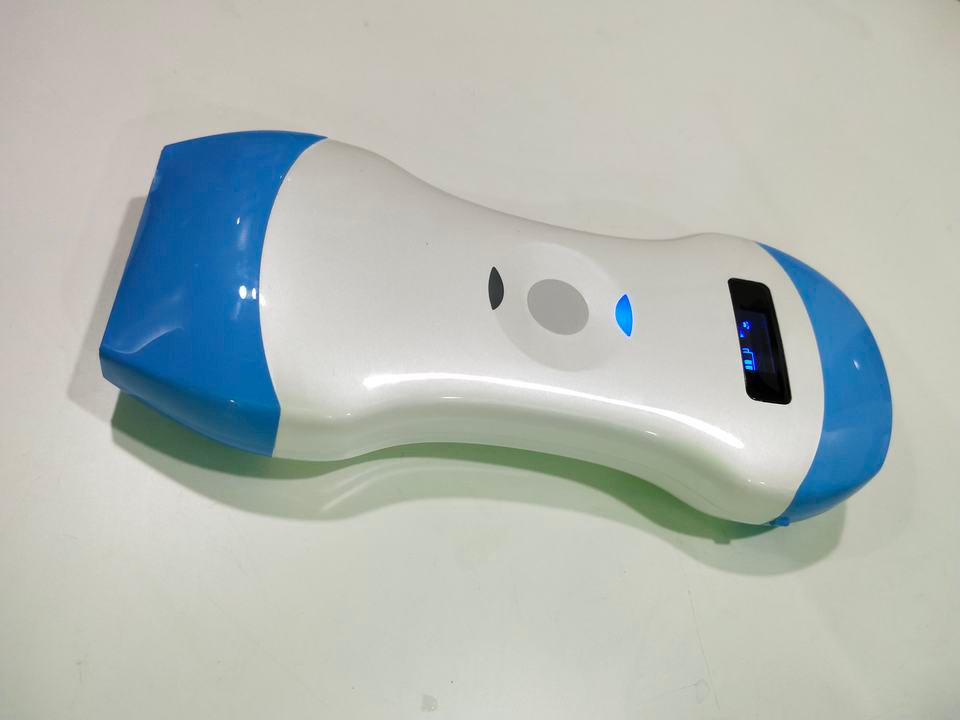

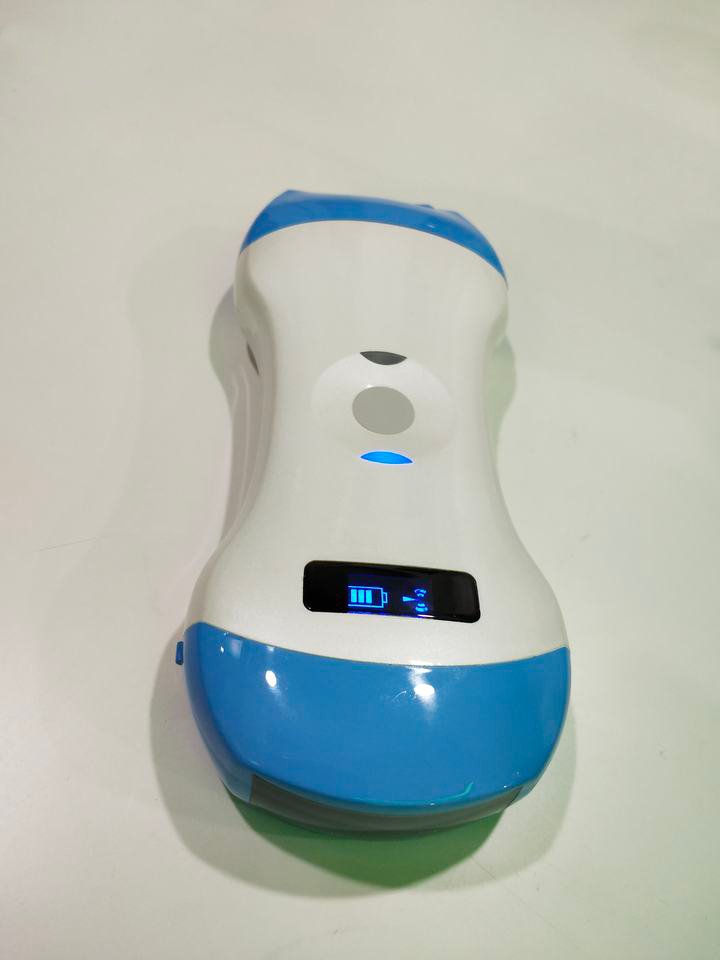

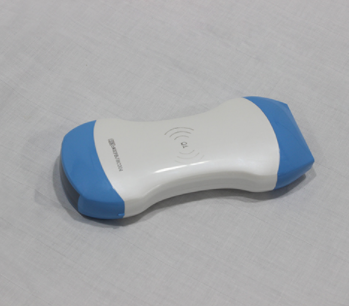

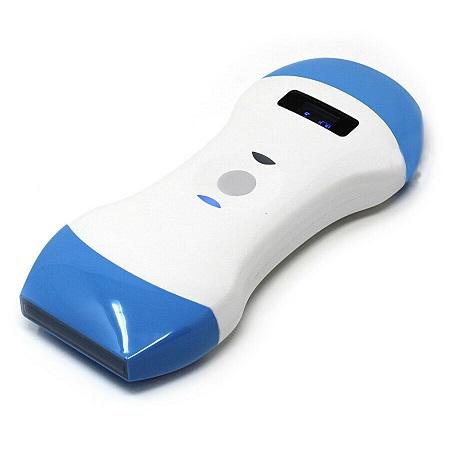

Medical Ultrasound Wireless Device MUD-8000
Fully wireless, compact, and clinician-ready ultrasound system with multi-probe compatibility. Convex, linear, and phased array probes deliver comprehensive diagnostic imaging with real-time color Doppler and advanced measurement tools. Waterproof design, sterilization-compatible, and seamless iOS/Android integration for point-of-care ultrasound.
Clinical overview
The MUD-8000 is a fully wireless, portable ultrasound system engineered for clinicians who demand mobility without compromising diagnostic capability. With support for convex, linear, and phased array probes, this device delivers comprehensive imaging across abdominal, cardiac, obstetric, and vascular applications. The 128-element probe architecture with 32-channel RF processing ensures high-resolution real-time imaging at frame rates of 18 fps, enabling confident clinical decision-making in diverse care settings.
Waterproof construction and wireless charging eliminate cable management and sterilization concerns, while native iOS and Android app integration provides immediate deployment on existing mobile infrastructure. Advanced features including color Doppler, B/M modes, puncture guidance, and automated vessel measurement support both diagnostic and interventional workflows. Battery life of 2.5 hours per charge supports extended clinical sessions, with rapid 2-hour wireless recharge cycles.
Key features & surgeon benefits
Multi-frequency imaging
- Convex 3.5/5 MHz with 50° sector, 90–305 mm depth
- Linear 7.5/10 MHz with 20–100 mm depth for superficial structures
- Phased array 3.5/5 MHz with 80° sector for cardiac windows
Seamless integration
- Fully wireless operation—no cables, no tethering
- iOS/Android app download and immediate use
- Remote control function for hands-free operation
- Waterproof design compatible with sterilization protocols
Advanced diagnostics
- Real-time color Doppler, B/M, and PDI modes
- Harmonic imaging and dynamic noise reduction
- In-plane and out-of-plane puncture guidance
- Automated blood vessel measurement
Clinical flexibility
- Compact, easy-to-carry design
- 2.5-hour battery life per charge cycle
- Wireless charging—2 hours to full capacity
- 802.11g/5G WiFi for reliable connectivity
Technical specifications
| Indications | General abdominal, cardiac, obstetric, vascular, and interventional ultrasound imaging |
|---|---|
| Probe types | Convex (3.5/5 MHz), Linear (7.5/10 MHz), Phased array cardiac (3.5/5 MHz) |
| Probe elements | 128 elements |
| RF channels | 32-channel circuit board |
| Display modes | B, B/M, Color Doppler (B+Color, B+PDI, B+PW) |
| Image adjustments | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
| Measurement tools | Length, Area, Angle, Heart rate, Obstetrics |
| Cineplay | Auto and manual; frame buffer 100/200/500/1000 frames |
| Puncture assistance | In-plane and out-of-plane guidance; automatic vessel measurement |
| Image save formats | JPG, AVI, DICOM |
| Frame rate | 18 frames per second |
| Battery life | 2.5 hours (continuous scan) |
| Charging | Wireless charge; 2 hours to full capacity |
| Operating systems | Apple iOS, Android, Windows |
| WiFi connectivity | 802.11g/20 MHz/5G; 450 Mbps |
| Design | Waterproof, sterilization-compatible |
| Warranty | 2 Year Manufacturer Warranty |

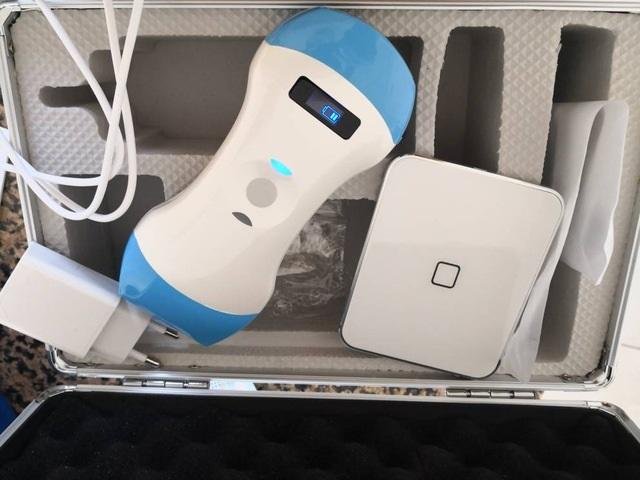

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wireless ultrasound device | MUD-8000 main unit with integrated processor | 1 |
| Convex probe | 3.5/5 MHz, 50° sector, 45 mm head radius | 1 |
| Linear probe | 7.5/10 MHz, 40 mm head width | 1 |
| Phased array probe | 3.5/5 MHz cardiac, 80° sector, 45 mm head radius | 1 |
| Wireless charging dock | Standard wireless charger with power adapter | 1 |
| USB cable | For data transfer and backup charging | 1 |
| Mobile app license | iOS and Android app download credentials | 1 |
| User manual | Clinical and technical documentation | 1 |
| Probe protective cases | Waterproof storage for all probes | 3 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, volume pricing, and deployment timelines. We provide comprehensive technical support and clinical training for all MUD-8000 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
