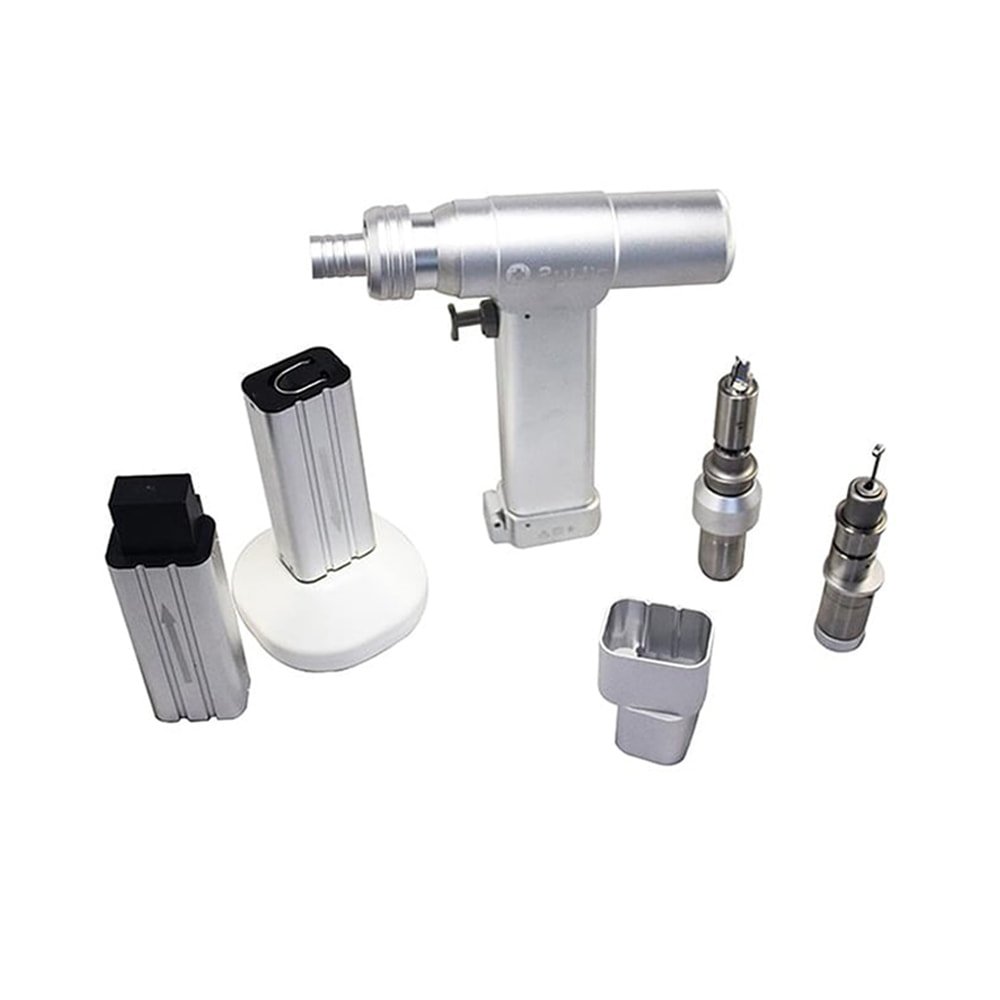

NM-200 Craniotomy Drill Mill System
Neurosurgery Instruments Craniotomy drill mill system is also brain surgery drill combination of drilling and milling, can automatic stopping to ensure safety in operation. Lightweight, low noise,single-hand operation, efficiency more suited to craniotomy operation in neurosurgery.
The convenience of portability.Autoclavable to 135ºC.
- SKU
- D190BE886896
- Brand
- Ruijin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
NM-200 Craniotomy Drill Mill System
Advanced multifunctional drill and mill system combining drilling and milling capabilities with automatic stopping for enhanced safety. Lightweight, low-noise design with single-hand operation optimized for craniotomy and neurosurgical procedures. Fully autoclavable to 135°C for convenient sterilization and portability.
Clinical overview
The NM-200 is a versatile, multifunctional drill system engineered for neurosurgical and orthopedic applications. Its integrated design combines drilling and milling functions in a single handpiece, reducing operative time and instrument changeover. The system features automatic pause functionality on the cranial drill, providing critical safety assurance during delicate neurosurgical procedures where precision and control are paramount.
With seven quick-change attachments spanning variable speed ranges from 300 to 40,000 r/min, the NM-200 accommodates diverse surgical requirements—from high-torque reaming to ultra-high-speed milling. The lightweight, ergonomic design enables single-hand operation, reducing surgeon fatigue during extended procedures. Full autoclavability to 135°C and reusable stainless steel construction ensure cost-effectiveness and environmental responsibility.
Key features & surgeon benefits
Auto-Pause Cranial Drill
- Automatic perforation detection prevents breakthrough
- 40,000 r/min cranial mill for efficient bone removal
- 360° rotating head for optimal surgical access
Quick-Change Attachment System
- Seven interchangeable attachments in one handpiece
- Wrenchless chuck for rapid blade and tool loading
- Single-hand operation reduces fatigue and improves control
Long-Term Value
- High-strength stainless steel mainframe ensures durability
- Reusable design minimizes consumable costs
- Ni-MH battery without memory effect; environment friendly
Comprehensive Surgical Coverage
- Sternum saw, oscillating saw, and bone drill attachments
- Reamer for acetabular and medullary procedures
- Wire and pin chuck for intramedullary fixation
Technical specifications
| Model | RJ-MP-NM-200 |
|---|---|
| Type | Drill & Saw |
| Indications | Craniotomy, neurosurgery, orthopedic drilling and milling |
| Sizes / range | Seven quick-change attachments; variable speed 300–40,000 r/min |
| Material | Stainless Steel (mainframe and primary components) |
| Weight | 8 kg |
| Frequency | 50 Hz |
| Sterilisation | Autoclavable to 135°C |
| Battery | Ni-MH, no memory effect |
| Packaging | Aluminium alloy box (38 × 28 × 13 cm) in carton (41 × 32 × 15 cm) |
| Regulatory | Type 2 Medical Device (Reg. No. Wsyjxzz2012-2100053) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Multifunctional drill mainframe with quick-change coupling | 1 |
| Quick Chuck | Imported chuck, 0–1,300 r/min | 1 |
| Sternum Saw | 360° rotating head with blade guard, 0–15,000 r/min | 1 |
| Oscillating Saw | 360° rotating head, wrenchless chuck, 0–16,000 r/min | 1 |
| Bone Drill | Standard orthopedic drill attachment | 1 |
| Canulated Drill | For guidewire-assisted procedures | 1 |
| Craniotomy Drill | Auto-pause perforation detection, 900 r/min | 1 |
| Cranial Mill | High-speed milling, 40,000 r/min | 1 |
| Acetabulum Burnishing Drill | Specialized reamer, 0–300 r/min | 1 |
| Wire and Pin Chuck | 4.0 mm canula diameter, 0–600 r/min | 1 |
| Charger | Battery charging unit | 1 |
| Batteries | Ni-MH rechargeable | 2 |
| Carrying Case | Aluminium alloy protective box | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NM-200 system, request a detailed quote, or arrange a clinical demonstration. We offer flexible ordering options and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

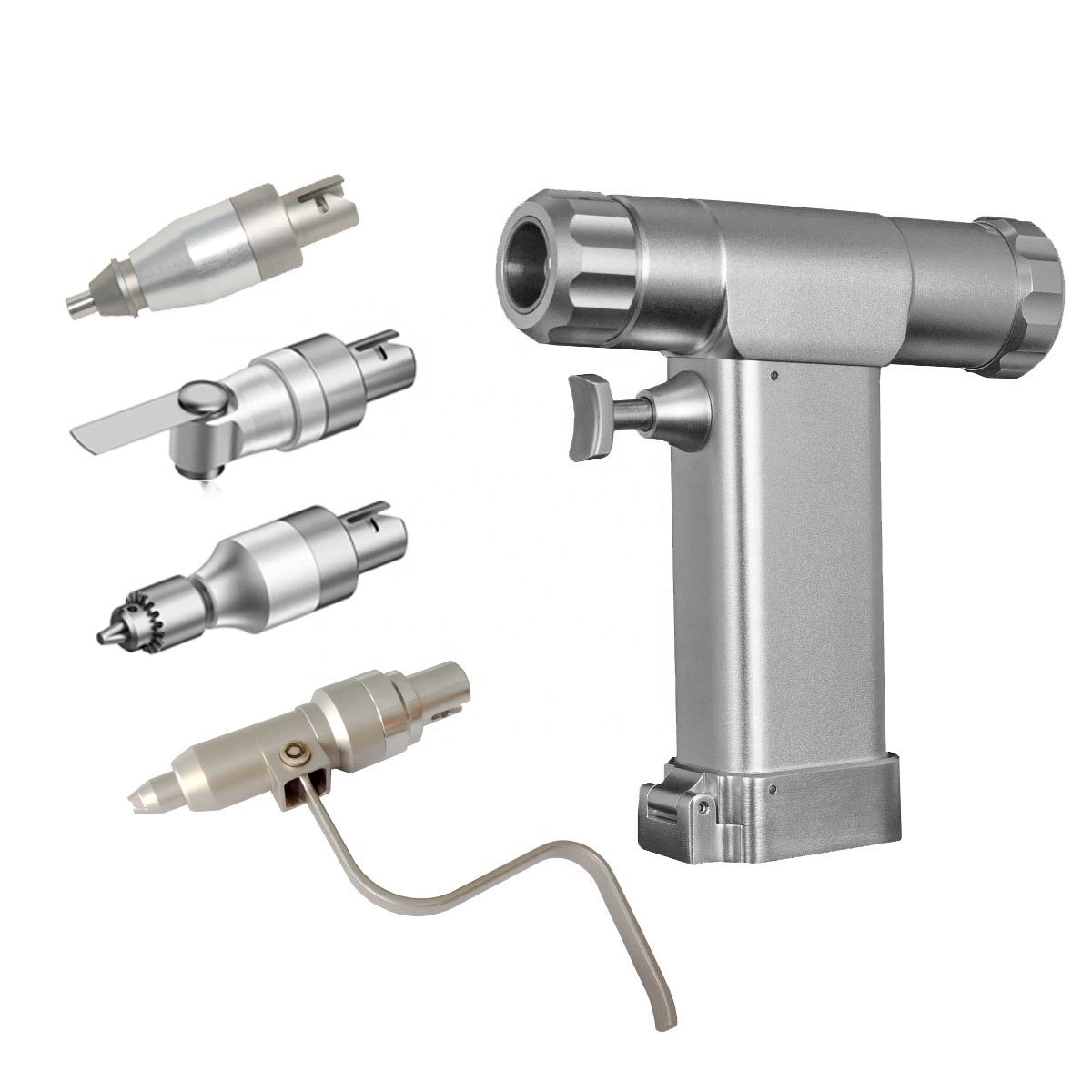

NM-300 Mini Multifunctional Drill Saw System, Most Popular Model for Veterinary Surgery, Drill, Saw, Cannulated Drill, Kwire
NM-300 battery operated orthopedic drills and saws are easily attachment assembly . Lightweight handpiece, easy carrying, multifunctional and quick-coupling. Mini Multifunctional Drill Saw System suitable for hands&feet surgery. The product features variable speed operation , excellent performance, easy operating, multi-function mode for your selection, a wide range of applications.

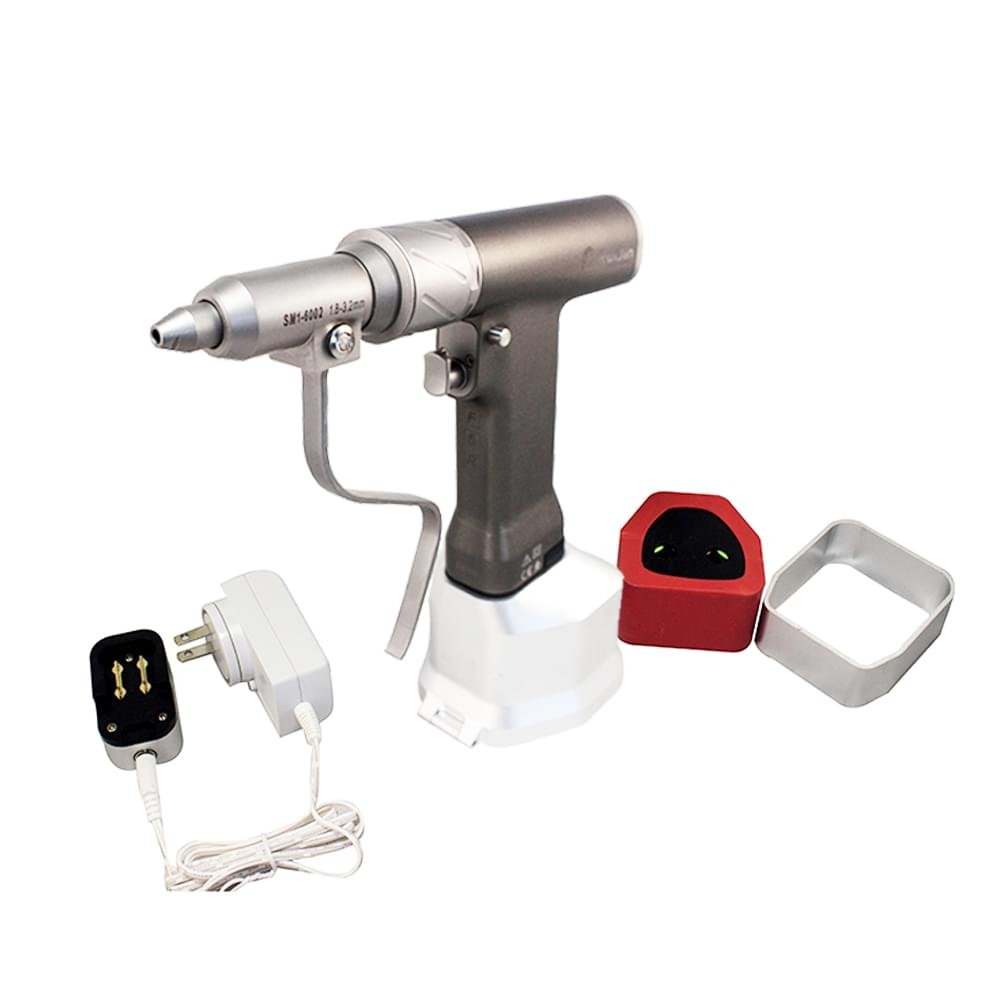

SM-100 Handpiece Of Multifunctional System
The handpiece of Surgery Drill And Saw can drive a variety of quick connects, Attachments can be assembled and disassembled easily.The ergonomic design offers the comfortable grip and more convenient manipulation to meet various clinicians’ requirements.The ingenious handpiece is equipped by the powerful motor and provides precise and stable performance,can be autoclaved to 135℃.

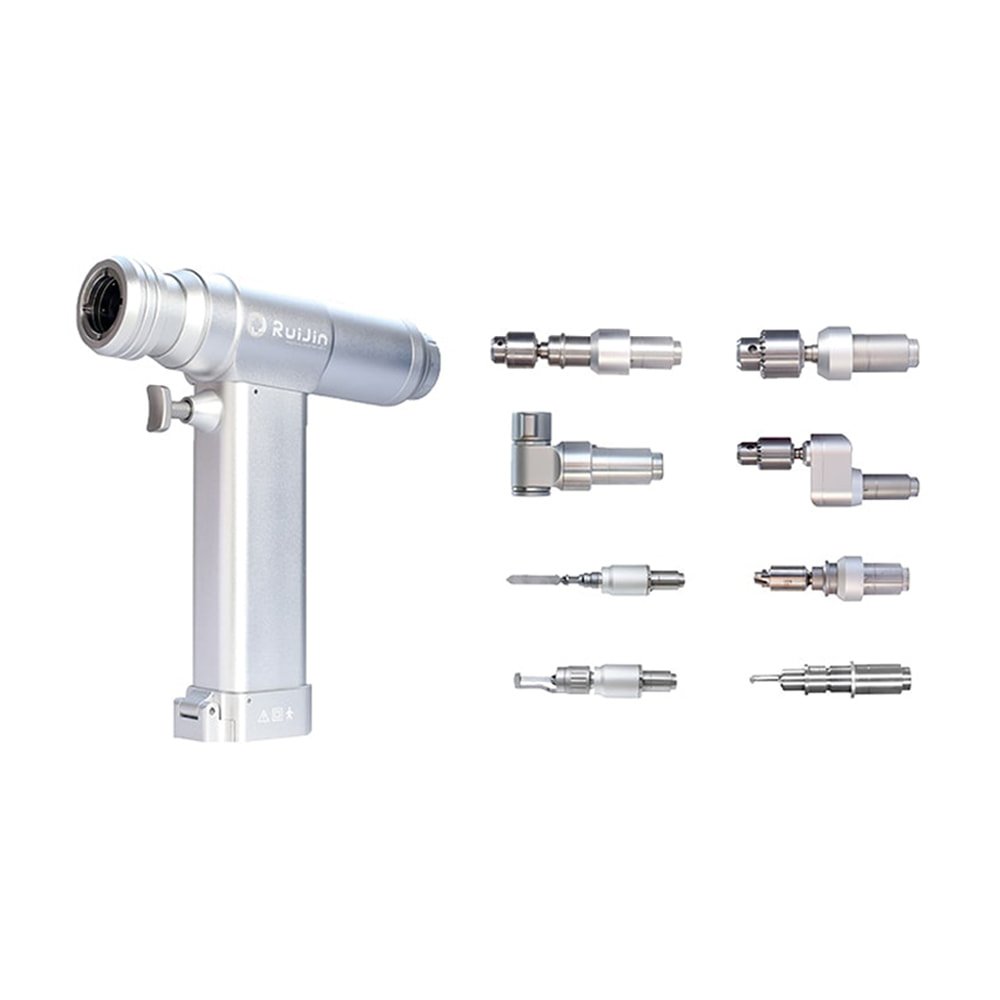

NM-100 Multifunctional Drill Saw System
Ruijin is a electric surgical bone saw and drill supplier, This Multifunctional drill saw system is widely applied in joint surgery,trauma surgery,neurosurgery,thoracic surgery.Along with a wide selection of attachments(12 different coupler attachments),drilling, reaming, pinning, and wound debridement,offering the ultimate in convenience and versatility.The attachment can be easily assembled and disassembled.The main components are made of high-strength biomedical stainless steel.Autoclavable to 135℃.

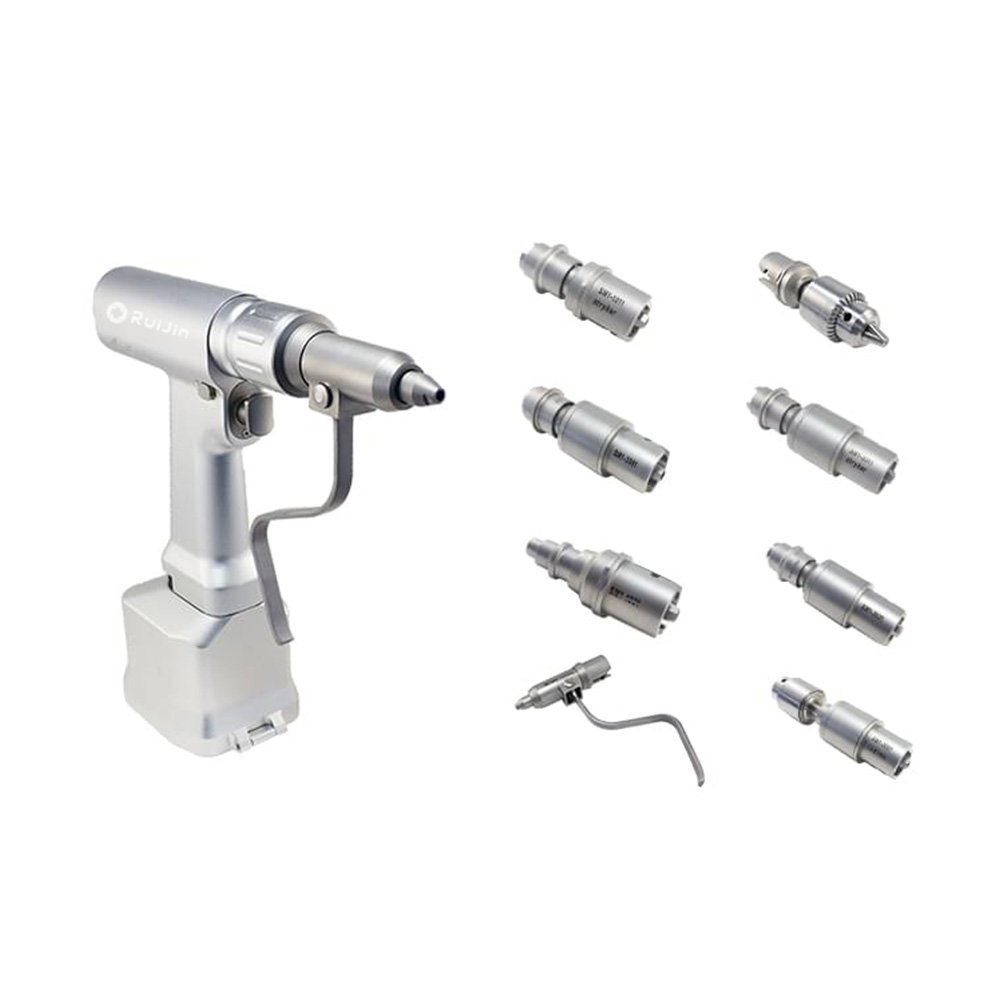

EM-100 Brushless Multifunctional Hand Piece
