NM-300 Mini Multifunctional Drill Saw System, Most Popular Model for Veterinary Surgery, Drill, Saw, Cannulated Drill, Kwire
- NM-300 battery operated orthopedic drills and saws are easily attachment assembly.
- Lightweight handpiece, easy carrying, multifunctional and quick-coupling.
- Mini Multifunctional Drill Saw System suitable for hands&feet surgery.
- The product features variable speed operation, excellent performance, easy operating,multi-function mode for your selection, a wide range of applications.
$2,890.00
Guaranteed Safe Checkout
Features & Compatibility

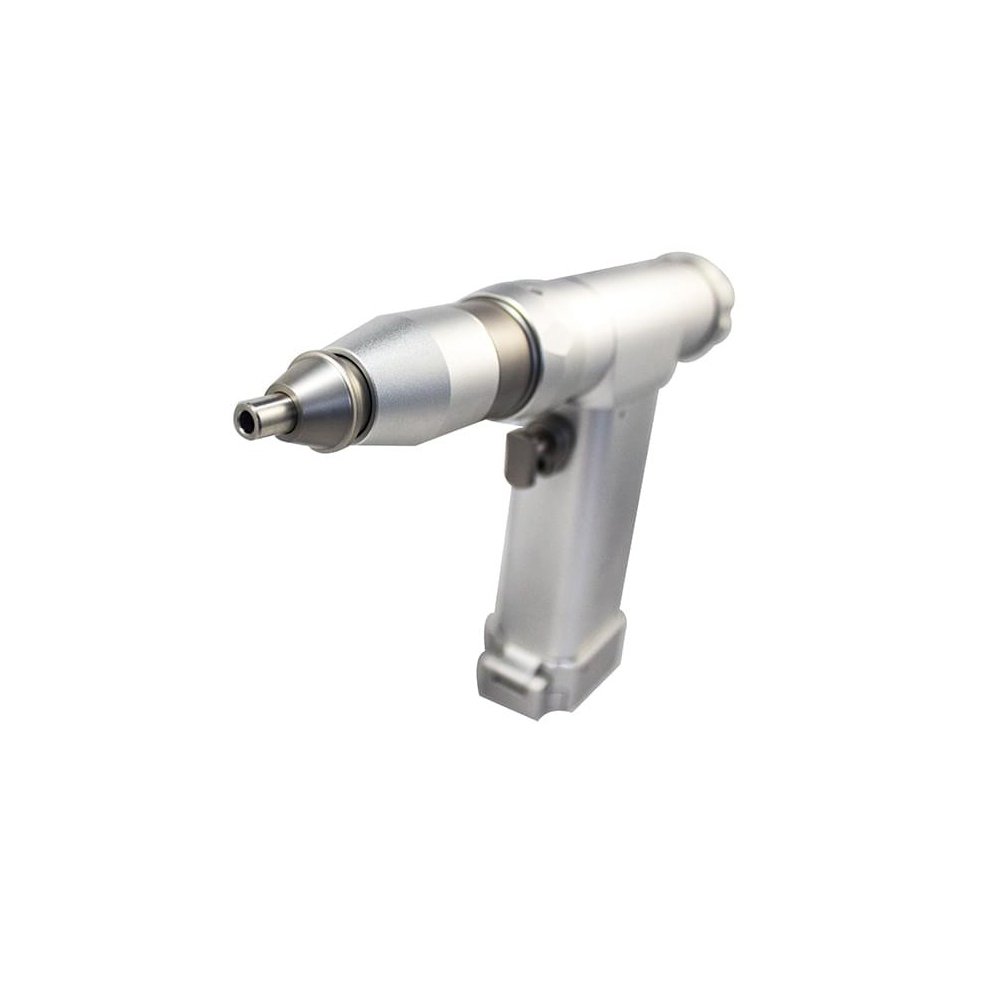

NM-300 Mini Multifunctional Drill Saw System
The NM-300 is a lightweight, battery-operated orthopedic drill and saw system designed for veterinary and small animal surgery. Featuring four interchangeable attachments, dual batteries, and a charger, this versatile platform delivers reliable performance for drilling, sawing, cannulated drilling, and Kirschner wire applications with variable speed control and quick-coupling convenience.
Clinical overview
The NM-300 is a compact, portable orthopedic power tool engineered for small animal and veterinary surgical applications. Its lightweight handpiece design reduces operator fatigue during extended procedures, while the quick-coupling interface enables rapid attachment changes without tool removal. The system operates on rechargeable Ni-MH batteries with approximately 3-hour charge time, providing cordless freedom and consistent performance across multiple surgical cases.

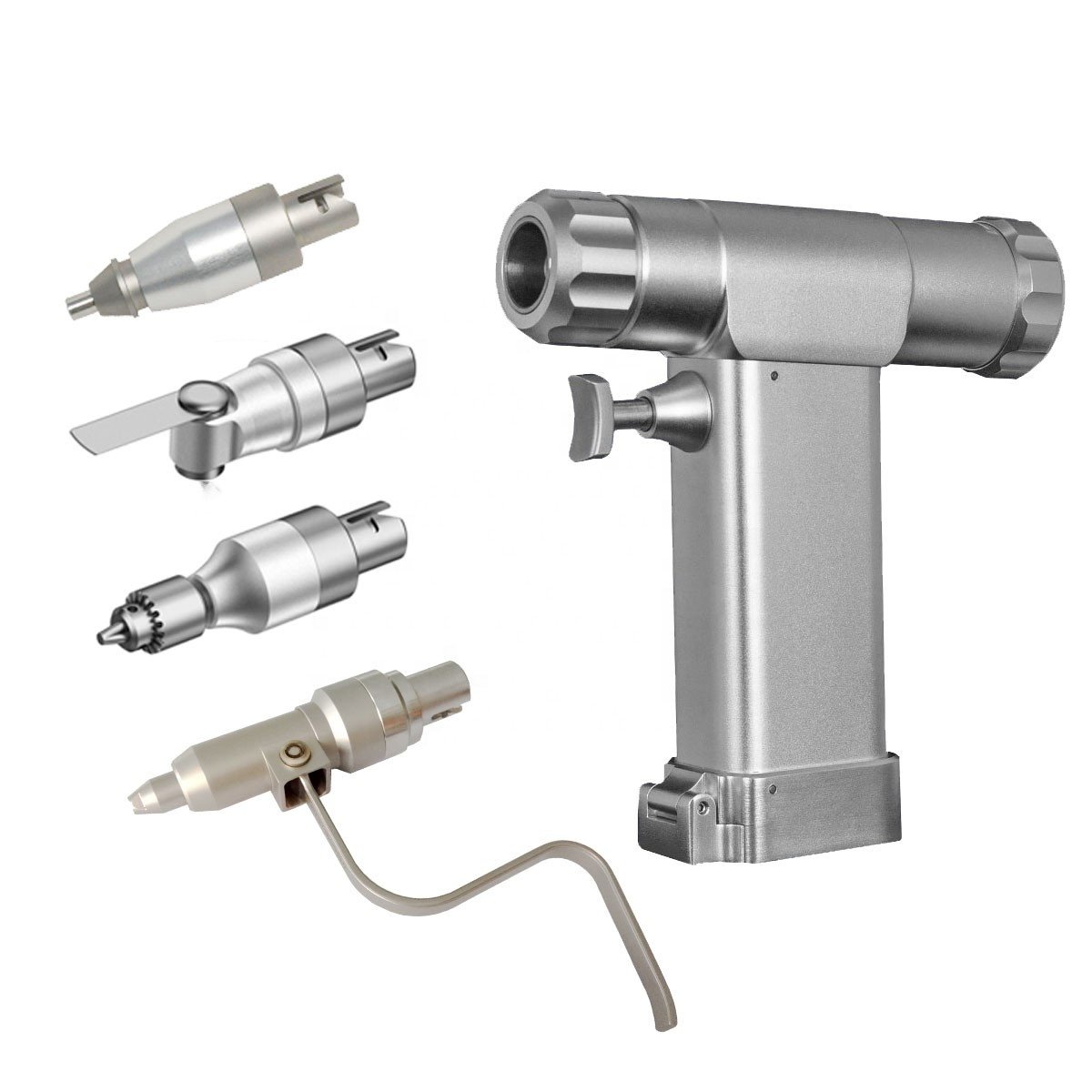

With four interchangeable attachments—standard drill chuck, cannulated drill, oscillating saw, and Kirschner wire guide—the NM-300 consolidates multiple instruments into a single platform. The 4.0 mm hollow bore accommodates all standard brand needles and wires, while axial run-out concentricity within 0.05 mm ensures precision drilling and minimal tissue trauma. Autoclavable components and stainless steel construction support infection control protocols in veterinary and surgical environments.
Key features & surgeon benefits
Four-in-One Attachment System
- Drill chuck, cannulated drill, oscillating saw, and K-wire guide in one handpiece
- Quick-coupling interface for rapid attachment changes
- Reduces instrument count and setup time
Lightweight & Portable Design
- Handpiece weight optimised for reduced operator fatigue
- Battery-powered cordless operation for mobility
- Compact form factor suitable for hands and feet surgery
Precision & Reliability
- 600 rpm no-load speed with variable speed control
- Axial run-out concentricity ≤0.05 mm for accurate drilling
- 20,000 g/cm torque and 3.5 N/m rotated torque
Sterilisation & Durability
- Autoclavable handpiece and sterilising channel included
- Stainless steel and aluminium construction for longevity
- CE, ISO, and SGS certified; Type 2 medical device
Technical specifications
| Indications | Orthopedic surgery, Kirschner wire insertion, intramedullary nail placement, veterinary and small animal surgery |
|---|---|
| Sizes / range | 4.0 mm hollow bore; 600 rpm no-load speed; 20,000 g/cm torque; 3.5 N/m rotated torque |
| Material | Stainless steel and aluminium |
| Sterilisation | Autoclavable handpiece and components; sterilising channel included |
| Packaging | Aluminium box with carton; 1 PC per carton |
| Warranty | 2 Year Manufacturer Warranty |
| Handpiece voltage | 14.4V DC |
| Handpiece output power | ≥20W |
| Battery charging time | Approximately 3 hours |
| Charger specifications | Input: AC 220V, 50Hz; Output: 14.4V, 900mA; Input power: 30VA |
| Certifications | CE, ISO, SGS; Medical Device Regulatory Type 2; Reg. No. Wsyjxzz2012-2100053 |

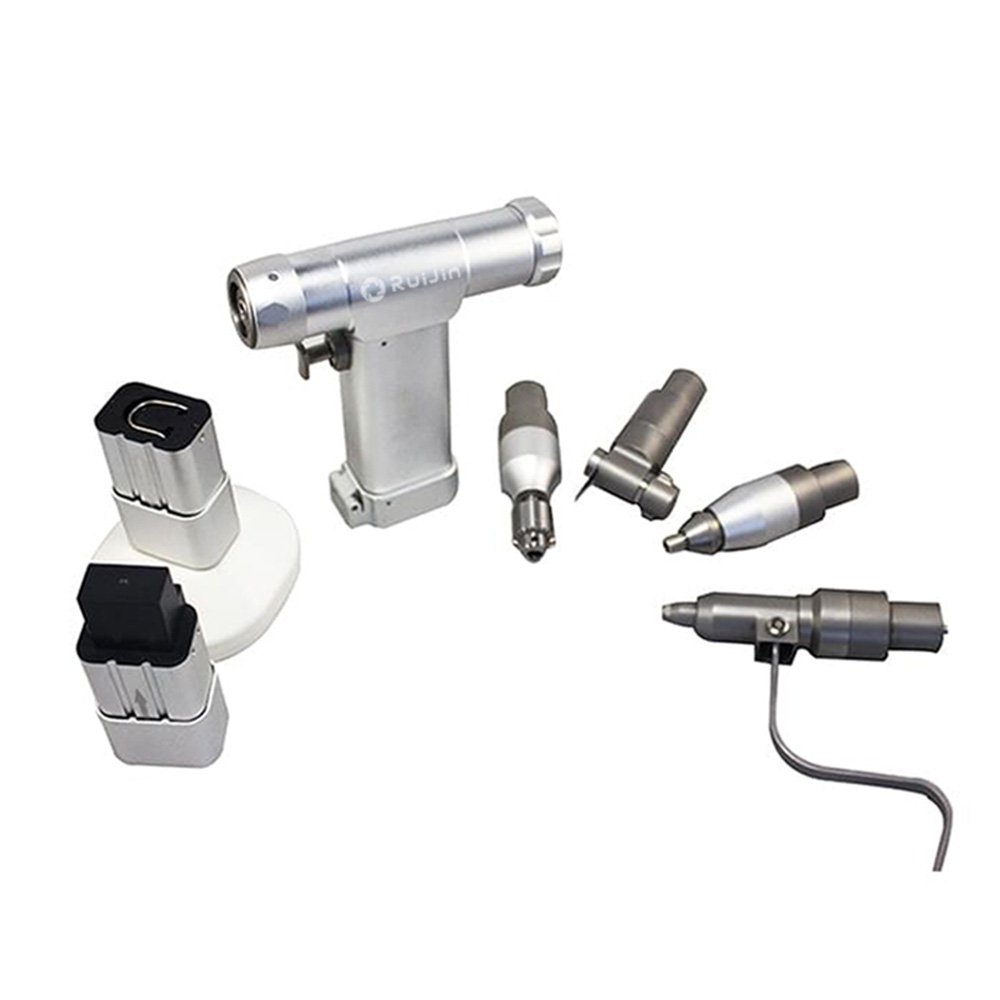

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | NM-300 cordless orthopedic drill saw unit, 14.4V | 1 |
| Battery | Ni-MH rechargeable battery, 14.4V, no memory effect | 2 |
| Charger | AC charger unit with cable, 220V/50Hz or 110V/60Hz | 1 |

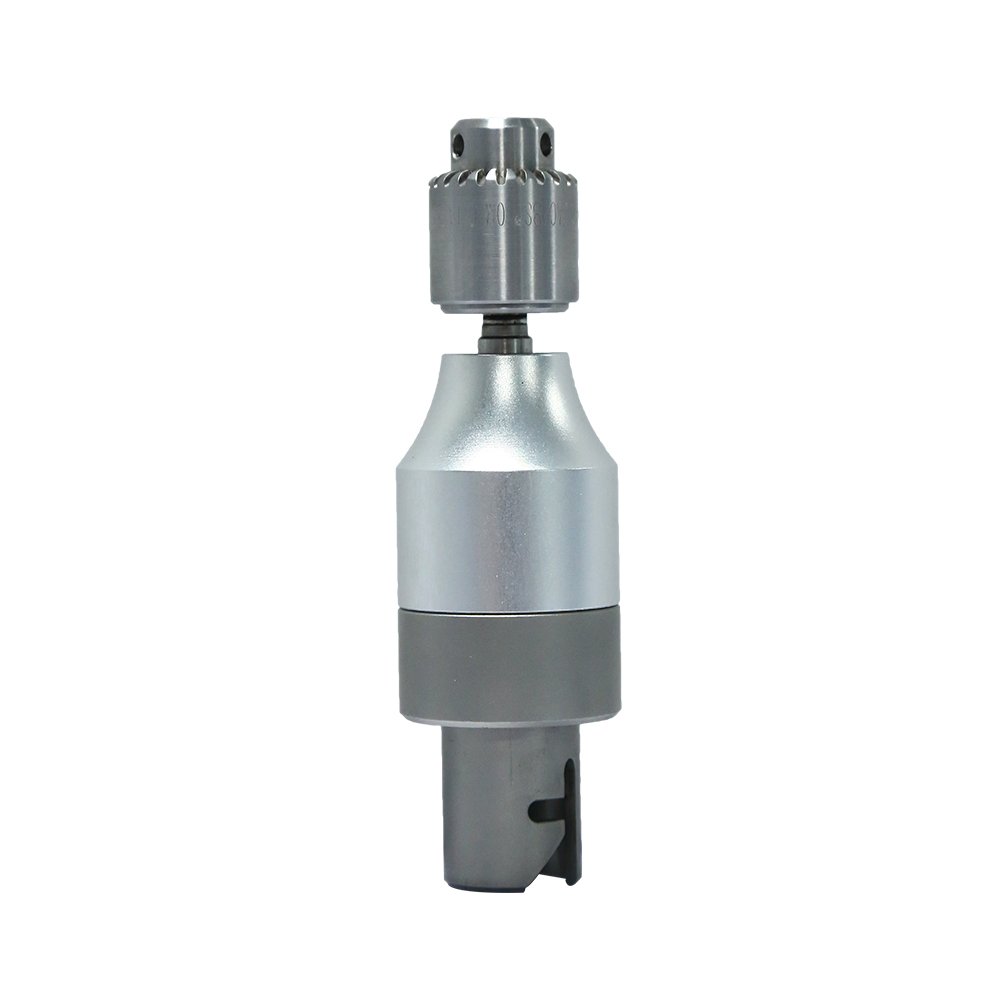

| Drill chuck | Standard drill chuck attachment with quick-coupling | 1 |
| Cannulated drill | Cannulated drill attachment for hollow bore applications | 1 |

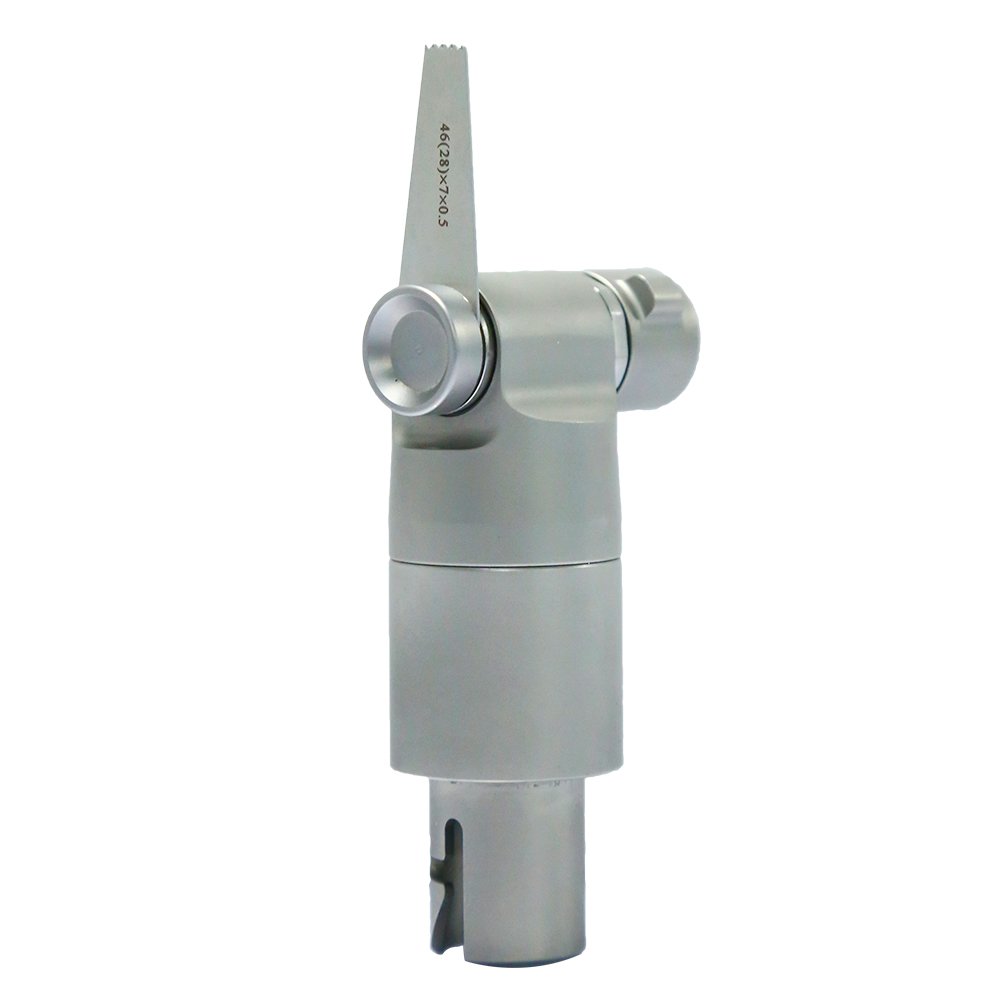

| Oscillating saw | Sagittal saw attachment for bone cutting | 1 |

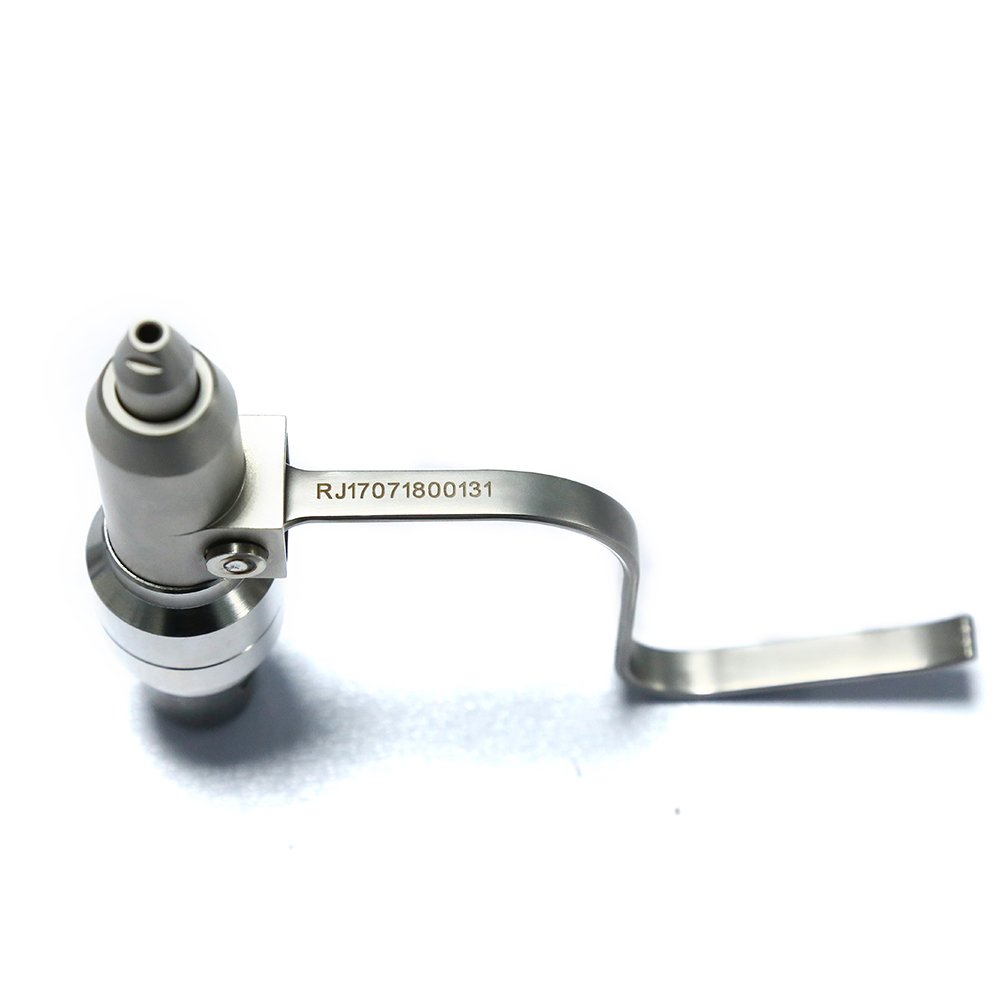

| K-wire guide | Kirschner wire guide attachment, 4.0 mm bore | 1 |
| Sterilising channel | Autoclavable sterilising tray for handpiece | 1 |

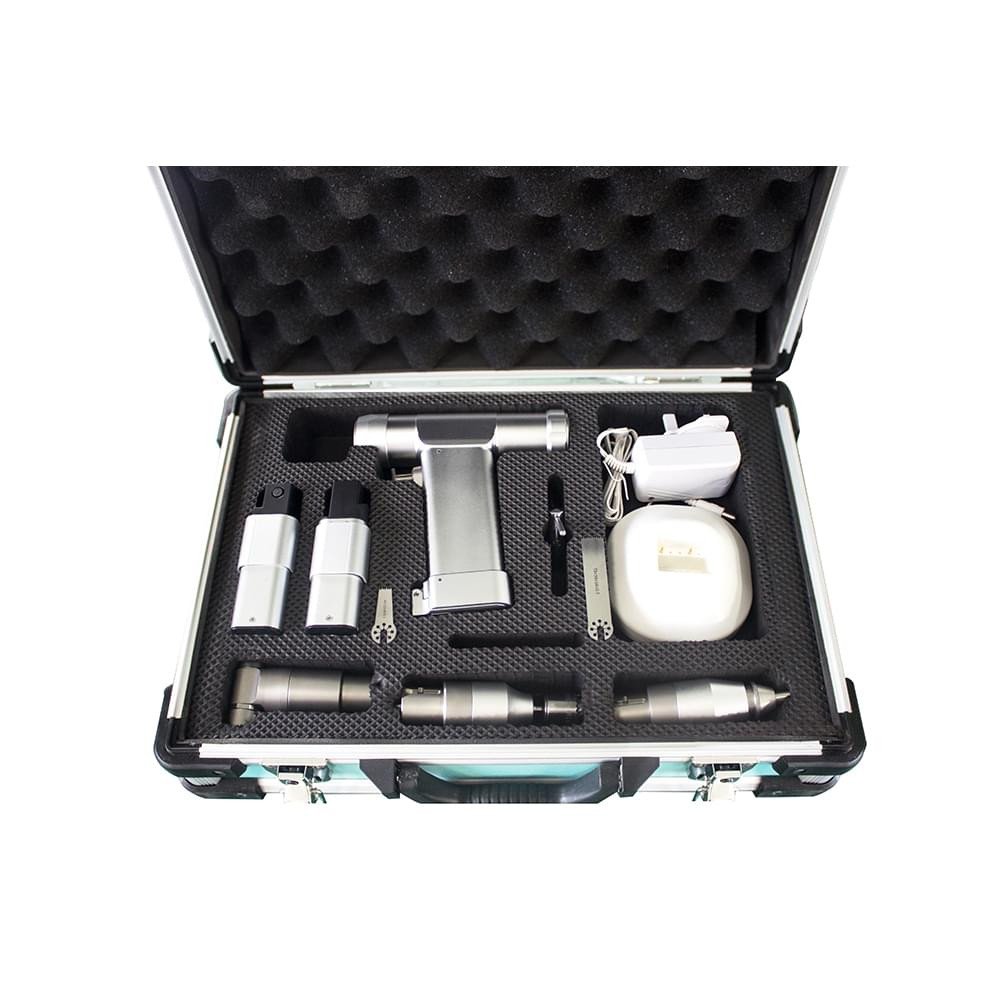

| Aluminium box | Protective carrying case with foam insert | 1 |
Get in touch for pricing & availability
The NM-300 is a proven choice for veterinary and orthopedic surgeons worldwide. Contact our sales team to discuss system configuration, bulk pricing, and delivery timelines for your facility.
