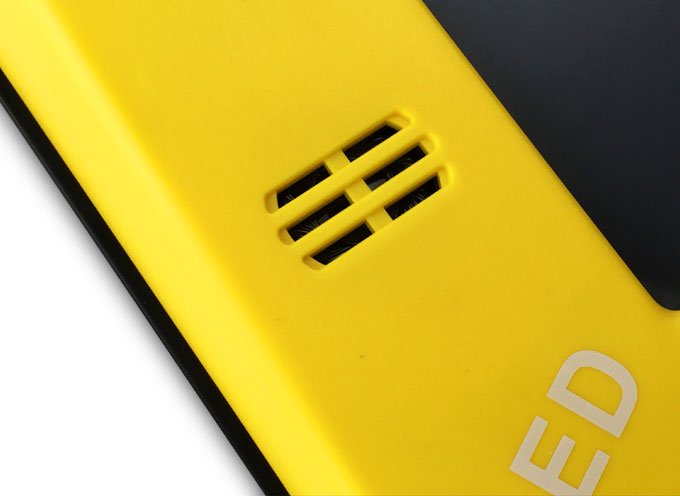

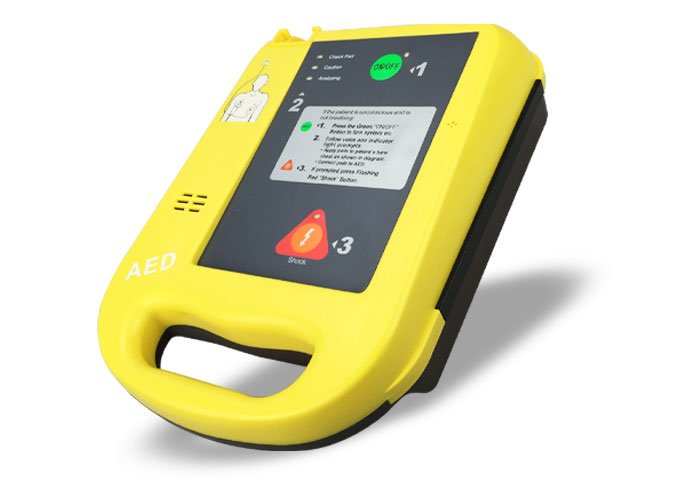

Defi 5 AED with Lock-out Protection to Prevent Inadvertent Defibrillation, Automated External Defibrillator
- SKU
- OD-00396
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

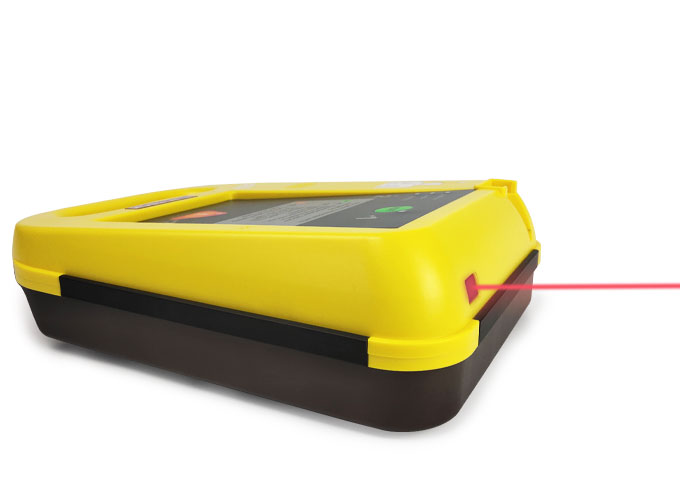

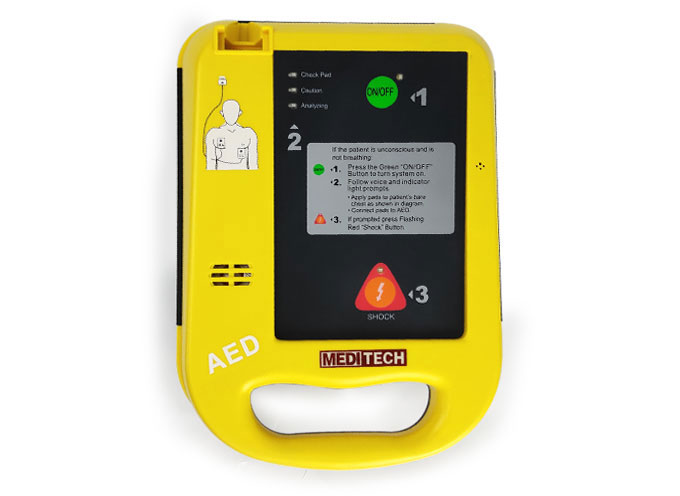

Defi 5 AED with Lock-out Protection
Advanced automated external defibrillator featuring lock-out protection to prevent inadvertent defibrillation. Delivers biphasic energy output with three-step defibrillation process and extensive voice and visual prompts. Meets clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
Clinical overview
The Defi 5 AED is a fully automated external defibrillator designed to deliver rapid, effective defibrillation therapy in emergency cardiac situations. With biphasic truncated exponential waveform technology and energy levels of 150, 150, and 200 joules, the device provides clinically proven shock sequences. The lock-out protection mechanism prevents inadvertent defibrillation, ensuring operator and patient safety during use.
Featuring 22 audible prompts and LED visual guidance, the Defi 5 supports both lay rescuers and healthcare professionals in delivering high-quality cardiopulmonary resuscitation. The device includes 60 hours of internal memory for event documentation, with ECG signals and events transferable to computer systems via optional IrDA USB adapter for post-event analysis and quality assurance.
Key features & surgeon benefits
Lock-out Protection & Biphasic Delivery
- Lock-out protection prevents inadvertent defibrillation
- Biphasic truncated exponential waveform optimizes energy delivery
- Automatic energy escalation: 150J, 150J, 200J sequence
Intuitive Two-Button Operation
- Simple On/Off and Shock buttons for rapid deployment
- 22 audible prompts guide operator through resuscitation
- LED visual indicators for real-time feedback
Long-Life Battery & Durability
- Long-life disposable LiMnO2 battery with 5-year lifespan
- Optional rechargeable battery for cost-effective operation
- Lightweight at 2.0 kg with carrying handle for easy transport
Event Memory & Software Integration
- 60-hour internal memory for complete event documentation
- ECG waveforms and voice prompts transferable to computer
- Optional AED Storage Software for supervisory monitoring and analysis
Technical specifications
| Indications | Cardiac arrhythmia, ventricular fibrillation, pulseless ventricular tachycardia |
|---|---|
| Defibrillation Waveform | Biphasic truncated exponential |
| Energy Output | 150J, 150J, 200J (three-shock sequence) |
| Charge Time | 10 seconds to 150J; 15 seconds to 200J |
| Shock Delivery Time | 9 seconds |
| Recharge Time (1st shock) | Less than 30 seconds |
| Recharge Time (2nd shock) | Less than 35 seconds |
| Recharge Time (3rd shock) | Less than 25 seconds |
| Dimensions | 303 × 216 × 89 mm |
| Weight | 2.0 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% (non-condensing) |
| Storage Temperature | −20°C to 55°C (without battery) |
| Storage Humidity | Up to 93% (non-condensing) |
| Battery Type | Long-life disposable LiMnO2 or optional rechargeable |
| Battery Life | At least 5 years (disposable) |
| Internal Memory | 60 hours of event data |
| Voice Prompts | 22 audible prompts |
| Visual Indicators | LED prompts |
| Controls | Two buttons: On/Off, Shock |
| Patient Impedance Range | 20Ω to 200Ω |
| Energy Accuracy | ±15% into any impedance from 25 to 175Ω |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Adult defibrillation electrode pads | 1 |
| Battery | Long-life disposable LiMnO2 battery | 1 |
| AED Case | Protective carrying case | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Optional accessories & software
| Option | Description |
|---|---|
| Pediatric Pads | AED pads configured for pediatric patients |
| AED Cabinet | Wall-mounted storage cabinet with alarm |
| IrDA USB Adapter | Data transfer adapter for ECG and event data |
| AED Storage Software | Supervisory system for event documentation, real-time ECG display, voice prompt waveform analysis, and selective waveform printing |
| CD Software | Software suite for ECG data transfer and analysis |
Get in touch for pricing & availability
Contact our sales team to discuss your AED requirements, request a quote, or arrange a demonstration of the Defi 5 AED system. We offer fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

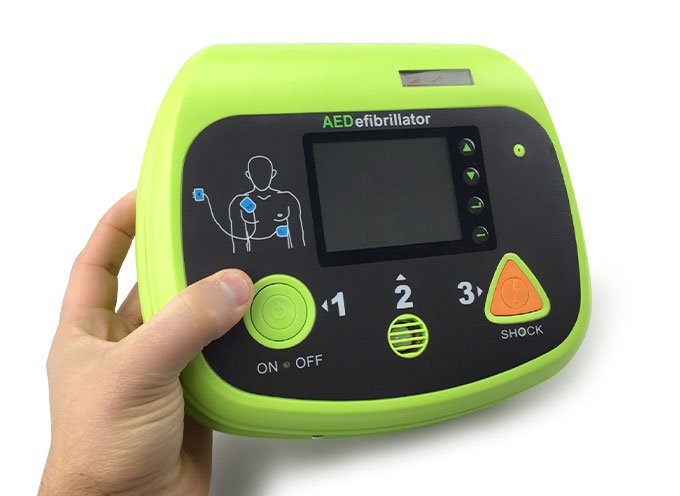

Portable Color Screen AED Defibrillator with ECG, Multi Language, SD Socket For Data Transfer from AED Device Defi 6
FREE SHIPPING! Delivery in 3 Days Portable AED which can be equipped at home in public places or in the hospitals. It’s easy and convenient to use when give first-aid to patient.

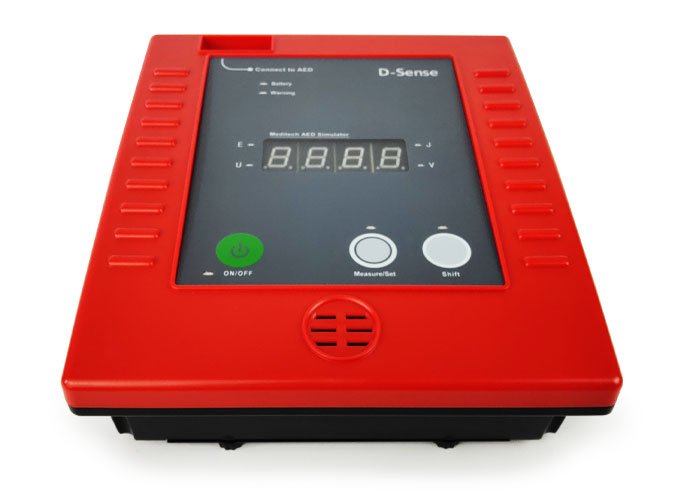

Medical Equipment DSense Defibrillator Analyzer for AED Defibrillator and Monitor Energy Test
FREE SHIPPING! Delivery in 3 Days D-Sense ® automated external defibrillator analyzer can simulate a variety of normal and abnormal ECG signals for defibrillator testing, test the ability of the defibrillator to analyze ECG signals, and display the defibrillator primary discharge energy and energy via the LED digital tube

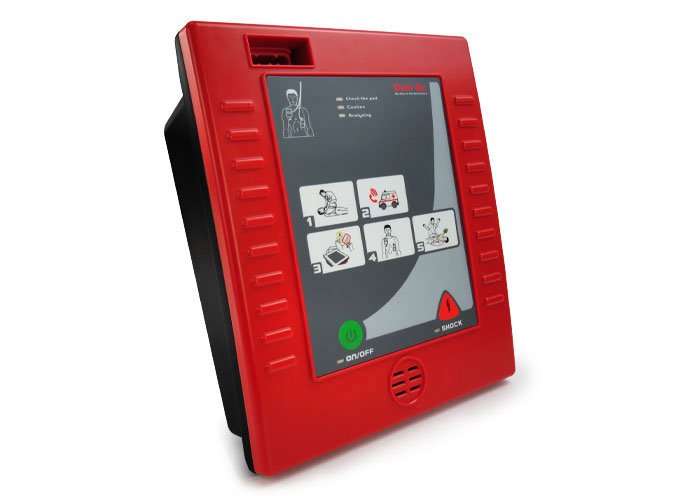

Defi 5C Medical equipment D-Sense Defibrillator analyzer for AED defibrillator and monitor energy test
FREE SHIPPING! Delivery in 3 Days Reliably runs daily self-tests for readiness, Cardiac arrest strikes, Meditech Defi 5C gives you the power to help save a life, s afely delivers a shock.

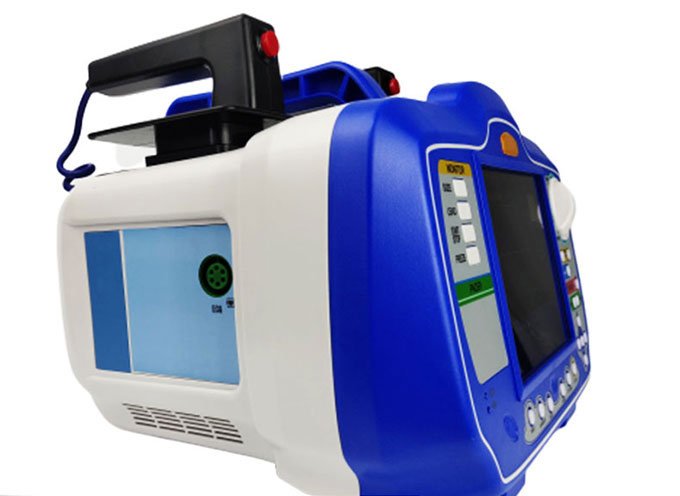

High Quality Defi Xpress Portable Defibrillator Monitor Biphasic and AED, Built-in Printer
FREE SHIPPING! Delivery in 3 Days Xpress is a defibrillator Monitor with voice alarm which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

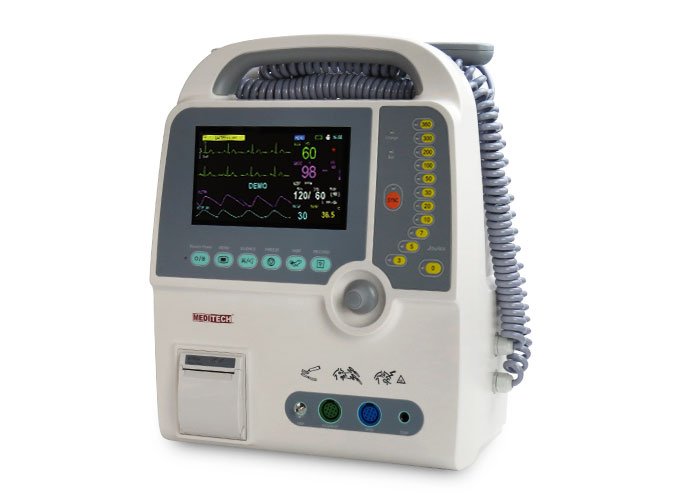

Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
FREE SHIPPING! Delivery in 3 Days Defibrillator with ECG Monitor, compact, durable, light weighted defibrillator which integrated monitoring, manual defibrillation, AED and pacer(option). It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics.

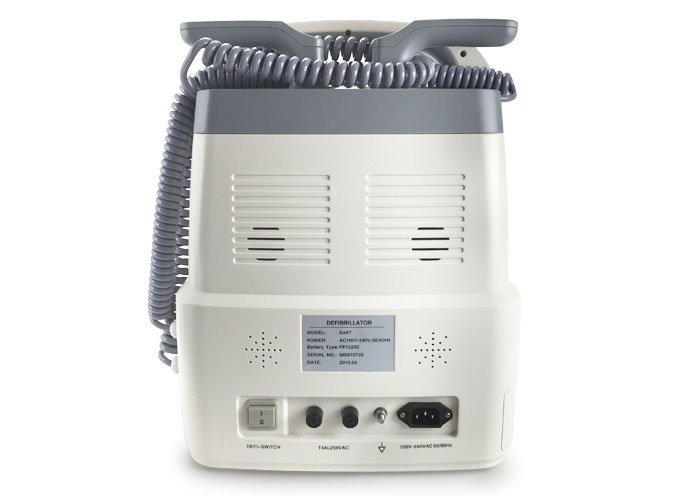

Defibrillator Professional Heart Shock Device with ECG Monitor Defi®8
FREE SHIPPING! Delivery in 3 Days Defibrillator with ECG Monitor, compact, durable, light weighted defibrillator which integrated monitoring,manual defibrillation, AED and pacer(option). It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics.

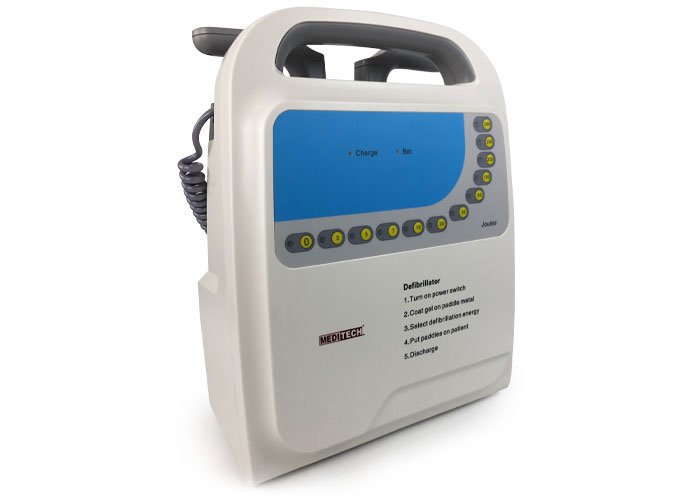

Portable Monophasic Defibrillator Defi®7
