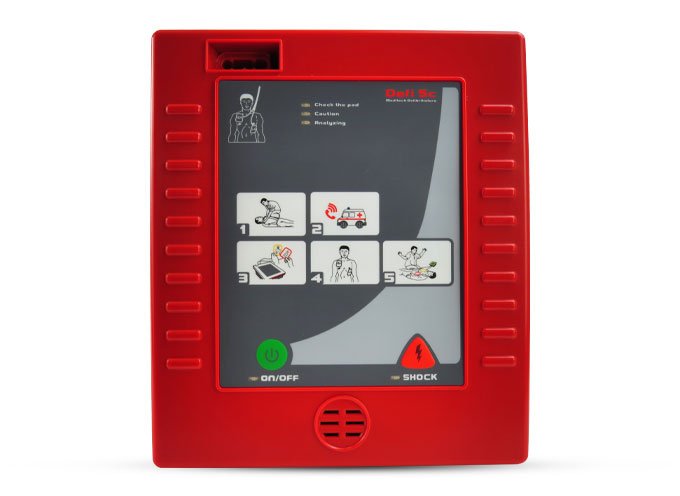

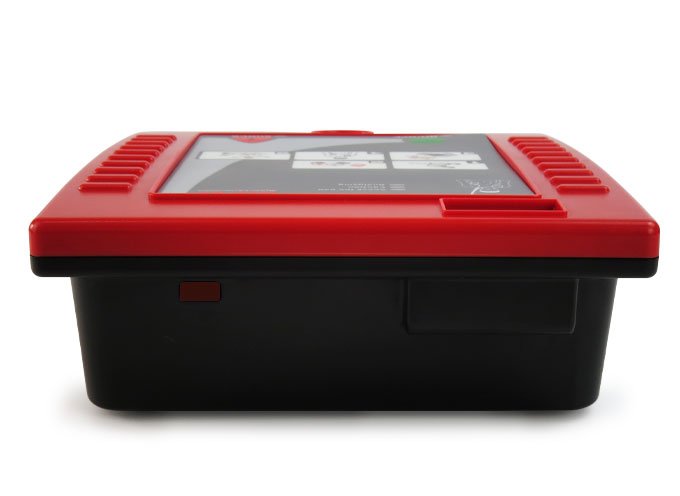

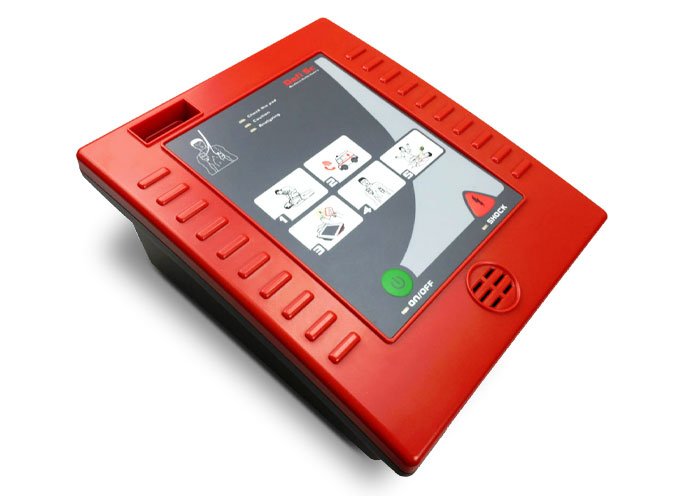

Defi 5C Medical Equipment D-Sense Defibrillator Analyzer
The Defi 5C is a fully automatic external defibrillator engineered for rapid, reliable cardiac arrest response. With biphasic energy delivery, extensive voice and visual prompts, and internal ECG memory, it provides clinicians and first responders with confidence in life-saving intervention. Free shipping with 3-day delivery.
Clinical overview
The Defi 5C is a fully automatic external defibrillator designed to deliver rapid, effective therapy in cardiac arrest. It employs a three-step defibrillation process with biphasic truncated exponential waveform technology, delivering energy sequences of 150, 150, and 200 Joules. The device automatically analyzes the patient's cardiac rhythm and delivers therapy without operator intervention, reducing decision time and improving outcomes in time-critical situations.
Extensive voice prompts and LED visual indicators guide operators through each step of the resuscitation process. The device features lock-out protection to prevent inadvertent defibrillation, two-button operation for simplicity, and an internal memory capable of storing up to 1500 events with 60 hours of ECG data. Data can be transferred via infrared for post-event analysis and quality assurance.
Key features & surgeon benefits
Automatic Self-Test & Readiness
- Daily, weekly, and monthly automated self-tests ensure device readiness
- Long-life Li-MnO2 battery with 5-year minimum lifespan
- Rechargeable battery option available for high-use environments
Intuitive Operation & Guidance
- Two-button operation (ON/OFF and Shock) for rapid deployment
- Extensive voice prompts and LED indicators guide operators in real time
- Carrying handle and compact design (1.9 kg) enable rapid transport
Fast Charge & Biphasic Delivery
- Charge time under 6 seconds to 150J, under 8 seconds to 200J
- Biphasic truncated exponential waveform optimizes defibrillation efficacy
- Maximum energy output of 200 Joules for refractory cases
Event Documentation & Software Options
- Internal memory stores 1500 events with full ECG waveforms
- Infrared data transmission for seamless integration with management systems
- Optional AED storage software for real-time ECG display and waveform analysis
Technical specifications
| Device Type | Automatic External Defibrillator (AED) |
|---|---|
| Mode | Adult |
| Waveform | Biphasic truncated exponential |
| Energy Output | 200 Joules maximum |
| Energy Sequence | 150, 150, 200 Joule |
| Charge Time (New, 25°C) | Less than 6 sec to 150J; Less than 8 sec to 200J |
| Voice Prompt | Extensive voice guidance |
| Visual Indicators | LED prompts |
| Control | Two buttons: ON/OFF, Shock |
| ECG Storage | 1500 events, 60 hours internal memory |
| Data Transmission | Infrared (IrDA) |
| Self-Test | Daily, weekly, monthly automated |
| Battery Type | Li-MnO2 (non-rechargeable); rechargeable option available |
| Battery Power | 12V, 3000mAh |
| Battery Life | Minimum 5 years |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% relative humidity (non-condensing) |
| Storage Temperature (without battery) | -20°C to 55°C |
| Storage Humidity (without battery) | Up to 93% (non-condensing) |
| Dimensions | Depth: 256 mm; Width: 220 mm; Height: 65–80 mm |
| Weight (with battery) | 1.9 kg (4.2 lbs) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Single-use sterile defibrillation pads | 1 |
| Battery | Li-MnO2 12V, 3000mAh (5-year lifespan) | 1 |
| Carrying Case | Protective transport case with handle | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Optional accessories & software
| Option | Description |
|---|---|
| AED Cabinet | Wall-mounted or stand-alone storage with alarm and access control |
| IrDA USB Adapter | Enables ECG data transfer from device to computer |
| CD Software for ECG Data Transfer | Event documentation, real-time ECG display, voice prompt waveform analysis, and selective waveform printing |
| Rechargeable Battery | Alternative to disposable Li-MnO2 for high-use environments |
