Defibrillator Professional Heart Shock Device with ECG Monitor Defi®8
Compact, durable, lightweight biphasic defibrillator-monitor with integrated ECG monitoring, manual defibrillation, AED capability, and optional pacer functionality. Designed for hospitals, clinics, and emergency care settings. Free shipping with 3-day delivery.
Clinical overview
The Defi®8 is a professional-grade biphasic defibrillator-monitor engineered for rapid, reliable cardiac intervention in hospital and clinic environments. Featuring a large 7-inch TFT display with high-resolution ECG visualization, the device provides real-time cardiac monitoring across 10 ECG leads (I, II, III, aVR, aVL, aVF, V1, V6, and ground), enabling clinicians to assess rhythm and ST-segment changes with precision. The integrated manual synchronized and asynchronous defibrillation modes, combined with optional AED and pacing capabilities, make this system versatile for both routine monitoring and acute resuscitation scenarios.
Designed for portability without compromising performance, the Defi®8 weighs only 9.8 kg and delivers energy with ±1% accuracy across 12 selectable levels (0–360 joules). Rapid charging to full capacity in 8 seconds ensures minimal delay during critical interventions. Dual battery supply and optional lithium battery backup provide extended operational autonomy—120 minutes of continuous monitoring and 30 full-energy discharges per charge cycle—making it suitable for transport, emergency departments, and intensive care units.
Key features & surgeon benefits
High-Resolution ECG Visualization
- 7-inch diagonal TFT display (480×234 resolution)
- 10-lead ECG with ST-segment analysis (±2.0 mV range)
- Arrhythmia detection and automated analysis
- Pulse range 0–255 bpm with real-time waveform display
Rapid, Accurate Energy Delivery
- Biphasic monophasic waveform technology
- 12 energy levels: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
- Maximum 8-second charge time to 360 joules
- ±1% energy accuracy at 50 Ω nominal resistance
Lightweight with Extended Autonomy
- 9.8 kg total weight; compact dimensions (L320 × W205 × H410 mm)
- Dual rechargeable lead-acid batteries (lithium optional)
- 120 minutes monitoring + 30 discharges per full charge
- AC (110V 60 Hz / 220V 50 Hz) and DC 12V power options
Modular Optional Capabilities

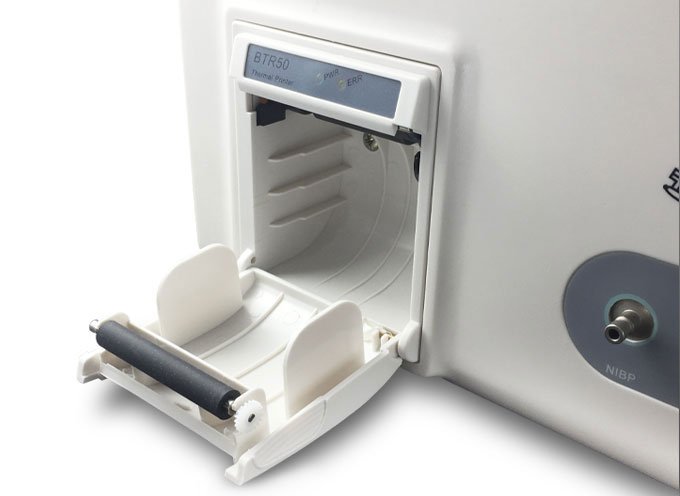

- Optional thermal printer/recorder for ECG documentation
- Pulse oximetry (SpO2) module with adult, pediatric, and neonatal probes
- Non-invasive blood pressure (NIBP) with multiple cuff sizes
- Integrated pediatric paddles; wall mounts and trolley systems available
Technical specifications
| Indications | Acute cardiac arrhythmias, ventricular fibrillation, pulseless ventricular tachycardia, cardiac monitoring, emergency defibrillation |
|---|---|
| Sizes / range | Energy: 0–360 joules (12 selectable levels); ECG leads: I, II, III, aVR, aVL, aVF, V1, V6, GND |
| Material | Aluminum and plastic housing; reusable external adult paddles with integrated pediatric capability |
| Sterilisation | Paddles and accessories as applicable; device body non-sterile (clinical-grade) |

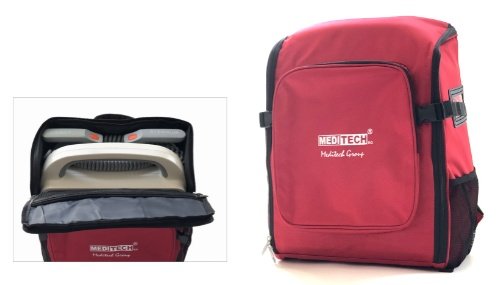

| Packaging | Standard carry bag included; optional wall mounts (3 models) and trolley systems (5 models) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable (5 Leads) | Standard 5-lead ECG cable with connectors | 1 |
| Ground Wire | Patient ground reference wire | 1 |
| Battery | Rechargeable lead-acid battery | 2 |
| Power Cable | AC mains power cable (110V/220V) | 1 |
| Fuse | Replacement fuses | 2 |
| Cleaning Cloth | Microfiber cleaning cloth | 1 |

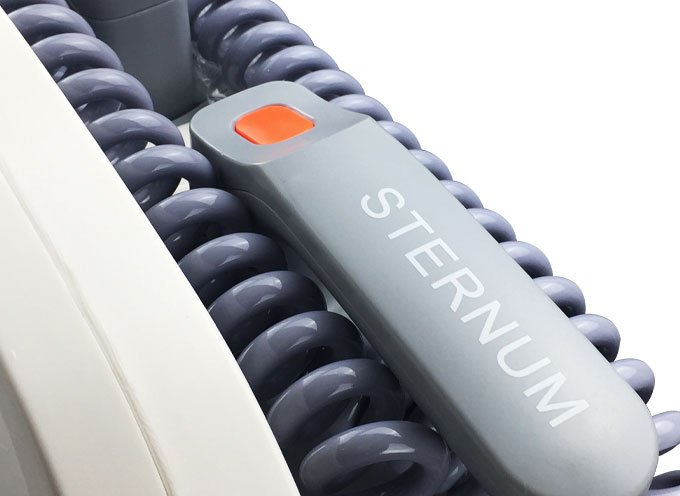

| Adult Paddles | Reusable external defibrillation paddles (pediatric integrated) | 1 pair |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a clinical demonstration of the Defi®8 system. We offer flexible delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
