Comprehensive surgical instrument set designed for large fragment locking plate fixation. Includes all essential guides, drills, taps, and reduction instruments for efficient fracture management and optimal plate positioning.
The Large Fragment Locking Plate Instrument Set is a complete surgical solution for fracture fixation using modern locking plate technology. This comprehensive 26-piece instrument set provides surgeons with all necessary tools for accurate plate placement, precise drilling, tapping, and screw insertion. The set includes threaded wire and drill guides, multiple drill bits, taps for both cortical and locking screws, reduction forceps, and torque-limiting handles to ensure consistent, safe fixation.
Designed for trauma and orthopedic surgeons performing large fragment fracture repairs, this instrument set streamlines the surgical workflow while maintaining the precision required for optimal patient outcomes. All instruments are manufactured from high-quality stainless steel and supplied in a protective aluminium case for durability and easy transport.
| Indications | Large fragment fracture fixation, locking plate osteosynthesis, trauma surgery |
|---|---|
| Sizes / range | 2.0mm to 5.0mm threaded components; 3.2mm to 4.3mm drill bits; depth gauge 0β90mm |
| Material | Stainless steel instruments, aluminium storage case |
| Sterilisation | Steam sterilisable; supplied non-sterile |
| Packaging | Protective aluminium case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|

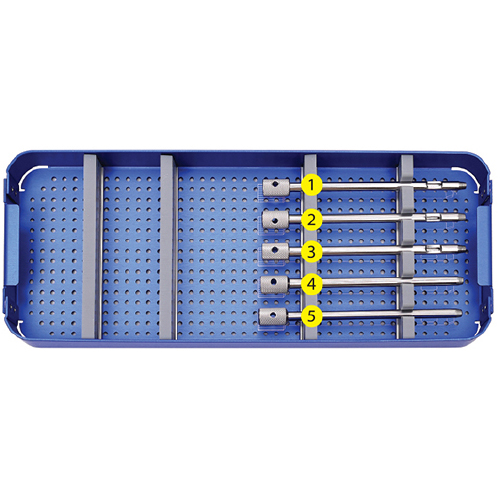

| 1 | Threaded Wire Guider 2.0mm | 1 |
| 2 | Threaded Wire Guider 2.0mm | 1 |
| 3 | Threaded Drill Guider 4.3mm | 2 |
| 4 | Threaded Drill Guider 4.3mm | 2 |
| 5 | Threaded Drill Guider 4.3mm | 1 |

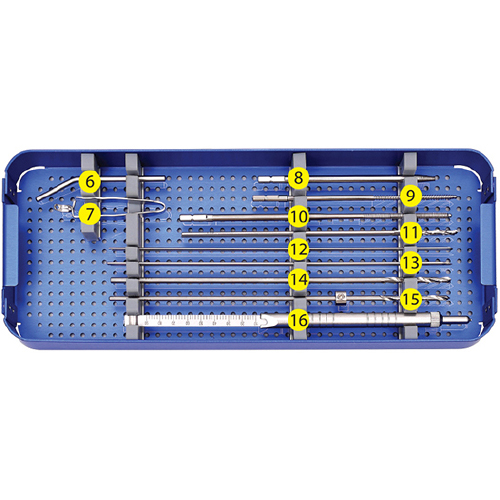

| 6 | Sleeve Key | 1 |
| 7 | Screw Forcep | 1 |
| 8 | Extraction Screw | 1 |
| 9 | Tap for Cortical Screw 4.5mm | 1 |
| 10 | Tap for Locking Screw 5.0mm | 1 |
| 11 | Drill Bit Ο3.2 | 1 |
| 12 | Guider Wire Ο2.0 | 1 |
| 13 | Threaded Guider Wire Ο2.0 | 1 |
| 14 | Drill Bit Ο4.2 | 1 |
| 15 | Drill Bit Ο3.2 with Block | 1 |
| 16 | Depth Gauge 0β90mm | 1 |

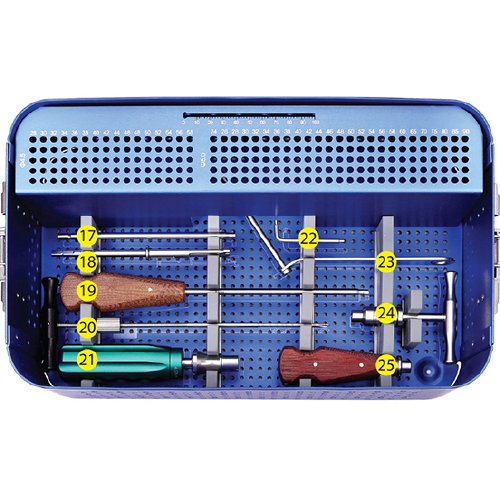

| 17 | Screwdriver Hexagonal 3.5mm | 1 |
| 18 | Screwdriver Hexagonal 3.5mm + Sleeve | 1 |
| 19 | Screwdriver Hexagonal 3.5mm | 1 |
| 20 | Push-pull Reduction Forcep | 1 |
| 21 | Torque Limiting Handle 4.0 NΒ·m | 1 |
| 22 | Hex Key | 1 |
| 23 | Protective Sleeve | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Aluminium Box | 1 |
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options for your surgical facility.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty β all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork β usually within one business day.
