Small Fragment Locking Plate Instrument Set
Comprehensive surgical instrument set designed for small fragment locking plate fixation. Includes precision-engineered guide wires, drill bits, taps, and specialized reduction and insertion tools to support efficient and accurate plate placement and screw fixation in orthopedic trauma surgery.
Clinical overview
The Small Fragment Locking Plate Instrument Set provides surgeons with a complete, integrated solution for percutaneous and open small fragment plate fixation. This 29-piece set combines precision guide wires, graduated drill bits with depth limitators, specialized taps for cortical and locking screws, and ergonomic reduction and insertion forceps to streamline the entire fixation workflow from reduction through final screw placement.
Designed for use in hand, wrist, foot, and other small bone trauma applications, the set supports both traditional and minimally invasive techniques. All instruments are manufactured from medical-grade stainless steel and are fully steam sterilizable, ensuring compatibility with standard OR protocols and infection control standards.
Key features & surgeon benefits
Graduated instrumentation
- Threaded guide wires (Ο1.5mm) for accurate screw placement
- Drill bits with depth limitators to prevent over-penetration
- Dedicated taps for cortical (3.5mm) and locking (4.0mm) screws
Integrated surgical pathway
- Quick-coupling handles (T-handle and straight) for rapid tool exchange
- Torque-limiting handle (1.5 NΒ·m) prevents screw over-tightening
- Push-pull reduction forceps and screw forceps for controlled reduction and insertion
Built to last
- Medical-grade stainless steel construction resists corrosion
- Fully steam sterilizable for repeated use
- Protective aluminum case with custom foam inserts for safe transport and storage
All-in-one solution
- 29 instruments cover the entire fixation sequence
- Depth gauge (0β60mm) for accurate screw length measurement
- Extraction screw and protective sleeve for instrument maintenance
Technical specifications
| Indications | Small fragment locking plate fixation, orthopedic trauma, hand and wrist surgery, foot surgery |
|---|---|
| Sizes / range | Guide wires Ο1.5mm (200mm length), drill bits Ο2.5β3.2mm (200mm length), taps 3.5mm and 4.0mm |
| Material | Medical-grade stainless steel, aluminum case |
| Sterilisation | Steam sterilizable (autoclave compatible) |
| Packaging | Protective aluminum case with custom foam inserts |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition

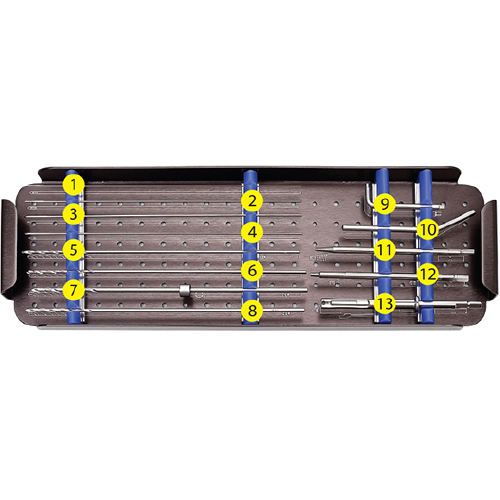

| Item | Description | Qty |
|---|---|---|
| 1 | Threaded Guider Wire Ο1.5Γ200mm | 1 |
| 2 | Threaded Guider Wire Ο1.5Γ200mm | 1 |
| 3 | Guider Wire Ο1.5Γ200mm | 1 |
| 4 | Guider Wire Ο1.5Γ200mm | 1 |
| 5 | Drill Bit Ο2.5Γ200mm | 1 |
| 6 | Drill Bit Ο2.5Γ200mm | 1 |
| 7 | Drill Bit Ο3.2Γ200mm with Limitator | 1 |
| 8 | Drill Bit Ο3.2Γ200mm | 1 |
| 9 | Hex Key | 1 |
| 10 | Sleeve Key | 1 |
| 11 | Extraction Screw | 1 |
| 12 | Screwdriver Hexagonal 2.5mm | 1 |
| 13 | Screwdriver Hexagonal 2.5mm + Sleeve | 1 |
| 14 | Depth Gauge 0β60mm | 1 |
| 15 | Push-pull Reduction Forcep | 1 |
| 16 | Tap for Cortical Screw 3.5mm | 1 |
| 17 | Tap for Locking Screw 4.0mm | 1 |
| 18 | Threaded Wire Guider 1.5mm | 1 |
| 19 | Threaded Wire Guider 1.5mm | 1 |
| 20 | Threaded Drill Guider 3.2mm | 1 |
| 21 | Threaded Drill Guider 3.2mm | 1 |
| 22 | Threaded Drill Guider 3.2mm | 1 |
| 23 | Screw Forcep | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Screwdriver Hexagonal 2.5mm | 1 |
| 27 | Torque Limiting Handle 1.5 NΒ·m | 1 |
| 28 | Protective Sleeve | 1 |
| 29 | Aluminum Box | 1 |
