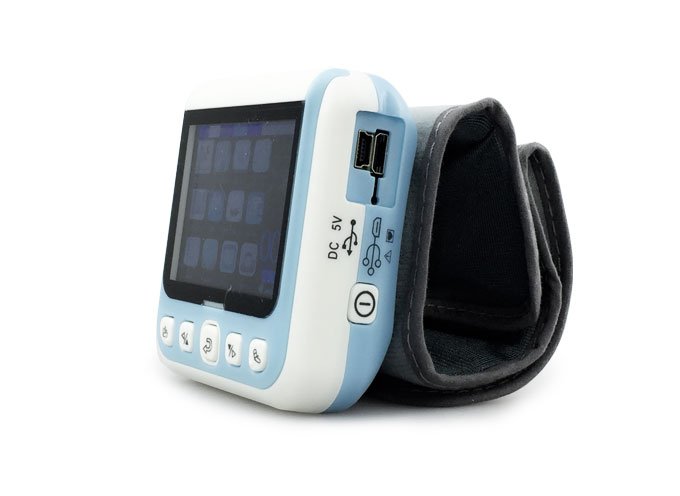

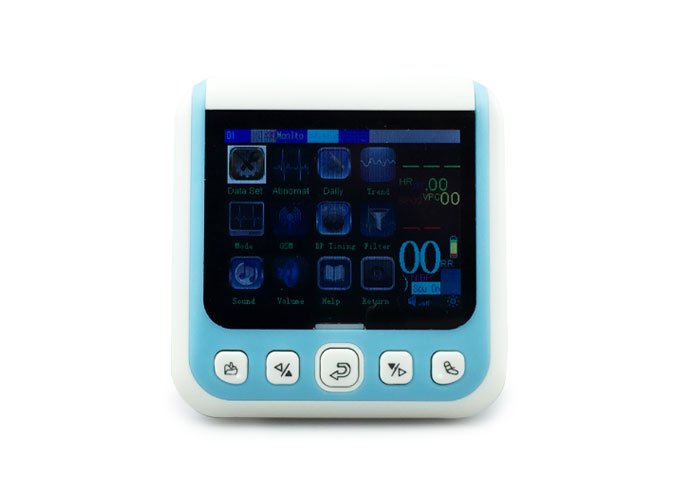

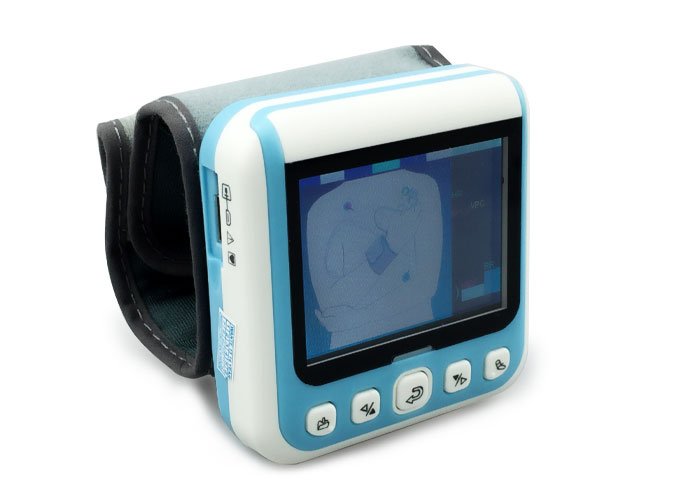

MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor
- SKU
- OD-00421
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
MD09X Wrist Multi-Parameters Patient Monitor
Smart wrist-worn multiparameter monitor with simultaneous ECG, heart rate, respiration, blood pressure, SpO₂ and pulse rate measurement. Compact 2.4-inch TFT color display with real-time waveform visualization and 96-hour trend analysis. Bluetooth 4.0 connectivity for seamless integration with Android and iOS devices.
Clinical overview
The MD09X is a compact, wrist-worn multiparameter patient monitor designed for continuous and spot-check monitoring in clinical, ambulatory and home care settings. The device simultaneously acquires and displays ECG, heart rate, respiration, noninvasive blood pressure (NIBP), SpO₂ and pulse rate on a high-resolution 2.4-inch TFT color screen. Real-time dual-channel waveform visualization and 96-hour trend memory enable rapid clinical assessment and longitudinal tracking of patient status.
Advanced signal processing includes automatic adult/child pressure range detection, motion artifact rejection for SpO₂ measurement, pacing pulse suppression, and ST-segment analysis. Dual alarm modes (visual and audible) with configurable thresholds ensure timely clinical notification. Bluetooth 4.0 connectivity allows wireless data synchronization with Android and iOS mobile applications, supporting remote monitoring and data export workflows.
Key features & surgeon benefits
Six simultaneous parameters
- ECG with 3- or 10-lead cable options
- Heart rate with abnormal rhythm detection
- Noninvasive blood pressure (oscillometric)
- SpO₂ with low-perfusion and motion artifact tolerance
- Respiration rate and waveform
- Pulse rate measurement
Seamless clinical operation
- 2.4-inch TFT color display with 320×240 resolution
- Real-time dual-channel waveform visualization
- 96-hour trend memory for ECG, BP, SpO₂, ST and arrhythmia events
- Embedded e-manual for rapid reference
- Bluetooth 4.0 for wireless mobile app connectivity
- Automatic adult/child pressure range detection
Compact and cost-effective
- Wrist-worn form factor: 7 cm (W) × 7 cm (H) × 2.6 cm (D)
- Net weight 130 g for extended wear comfort
- Built-in 3.7 V 1000 mAh rechargeable battery
- 5 V/1 A power adapter with 2 W consumption
- Reduced footprint vs. bedside monitors
- Suitable for ambulatory and home monitoring
Clinical-grade signal processing
- ST-segment measurement (±0.02 mV or ±10% accuracy)
- Pacing pulse suppression (±2 mV to 500 mV range)
- Arrhythmia detection: tachycardia, bradycardia, VPC, bigeminal/trigeminal rhythm, RonT, VTAC, escape beat, sinus arrest
- Dual alarm modes: visual and audible (45–65 dB)
- Configurable heart rate and SpO₂ alarm thresholds
- CF-type electrical shock protection
Technical specifications
| Indications | Continuous and spot-check monitoring of ECG, heart rate, respiration, blood pressure, SpO₂ and pulse rate in clinical and ambulatory settings |
|---|---|
| Display | 2.4-inch TFT color screen; 320×240 resolution; dual-channel waveform display (ECG, respiration, BP, SpO₂) |
| Wrist circumference range | 135–215 mm |
| Dimensions (without strap) | 7 cm (W) × 7 cm (H) × 2.6 cm (D) |
| Weight | Net: 130 g; Gross: 0.5 kg |
| Battery | Built-in 3.7 V 1000 mAh rechargeable lithium-ion |
| Power adapter | 5 V/1 A; 2 W consumption |
| Connectivity | Bluetooth 4.0 for Android and iOS mobile applications |
| Operating environment | Temperature: 5–40 °C; Humidity: 15–80%; Atmospheric pressure: 80–105 kPa |
| Storage environment | Temperature: −20–55 °C; Humidity: 10–90%; Atmospheric pressure: 50–106 kPa |
| Electrical safety | CF-type (cardiac floating) protection; leakage current <10 µA |
| Warranty | 2 Year Manufacturer Warranty |
ECG specifications
| Parameter | Specification |
|---|---|
| ECG cable options | 3-lead (standard) or 10-lead (optional) |
| Waveform gain | 0.5, 1.0, 2.0 mm/mV |
| Scanning speed | 7.5 mm/s, 15 mm/s |
| Heart rate range (adult) | 30–250 bpm |
| Heart rate accuracy | ±5%; resolution 1 bpm |
| Sensitivity | >200 µV peak-to-peak |
| Input impedance | >5 MΩ differential |
| Common-mode rejection ratio | ≥90 dB |
| Electrode polarization voltage | 300 mV range |
| Input signal range | ±5 mV |
| Frequency response (filter) | 0.67–40 Hz |
| ST-segment measurement range | −2.0 to +2.0 mV |
| ST-segment accuracy | ±0.02 mV or ±10% (−0.8 to +0.8 mV) |
| ST-segment renewal period | 10 seconds |
| Pacing pulse suppression range | ±2 mV to 500 mV; width 0.1–2 ms |
| Arrhythmia detection | Tachycardia, bradycardia, VPC, bigeminal rhythm, trigeminal rhythm, RonT, VTAC, escape beat, sinus arrest |
| Alarm range | 30–250 bpm; dual mode (visual + audible) |
| Alarm sound pressure | 45–65 dB |
NIBP & SpO₂ specifications
| Parameter | Specification |
|---|---|
| NIBP measurement method | Oscillometric; automatic adult/child detection |
| NIBP measuring range | 30–280 mmHg |
| NIBP accuracy | ±5 mmHg or ±5% |
| Maximum cuff pressure | 300 mmHg; ≤3 min at ≥15 mmHg overpressure |
| NIBP alarm threshold | Systolic/diastolic ±2 mmHg error detection |
| SpO₂ measuring range | 40–99% |
| SpO₂ accuracy (90–99%) | ±2% |
| SpO₂ accuracy (70–89%) | ±4% |
| SpO₂ accuracy (40–69%) | ±6% |
| SpO₂ alarm range | 50–99% |
| SpO₂ features | Anti-low perfusion; motion artifact rejection |
Respiration & pulse rate specifications
| Parameter | Specification |
|---|---|
| Respiration measurement | Real-time waveform display; 96-hour trend memory |
| Pulse rate range (30–80 bpm) | ±2 bpm accuracy |
| Pulse rate range (80–150 bpm) | ±4 bpm accuracy |
| Pulse rate range (150–240 bpm) | ±5 bpm accuracy |
| Pulse rate measurement accuracy | ±5% |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 3-lead configuration | 1 |
| SpO₂ Probe | Soft-tip finger probe | 1 |
| Power Adapter | 5 V/1 A USB charger | 1 |
| Cleaning Cloth | Microfiber cloth for display and housing | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| ECG Cable (10-lead) | Extended lead configuration for enhanced diagnostic capability |
