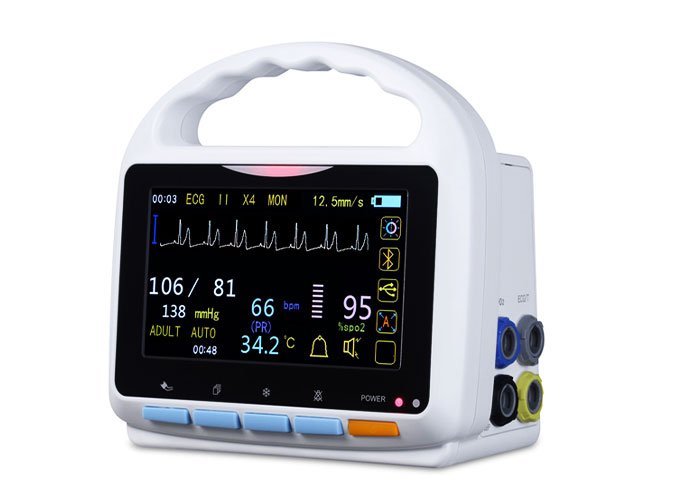

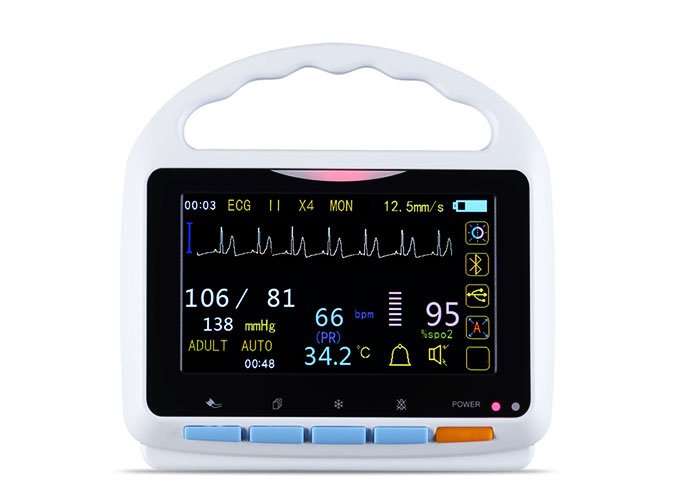

MD905 Patient Monitor Touch Screen 5.0 inch Color TFT Screen with Android App
- SKU
- OD-MD905
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
MD905 Patient Monitor Touch Screen 5.0 inch Color TFT Screen with Android App
Portable, compact multiparameter patient monitor with 5.0-inch color TFT touch screen. Intelligent measurement of ECG, NIBP, SpO2, PR, PLETH, and TEMP with up to 15-hour battery runtime. Real-time data display, storage, and wireless connectivity via Bluetooth for seamless clinical workflow.
Clinical overview
The MD905 is a portable, compact multiparameter patient monitor designed for real-time vital signs acquisition and display in diverse clinical environments. The 5.0-inch color TFT touch screen provides clear, bright visualization of ECG, NIBP, SpO2, pulse rate, plethysmography, and temperature measurements. Intuitive touch interface enables rapid parameter selection and alarm configuration, reducing training time and improving clinical efficiency.
Built-in rechargeable lithium-ion battery provides up to 15 hours of continuous operation, supporting both AC and DC power modes. Advanced data storage capability retains up to 129.6 hours of trend data and 3,888 measurement groups, with ECG waveform archival (30 × 8-second segments) and 100-group historical review for NIBP, SpO2, pulse rate, and temperature. Wireless Bluetooth connectivity enables seamless data transfer to PC-based software for long-term monitoring, analysis, printing, and archival.
Key features & surgeon benefits
Comprehensive Vital Signs Monitoring
- ECG with 3/5-lead cable support and selectable gain (×1, ×2, ×4, ×8)
- NIBP via oscillometric method with manual, auto, and STAT modes
- SpO2 and pulse rate with ±1–2% accuracy across measurement range
- Temperature monitoring via thermal-sensitive resistor (±0.1°C accuracy)
- Plethysmography waveform display
Intuitive Operation & Data Management
- 5.0-inch touch screen with real-time parameter display and easy navigation
- Adjustable backlight for optimal visibility in varied lighting conditions
- Audible and visual alarm modes for critical parameter thresholds
- Wireless Bluetooth and USB data transfer to PC software for review, printing, and storage
- Optional thermal printer for bedside documentation
Extended Runtime & Flexible Power Options
- Compact design (209 × 104 × 47.5 mm) with 655 g net weight for easy transport
- Rechargeable 3.7V/7200 mAh Li-ion battery with ≥1000 charge cycles
- Up to 15-hour operating time on full battery charge
- AC adapter (100–110V/240VAC, 50/60 Hz) and DC power support
- Dual-color LED power and charging indicators
Flexible Sensor & Cuff Options
- Multiple SpO2 sensor variants: adult hard/soft shell, pediatric, neonatal, and multi-site Y-type
- NIBP cuff sizes from infant (8–14 cm) to thigh (42–50 cm)
- ECG cable options including 3-lead and alligator clip configurations
- Optional thermal micro-printer with 58 mm paper support
- Extended NIBP tubing (150 cm) for flexible patient positioning
Technical specifications
| Indications | Patient vital signs monitoring in clinical, perioperative, and ambulatory care settings |
|---|---|
| Display | 5.0-inch color TFT-LCD touch screen; 209 × 104 × 47.5 mm; net weight 655 g |
| ECG Measurement | 3/5-lead AAMI cable; heart rate 20–300 bpm (±1 bpm accuracy); frequency response 0.05–100 Hz (no filter) or 0.5–40 Hz (filtered); sweep speed 12.5, 25, 50 mm/s |
| NIBP Measurement | Oscillometric method; range 30–255 mmHg (adult), 30–160 mmHg (pediatric); pressure resolution 1 mmHg; over-pressure protection 300 mmHg (adult), 220 mmHg (pediatric) |
| SpO2 Measurement | Range 0–100%; resolution 1%; accuracy ±2% (90–99%), ±3% (70–89%); pulse rate 20–300 bpm |
| Temperature Measurement | Range 0–50°C; accuracy ±0.1°C via thermal-sensitive resistor sensor |
| Data Storage | Maximum 3,888 measurement groups; continuous trend data up to 129.6 hours; ECG waveform 30 × 8-second segments; NIBP/SpO2/PR/TEMP review up to 100 groups |
| Battery | Li-ion rechargeable 3.7V/7200 mAh; operating time 15 hours (full charge); recharge time 10 hours; ≥1000 charge cycles |
| Power Supply | AC adapter: 100–110V/240VAC, 50/60 Hz, 0.7 A input; DC 5V, 1.5 A output |
| Operating Environment | Temperature 0–45°C; humidity 30–85% (no condensation) |
| Storage Environment | Temperature −25–85°C; humidity 30–95% (no condensation) |
| Connectivity | USB data transfer; Bluetooth wireless for PC software and optional thermal printer |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 3/5-lead AAMI standard connector | 1 |
| SpO2 Cable (Adult) | Adult soft or hard shell sensor | 1 |
| NIBP Cuff (Adult) | 26–35 cm circumference | 1 |
| Temperature Probe | Thermal-sensitive resistor sensor | 1 |
| Power Adapter | AC 100–110V/240VAC, 50/60 Hz; DC 5V 1.5 A output | 1 |
| USB Cable | Data transfer and connectivity | 1 |
| Cleaning Cloth | Display and device maintenance | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a product demonstration. We offer fast delivery and comprehensive technical support for all MD905 multiparameter monitors.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
