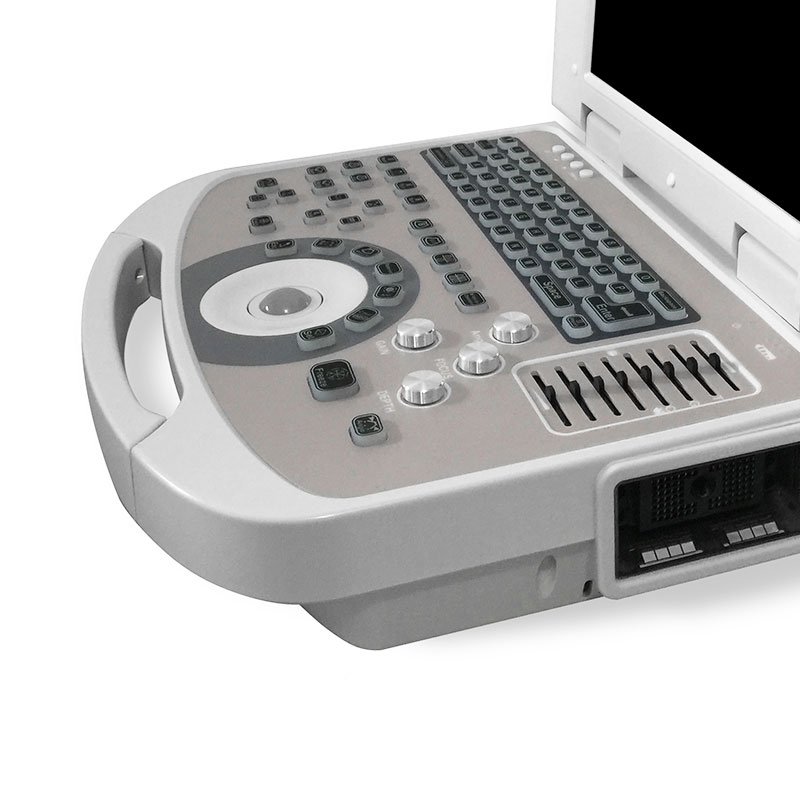

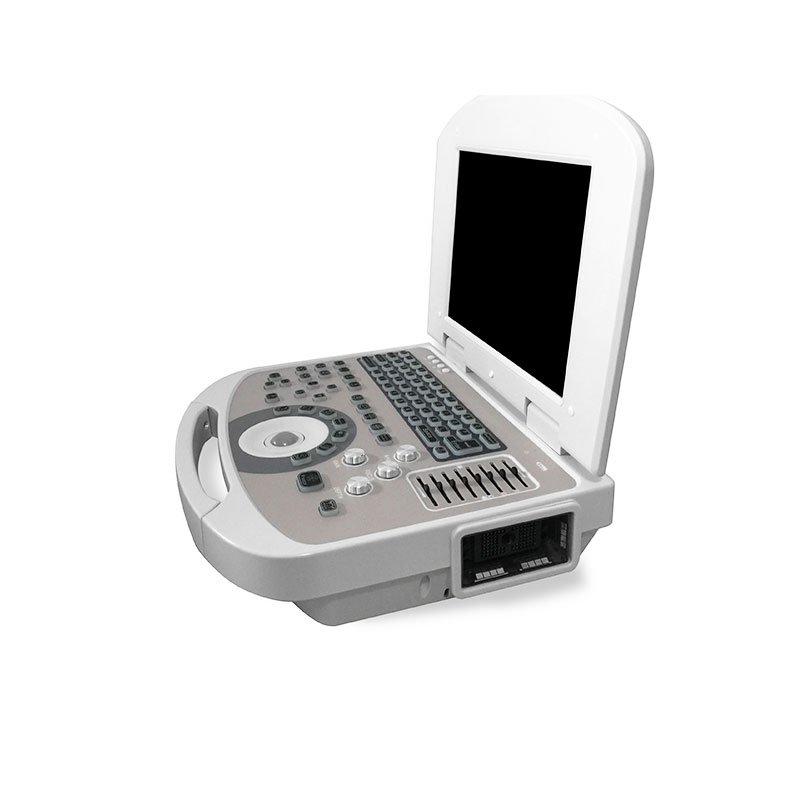

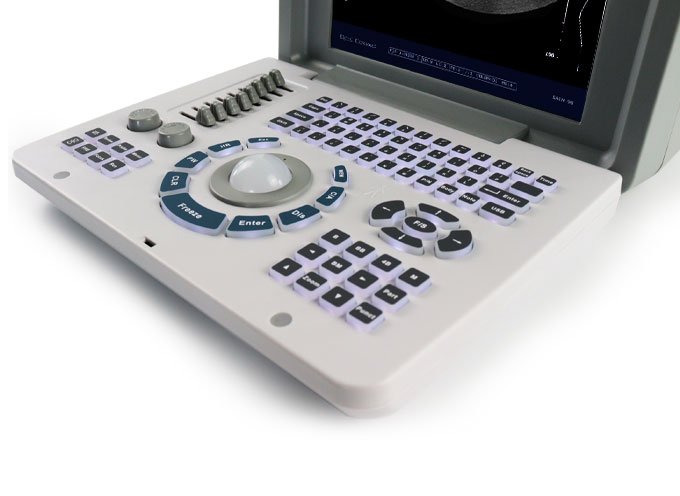

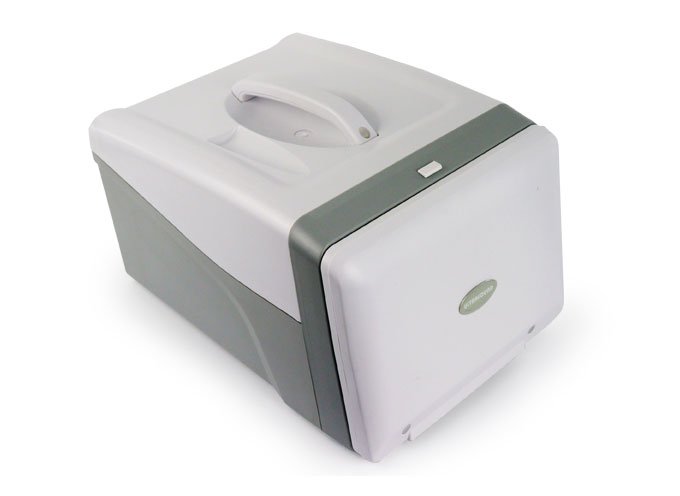

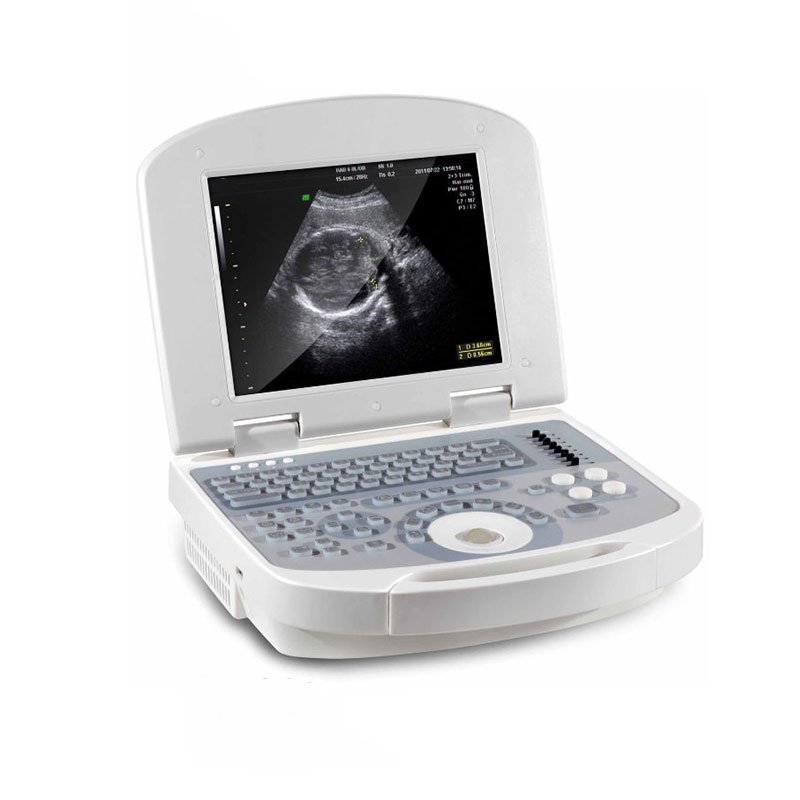

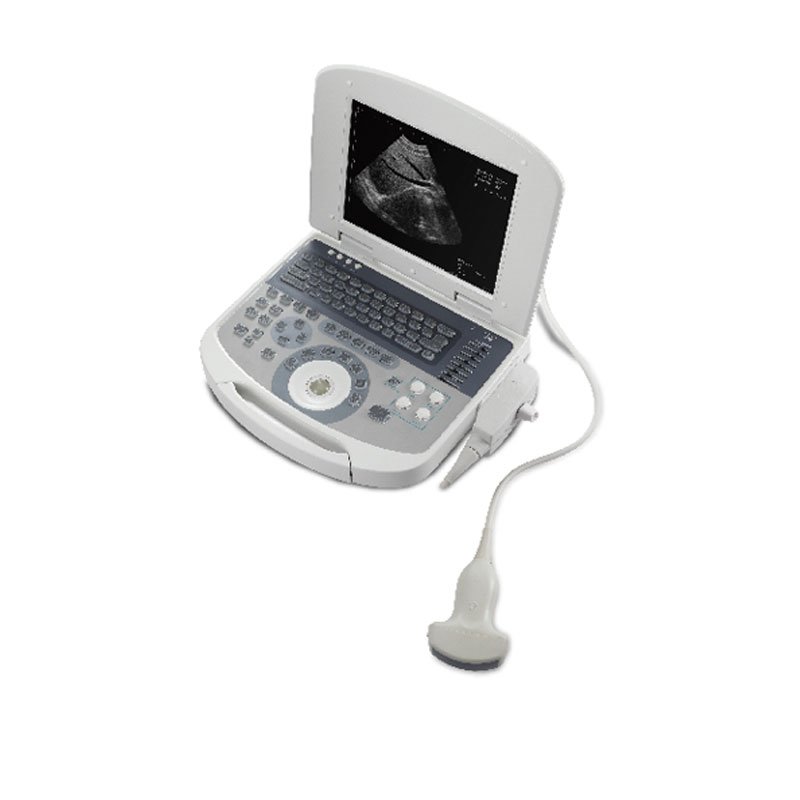

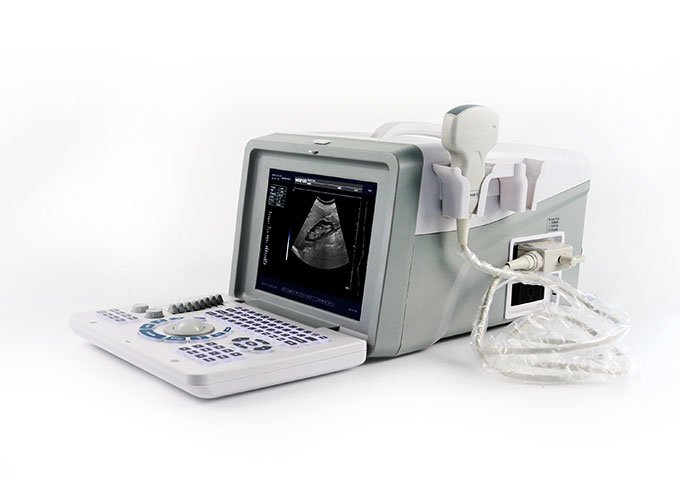

Dolphi® Pro Portable B/W Ultrasound Scanner
Dolphi® Pro High Cost-effective, Crystal-clear/image, Multi-frequency Probes, Digital /image Storage, 8 TGC controls, Cineloop, B.2B.B/M.4B display, USB port (option), Two probe sockets, 10 inch screen, SVGA and PAL video output
$2,950.00
Guaranteed Safe Checkout
Features & Compatibility
Dolphi® Pro Portable B/W Ultrasound Scanner
High cost-effective, crystal-clear imaging with multi-frequency probes, digital image storage, and advanced display modes. Featuring 8 TGC controls, cineloop functionality, dual probe sockets, and 10-inch SVGA screen for comprehensive diagnostic capability in a portable platform.
Clinical overview
The Dolphi® Pro is a high-performance portable B/W ultrasound scanner engineered for clinicians requiring crystal-clear diagnostic imaging in a compact, cost-effective platform. With advanced digital beam forming, real-time dynamic aperture technology, and multi-frequency probe compatibility, the system delivers exceptional image quality across a broad range of clinical applications including obstetrics, gynecology, abdominal, vascular, and soft tissue imaging.
The 10-inch SVGA high-resolution monitor with 256 grey scale levels provides superior visualization, while the dual probe sockets enable rapid workflow transitions between different transducer frequencies. Comprehensive image processing capabilities, including 8 TGC controls, 16 colour process options, and frame/line correlation, allow clinicians to optimize image quality in real time. Digital storage with 256-frame cineloop and 128-image permanent memory supports clinical documentation and case review.
Key features & surgeon benefits
Crystal-Clear Diagnostic Imaging
- 10-inch SVGA high-resolution monitor with 256 grey scale levels
- Advanced digital beam forming with real-time dynamic aperture
- Lateral resolution ≤2mm (depth ≤80mm), ≤3mm (80–130mm)
- Axial resolution ≤1mm (depth ≤80mm), ≤2mm (80–130mm)
- Dead zone ≤3mm for superior near-field visualization
Efficient Clinical Operation
- Dual probe sockets for rapid transducer switching
- Multi-frequency capability (2.5–7.5MHz) with single system
- 8 TGC controls for independent near/far field gain adjustment
- 256-frame cineloop and 128-image permanent storage
- Puncture guide line display for interventional procedures
Cost-Effective Solution
- Portable design reduces capital expenditure vs. cart-based systems
- Comprehensive functionality at competitive price point
- ≥8 hours continuous operation per charge cycle
- Low power consumption (≤300VA input)
- Compact footprint (480×380×410mm) for space-constrained environments
Expandable Platform
- Optional 7.5MHz high-frequency linear array probe
- 6.5MHz intra-cavity (trans-vaginal) probe available
- 3.5MHz micro-convex probe for specialized applications
- USB port upgrade with expandable printer function
- SVGA and PAL video output for multi-monitor connectivity
Technical specifications
| Indications | General ultrasound imaging, obstetrics, gynecology, abdominal, vascular, soft tissue diagnostics |
|---|---|
| Probe | 80-element array; 3.5MHz standard; 2.5–7.5MHz multi-frequency capability |
| Scanning depth | ≥180mm |
| Lateral resolution | ≤2mm (depth ≤80mm); ≤3mm (80–130mm) |
| Axial resolution | ≤1mm (depth ≤80mm); ≤2mm (80–130mm) |
| Dead zone | ≤3mm |
| Geometry position precision | Lateral ≤5%; Axial ≤5% |
| Monitor | 10-inch SVGA high-resolution display; 256 grey scale levels |
| Display modes | B, B/B, 4B, B+M, M |
| Magnification | ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0 |
| Dynamic range | 64–96dB adjustable |
| Cineloop frames | 256 frames |
| Image memory | 128 pictures permanent storage |
| TGC controls | 8 independent gain controls |
| Power supply | AC 220V ±22V, 50Hz; ≤300VA input |
| Operating hours | ≥8 hours continuous |
| Weight | Gross: 10kg; Net: 7kg |
| Packing dimensions | 480×380×410mm |
| Video output | 2× SVGA; 2× PAL; 1× USB (optional) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency convex probe | 3.5MHz standard transducer with 80-element array | 1 |
| Power cable | AC mains connection cable | 1 |
| Cleaning cloth | Probe and screen cleaning cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the Dolphi® Pro system, optional probe configurations, and delivery timelines. We offer competitive pricing, comprehensive technical support, and rapid fulfillment.
Email: info@orthopedicdrills.com
Additional information
| Probe |
7.5MHz high-frequency linear array probe ,6.5MHz intra-cavity (trans-vaginal) probe ,7.5MHz rectal probe ,3.5MHz micro-convex probe |
|---|
