Sonoview® Full Digital Imaging Ultrasound Scanner
- SKU
- OD-00427
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

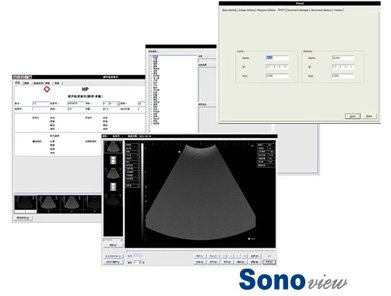

Sonoview® Full Digital Imaging Ultrasound Scanner
Advanced PC-based ultrasound imaging system with 15-inch color LCD display, full digital imaging technology, and broadband multi-frequency probes. Delivers clear, high-resolution images with comprehensive measurement and calculation functions for diverse clinical applications. 3D imaging upgradable.
Clinical overview
The Sonoview® Full Digital Imaging Ultrasound Scanner is a comprehensive diagnostic imaging platform designed for multi-specialty clinical environments. Featuring full digital imaging technology with a 15-inch color LCD screen, the system delivers exceptional image clarity and detail across obstetric, gynecologic, cardiac, urologic, vascular, and small parts applications. The PC-based architecture provides abundant functionality, powerful information management, and integrated reporting capabilities.
With broadband multi-frequency probes, 5-segment frequency conversion, and advanced image processing including pre- and post-processing, dynamic range adjustment, and 8 kinds of pseudo-color display, clinicians gain precise diagnostic control. The system supports real-time zoom, multiple scanning modes (B, 2B, B/M, M, 4B, ZOOM), and optional 3D imaging for enhanced spatial visualization. DICOM 3.0 compatibility ensures seamless integration with hospital PACS systems.
Key features & surgeon benefits
Superior Resolution & Clarity
- Full digital imaging technology for exceptional image fidelity
- Lateral resolution 2mm, longitudinal resolution 1mm
- 256 gray scale levels with advanced image processing
- Real-time zoom and multiple display modes
Efficient Clinical Operation
- Intuitive PC-based interface with abundant functions
- Cine loop recording (64–1024 frames, user-selectable)
- Large capacity local and USB storage for images and reports
- Built-in workstation software with powerful information management
Comprehensive Application Coverage
- Dedicated measurement packages for OB, GYN, cardiac, urology, vascular, small parts
- System presets for rapid protocol selection
- Compatible with laser and inkjet printers
- Supports 30+ body markers and full-screen character editing
Expandable Probe & 3D Options
- Multi-frequency convex probe with 5-segment frequency conversion
- Optional high-frequency linear, intra-cavity, rectal, and micro-convex probes
- 3D imaging function available as upgrade
- Two probe connectors for simultaneous multi-probe capability
Technical specifications
| Indications | General ultrasound, obstetrics, gynecology, cardiology, urology, vascular imaging, small parts (thyroid, breast, optic, jaw/face) |
|---|---|
| Display depth | 240mm |
| Resolution | Lateral 2mm, longitudinal 1mm |
| Gray scale | 256 levels |
| Scanning modes | B, 2B, B/M, M, 4B, ZOOM, real-time zoom, 3D (optional) |
| Main probe | 3.5 MHz electronic convex array with frequency conversion |
| Frequency conversion | 5-segment frequencies |
| Electronic focus | 4 focus points with random combination |
| TGC adjustments | 8 TGC channels |
| Magnification | 1.5x to 6.0x (10 ratios) |
| Cine loop | 64, 128, 256, 512, 1024 frames (user-selectable) |
| Pseudo-color | 8 kinds |
| Image processing | Pre-processing, post-processing, dynamic range, frame rate, line average, edge enhancement, black/white inversion, gray scale, contrast, brightness, gamma revision |
| Display screen | 15-inch color LCD (main); 14-inch B/W SVGA progressive scanning (monitor) |
| Probe connectors | 2 |
| Storage | Large capacity local storage and USB storage for images, cine loops, measurements, and reports |
| DICOM | DICOM 3.0 compatible for PACS integration |
| Output | VGA, PAL-D video output; compatible with laser and inkjet printers |
| Dimensions | 790mm (L) × 660mm (W) × 1070mm (H) |
| Weight | Approximately 50kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mainframe unit | PC-based system with 15-inch color LCD screen | 1 |
| Mobile trolley | Wheeled cart for system mobility | 1 |
| Multi-frequency convex probe | 3.5 MHz electronic convex array with frequency conversion | 1 |
| Power cable | AC power supply | 1 |
| Cleaning cloth | Probe maintenance cloth | 1 |
Optional accessories & probes
| Option | Description |
|---|---|
| 7.5 MHz linear array probe | High-frequency linear probe for superficial structures |
| 6.5 MHz intra-cavity probe | Trans-vaginal probe for gynecologic imaging |
| 7.5 MHz rectal probe | Specialized probe for rectal imaging |
| 3.5 MHz micro-convex probe | Compact convex probe for confined spaces |
| R/W DVD-ROM | Optical storage for image archival |
| B/W laser printer | High-quality black and white thermal printer |
| 3D imaging upgrade | Optional 3D image acquisition and reconstruction |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, optional probes, and delivery timelines. We offer fast shipping with delivery in 3 days on standard configurations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
