Medical Device S8i Color Portable Ultrasound Scanner
- SKU
- OD-00428
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

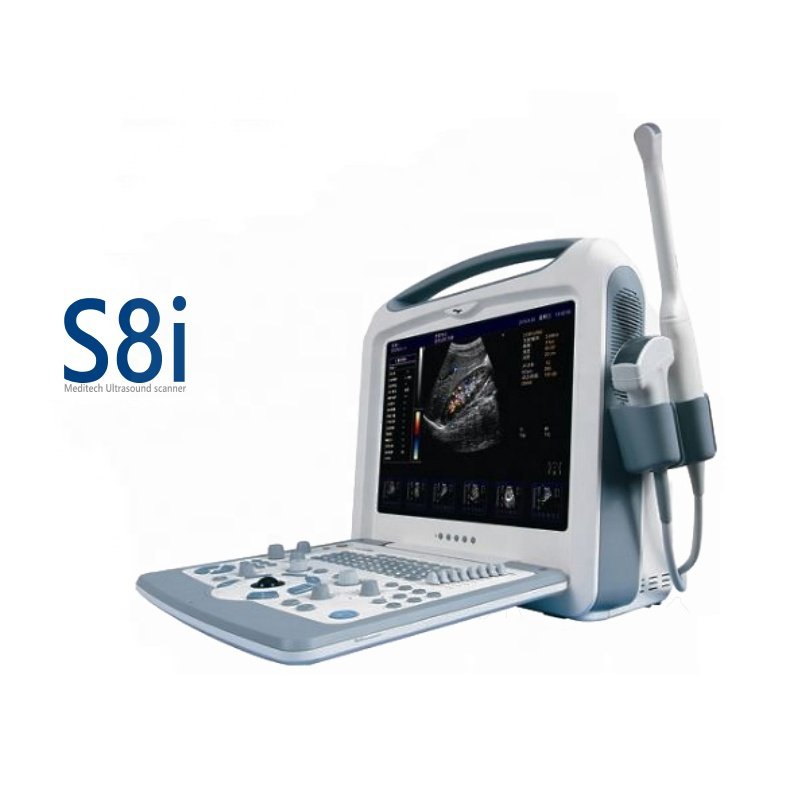

S8i Color Portable Ultrasound Scanner
Advanced portable ultrasound system with full-digital beam forming and real-time dynamic focusing. Delivers comprehensive diagnostic imaging across abdomen, OB&GYN, cardiology, vascular, musculoskeletal, and pediatric applications with exceptional image quality and clinical versatility.
Clinical overview
The S8i is a versatile, portable ultrasound platform engineered for multi-specialty diagnostic imaging. Its full-digital beam forming architecture and real-time dynamic focusing deliver consistent image quality across a broad range of clinical applications—from routine abdominal and obstetric scanning to advanced cardiac and vascular assessment. The system supports B, M, Doppler, and color flow modes with comprehensive measurement and reporting tools, including dedicated OB packages with fetal biometry, growth curves, and physiological scoring.
Designed for both fixed and mobile deployment, the S8i combines clinical depth with operational flexibility. Optional modules—including CW Doppler, Smart3D, iScape View, and DICOM 3.0—extend diagnostic capability without requiring hardware replacement. A comprehensive probe library and biopsy guidance accessories ensure adaptability to evolving clinical workflows.
Key features & surgeon benefits
Advanced Digital Architecture
- Full-digital beam forming with dynamic real-time focusing
- Receiving signals dynamic range ≥150 dB
- Dynamic aperture in all fields for consistent image quality
- Space-time and spectral processing for artifact reduction
Comprehensive Modality Suite
- B, BB, 4B, BM, M, PW, B/C, B/C/D, duplex, triplex modes
- Color flow mapping (CFM) and color power angiography (CPA)
- Part zoom and dynamic image conversion (up/down, left/right)
- 256 gray-scale levels for diagnostic precision
Integrated Measurement & Reporting
- B-mode distance, area, volume, and stenosis measurements
- M-mode velocity and heart rate calculation
- Dedicated OB package with EDD tables, fetal growth curves, and GA calculation
- Automated measurement reports and histogram analysis
Modular & Expandable
- Optional CW Doppler and Free Xrosâ„¢ Imaging for cardiac applications

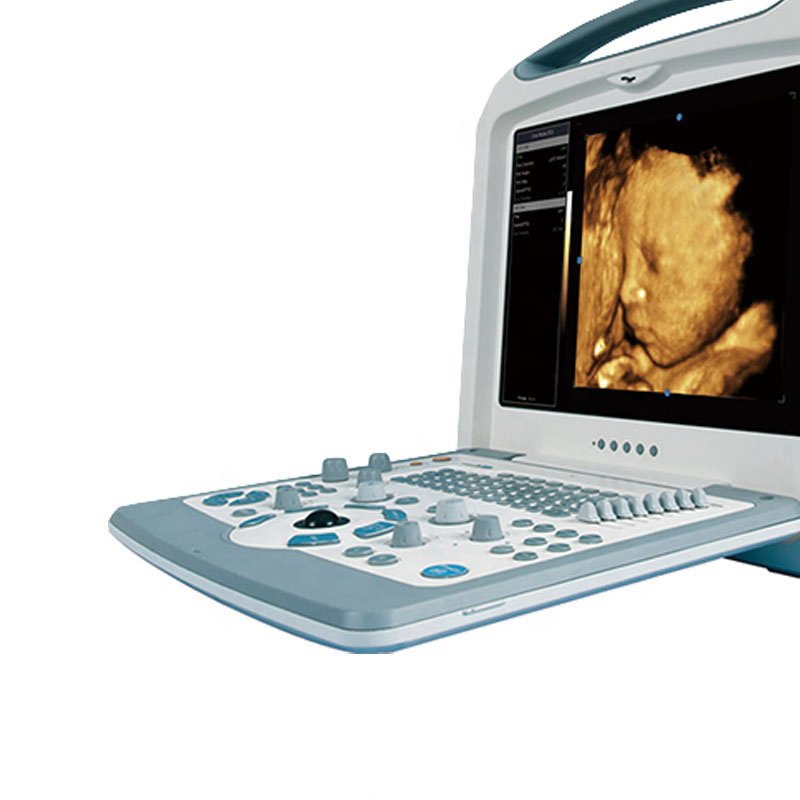

- Smart3D module for 3D reconstruction from 2D probes
- DICOM 3.0 and iScape View modules for integration and workflow
- Extensive probe and accessory library for specialty applications
Technical specifications
| Indications | Abdomen, OB&GYN, cardiology, vascular, small parts, urology, musculoskeletal, pediatrics |
|---|---|
| Display Modes | B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D, duplex, triplex, CFM, CPA, part zoom |
| Signal Processing | Full-digital beam forming, dynamic real-time focusing, RDA, DRA, spectral processing, dynamic range ≥150 dB |
| Image Conversion | Up/down and left/right conversion; part zoom and angle adjustment |
| Doppler Features | Adjustable wall filter, baseline, sampling frame, PRF, and spectrum sampling volume |
| Measurement Tools | B-mode: distance, circumference, area, volume, ratio, angle, stenosis, histogram; M-mode: distance, time, velocity, heart rate |
| OB Package | EDD tables (GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI), GA and EDC calculation, fetal growth curves, physiological score |
| Standard Probes | Multi-frequency convex probe, multi-frequency linear probe |
| Sterilisation | As applicable to probes and accessories |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency Convex Probe | Standard imaging probe for general and specialty applications | 1 |
| Power Cable | AC power supply cable | 1 |
| Cleaning Cloth | Probe and screen maintenance cloth | 1 |
Optional modules & accessories
| Category | Item |
|---|---|
| Modules | CW Doppler and Free Xrosâ„¢ Imaging (cardiac) |
| Modules | Smart3D module (3D reconstruction) |
| Modules | iScape View module |
| Modules | DICOM 3.0 module |
| Probes | Micro-convex array transvaginal probe |
| Probes | Micro-convex probe |
| Probes | Linear probe |
| Probes | Volume probe |
| Probes | Intrarectal linear probe |
| Probes | Phased array probe 2P2 (cardiac) |
| Accessories | Mobile trolley |
| Accessories | Footswitch (USB port) |
| Accessories | Biopsy guide for convex probe |
| Accessories | Biopsy guide for micro-convex probe |
| Accessories | Biopsy guide for linear probe |
| Accessories | Biopsy guide for micro-convex TV probe |
| Accessories | Biopsy guide for intrarectal linear probe |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe selection, and delivery options. We offer flexible purchasing and support arrangements for healthcare facilities and OEM partners.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
