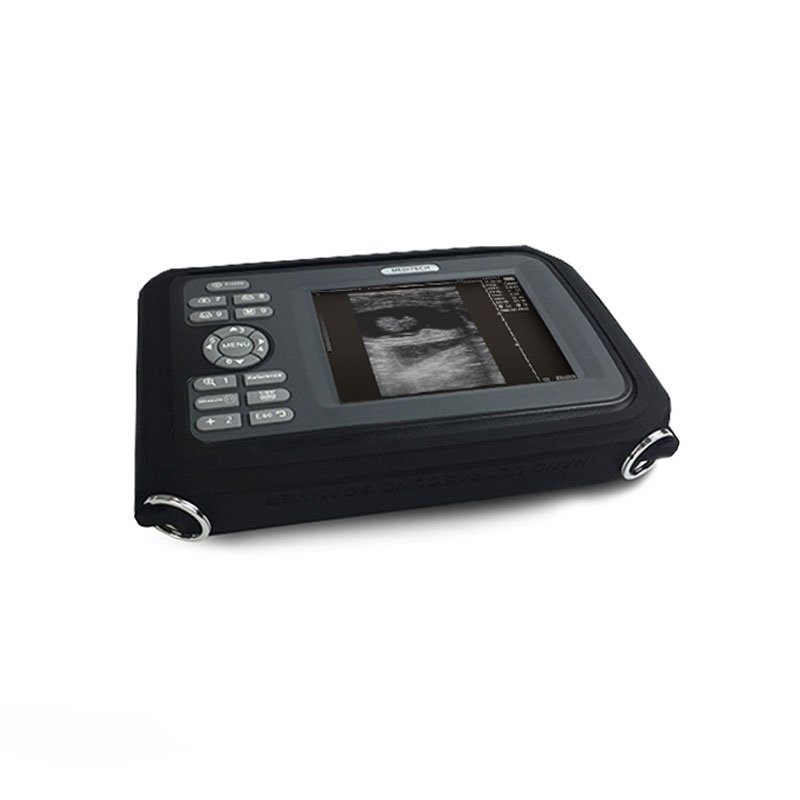

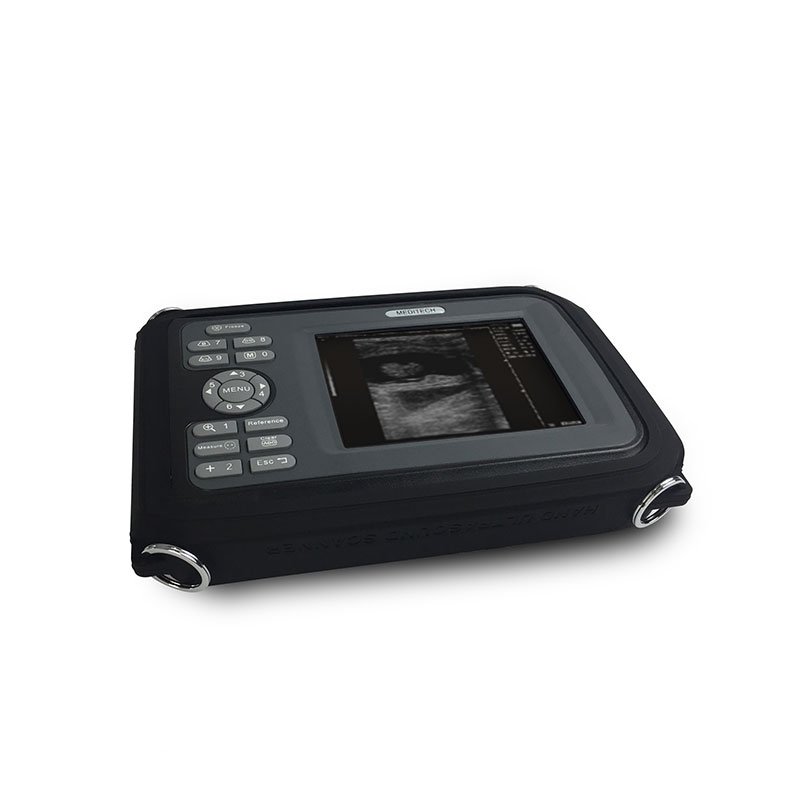

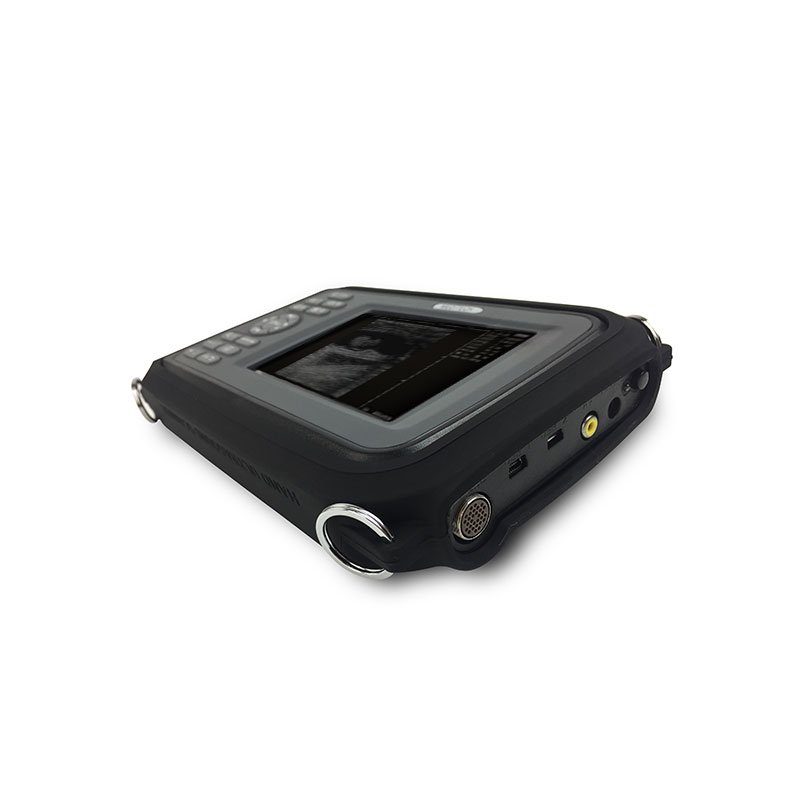

Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
The interchangeable probes offer a wide range of diagnostic applications.
Original price was: $2,450.00.$1,995.00Current price is: $1,995.00.
Guaranteed Safe Checkout
Features & Compatibility
Sono R Palm Ultrasound Scanner
Lightweight, portable digital ultrasound scanner delivering clear diagnostic image quality. The Sono R features interchangeable probes for a wide range of clinical applications, with full digital beam forming technology and comprehensive measurement capabilities.
Clinical overview
The Sono R is a compact, battery-powered portable ultrasound scanner designed for point-of-care diagnostics across multiple clinical specialties. With full digital beam forming technology and a 5.5-inch high-resolution TFT display, it delivers diagnostic-quality images in a handheld form factor weighing just 700g. The system supports multiple scanning modes (B, B+B, 4B, B+M, M) and offers 256 levels of gray scale with real-time image processing including histogram, gamma correction, and dynamic range adjustment.
The interchangeable probe system—including linear, convex, micro-convex, and rectal options—enables comprehensive diagnostic coverage from superficial structures to deep abdominal and cardiac imaging. Advanced measurement tools support obstetric/gynecologic calculations (GA, EDD, fetal biometry), cardiac assessment (heart rate, EF), and general distance, area, and volume measurements. USB 2.0 connectivity and video output facilitate seamless integration with clinical workflows and electronic health records.
Key features & surgeon benefits
Lightweight, Battery-Powered Design
- 700g main unit; 1.3 kg with protective case
- 180-minute continuous battery operation
- AC/DC charging; rechargeable lithium battery included
Full Digital Beam Forming & Processing
- 256-level gray scale with real-time histogram and gamma correction
- 4 selectable focusing combinations for optimized depth penetration
- Dynamic range, frame correlation, and image smoothing adjustments
Multi-Probe System & Scanning Modes
- Linear, convex, micro-convex, and rectal probe options
- Depth range 70–140 mm with adjustable focal zones
- B, B+B, 4B, B+M, M display modes for diverse applications
Comprehensive Measurement & Documentation
- OB/GY biometry: GA, EDD, CRL, BPD, HC, FL, AC, fetal weight
- Cardiac: heart rate, EF calculation
- 256-frame cine loop; 64 permanent image storage; USB 2.0 export
Technical specifications
| Indications | General ultrasound diagnostics, obstetrics/gynecology, cardiology, abdominal, vascular, and soft tissue imaging |
|---|---|
| Display | 5.5″ TFT color LCD; 256 gray scale levels |
| Display Modes | B, B+B, 4B, B+M, M |
| Scanning Methods | Convex, micro-convex, linear, rectal |
| Depth Range | 70–140 mm (adjustable) |
| Image Storage | 64 permanent images; 256+ frame cine loop |
| Measurements | Distance, circumference, area, volume, heart rate, GA, EDD, fetal biometry (CRL, BPD, HC, FL, AC) |
| Power Supply | AC 100–240V, 50/60 Hz; DC 16.8V rechargeable lithium battery (180 min continuous operation) |
| Dimensions | 265 mm × 46 mm × 53 mm |
| Weight | 700g (main unit); 1.3 kg with protective case |
| Connectivity | USB 2.0; PAL-D and NTSC video output |
| Warranty | 2 Year Manufacturer Warranty |
Probe specifications & performance
| Probe Type | Linear | Convex | Micro-Convex |
|---|---|---|---|
| Frequency | 7.5 MHz | 3.5 MHz | 3.5 MHz |
| Detection Depth | ≥80 mm | ≥140 mm | ≥90 mm |
| Lateral Resolution (≤60 mm) | ≤1 mm | ≤3 mm | ≤3 mm |
| Axial Resolution (≤80 mm) | ≤1 mm | ≤1 mm | ≤1 mm |
| Blind Zone | ≤3 mm | ≤6 mm | ≤5 mm |
| Horizontal Precision | ≤5 mm | ≤7.5 mm | ≤7.5 mm |
| Vertical Precision | ≤5 mm | ≤5 mm | ≤5 mm |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-Frequency Convex Probe | 3.5 MHz convex array probe | 1 |
| Hard Protective Case | Durable carrying case for transport and storage | 1 |
| Silicon Protective Case | Soft silicone sleeve for probe and unit protection | 1 |
| Power Adapter | AC 100–240V input, DC 16.8V output | 1 |
| Rechargeable Battery | Lithium battery, 180-minute capacity | 1 |
| Cleaning Cloth | Microfiber cloth for display and probe care | 1 |
Optional accessories & probes
| Accessory | Specification |
|---|---|
| 7.5 MHz High-Frequency Linear Array Probe | Enhanced superficial structure imaging |
| 6.5 MHz Intra-Cavity (Trans-Vaginal) Probe | OB/GY specialized imaging |
| 7.5 MHz Rectal Probe | Endorectal ultrasound applications |
| 3.5 MHz Micro-Convex Probe | Compact convex scanning geometry |
| DC Car Charger | 12V vehicle charging capability |
| USB Cable | Data transfer and connectivity |
Get in touch for pricing & availability
Contact our sales team to discuss the Sono R ultrasound scanner, probe options, and customization requirements. We offer fast delivery and comprehensive technical support.
