iSonic High Quality Images Color Ultrasound Scanner
- SKU
- OD-00429
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
iSonic High Quality Images Color Ultrasound Scanner
Advanced multi-frequency imaging platform with wide-band processing, compound enhancement, and optimized image quality. Comprehensive diagnostic capabilities across obstetrics, cardiology, vascular, orthopedic, and general imaging applications. Touch-pad and keyboard control with high-resolution 17" LCD display.
Clinical overview

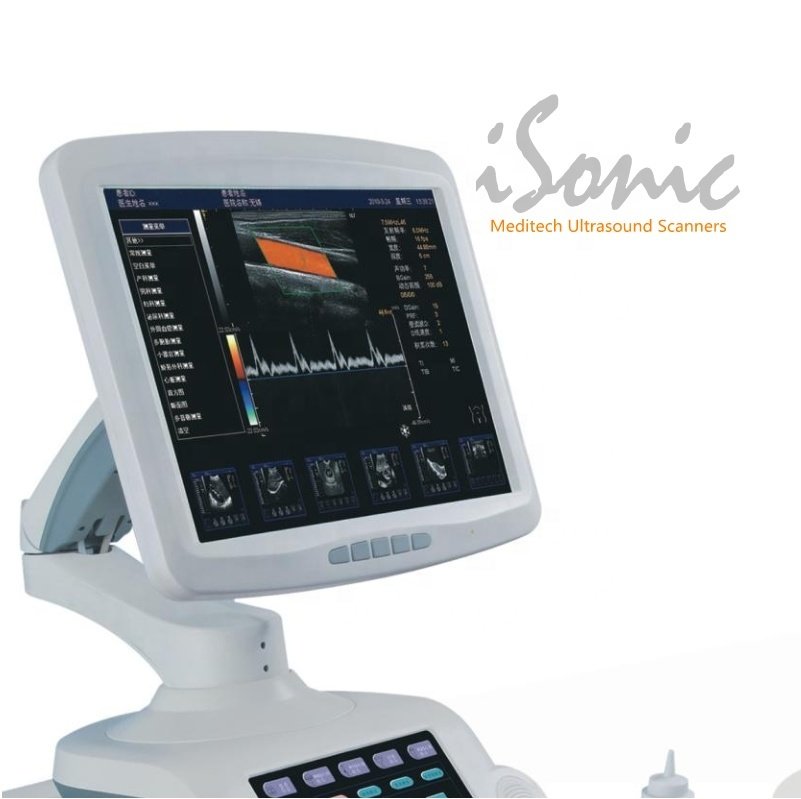

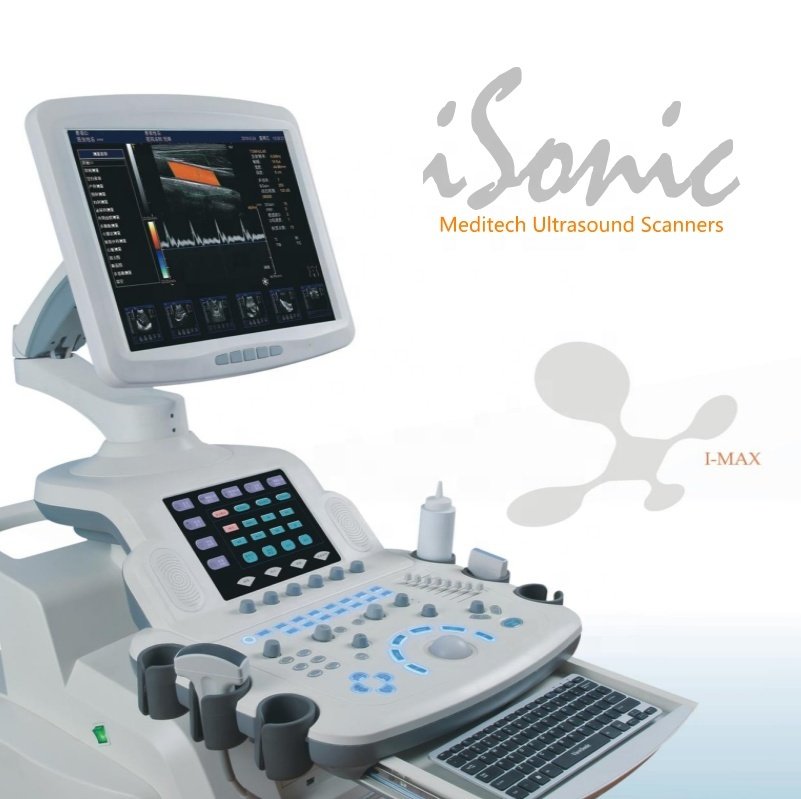

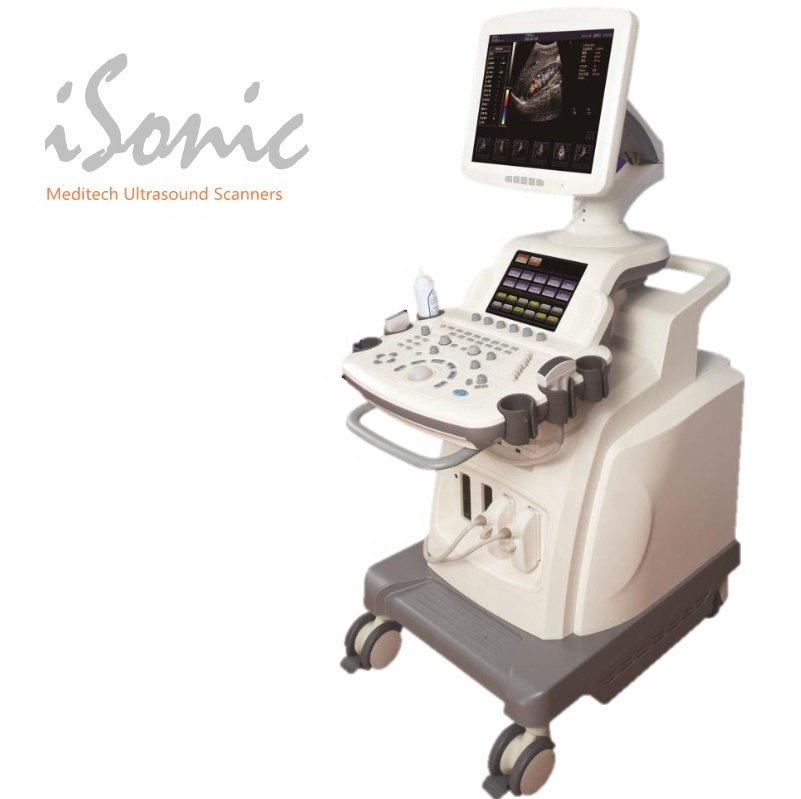

The iSonic® Color Ultrasound Scanner is a comprehensive diagnostic imaging platform engineered for high-quality visualization across multiple clinical specialties. Featuring wide-band multi-frequency technology, advanced imaging processing, and compound enhancement algorithms, the system delivers superior image quality and diagnostic sensitivity. The 17" high-brightness LCD display with wide viewing angles ensures clear visualization in diverse clinical environments, while the intuitive touch-pad and keyboard interface supports efficient workflow integration.
With support for B-mode, M-mode, color Doppler, pulsed-wave Doppler, and advanced imaging modes including freehand 3D and 4D panoramic imaging, the iSonic platform accommodates obstetric, cardiac, vascular, orthopedic, and general imaging protocols. Integrated DICOM 3.0 connectivity, 500 GB hard disk storage, and comprehensive measurement and reporting tools enable seamless integration into modern healthcare information systems.
Key features & surgeon benefits
Advanced Processing & Optimization
- Wide-band multi-frequency imaging with 195-element transducers
- Compound enhancement and speckle reduction technology
- Multi-beam parallel processing for real-time optimization
- Tissue harmonic imaging and color coding for enhanced contrast
- Up to 100 Hz frame rate with 512 line density
Intuitive Interface & Connectivity
- Touch-pad and keyboard control with configurable worksheets
- Cine loop playback with multiple arrow navigation
- Programmable annotations and body mark pictograms
- DICOM 3.0, USB, RS232, and parallel printing connectivity
- Multi-language support (English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese)
Multi-Specialty Imaging Modes
- Comprehensive obstetric measurements (AFI, BPD/OFD, FL/AC, HC/AC, fetal weight, gestational age)
- Cardiac imaging with left ventricle, aorta, and mitral valve analysis
- Vascular assessment with stenosis and diameter measurements
- Gynecology, urology, andrology, and small parts protocols
- Orthopedic hip joint imaging and peripheral vascular evaluation
Modular & Expandable Platform
- Optional CW Doppler and Free Xros™ Imaging module for cardiac applications
- Smart3D module for 3D imaging with standard 2D convex probe
- iScape View module for advanced visualization
- Multiple probe options: micro-convex, transvaginal, phased array, intrarectal linear
- Biopsy guides available for all probe types
Technical specifications
| Indications | Obstetrics, gynecology, cardiology, vascular, urology, andrology, orthopedic, small parts, general imaging |
|---|---|
| Display | 17" LCD (1024×768 pixels, 230 cd/m², 800:1 contrast); 10" touch screen (800×600 pixels, 250 cd/m²) |
| Imaging Modes | B, Dual B, Quad B, M, Color, Dual Color, B/M, B/C, B/C/D, B/D, PW, Duplex/Triplex, CFM, PD, Directional PD, CD, Freehand 3D, 4D, Panoramic |
| Transducers | Convex array (3.5 MHz central, 2.0–5.5 MHz range); Linear array (7.5 MHz central, 6.0–12.0 MHz range); 4D volume probe (4.0 MHz central) |
| Processing | 195-element transducers, ZIP260 connector, multi-beam parallel processing, compound enhancement, speckle reduction, tissue harmonic imaging |
| Storage & Connectivity | 500 GB hard disk, DICOM 3.0, USB, RS232, DVD-ROM, parallel printing port, intranet capable |
| Computer | Intel E4300 (minimum), embedded speakers (4Ω, 5W) |
| Sterilisation | Autoclave, low-temperature plasma, ethylene oxide gas |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mobile Trolley | Wheeled support system for system mobility | 1 |
| Multi-frequency Convex Probe | 3.5 MHz central, 2.0–5.5 MHz range, 60 mm radius, 0.516 mm pitch | 1 |
| Multi-frequency Linear Probe | 7.5 MHz central, 6.0–12.0 MHz range, 0.352 mm pitch | 1 |
| Power Cable | Standard medical-grade power supply | 1 |
| Cleaning Cloth | Microfiber cleaning cloth for display and transducers | 1 |
Optional modules & accessories
| Category | Item |
|---|---|
| Imaging Modules | CW Doppler and Free Xros™ Imaging module (cardiac applications) |
| Imaging Modules | Smart3D module (3D imaging with standard 2D convex probe) |
| Imaging Modules | iScape View module (advanced visualization) |
| Imaging Modules | DICOM 3.0 module (enhanced connectivity) |
| Probes | Micro-convex array transvaginal probe |
| Probes | Micro-convex probe |
| Probes | Linear probe (additional) |
| Probes | Intrarectal linear probe |
| Probes | Phased array probe 2P2 (cardiac applications) |
| Probes | 4D volume probe |
| Accessories | Foot switch (USB port) |
| Biopsy Guides | Biopsy guide for convex probe |
| Biopsy Guides | Biopsy guide for micro-convex probe |
| Biopsy Guides | Biopsy guide for linear probe |
| Biopsy Guides | Biopsy guide for micro-convex transvaginal probe |
| Biopsy Guides | Biopsy guide for intrarectal linear probe |
| Accessories | UPS (uninterruptible power supply) |
Measurement & reporting capabilities
Obstetrical: Amniotic Fluid Index (AFI), BPD/OFD, FL/AC, FL/BPD and HC/AC ratio, estimated fetal weight, gestational age, expected date of confinement (LMP/BBT), fetal biophysical score, fetal growth curve.
Gynecology: Uterus, ovary, follicle measurements and gynecology report generation.
Urology: Kidney, bladder, residual urine volume assessment and urology report.
Andrology: Prostate, testis, PSA, PSAD measurements and andrology report.
Cardiac: Heart rate, blood flow rate, left ventricle, aorta, mitral valve, area stenosis, vascular diameter stenosis, body surface area (BSA).
Vascular: Area stenosis, vessel diameter stenosis, peripheral vascular report.
Orthopedic: Left and right hip joint imaging and measurement.
Small Parts: Thyroid, mammary gland, nodule assessment and small parts report.
Maximum onscreen measurements: 27 distance, 3 area measurements. Measurement tools include point-to-point distance, angle, ellipse/trace area, volume, M-mode time/distance/heart rate/valve velocity, and Doppler velocity/acceleration/RI/PPG trace analysis.
Biopsy needle guides
The iSonic® reusable needle guide system offers surgeons and interventionalists free-angle needle insertion capability with quick-release mechanism for easy transducer detachment. Needle is separable from guide for flexible procedure execution. Designed for 3–5 year lifespan with support for autoclave sterilization, low-temperature plasma disinfection, and ethylene oxide gas disinfection. Available for convex, micro-convex, linear, transvaginal, and intrarectal probe configurations.
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, optional modules, probe selection, and delivery timelines. We offer competitive pricing and flexible payment terms for healthcare facilities and imaging centers.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
