- The Medical Acetabullar Reaming Drill 207 is mainly used in grinding bone tissue
- It can be connected to any brand acetabular grinder and medullary cavity reamer
- Features a diameter of drill chuck from 0-8mm
- Operates on an input voltage of 110V-240V/50Hz
- With an output power of ≤120W
- Equipped with a battery capacity of 1800mA/h
- Offers a rated speed of 0-400rpm (customization available)
Precision bone tissue grinding instrument designed for acetabular and medullary cavity reaming procedures. Features large torque output, positioning accuracy, and universal compatibility with acetabular grinders. Ideal for high-precision orthopedic and trauma surgery applications.

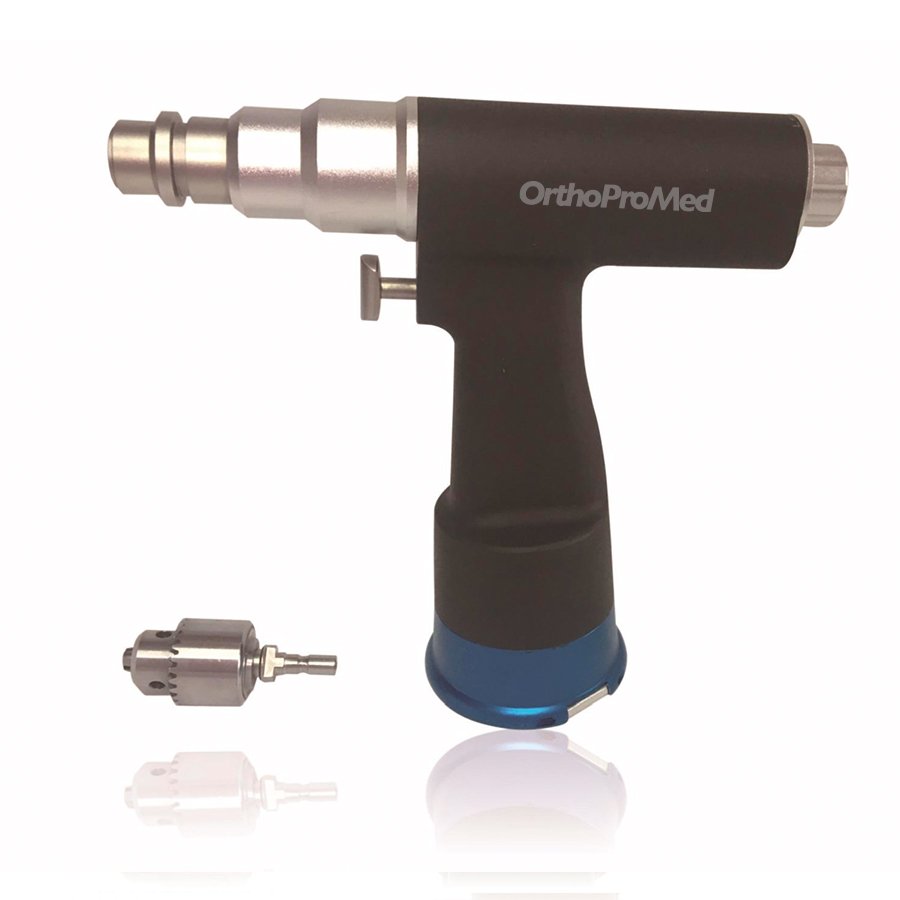

The Medical Acetabular Reaming Drill 207 is a precision-engineered instrument primarily used for grinding and reaming bone tissue during acetabular and medullary cavity procedures. Its large torque output (13 Nm) and positioning accuracy make it compatible with any brand acetabular grinder, providing surgeons with a versatile, reliable solution for hip arthroplasty and trauma applications.
The device operates on universal input voltage (110–110V/240V / 50/60Hz) with a compact 1800 mAh battery capacity, enabling cordless operation in the surgical suite. Rated speed of 0–400 rpm (customisable) and low noise output (≤70 dB) ensure minimal disruption during extended procedures while maintaining precise control over bone tissue removal.
| Indications | Acetabular reaming, medullary cavity reaming, bone tissue grinding |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Battery capacity | 1800 mAh |
| Rated speed | 0–400 rpm (customisation available) |
| Rated torque | 13 Nm |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Acetabular Reaming Drill Unit | Complete cordless drill with battery and charging dock | 1 |
| Battery pack | 1800 mAh rechargeable lithium-ion battery | 1 |
| Charging dock | 14.4 V charging station with universal input | 1 |
| Drill chuck | 0–8 mm universal chuck assembly | 1 |
Contact our sales team to request a detailed quote, discuss customisation options, or arrange a product demonstration. We offer fast delivery and comprehensive technical support for all Orthopromed instruments.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
