Medical Electric Cannulated Bone Drill 601
- Suitable for all brands of intramedullary nail and kirschner wire operations
- Precise concentricity for improved accuracy in operations
- Drill chuck diameter ranges from 0 to 8mm
- Input voltage of 110V-240V/50Hz
- Output power of ≤120W
- Battery capacity of 1800mA/h
- SKU
- 7967CC8E3AB5
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

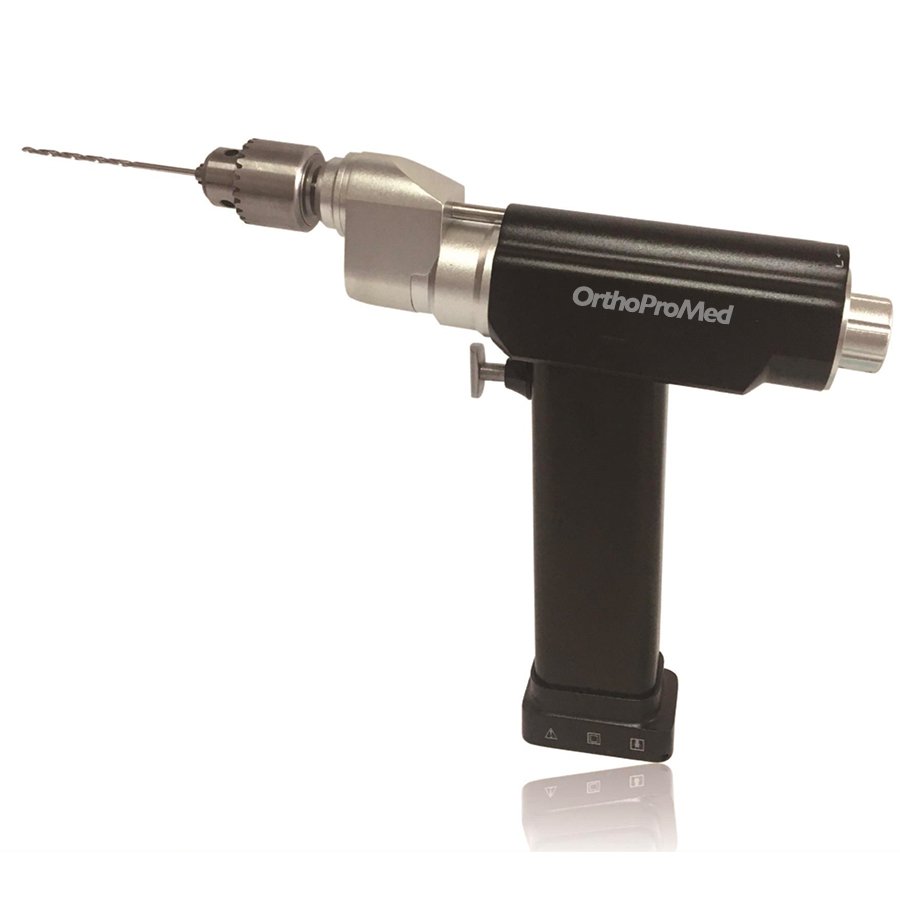

Medical Electric Cannulated Bone Drill 601
Precision-engineered electric cannulated bone drill designed for intramedullary nail and Kirschner wire operations. Features precise concentricity to enhance surgical accuracy and improve operational outcomes across all major implant systems.
Clinical overview
The Medical Electric Cannulated Bone Drill 601 is engineered for precision in intramedullary nail and Kirschner wire operations. Its 4.0 mm center hole diameter and precise concentricity ensure accurate drilling alignment, reducing the risk of misplacement and improving overall surgical outcomes. Compatible with all major brands of intramedullary nail systems, this drill provides surgeons with a reliable, versatile tool for trauma and orthopedic procedures.
The cordless design with 1800 mAh battery capacity delivers consistent performance throughout extended surgical sessions, while the variable speed control (0–1000 rpm) allows surgeons to optimize drilling parameters for different bone densities and implant specifications.
Key features & surgeon benefits
Precise Concentricity
- 4.0 mm center hole diameter for accurate guide wire placement
- Minimizes deviation and improves surgical accuracy
- Compatible with all major intramedullary nail systems
Reliable Power & Control
- Variable speed 0–1000 rpm (customizable)
- 6.3 Nm rated torque for consistent drilling force
- Low noise operation (≤60 dB) for improved OR environment
Cordless Convenience
- 1800 mAh battery capacity for extended surgical sessions
- Rapid charging at 7.2V for minimal downtime
- Lightweight design reduces surgeon fatigue
Sterilization & Longevity
- HTHP sterilizable at 134–138°C for infection control
- Drill chuck accommodates 0–8 mm instruments
- Built for high-volume surgical environments
Technical specifications
| Indications | Intramedullary nail operations, Kirschner wire procedures, cannulated bone drilling |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Center hole diameter | 4.0 mm |
| Input voltage | 110V–240V / 50 Hz |
| Output power | ≤120 W |
| Rated speed | 0–1000 rpm (customizable) |
| Rated torque | 6.3 Nm |
| Battery capacity | 1800 mAh |
| Charging voltage | 7.2 V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤60 dB |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill unit | Electric cannulated bone drill with variable speed control | 1 |
| Battery pack | Rechargeable 1800 mAh lithium-ion battery (7.2V) | 1 |
| Charger | AC power charger (110V–240V input) | 1 |
| Drill chuck | Universal chuck for 0–8 mm instruments | 1 |
