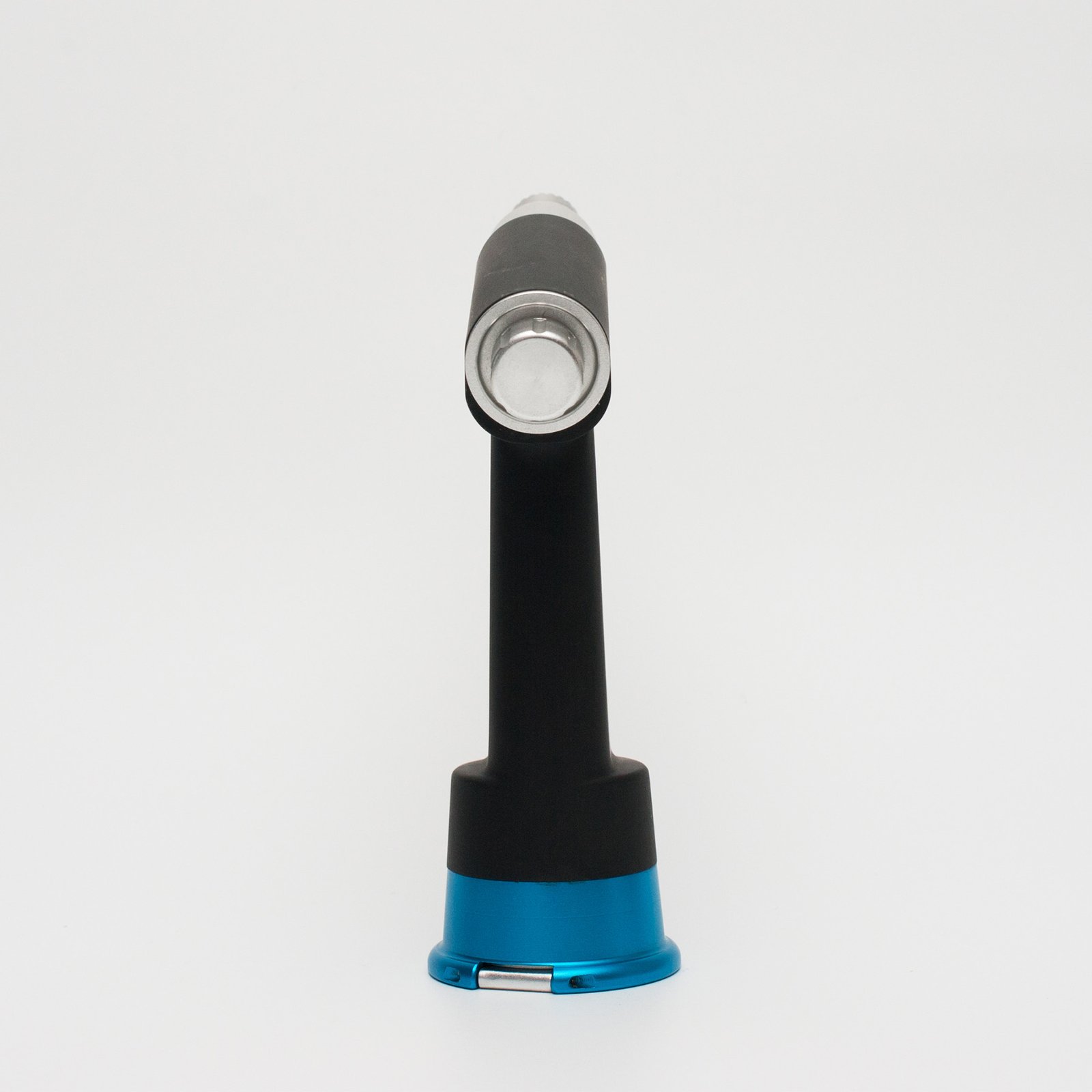

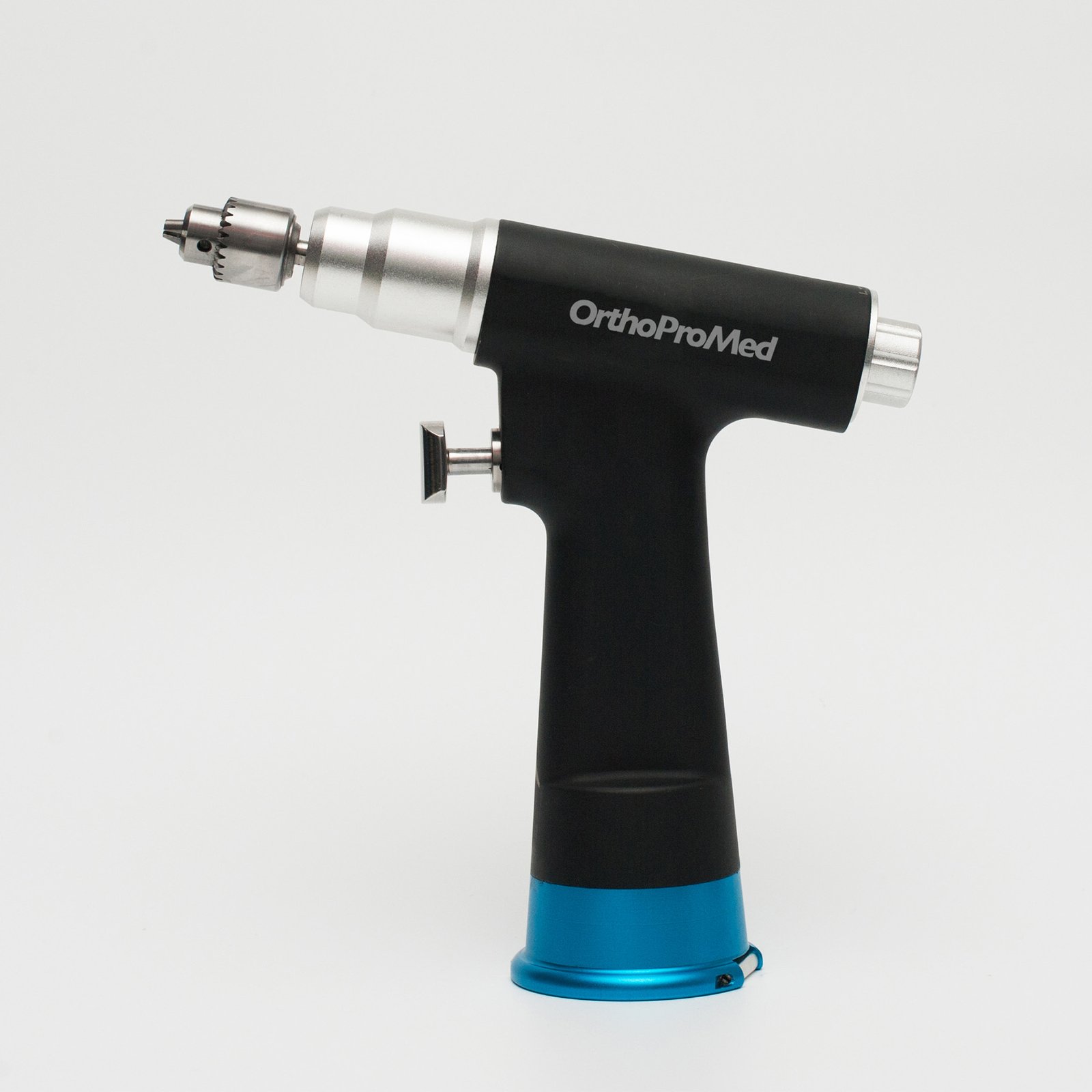

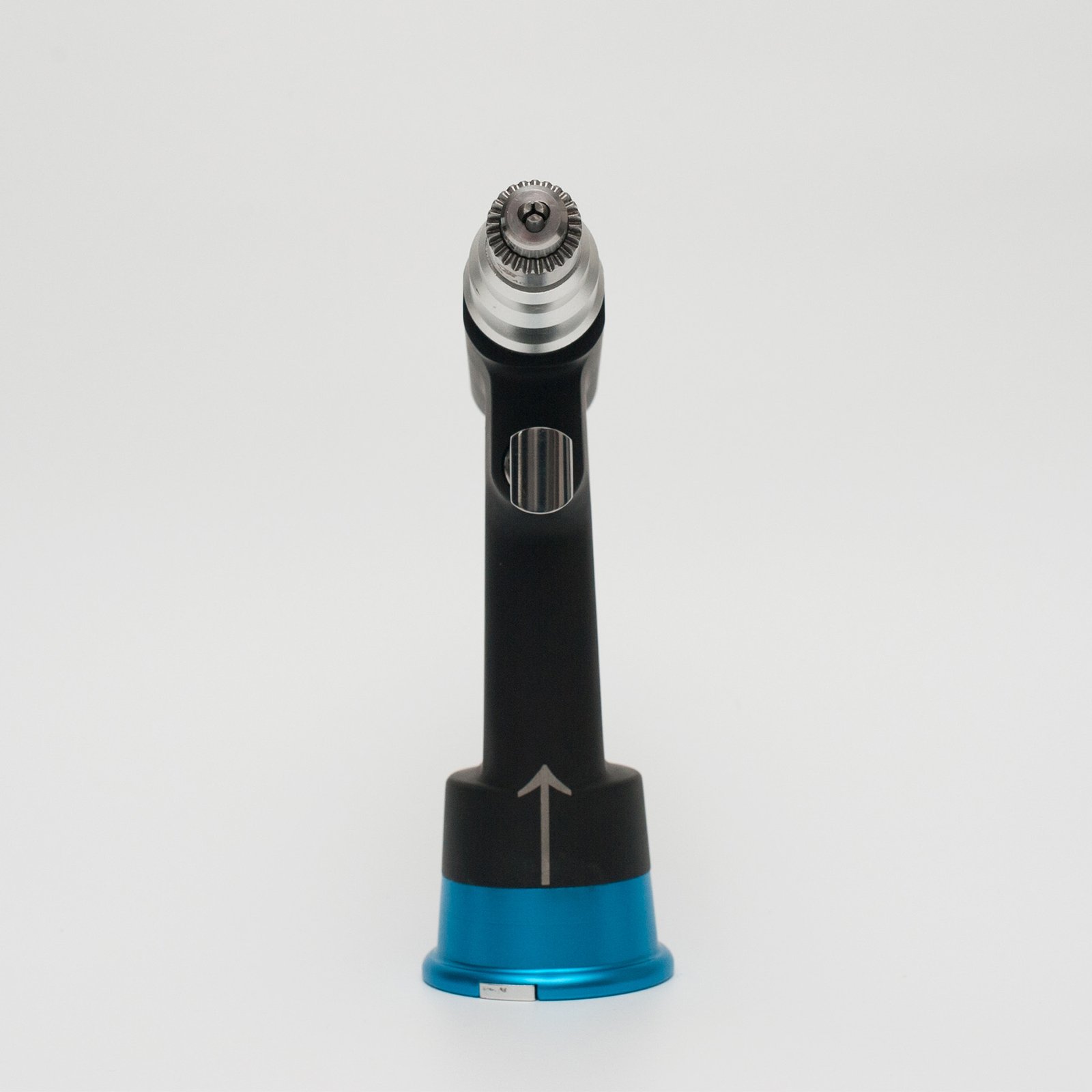

Medical Electric Minimal Invasive Bone Drill (Specially For Ankles Operation) 106
- Suitable for all kinds of orthopedic trauma surgery
- Mainly used in drilling holes for plates and screws during trauma surgery
- Ideal for hand and foot surgery
- Features variable speed, low noise, and high coaxiality
- Long service life and high torque for efficient operation
- SKU
- B154E7B21B2F
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Medical Electric Minimal Invasive Bone Drill (Specially For Ankles Operation) 106
Precision-engineered electric bone drill designed for minimal invasive orthopedic trauma surgery. Ideal for drilling holes for plates and screws in hand, foot, and ankle procedures with variable speed control, exceptional coaxiality, and low operational noise.
Clinical overview
The Medical Electric Minimal Invasive Bone Drill Model 106 is purpose-built for orthopedic trauma surgery, particularly suited for hand, foot, and ankle procedures. This cordless electric drill excels at creating precise holes for plate and screw fixation with minimal tissue trauma and maximum surgical control. The variable speed capability (0–1000 rpm, customizable) allows surgeons to optimize drilling parameters for different bone densities and anatomical locations.
Engineered for reliability in the operating room, the drill delivers consistent 4.5 Nm torque output with exceptional coaxiality, reducing vibration and improving hole accuracy. Low operational noise (≤60 dB) and extended battery life (1600 mAh) support uninterrupted surgical workflows. HTHP sterilization compatibility ensures seamless integration into standard OR protocols.
Key features & surgeon benefits
High Coaxiality & Minimal Vibration
- Exceptional drilling accuracy for plate and screw placement
- Reduced vibration minimizes tissue trauma
- Ideal for delicate hand and foot anatomy
Cordless Convenience & Speed Control
- Variable speed 0–1000 rpm (customizable)
- 1600 mAh battery supports extended procedures
- Low noise (≤60 dB) for OR comfort
Robust Torque & Durability
- 4.5 Nm rated torque for efficient bone drilling
- Long service life with minimal maintenance
- Compact design for minimal invasive access
OR-Ready & Customizable
- HTHP sterilization (134–138°C) compatible
- Speed and configuration options available
- Universal 110V–240V/50Hz power input
Technical specifications
| Indications | Orthopedic trauma surgery; plate and screw fixation; hand and foot surgery; ankle operations |
|---|---|
| Drill chuck diameter | 0–4 mm |
| Rated speed | 0–1000 rpm (customizable) |
| Rated torque | 4.5 Nm |
| Output power | ≤120 W |
| Battery capacity | 1600 mAh |
| Charging voltage | 7.2 V |
| Input voltage | 110V–240V / 50 Hz |
| Noise level | ≤60 dB |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Warranty | 2 Year Manufacturer Warranty |

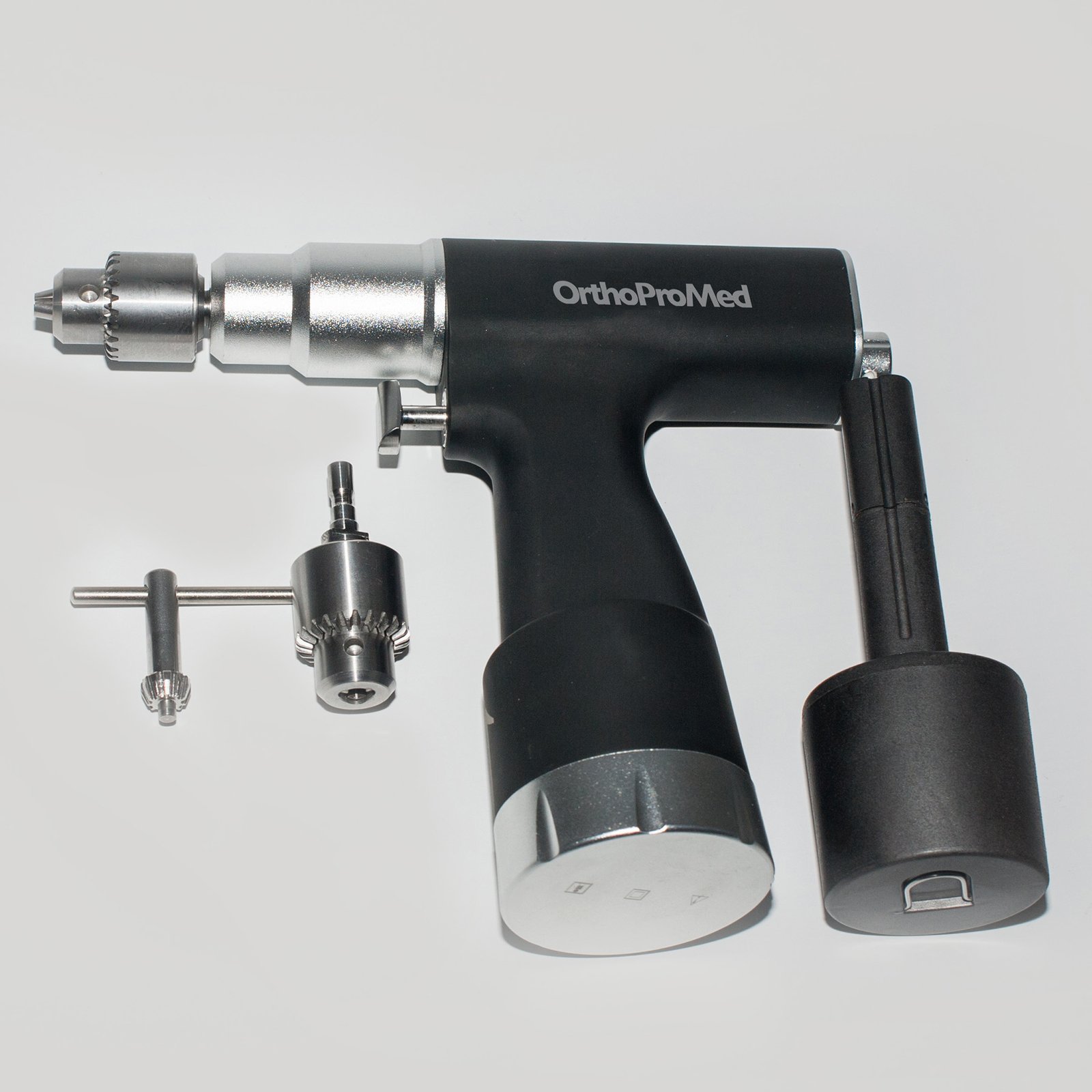

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill handpiece | Electric cordless bone drill with variable speed control | 1 |
| Battery pack | Rechargeable 1600 mAh lithium-ion battery (7.2 V) | 1 |
| Charger unit | AC mains charger (110V–240V / 50 Hz) | 1 |
| Drill chuck | 0–4 mm quick-change chuck assembly | 1 |
| Carrying case | Protective transport and storage case | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a technical demonstration of the Model 106 bone drill system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
