- Suitable for all kinds of intramedullary nail and kirschner wire operations
- Center hole diameter is 4.0mm for precise concentricity
- Diameter of drill chuck: 0-8mm
- Input voltage: 110V-240V/50Hz
- Rated speed: 0-1000rpm (customizable option available)
Precision-engineered electric cannulated drill system designed for intramedullary nail and Kirschner wire operations. Features a 4.0 mm center hole diameter for superior concentricity and operational accuracy across all major implant brands.

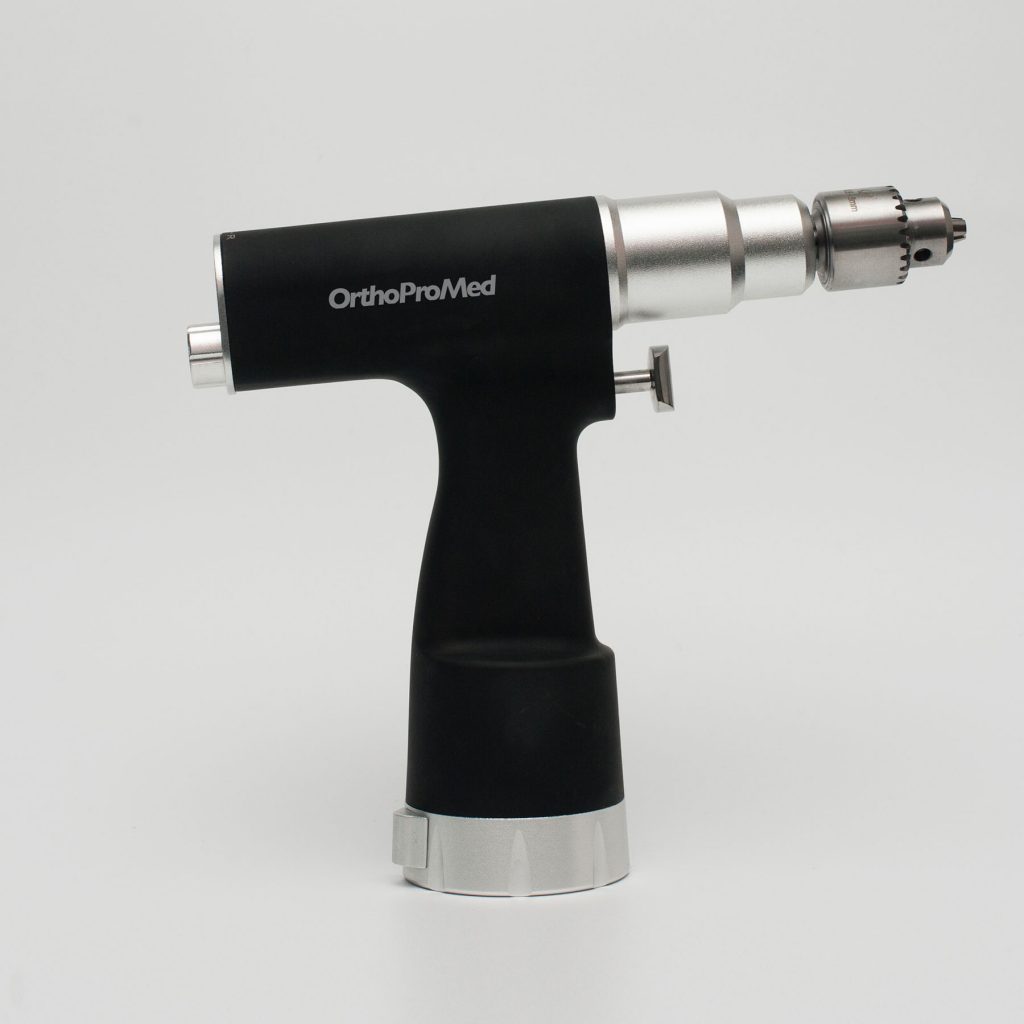

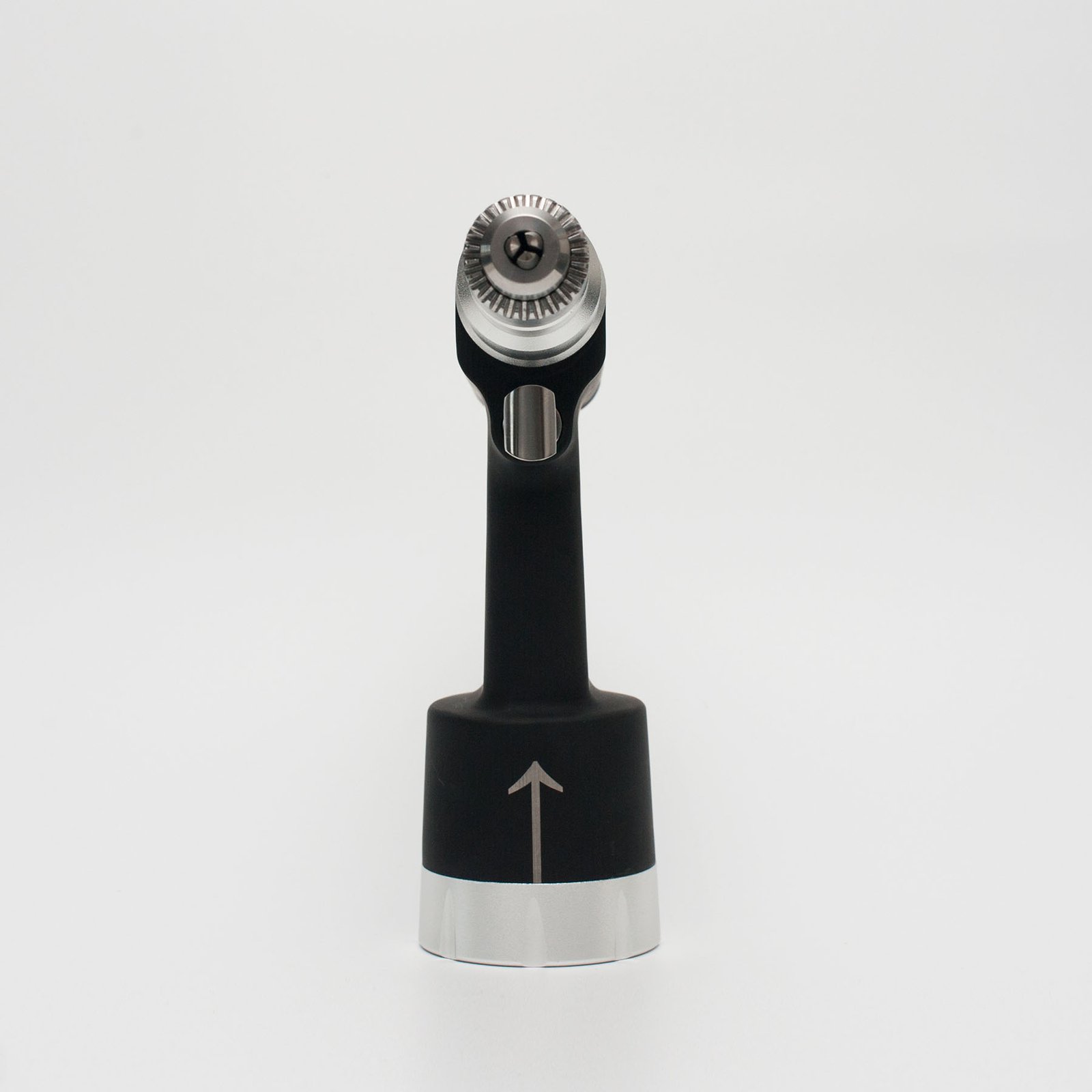

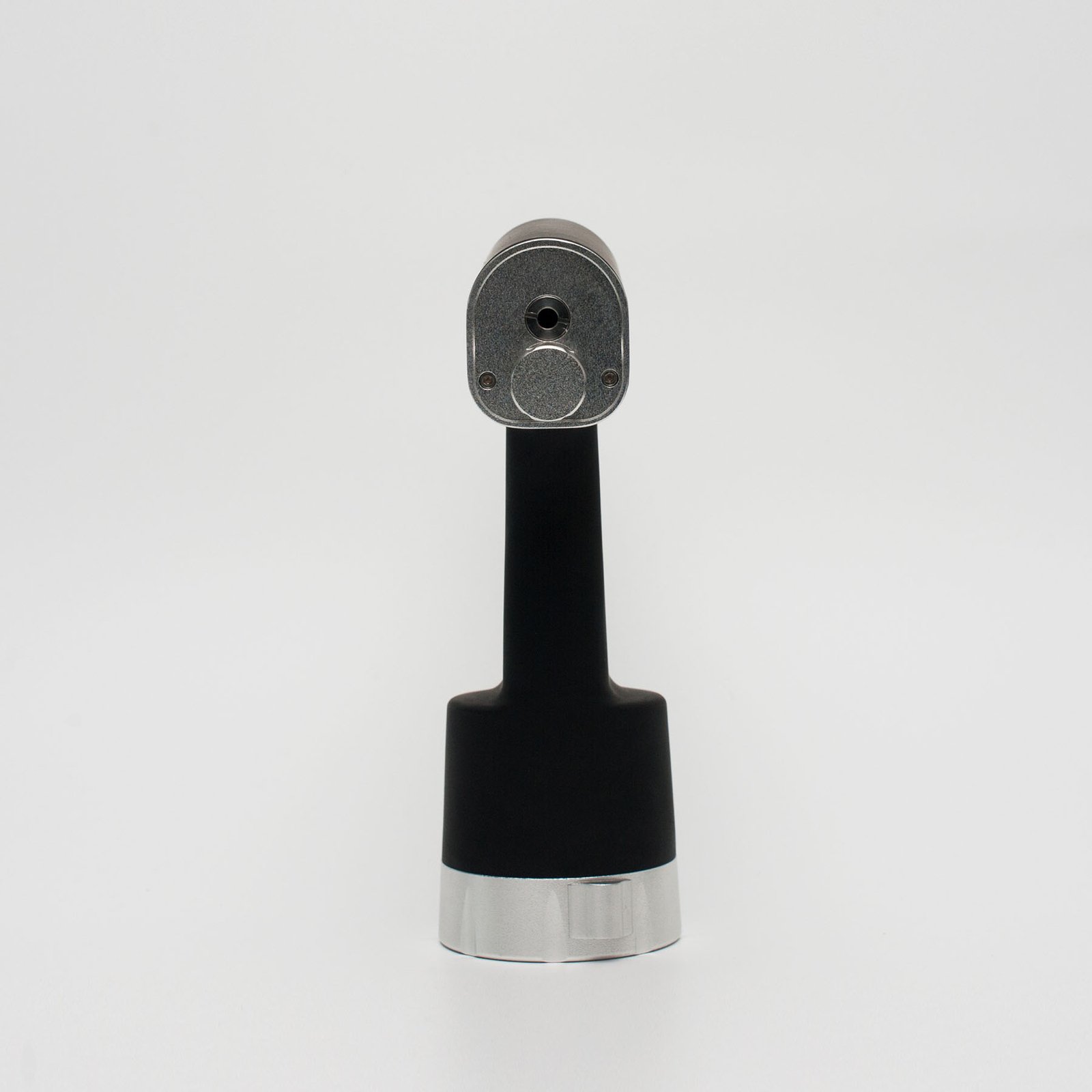

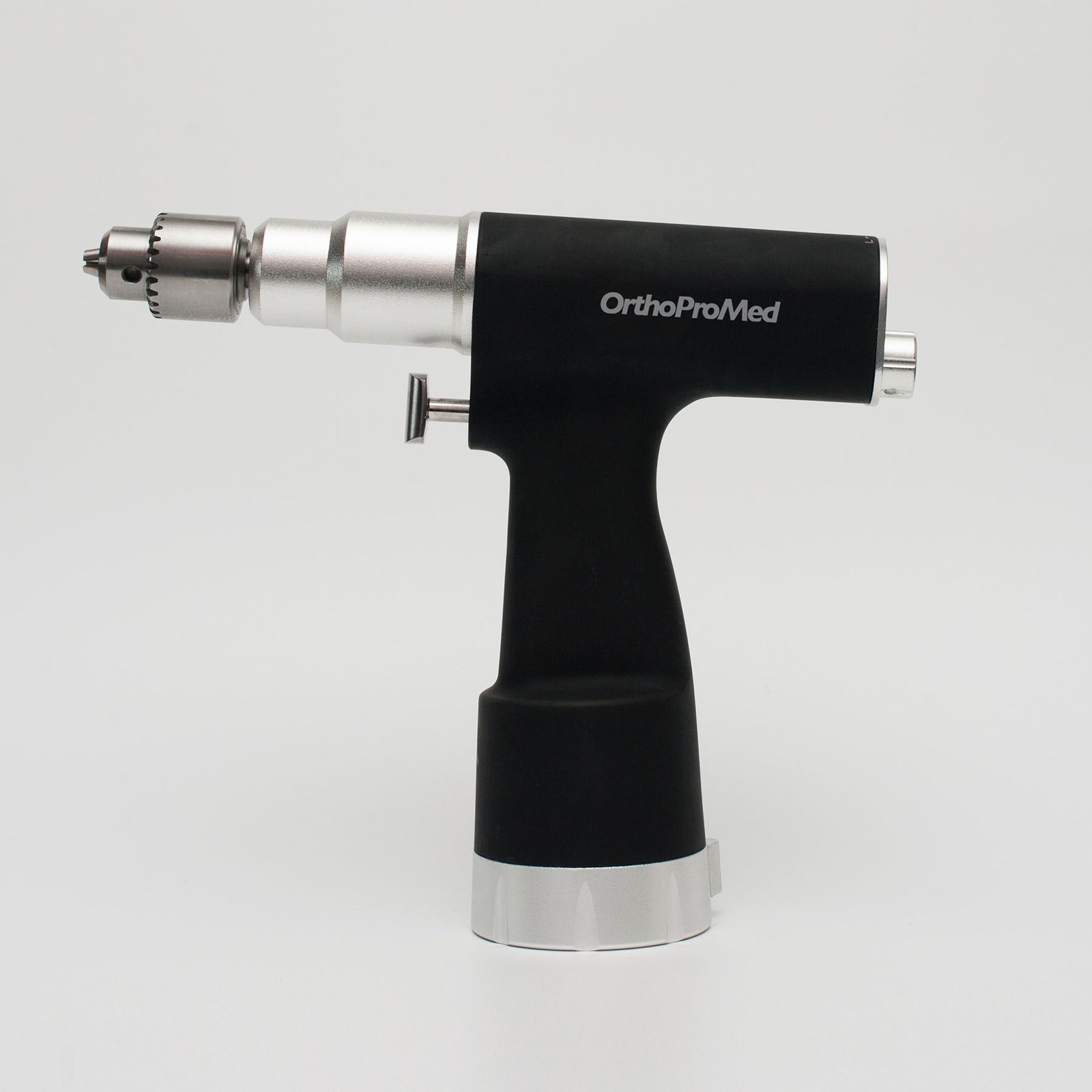

The Medical Electric Cannulated Bone Drill 602 is engineered for precision in intramedullary nail and Kirschner wire operations across all major implant brands. The 4.0 mm center hole diameter ensures precise concentricity, significantly improving operational accuracy and clinical outcomes. This system is ideal for trauma surgeons and orthopedic specialists requiring reliable, repeatable performance in high-demand surgical environments.
With variable speed control (0–1000 rpm), adjustable torque (6.3 Nm), and low operational noise (≤60 dB), the drill minimizes tissue trauma while maintaining surgeon control. The system supports both mains power (110–110V/240V) and battery operation (1800 mAh), providing flexibility in the operating room.
| Indications | Intramedullary nail operations, Kirschner wire placement, cannulated screw insertion |
|---|---|
| Center hole diameter | 4.0 mm |
| Chuck diameter range | 0–8 mm |
| Rated speed | 0–1000 rpm (customizable) |
| Rated torque | 6.3 Nm |
| Output power | ≤120 W |
| Input voltage | 110–110V/240V / 50/60Hz |
| Battery capacity | 1800 mAh |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤60 dB |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main unit | Electric Cannulated Bone Drill 602 with integrated chuck | 1 |
| Power cable | Mains power cable (110–110V/240V) | 1 |
| Battery pack | Rechargeable lithium-ion battery (1800 mAh, 14.4 V) | 1 |
| Charger | Battery charging unit | 1 |

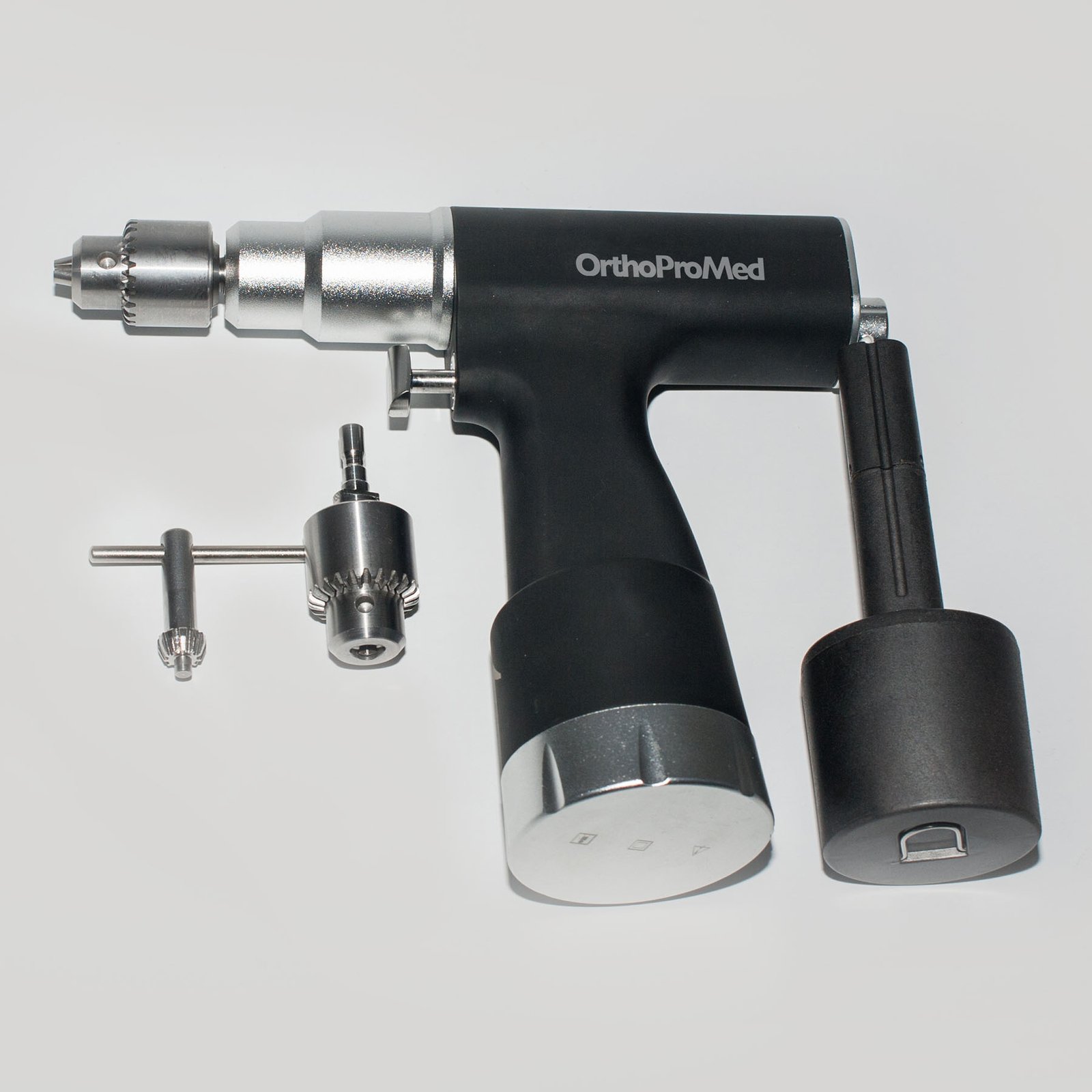

| Carrying case | Protective transport and storage case | 1 |
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the Medical Electric Cannulated Bone Drill 602. We offer fast turnaround and comprehensive technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
This has quickly earned its place in our department — the components fit and function exactly as described. It's held up well to consistent daily use. Would order again without hesitation.
Dr. Ahmed Wood, MD, FRCS (Orth)Verified buyerApr 23, 2026
Bought this for the department and support were responsive and helpful with a query. It's stayed accurate and reliable throughout. Does precisely what we needed.
Grace Chen, MDVerified buyerFeb 12, 2025
- Suitable for all kinds of orthopedic trauma surgery - Mainly used in drilling holes for plates and screws during trauma surgery - Ideal for hand and foot surgery - Features variable speed, low noise, and high coaxiality - Long service life and high torque for efficient operation
- Input voltage: 110V-240V/50Hz - Output power: ≤120W - Battery capacity: 1800mA/h - Rated speed: 800rpm - Charging voltage: 14.4V - Sterilization: HTHP - Sterilizing temperature: 134-138°C
- Powerful reciprocating saw suitable for facet joint operations and cardiothoracic surgery - Rapid cutting with accurate positioning and smooth, tidy cuts - Multiple specifications of saw blade sizes available for clinical needs - Features advanced saw blade lock and sheath device for enhanced safety during operation - Operates on 110V-240V input voltage with an output power of ≤120W - Battery capacity of 1800mA/h and rated speed of 0-20000rpm - Sterilizable with HTHP method at 134-138°C, producing noise levels ≤70db
The Medical Electric Oscillating Bone Saw is a high-performance surgical tool designed for orthopedic joint surgeries . It ensures rapid, precise bone cutting with smooth edges and minimal heat generation. Compatible with multiple saw blade sizes , it meets diverse clinical and surgical needs for both human and veterinary applications .
- Suitable for various ankles' orthopaedic joint surgery - Wide variety of joint operation of bone tissue cutting - Accurate location with smooth and tidy bone edges - Low temperature rise during operation - Multiple saw blade sizes available to meet clinical needs
High-performance orthopedic surgical saw designed for precise bone cutting in joint surgeries. Features adjustable speed (0-20,000 RPM), smooth cutting edges, and minimal heat generation . Ergonomic, low-noise (≤70db) , and sterilization-ready (134-138°C) for optimal surgical efficiency. Rechargeable 2500mA/h battery ensures uninterrupted operation.
- Suitable for various orthopedic joint surgeries - Rapid and accurate bone tissue cutting - Smooth and tidy bone edges - Low temperature rise during operation - Multiple saw blade size options available to meet clinical needs
