Medical Electric Bone Drill 107
- Suitable for all kinds of orthopedic trauma surgery
- Mainly used for drilling and positioning bone tissue
- Diameter of drill chuck: 0-8mm
- Input voltage: 110V-240V/50Hz
- Output power: ≤120W
- Rated speed: 0-1200rpm (customization available)
- Battery capacity: 1800mA/h
- SKU
- ED383EC94720
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

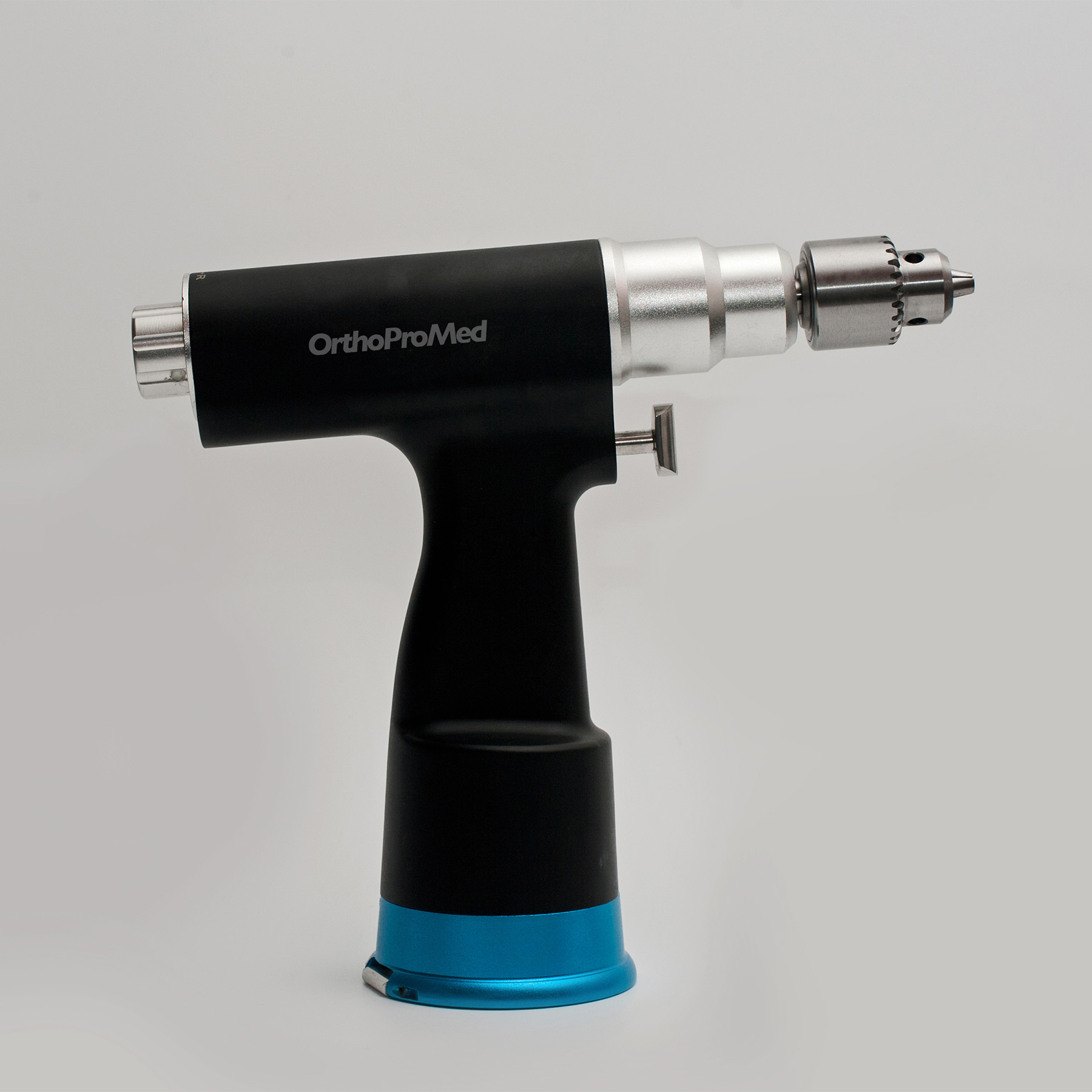

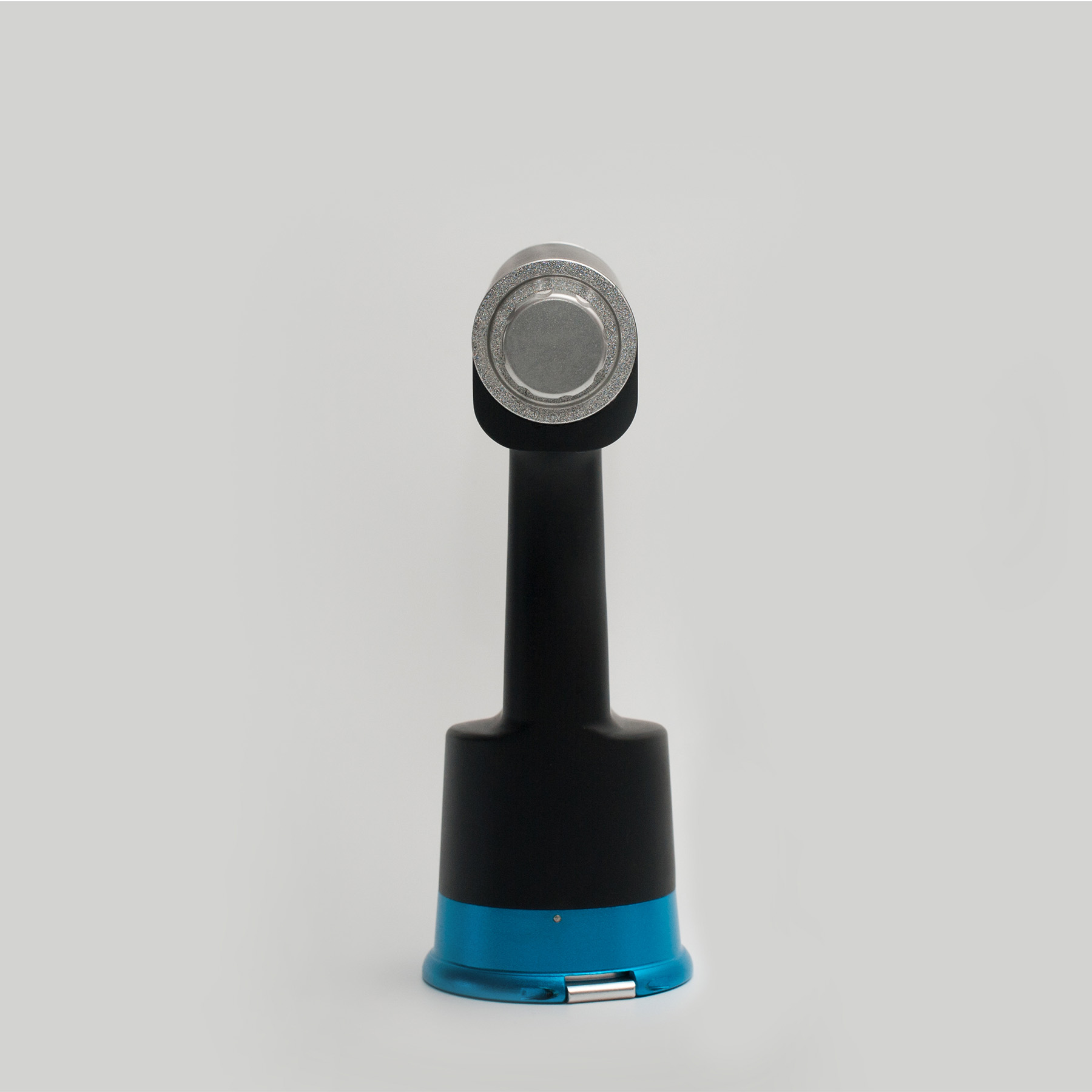

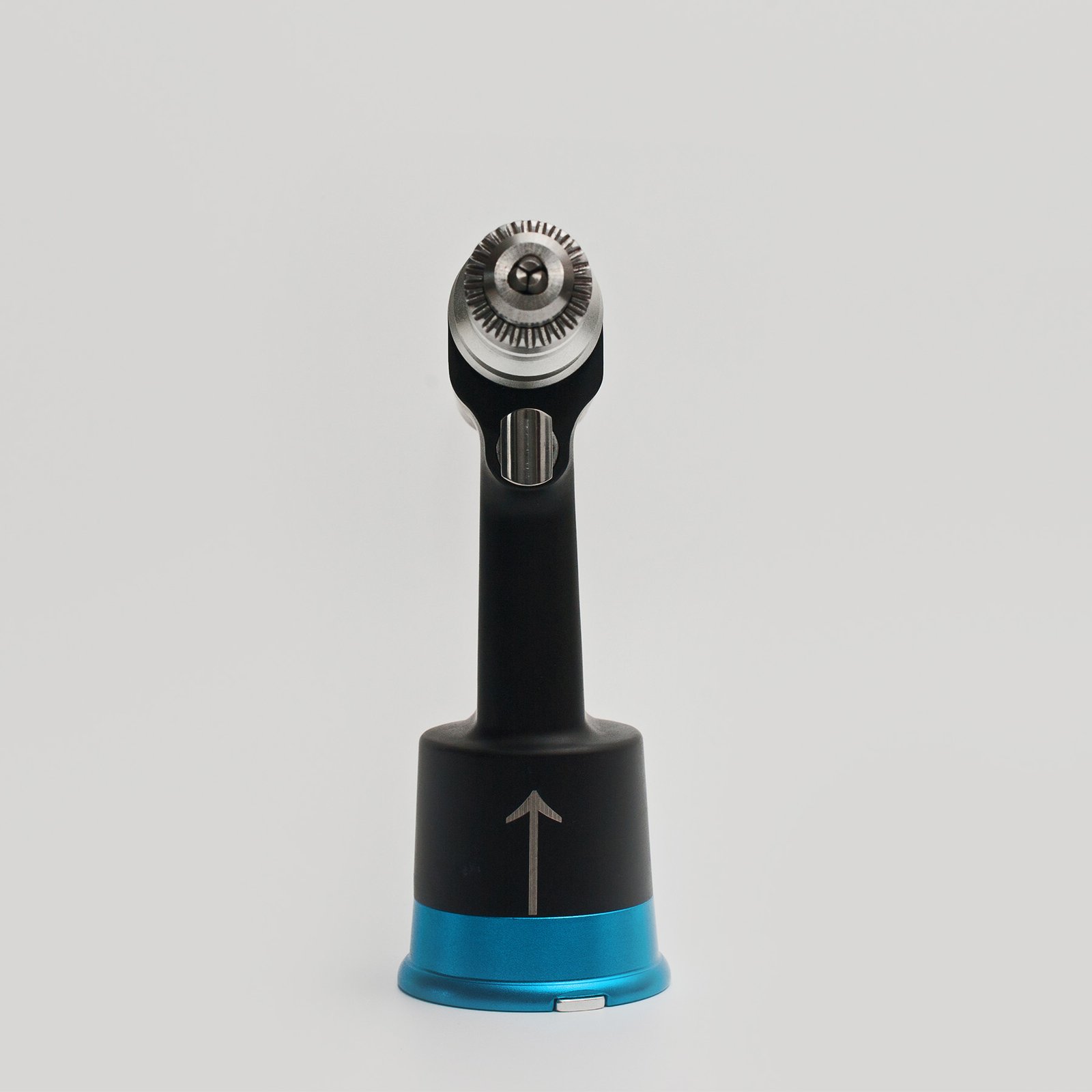

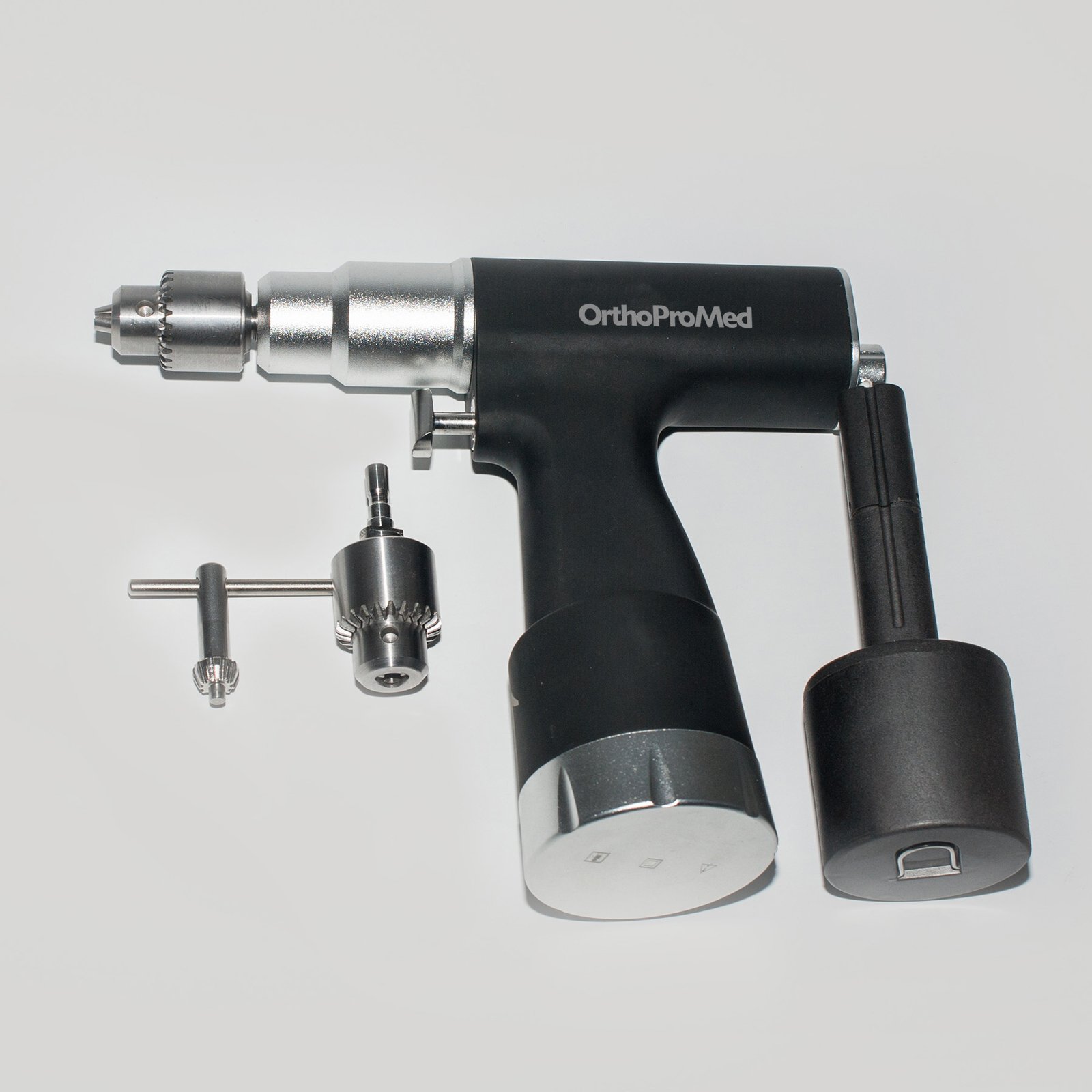

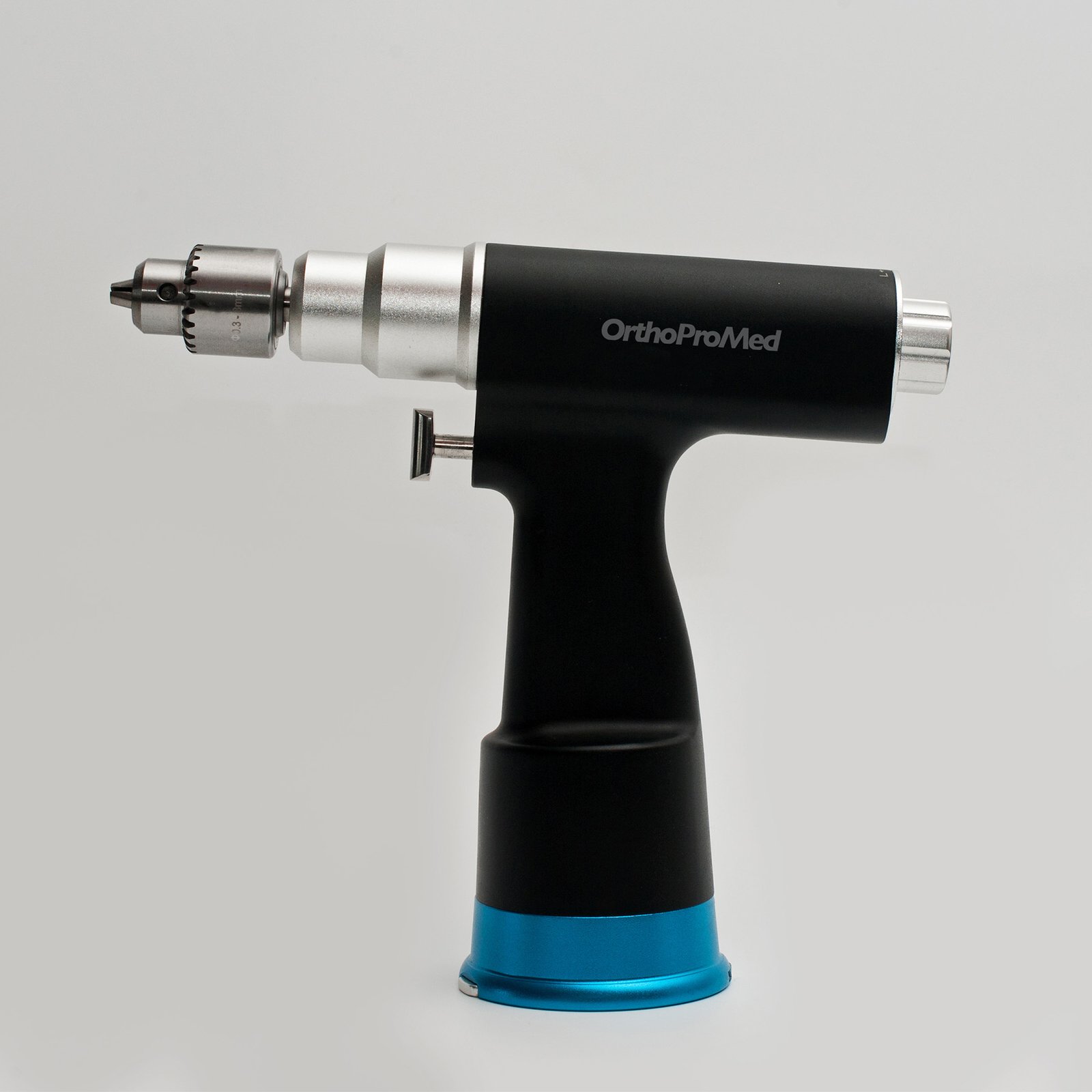

Medical Electric Bone Drill 107
Precision-engineered electric bone drill designed for all orthopedic trauma procedures. Delivers consistent drilling and positioning of bone tissue with variable speed control and ergonomic handling for enhanced surgical outcomes.
Clinical overview
The Medical Electric Bone Drill 107 is purpose-built for orthopedic trauma applications requiring reliable, controlled bone drilling and positioning. Its variable speed range (0–1200 rpm, customizable) and consistent torque output (4.5 Nm) enable surgeons to adapt to diverse bone densities and surgical scenarios with confidence.
Equipped with universal voltage input (110–110V/240V/50/60Hz) and low operational noise (≤70 dB), this drill integrates seamlessly into modern OR environments. HTHP sterilization compatibility and robust construction ensure long-term reliability and cost-effectiveness across high-volume trauma centers.
Key features & surgeon benefits
Precision Drilling Control
- Variable speed 0–1200 rpm for adaptive bone engagement
- Consistent 4.5 Nm torque output across procedures
- Compact 0–8 mm drill chuck for standard instrumentation
Seamless Integration
- Universal voltage (110–110V/240V) for global OR compatibility
- Quiet operation (≤70 dB) minimizes OR disruption
- Corded design eliminates battery dependency
Reliable Decontamination
- HTHP sterilization at 134–138°C
- Durable construction withstands repeated cycles
- Surgical-grade materials ensure biocompatibility
Tailored Solutions
- Speed customization available for specialized applications
- OEM configurations supported
- Flexible integration with existing trauma protocols
Technical specifications
| Indications | Orthopedic trauma surgery; bone drilling and positioning |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Rated speed | 0–1200 rpm (customization available) |
| Rated torque | 4.5 Nm |
| Charging voltage | 14.4 V |
| Battery capacity | 1800 mA/h |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill unit | Medical Electric Bone Drill 107 with universal voltage input | 1 |
| Power cable | 110–110V/240V compatible mains cable | 1 |
| Drill chuck | Universal 0–8 mm chuck assembly | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, lead times, and customization options for the Medical Electric Bone Drill 107. We support OEM partnerships and bulk orders for trauma centers and hospital networks.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
