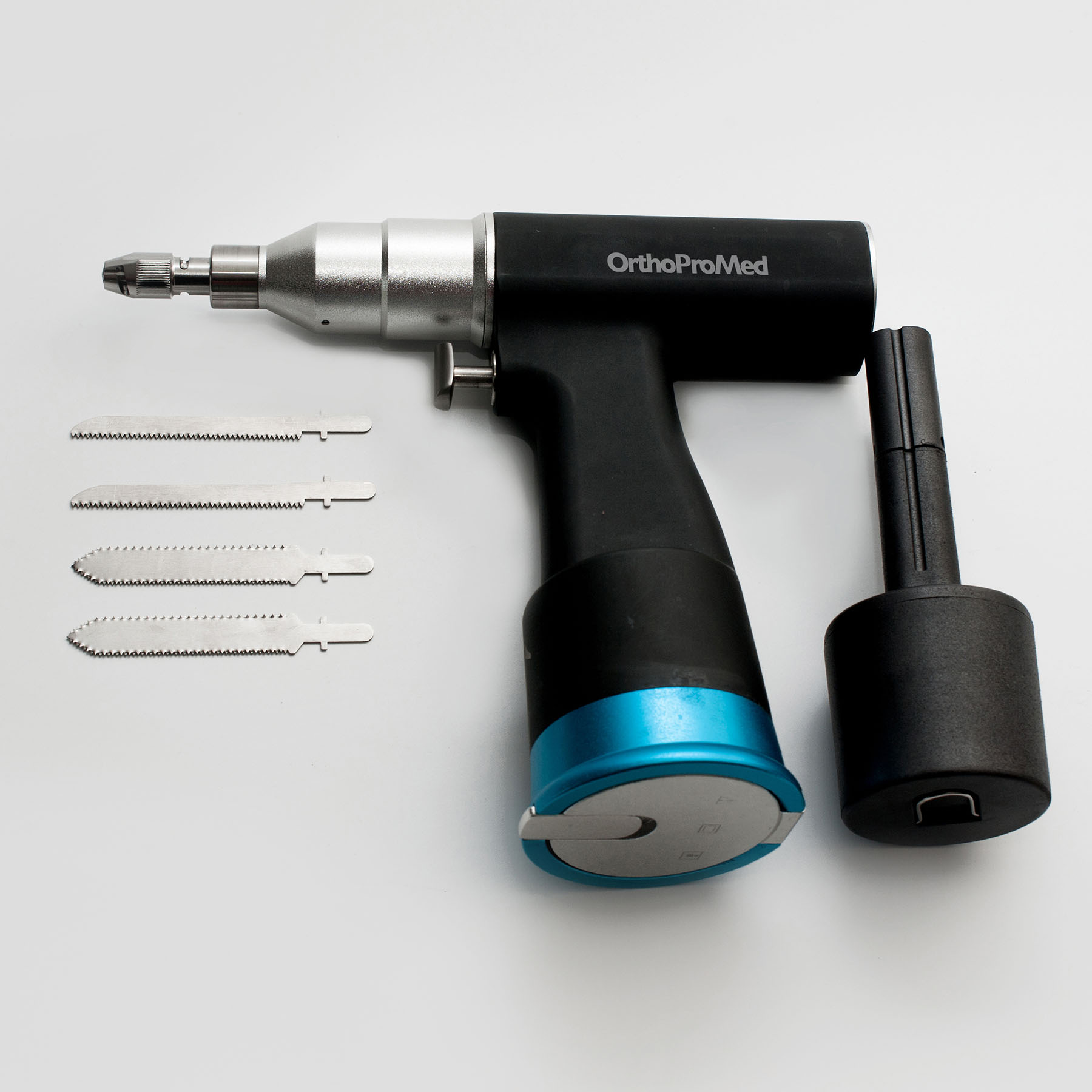

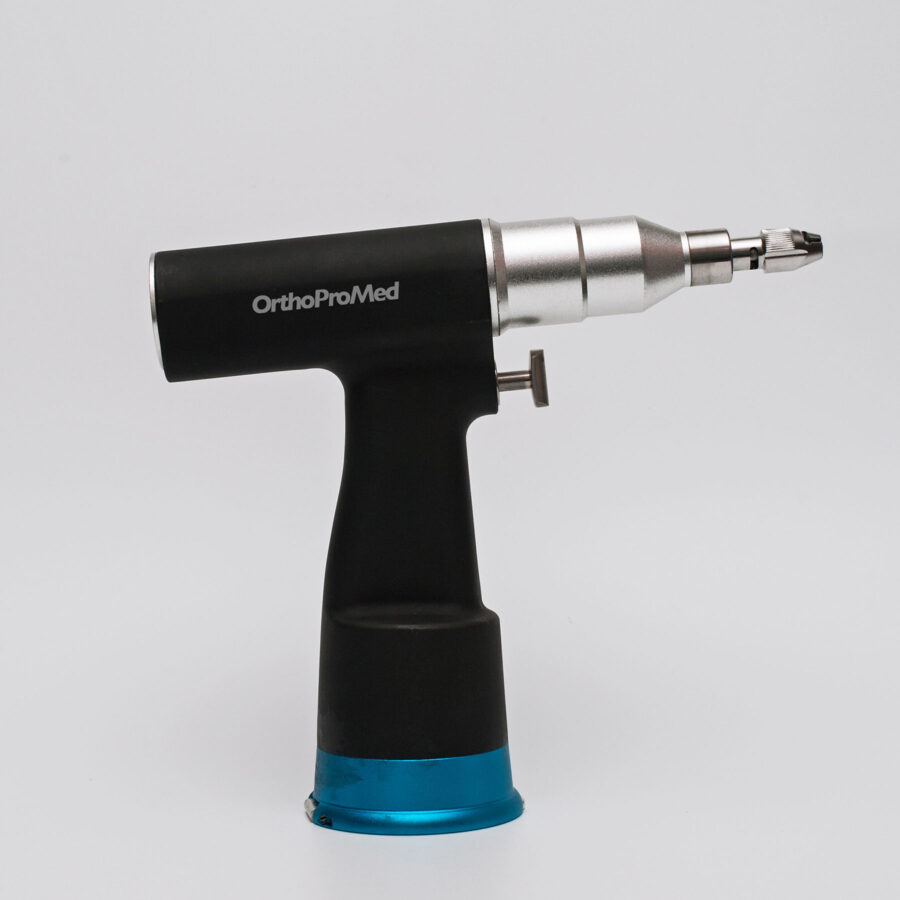

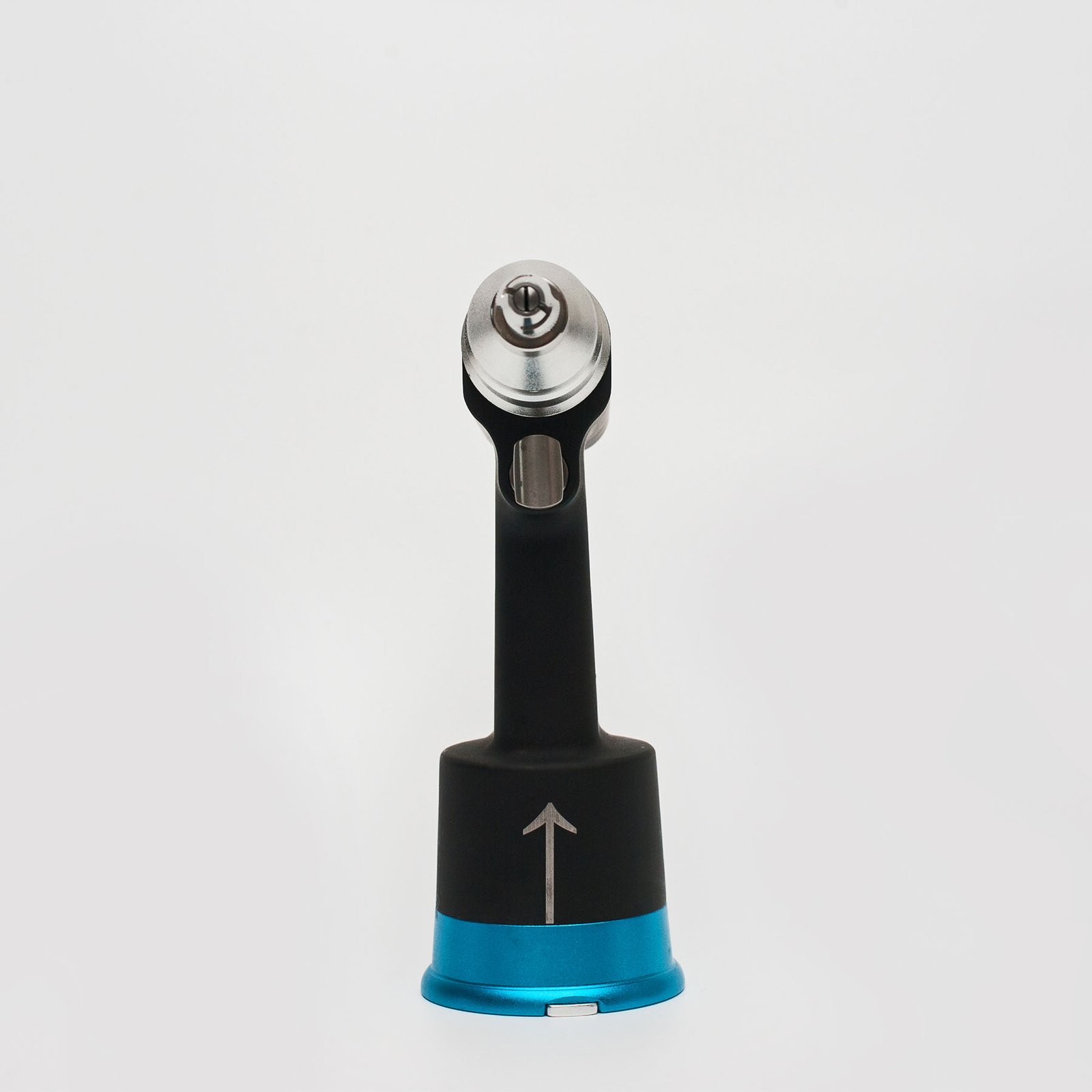

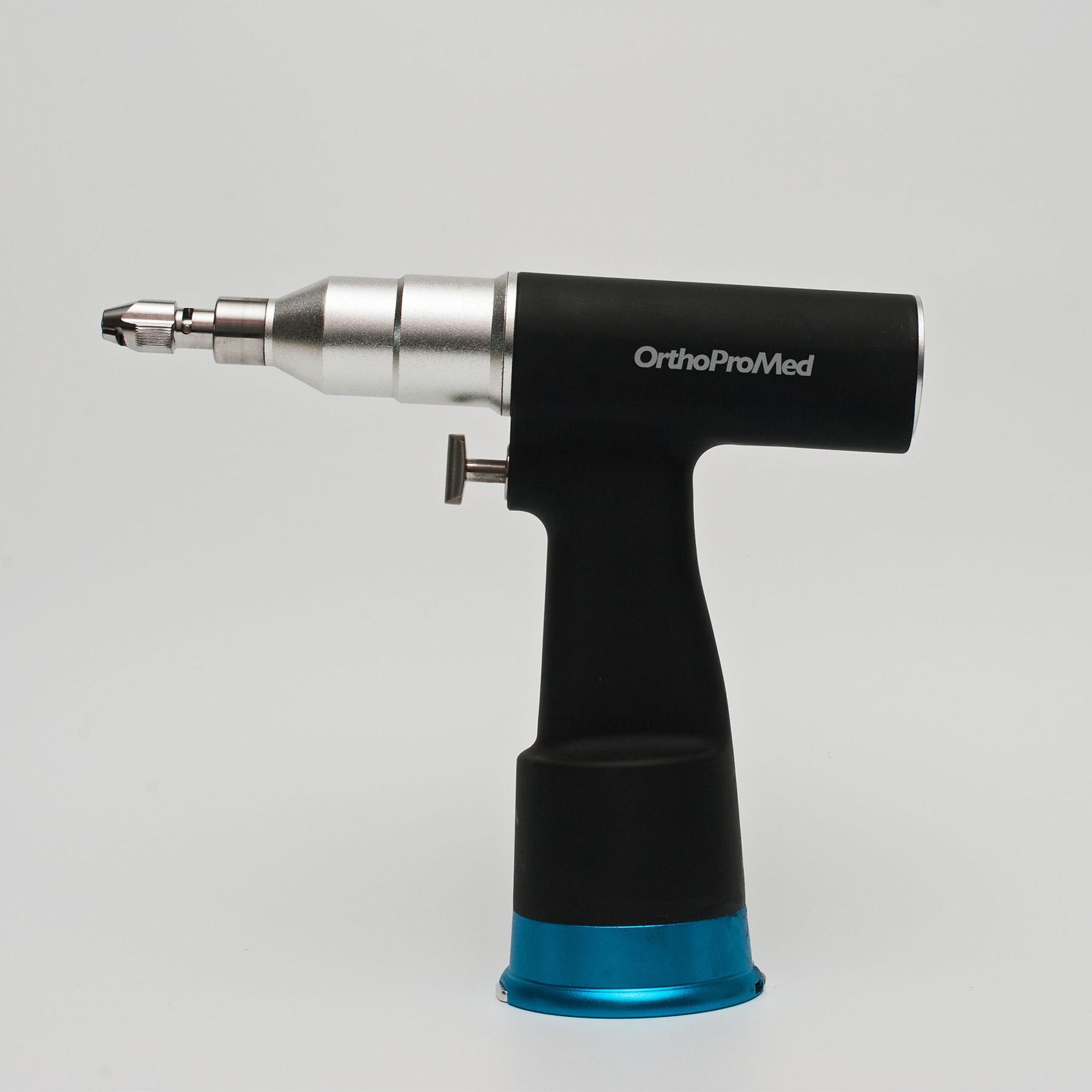

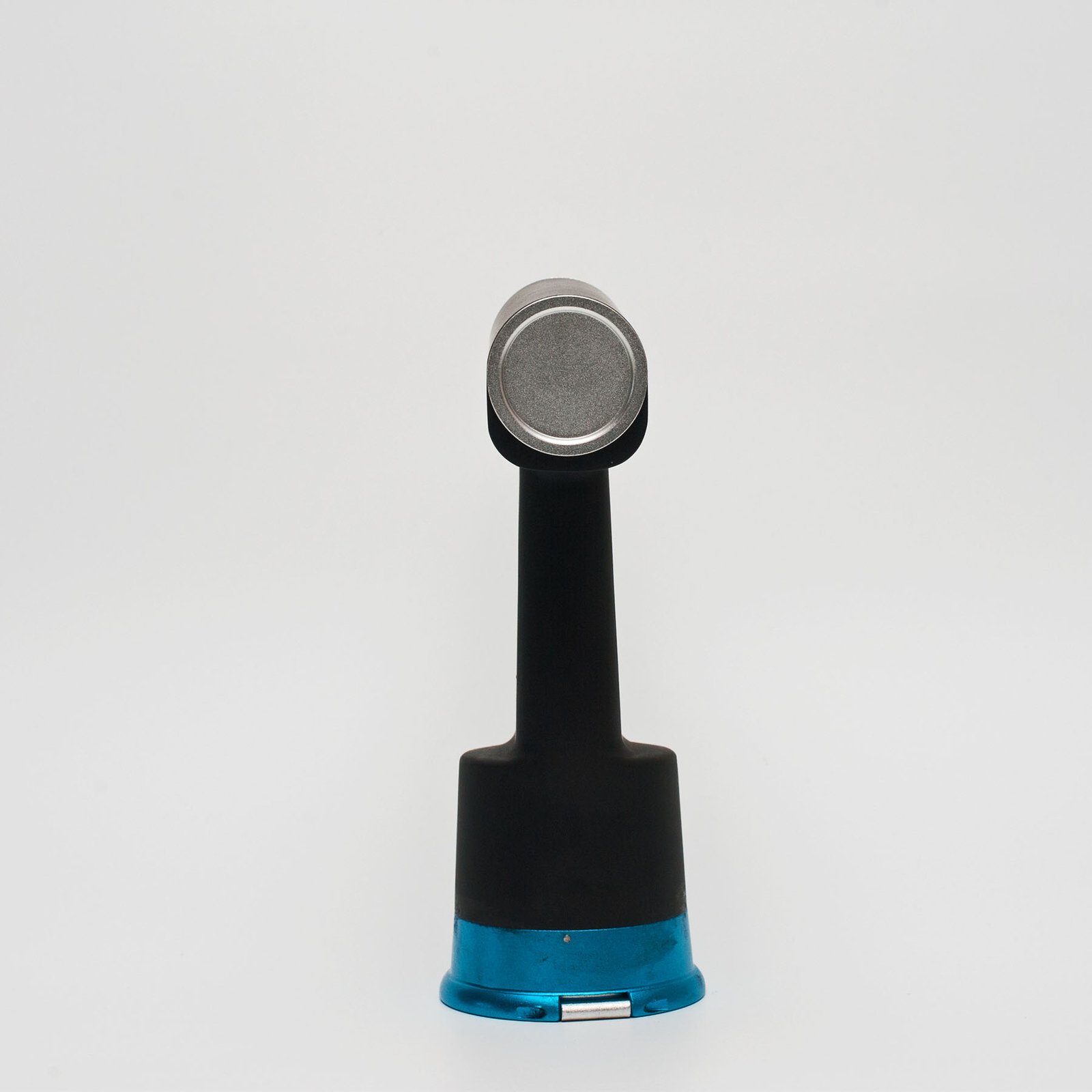

Medical Orthopedic Bone Reciprocating Saw 904
– Powerful reciprocating saw suitable for facet joint operations and cardiothoracic surgery
– Rapid cutting with accurate positioning and smooth, tidy cuts
– Multiple specifications of saw blade sizes available for clinical needs
– Features advanced saw blade lock and sheath device for enhanced safety during operation
– Operates on 110V-240V input voltage with an output power of ≤120W
– Battery capacity of 1800mA/h and rated speed of 0-20000rpm
– Sterilizable with HTHP method at 134-138°C, producing noise levels ≤70db
$1,190.00
Guaranteed Safe Checkout
Features & Compatibility
Medical Orthopedic Bone Reciprocating Saw 904
Powerful reciprocating saw engineered for facet joint operations, intercondylar fossa procedures, and cardiothoracic surgery. Delivers rapid, accurate cutting with smooth, tidy results and advanced safety features including integrated blade lock and sheath device.
Clinical overview
The Orthopedic Bone Reciprocating Saw 904 is purpose-designed for all types of facet joint operations, intercondylar fossa procedures, and cardiothoracic applications. The instrument delivers rapid cutting with accurate positioning and produces smooth, tidy cuts while maintaining low operating temperatures—critical for preserving adjacent soft tissue and bone integrity.
Advanced saw blade lock and sheath device engineering ensures enhanced safety and reliability during operation. Multiple specifications of saw blade sizes are available to meet diverse clinical needs, from precision spinal work to larger cardiothoracic procedures. The system combines power, control, and versatility in a single platform.
Key features & surgeon benefits
Rapid, Precise Bone Cutting
- 0–20,000 rpm variable speed control for optimal cutting in different bone densities
- Smooth, tidy cuts with minimal thermal damage to surrounding tissue
- Accurate positioning for complex facet and intercondylar procedures
Advanced Blade Lock & Sheath
- Integrated blade lock mechanism prevents unintended blade release
- Protective sheath device minimizes soft tissue contact during operation
- Low noise operation (≤70 dB) reduces fatigue and improves OR environment
Multiple Blade Specifications
- Range of saw blade sizes available for diverse surgical applications
- Suitable for spine, orthopedic, and cardiothoracic procedures
- Flexible power options: cordless battery or AC mains operation
HTHP Sterilizable Design
- Fully sterilizable via HTHP method at 134–138°C for standard OR protocols
- Robust construction rated for 1800 mAh battery capacity and extended use
- Designed for high-volume surgical environments with reliable performance
Technical specifications
| Indications | Facet joint operations, intercondylar fossa procedures, cardiothoracic surgery |
|---|---|
| Sizes / range | Multiple saw blade specifications available |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Rated speed | 0–20,000 rpm (variable) |
| Battery capacity | 1800 mAh |
| Charging voltage | 14.4V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main handpiece | Reciprocating saw motor unit with integrated blade lock and sheath device | 1 |
| Battery pack | 14.4V rechargeable lithium-ion battery (1800 mAh) | 1 |
| Charger unit | AC mains charger (110V–240V input) | 1 |
| Saw blades | Multiple blade specifications (sizes as applicable) | As ordered |
| Protective sheath | Integrated safety sheath device | 1 |
Get in touch for pricing & availability
Contact our sales team to request a formal quotation, discuss clinical applications, or arrange a product demonstration. We offer rapid delivery and comprehensive technical support.
Email: info@orthopedicdrills.com
