Orthopromed
Medical Acetabullar Reaming Drill 203
4.0(3 reviews)- The Medical Acetabullar Reaming Drill 203 is mainly used for grinding bone tissue
- It can be connected to any brand acetabular grinder and medullary cavity reamer
- Features a diameter of drill chuck of 0-8mm
- Operates on an input voltage of 110V-240V/50Hz
- Offers an output power of ≤120W
- Equipped with a battery capacity of 2500mA/h
- Has a rated speed of 0-400rpm (customizable)
- SKU
- 5CA359AB1E9E
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Orthopedic Surgical Instruments

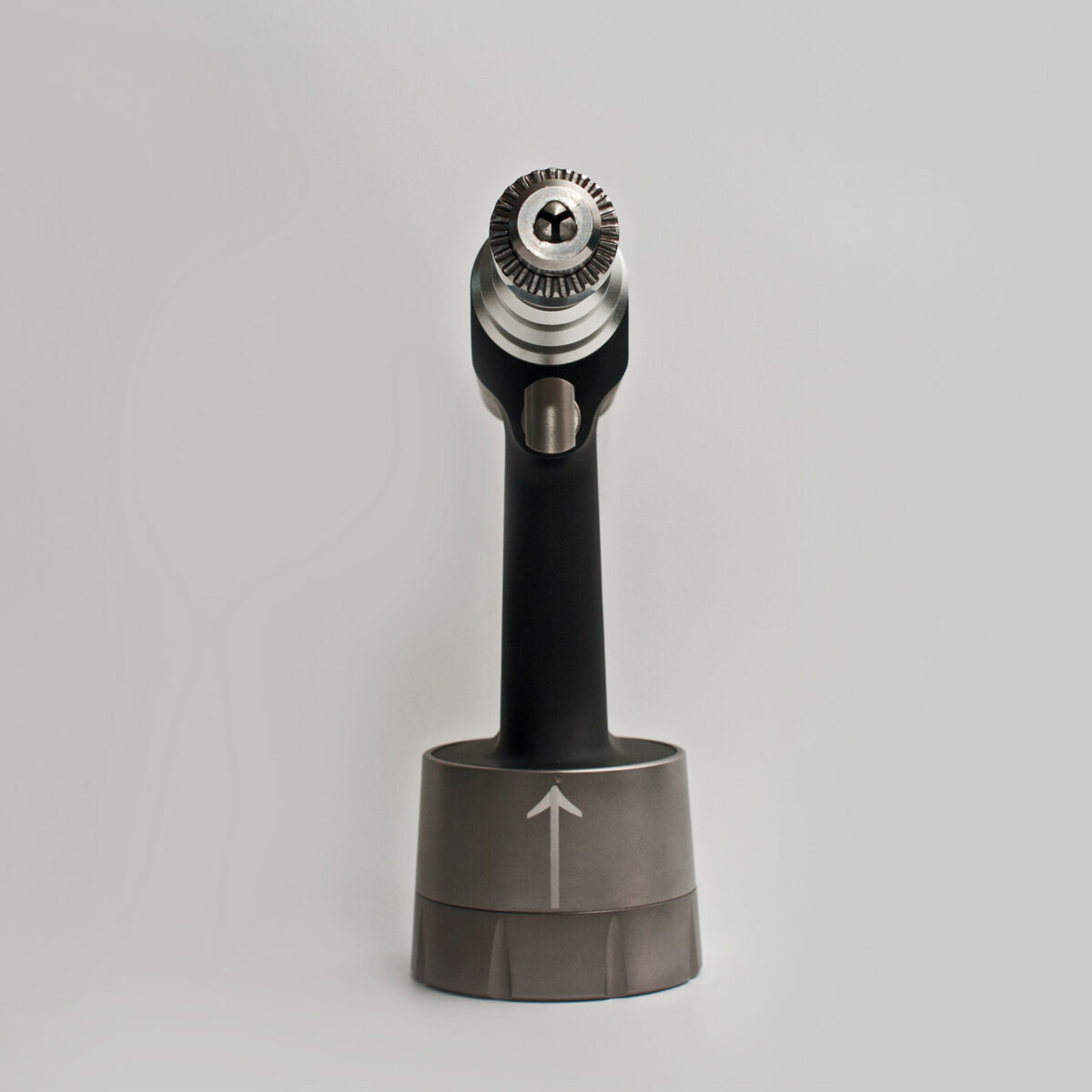

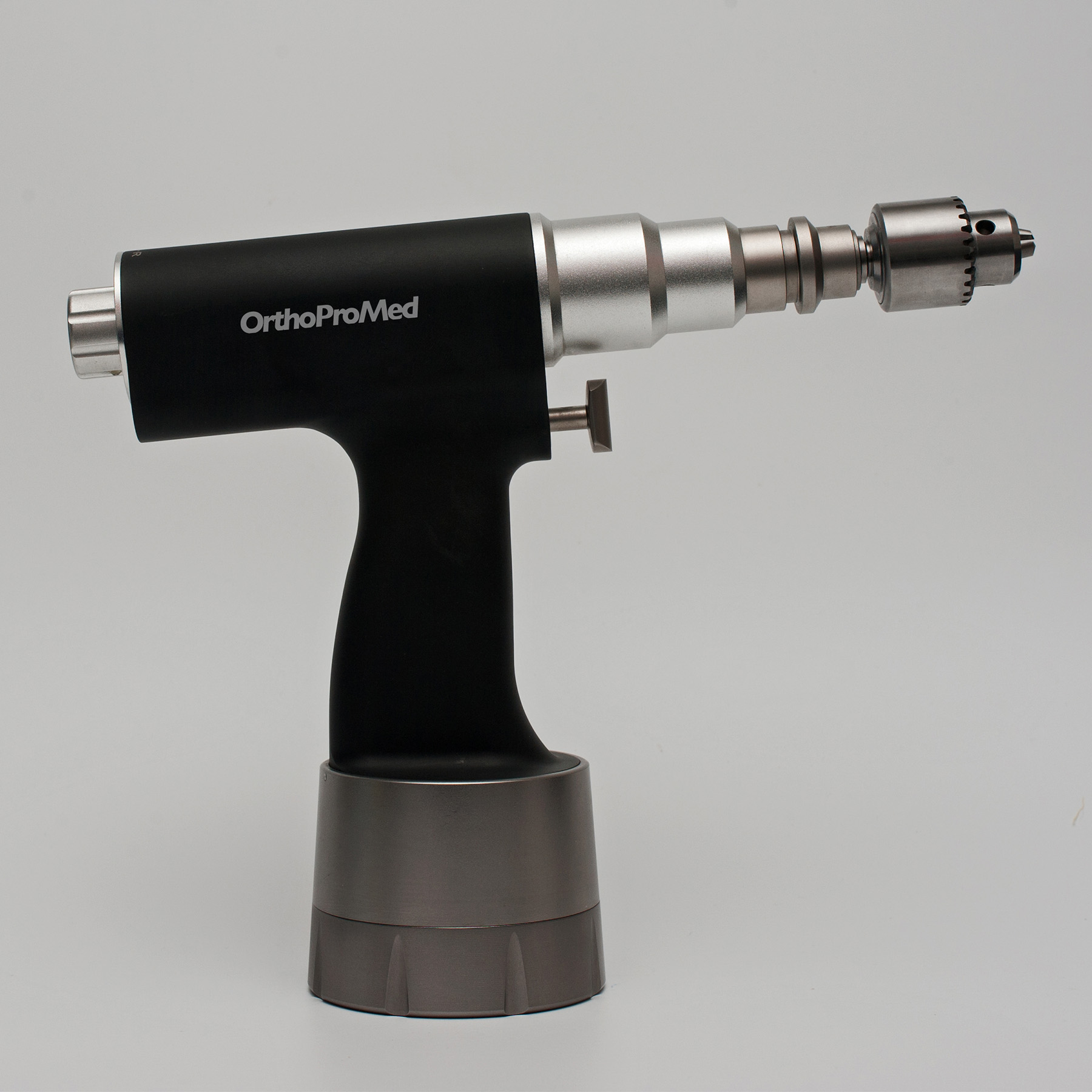

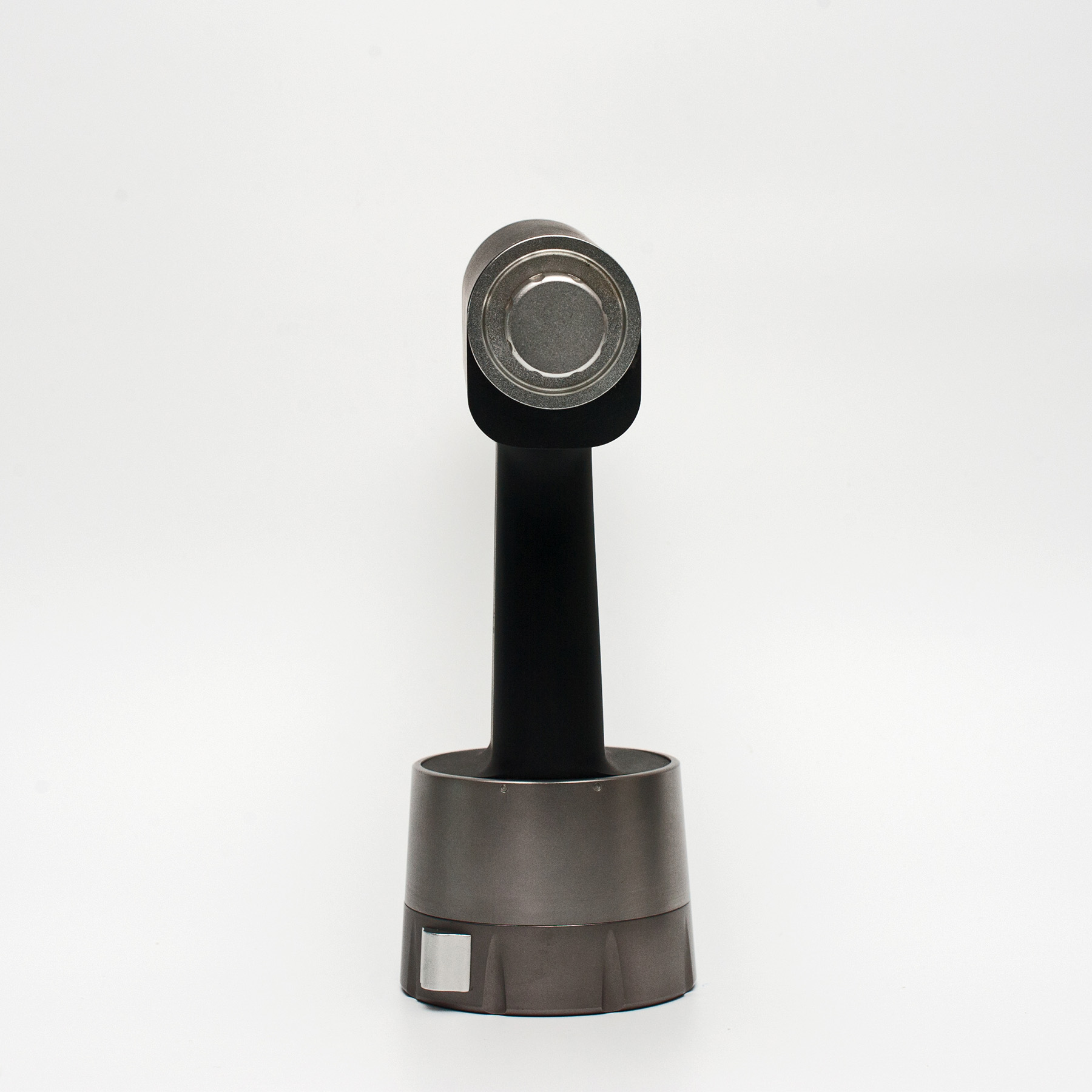

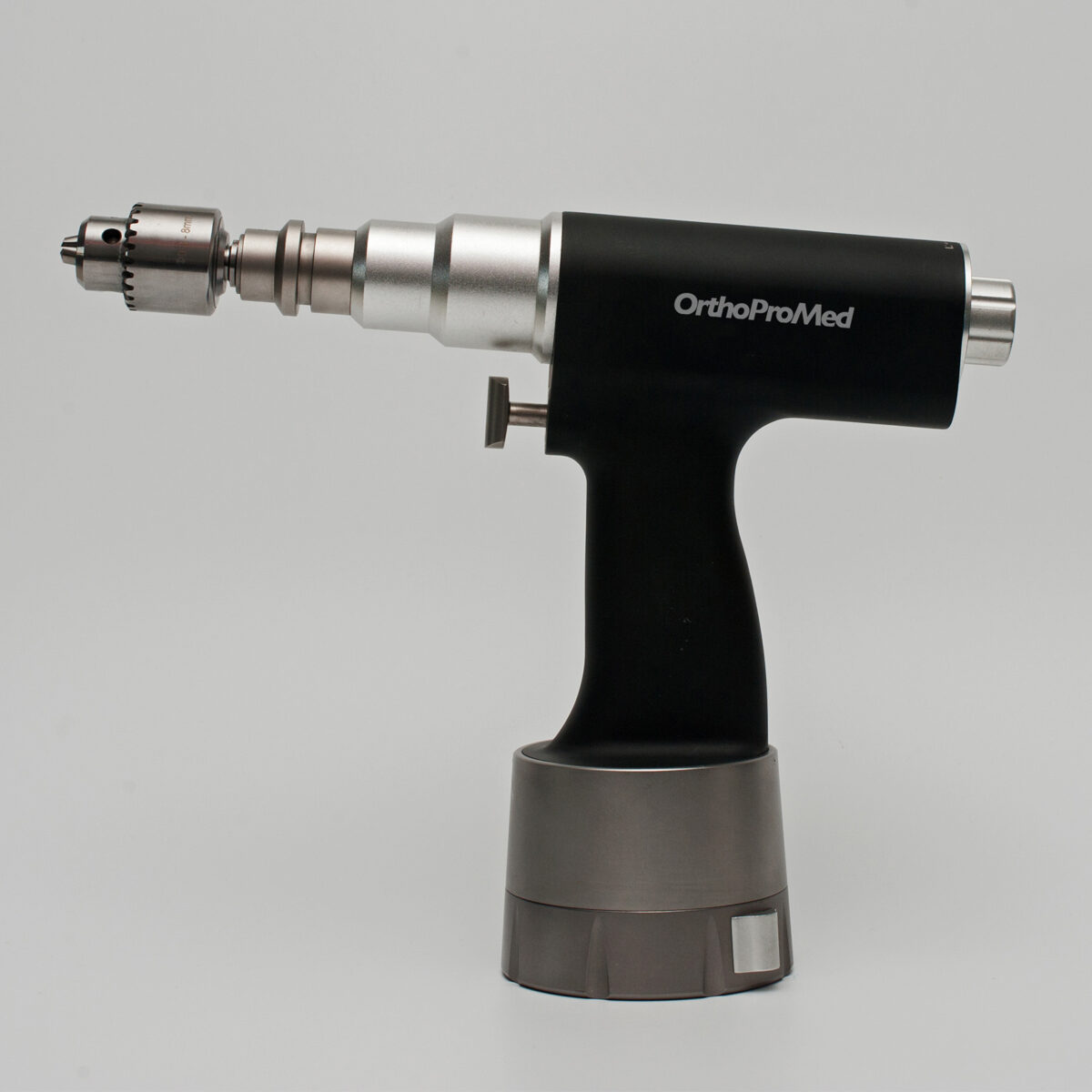

Medical Acetabular Reaming Drill 203
Precision bone tissue grinding instrument designed for acetabular and medullary cavity reaming. Features large torque output, variable speed control, and universal compatibility with leading acetabular grinder systems. Ideal for hip arthroplasty and revision procedures requiring accurate bone preparation.
Ordering Ref.
5ca359ab1e9e
ConfigurationCordless / Battery-Powered
MaterialSurgical Steel / Composite
ApplicationHip Arthroplasty, Revision Surgery
Customizable speed settings available. OEM configurations and private labeling upon request.
Clinical overview
The Medical Acetabular Reaming Drill 203 is a high-performance surgical instrument primarily designed for grinding and preparing bone tissue during acetabular reaming and medullary cavity preparation. Its robust construction and large torque output (13 Nm) make it compatible with any brand acetabular grinder and medullary cavity reamer, providing surgeons with flexibility in instrument selection and workflow integration.
With variable speed control (0–400 rpm, customizable), precise positioning accuracy, and low operational noise (≤70 dB), this drill delivers consistent, controlled bone preparation essential for optimal implant fit and long-term prosthetic stability in primary and revision hip arthroplasty procedures.
Key features & surgeon benefits
Compatibility
Universal System Integration
- Works with any brand acetabular grinder system
- Compatible with all standard medullary cavity reamers
- Flexible chuck design (0–8 mm diameter)
Performance
Precision & Power
- Large torque output (13 Nm) for consistent bone preparation
- Variable speed control (0–400 rpm) for surgical precision
- Low noise operation (≤70 dB) for better OR environment
Reliability
Durability & Sterilization
- HTHP sterilization at 134–138°C for rapid turnaround
- Robust surgical steel construction
- 2-year manufacturer warranty with lifetime clinical support
Convenience
Cordless Operation
- Battery-powered (2500 mAh) for unrestricted mobility
- Input voltage 110V–240V/50Hz for global use
- Compact, ergonomic design for extended surgical sessions
Technical specifications
| Indications | Acetabular reaming, medullary cavity preparation, bone tissue grinding |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Battery capacity | 2500 mAh |
| Charging voltage | 14.4V |
| Rated speed | 0–400 rpm (customizable) |
| Rated torque | 13 Nm |
| Noise level | ≤70 dB |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Warranty | 2 Year Manufacturer Warranty |

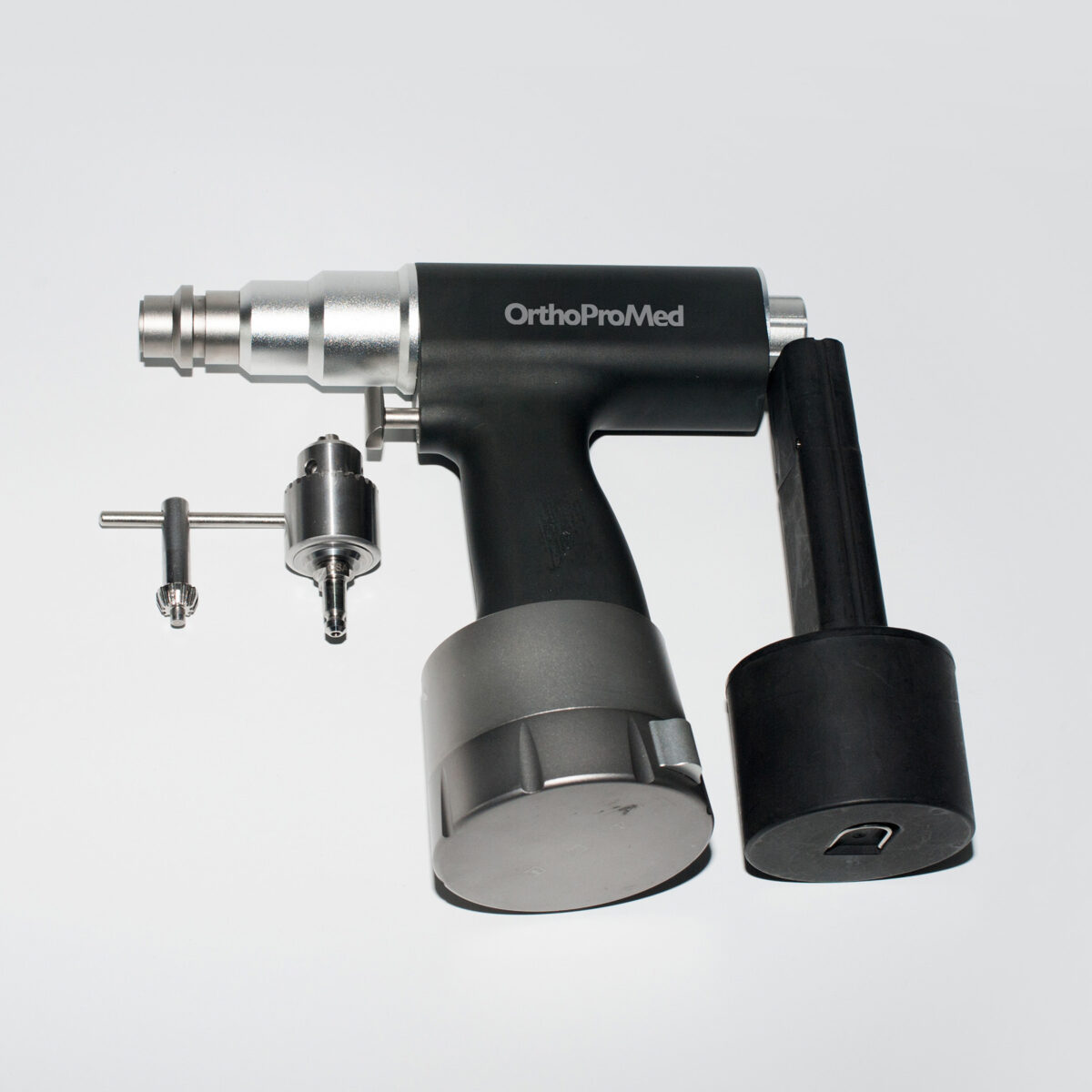

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Acetabular Reaming Drill Unit | Complete cordless drill with battery and charging system | 1 |
| Battery Pack | 2500 mAh rechargeable lithium-ion battery | 1 |
| Charger | 14.4V AC/DC charging unit (110V–240V compatible) | 1 |
| Chuck | Universal drill chuck, 0–8 mm capacity | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your surgical facility.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 3 reviewsRecommended
Been putting it through daily use in the theatre and the value at this price point is hard to beat. Setup was straightforward with clear documentation. Happy to recommend it to colleagues.
Jennifer Taylor, RN, CNORVerified buyerDec 27, 2024
Outstanding build quality
This has quickly earned its place in our clinic — the finish is clean and professional. Delivery was quick and everything arrived well-packaged. Does precisely what we needed.
Ana Moore, RNMay 15, 2025
