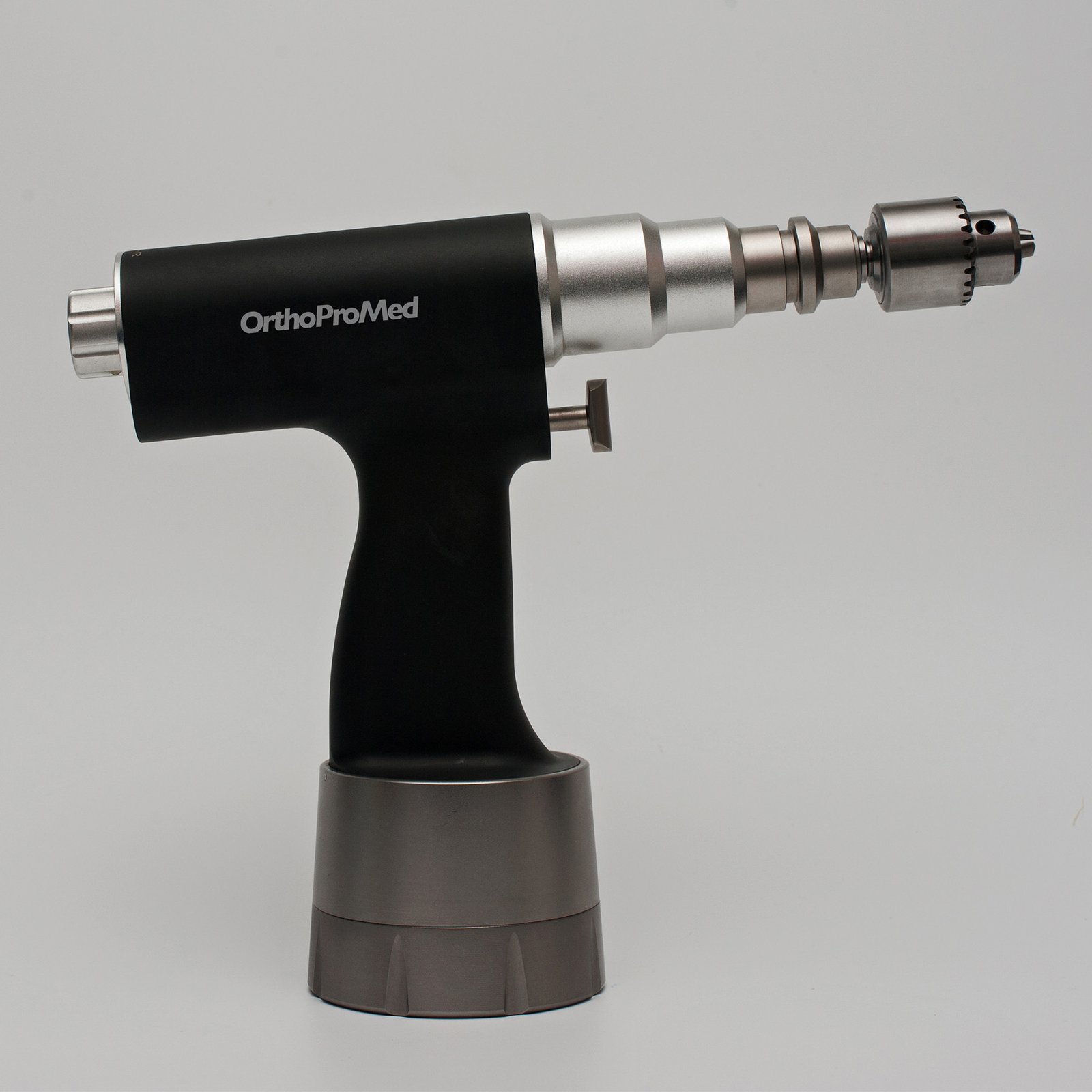

Medical Electric Bone Drill 103
– Medical Electric Bone Drill 103 is suitable for all kinds of orthopedic trauma surgery
– Mainly used for drilling and positioning bone tissue
– Features a drill chuck diameter ranging from 0-8mm
– Operates on an input voltage of 110V-240V/50Hz
– Provides an output power of ≤120W
– Equipped with a battery capacity of 2500mA/h
– Offers a rated speed of 0-1200rpm (customize available)
$1,490.00
Guaranteed Safe Checkout
Features & Compatibility
Medical Electric Bone Drill 103
Precision-engineered electric bone drill designed for all orthopedic trauma procedures. Delivers reliable drilling and positioning of bone tissue with variable speed control and ergonomic handling for extended surgical sessions.
Clinical overview
The Medical Electric Bone Drill 103 is purpose-built for orthopedic trauma surgery, delivering consistent, controlled drilling and positioning of bone tissue across a wide range of surgical applications. The variable speed control (0–1200 rpm) allows surgeons to optimize performance for different bone densities and surgical techniques, while the compact, lightweight design reduces fatigue during extended procedures.
Available in both cordless and corded configurations, the drill accommodates standard chuck sizes from 0–8 mm, making it compatible with a comprehensive range of standard surgical bits and accessories. HTHP sterilization at 134–138°C ensures full compliance with surgical facility protocols.
Key features & surgeon benefits
Reliable Power & Control
- 0–1200 rpm variable speed for precise bone engagement
- 4.5 Nm rated torque ensures consistent drilling force
- Low noise operation (≤70 dB) for OR comfort
Flexible Power Options
- Cordless battery (2500 mAh) for unrestricted mobility
- Corded operation (110–240 V, 50 Hz) for continuous use
- Quick 14.4 V charging for rapid turnaround
Surgical-Grade Construction
- Stainless steel housing resists corrosion and wear
- HTHP sterilizable at 134–138°C
- Compact 0–8 mm chuck accommodates standard bits
Tailored Solutions
- Speed profile customization available
- OEM and partnership configurations supported
- Bulk and institutional pricing available
Technical specifications
| Indications | Orthopedic trauma surgery, bone drilling and positioning |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Input voltage | 110–240 V / 50 Hz |
| Output power | ≤120 W |
| Rated speed | 0–1200 rpm (customization available) |
| Rated torque | 4.5 Nm |
| Battery capacity | 2500 mAh |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill unit | Medical Electric Bone Drill 103 handpiece | 1 |
| Battery pack | 2500 mAh rechargeable lithium-ion battery | 1 |
| Charging station | 14.4 V rapid charger with power cable | 1 |
| Chuck | 0–8 mm self-tightening drill chuck | 1 |
| Carrying case | Protective transport and storage case | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a product demonstration. We support institutional bulk orders and OEM partnerships.
