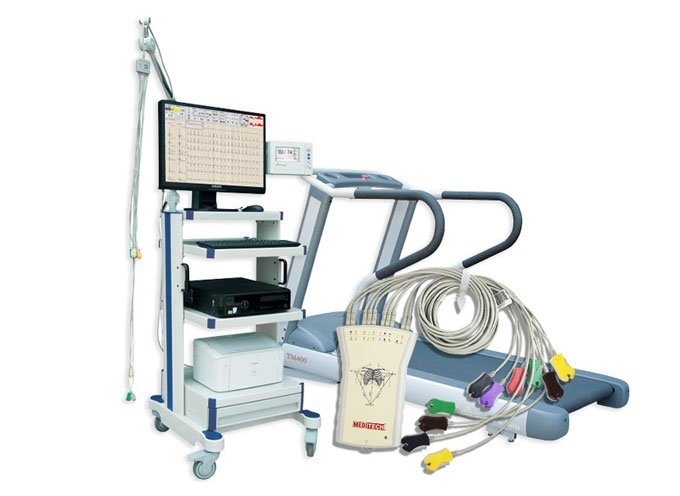

Cardios Pro Stress Test System
Advanced exercise stress testing platform with super-stable, noise-free ECG tracings even at steep grades. Sophisticated software delivers perfect cardiology diagnosis with exceptional user experience and seamless integration with leading treadmill and ergometer systems.
Clinical overview
The Cardios Pro Stress Test System is a comprehensive solution for exercise ECG evaluation, combining high-resolution digital acquisition with advanced signal processing to deliver clinically reliable tracings under all testing conditions. The system evaluates ECG, symptoms, and blood pressure throughout the exercise protocol, enabling precise assessment of cardiac response to stress and identification of arrhythmias in real time.
Featuring Meditech patent technology including digital synchronous A/D conversion and myoelectric filtering based on ECG spectrum analysis, the system minimizes baseline wander and artifact while maintaining exceptional signal fidelity. Preset classical protocols and unlimited user-defined protocols provide flexibility for diverse patient populations and clinical workflows, with rehabilitation mode supporting cardiac function recovery protocols.
Key features & surgeon benefits
Superior ECG Fidelity
- 24-bit A/D quantization at 24K SPS per channel
- Patented digital synchronous multi-channel acquisition
- Myoelectric filter based on ECG spectrum analysis
- Minimum delay baseline wander eraser algorithm
- 0.4μV resolution with ±25mV dynamic range
Intuitive Testing Protocol
- Real-time average complexes and continuous ST analysis
- Arrhythmia detection with live review capability
- Enlarged QRS presentation for detailed analysis
- Re-analyze complete exercise test with ST and HR trends
- Resting ECG with 12 simultaneous leads
Seamless Equipment Compatibility
- Works with COSMOS, Track Master, and ERGOSANA systems
- Automatic control via built-in RS-232 interface
- User-definable protocols to control treadmill or ergometer
- Synchronous display of ECG, BP, SpO2, METS, VO2, distance, time
- Independent testing for different equipment configurations
Flexible System Options
- Optional blood pressure measurement via Suntech Tango M2
- PC and monitor configurations available
- Trolley and laser printer accessories
- Data management and archival capabilities
- Rehabilitation mode for cardiac recovery protocols
Technical specifications
| Indications | Exercise stress testing, cardiac evaluation, arrhythmia detection, rehabilitation monitoring |
|---|---|
| Sampling Rate (A/D) | 24K SPS per channel |
| Recording Rate | 1K SPS per channel |
| Quantization Precision (A/D) | 24 bits |
| Quantization Precision (Recording) | 16 bits |
| Resolution | 0.4μV |
| Common Mode Rejection | >110dB |
| Input Impedance | >20MΩ |
| Frequency Response | 0.05–250Hz (±3dB) |
| Time Constant | ≥3.2 seconds |
| Dynamic Range | ±25mV |
| Maximum Electrode Potential | ±800mV DC |
| Defibrillation Protection | Built-in |
| Patient Current Leakage | <10μA |
| Communication | Isolated USB (4000V) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Patient Cable | 10-lead, 3.5m length | 1 |
| Disposable Exercise ECG Electrodes | Standard electrodes for stress testing | 25 |
| Chest Electrodes | Reusable chest electrode set | 6 |
| Clamp Electrodes | Limb lead clamp electrodes | 4 |
| Cleaning Cloth | Electrode cleaning and maintenance | 1 |
| Cardios Pro Hardware | Digital ECG acquisition box with software | 1 |
| Exercise ECG Software | Complete testing and analysis suite | 1 |
| Resting ECG Software | 12-lead simultaneous recording module | 1 |
