12-channel electrocardiograph with 8" TFT color touchscreen, simultaneous 12-lead acquisition, and advanced digital signal processing. Ideal for high-volume diagnostic environments with 10,000-case internal memory and multi-language reporting capabilities.

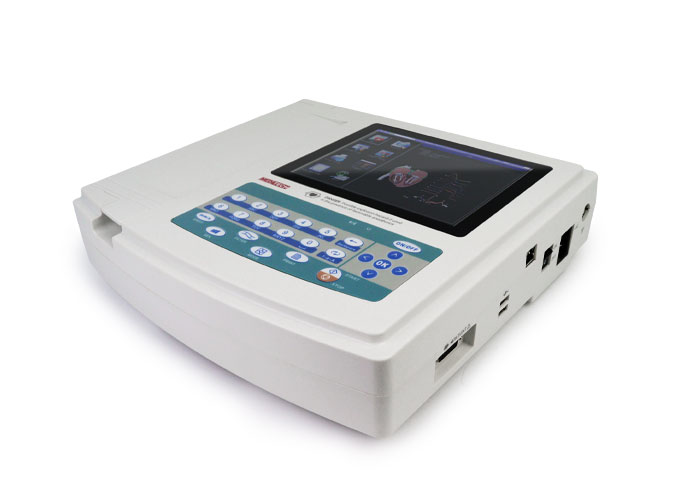

The EKG1212T is a fully automated 12-channel electrocardiograph designed for high-throughput diagnostic environments. With simultaneous 12-lead acquisition and real-time digital signal processing, it delivers rapid, accurate cardiac assessment. The intuitive 8-inch touchscreen interface and soft keyboard control enable efficient operator workflow, while advanced filtering (AC, baseline, and EMG) ensures signal integrity even in challenging clinical settings.
The device supports over 10 printing modes and can store up to 10,000 patient examinations in internal memory. With continuous printing capability (90 minutes of uninterrupted output, 150+ ECG records), it is well-suited for busy cardiology departments, primary care facilities, and emergency departments requiring reliable, rapid diagnostic capability.
| Leads | Standard 12 leads, simultaneous acquisition |
|---|---|
| Display | 8" TFT color touchscreen with soft keyboard control |
| Input impedance | ≥5 MΩ |
| Patient leak current | <10 μA |
| Frequency response | 1 Hz–75 Hz |
| Time constant | >3.2 s |
| CMRR | >60 dB |
| EMG filter | 25/35 Hz (–3 dB) |

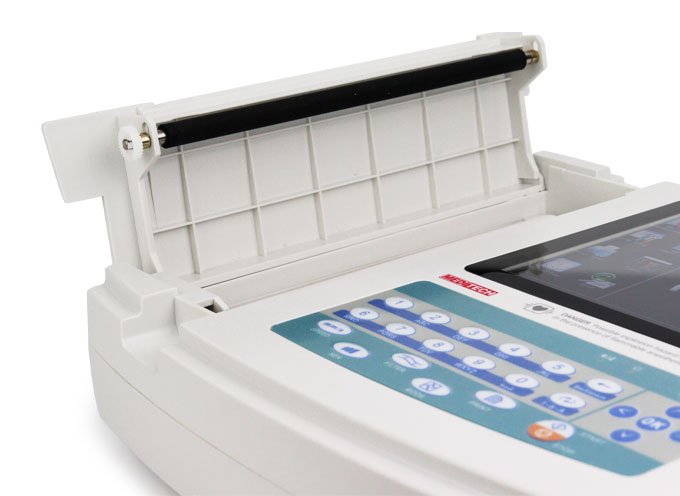

| Recording method | Thermal array printing system |
| Paper specification | 80 mm (W) × 20 m (L) high-speed thermal paper |
| Paper speed | Auto/rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Measurement parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Internal memory | Up to 10,000 patient examinations |
| Printing capacity | 90 minutes continuous; 150+ ECG records |
| Safety classification | Class I Type CF defibrillation-proof applied part |
| Enduring polarization voltage | ±300 mV |
| Noise level | ≤15 μVp-p |
| Power supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4 V 3700 mAh rechargeable lithium battery |
| Operating temperature | +5°C to +35°C |
| Operating humidity | ≤80% |
| Storage temperature | –10°C to +55°C |
| Storage humidity | ≤95% |
| Atmospheric pressure | 86–106 kPa (operating); 50–106 kPa (storage) |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Chest electrodes | Standard ECG chest leads | 6 |
| Clamp electrodes | Limb lead electrodes | 4 |
| ECG cable | Patient lead cable assembly | 1 |
| USB cable | Data transfer and connectivity | 1 |
| CardioSoft Pro software | ECG analysis and reporting software on CD | 1 |
| Ground wire | Patient safety ground connection | 1 |
| Thermal paper roll | 210 mm × 20 m high-speed thermal paper | 1 |
| Power cable | AC mains power connection | 1 |
| Cleaning cloth | Display and device maintenance | 1 |
