Meditech

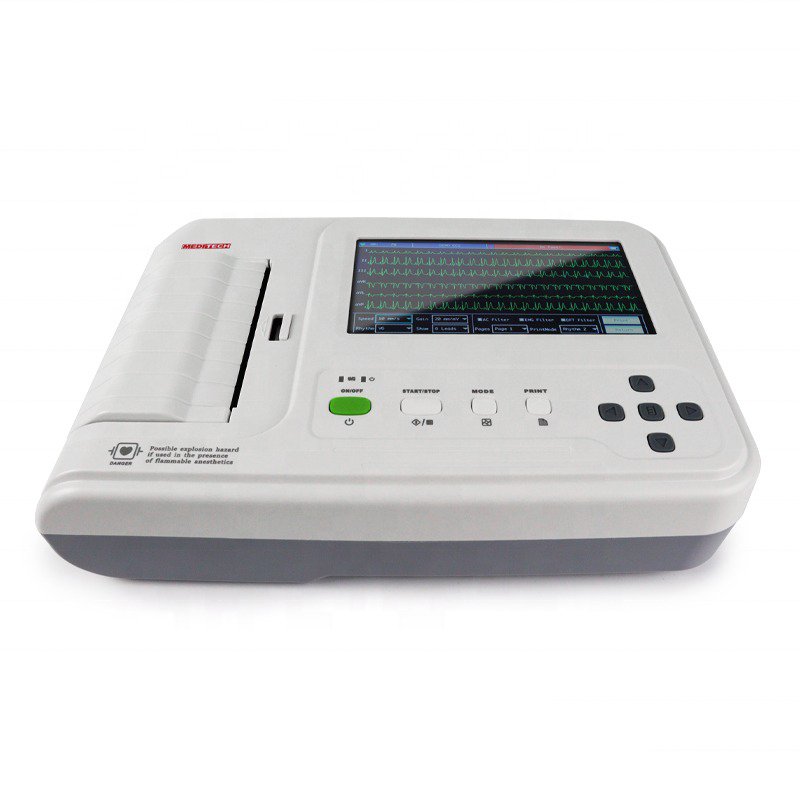

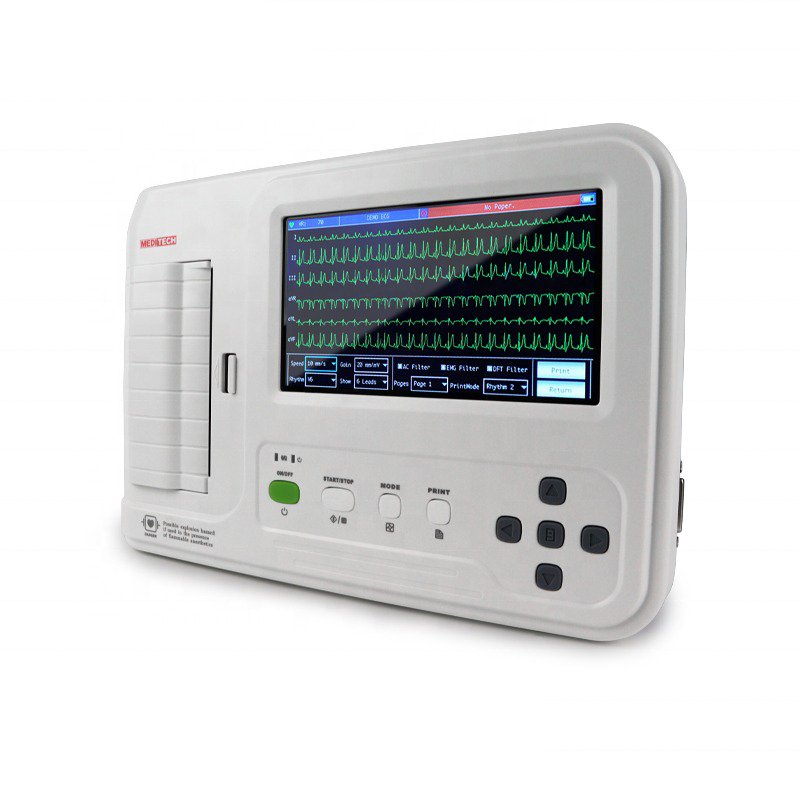

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
4.0(2 reviews)FREE SHIPPING! Delivery in 3 Days
EKG6012 7" TFT touch screen 3+1/6 channel ECG machine with interpretation,
Digital isolation technology and signal processing solution, digital filter
Download User Manual
- SKU
- OD-ECG6012
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic ECG Equipment
7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
Professional-grade 12-lead simultaneous resting ECG system with digital isolation technology, auto-interpretation, and comprehensive patient management. Compact, portable design with built-in rechargeable battery and thermal printing for clinical and ambulatory settings.
Ordering Ref.
ECG6012
Configuration3+1/6 Channel
MaterialThermal Array System
ApplicationClinical & Ambulatory
Includes PC software (CardioSoft Pro) for data transfer and archival. Custom configurations and accessories available upon request.
Clinical overview
The ECG6012 is a professional 12-lead simultaneous resting ECG machine designed for rapid, accurate cardiac assessment in clinical, hospital, and ambulatory care environments. The 7-inch TFT touch screen with LED backlight provides intuitive patient management, including name, age, and ID entry via touch keyboard. Digital isolation technology and advanced signal processing deliver clean, artifact-free waveforms with automatic measurement, analysis, and interpretation capabilities.
Built-in rechargeable lithium battery (7.4V, 3700 mAh) ensures portability and continuous operation. Multi-language support (English, German, French, Italian, Turkish, Spanish) and integrated USB/LAN connectivity facilitate seamless data transfer and archival. The thermal array printing system with variable paper speeds (5–100 mm/s) accommodates both routine screening and detailed rhythm analysis workflows.
Key features & surgeon benefits
Signal Quality
Advanced Digital Processing
- Digital isolation technology eliminates noise and interference
- Frequency response 1–75 Hz with EMG filter (25/35 Hz, -3dB)
- Input impedance ≥5 MΩ; CMRR >60 dB for superior signal fidelity
Workflow
Intuitive Operation
- 7-inch TFT touch screen with multi-language interface
- Auto-record and manual record modes with flexible lead selection
- Automatic measurement, analysis, and interpretation reduce operator time
Portability
Flexible Deployment
- Built-in rechargeable lithium battery for cordless operation
- Compact footprint suitable for mobile clinics and remote settings
- AC (100–110V/240V, 50/60 Hz) or DC power options
Data Management
Comprehensive Archival
- Built-in memory or mini SD card storage for >1000 patient records
- USB and LAN connectivity for seamless data transfer
- Included CardioSoft Pro software for PC-based analysis and reporting
Technical specifications
| Indications | Resting 12-lead electrocardiography, cardiac rhythm monitoring, patient screening |
|---|---|
| Lead Configuration | Standard 12 leads (3+1/6 channel) |
| Display | 7-inch TFT touch screen with LED backlight |
| Patient Leak Current | <10 μA |
| Input Impedance | ≥5 MΩ |
| Frequency Response | 1 Hz–75 Hz |
| Time Constant | >3.2 s |
| CMRR | >60 dB |
| EMG Interference Filter | 25/35 Hz (-3 dB) |
| Recording Method | Thermal array printing system |
| Paper Specification | 80 mm (W) × 20 m (L) high-speed thermal paper |
| Paper Speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity Options | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Measurement Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Auto-Analysis | Auto-measurement, auto-analysis, auto-interpretation |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Enduring Polarization Voltage | ±300 mV |
| Noise Level | ≤15 μVp-p |
| Memory | Built-in memory or mini SD card; stores >1000 patient records |
| Connectivity | USB and LAN sockets; includes CardioSoft Pro software |
| Power Supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% |
| Atmospheric Pressure (Operating) | 86–106 kPa |
| Atmospheric Pressure (Storage) | 50–106 kPa |
| Fuse Specification | 2 pcs φ5×20 mm AC time lag; T1.6A/250V (110V/220V power supply) |
| Languages | English, German, French, Italian, Turkish, Spanish |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest electrode | 6 |
| Clamp Electrode | Limb clamp electrode | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | Data transfer cable | 1 |
| CD Software | CardioSoft Pro analysis software | 1 |
| Ground Wire | Patient ground connection | 1 |
| Thermal Paper Roll | 80 mm × 20 m high-speed thermal paper | 1 |
| Power Cable | AC mains power cable | 1 |
| Cleaning Cloth | Display and device maintenance cloth | 1 |
Optional Accessories: Carrying case, additional thermal paper rolls, mobile trolley, PC accessories, printer accessories.
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a demonstration, or discuss custom configurations and bulk orders. Free shipping available on qualified orders with 3-day delivery.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 2 reviewsRecommended
This has quickly earned its place in our surgical unit — setup was straightforward with clear documentation. The value at this price point is hard to beat. Does precisely what we needed.
Ana Wilson, Procurement LeadVerified buyerMar 3, 2025
