ECG Handheld Single Channel ECG101T
- SKU
- OD-00405
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

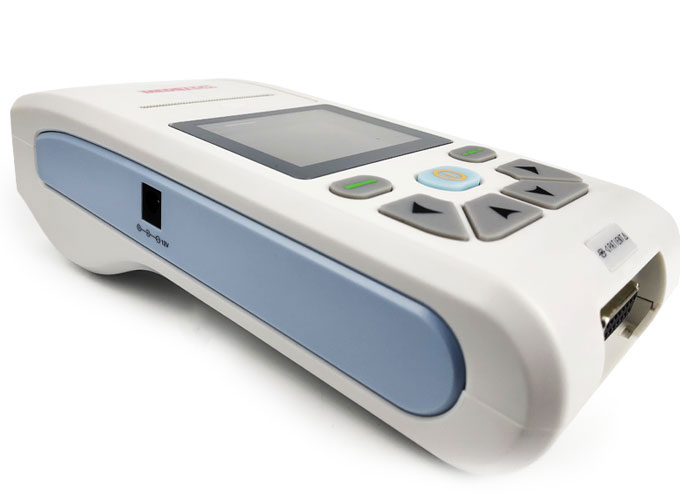

ECG Handheld Single Channel ECG101T
Smart handheld single-channel ECG with real-time interpretation, color touchscreen display, digital isolation technology, and advanced signal processing. High-resolution thermal output with 12-lead capability and automatic diagnosis for rapid clinical assessment.
Clinical overview
The ECG101T is a portable, intelligent handheld single-channel ECG system designed for rapid cardiac assessment in clinical, ambulatory, and point-of-care settings. Its high-resolution thermal-array output (8 dots/mm at 150 Hz) combined with advanced digital signal processing delivers diagnostic-quality waveforms with minimal artifact. The device supports 12-lead standard configuration with automatic lead selection and real-time interpretation, enabling clinicians to obtain actionable cardiac data within seconds.
With integrated auto-measurement and auto-diagnosis capabilities, the ECG101T automatically calculates key parameters (HR, P-R interval, QRS duration, QT interval, axis measurements) and provides interpretive guidance. The large color touchscreen display shows 12/6/3/1 lead(s) simultaneously with real-time status information, while the built-in thermal printer produces high-quality paper records. Storage capacity for up to 450 ECG cases with patient information, combined with USB and SD card connectivity, ensures seamless data management and integration with existing hospital information systems.
Key features & surgeon benefits
Compact, lightweight form factor
- Dimensions: 207 mm (L) × 96 mm (W) × 62 mm (H); weight 0.5–0.6 kg
- Handheld design for bedside, clinic, or field use
- Touch TFT screen with intuitive user interface
Rapid acquisition & interpretation
- Auto-record mode with automatic lead sequencing and analysis
- Real-time interpretation and auto-diagnosis of ECG parameters
- Selectable print modes (length, gain, paper speed, report format)
Comprehensive storage & connectivity
- Internal memory: 450 ECG cases with patient demographics
- External SD card support (up to 100 cases per card)

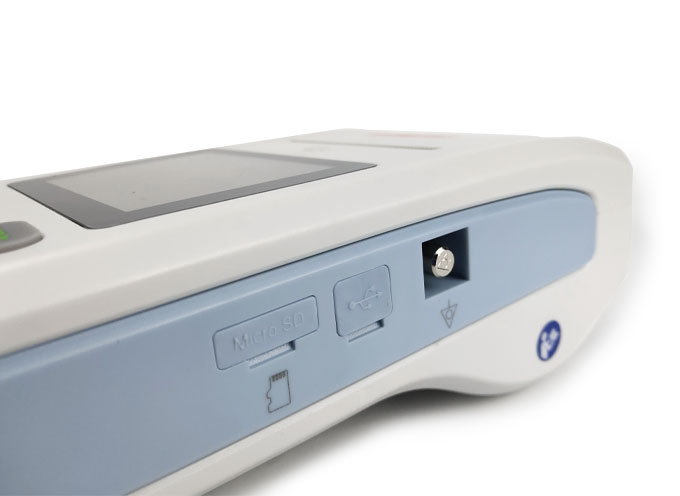

- USB 2.0 port for data synchronization and PC software integration
Dual power with extended runtime
- AC (100–110V/240V, 50/60 Hz) and DC (7.4 V, 3700 mAh lithium polymer) power options
- Up to 4 hours continuous operation on battery in optimal DC mode
- Class I Type CF defibrillation-proof applied part with digital isolation
Technical specifications
| Indications | Cardiac rhythm monitoring, ECG recording, arrhythmia detection, patient screening |
|---|---|
| Lead configuration | Standard 12 leads |
| Display | Color touchscreen TFT; shows 12/6/3/1 lead(s) real-time with status information |
| Output system | High-resolution thermal-array printing (8 dots/mm, 150 Hz) |
| Paper specification | 50 mm (W) × 20 m (L) high-speed thermal paper |
| Paper speed options | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity selections | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Input impedance | ≥5 MΩ |
| Patient leak current | <10 μA |
| Frequency response | 1 Hz–75 Hz |
| Time constant | >3.2 s |
| CMRR | >60 dB |
| EMG filter | 25/35 Hz (-3 dB) |
| Noise level | ≤15 μVp-p |
| Enduring polarization voltage | ±300 mV |
| Safety classification | Class I Type CF defibrillation-proof applied part; digital isolation technology |
| Measurement parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Storage capacity | 450 ECG cases with patient information; external SD card (up to 100 cases) |
| Power supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4 V, 3700 mAh rechargeable lithium polymer battery |
| Battery runtime | Up to 4 hours continuous operation (optimal DC mode) |
| Operating temperature | +5 °C to +35 °C |
| Operating humidity | ≤80% relative humidity |
| Storage temperature | -10 °C to +55 °C |
| Storage humidity | ≤95% relative humidity |
| Atmospheric pressure | Operating: 86–106 kPa; Storage: 50–106 kPa |
| Dimensions | 207 mm (L) × 96 mm (W) × 62 mm (H) |
| Weight | 0.5–0.6 kg |
| Connectivity | USB 2.0 (store/synchronization modes); external SD card slot |
| Software included | CardioSoft Pro PC software for data transfer and analysis |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard 12-lead chest electrodes | 6 |
| Clamp Electrode | Limb lead clamp electrodes | 4 |

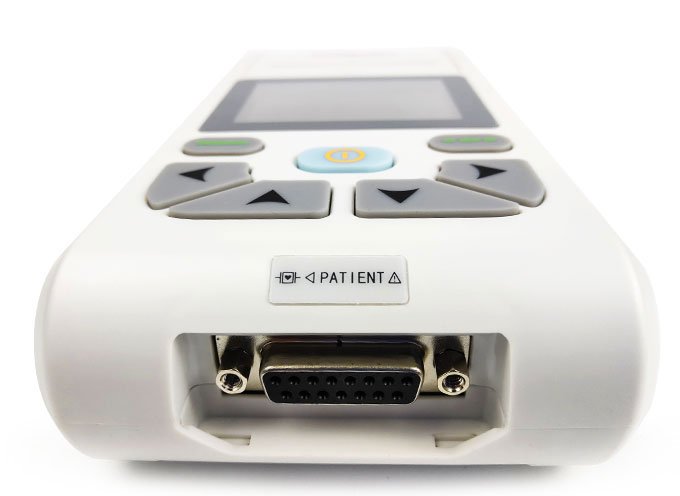

| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | USB 2.0 data transfer cable | 1 |
| PC Software | CardioSoft Pro analysis and data management software on CD | 1 |
| Ground Wire | Patient ground reference wire | 1 |
| Thermal Paper Roll | 50 mm × 20 m high-speed thermal recording paper | 1 |
| Power Cable | AC mains power cable (100–110V/240V, 50/60 Hz) | 1 |
| Cleaning Cloth | Microfiber cleaning cloth for display and device maintenance | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical requirements, or arrange a demonstration of the ECG101T. We offer fast delivery and comprehensive technical support to ensure seamless integration into your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

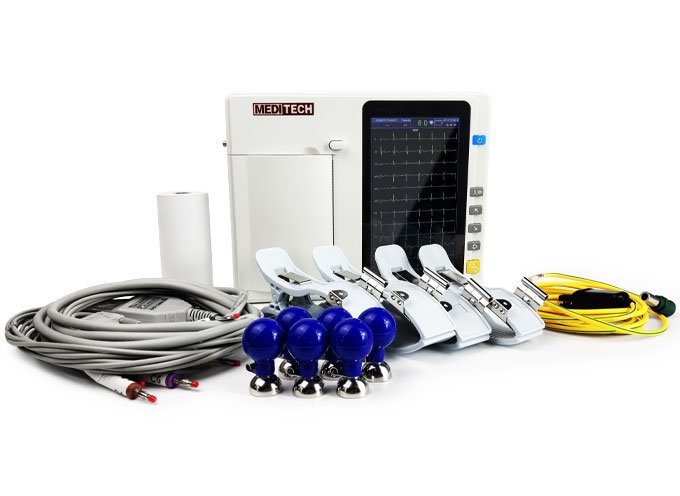

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
FREE SHIPPING! Delivery in 3 Days EKG-3A ECG device 3 Channel ECG machine, Slim, Advanced and Light Weight
Multi-functional Visual Stethoscope VS2
FREE SHIPPING! Delivery in 3 Days Multi-functional visual stethoscope Operation of the product is simple and convenient. Light weight,small size,easy to carry. Low power consumption. Multi-function, know more physiological information.
HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
FREE SHIPPING! Delivery in 7 Days Cardios ® pro Stress test system is a super-stable and noise-free ECG tracings even at steep grades. The sophisticated software gives you a perfect solution for cardiology diagnosis as well as a fantastic user experience work-able with COSMOS® (Germany) Track Maste®r (USA) Treadmills ERGOSANA® Bicycle Ergometers Optional Blood pressuer Suntech ® Tango M2

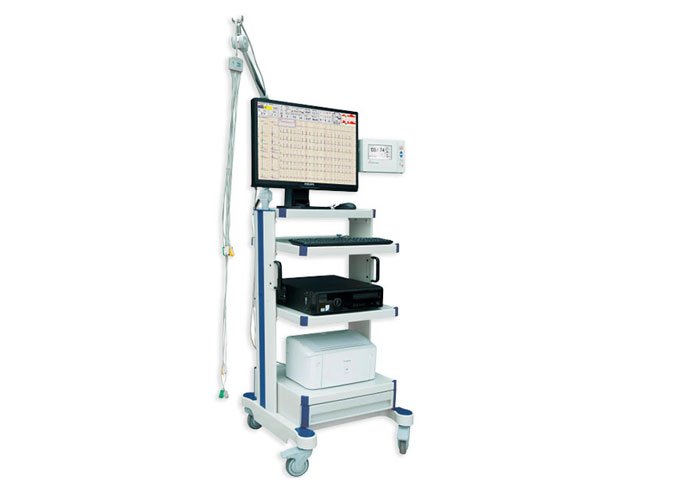

Cardios Pro Stress Test System
FREE SHIPPING! Delivery in 3 Days Cardios ® pro Stress test system is a super-stable and noise-free ECG tracings even at steep grades. The sophisticated software gives you a perfect solution for cardiology diagnosis as well as a fantastic user experience work-able with COSMOS® (Germany) Track Maste®r (USA) Treadmills ERGOSANA® Bicycle Ergometers Optional Blood pressuer Suntech ® Tango M2

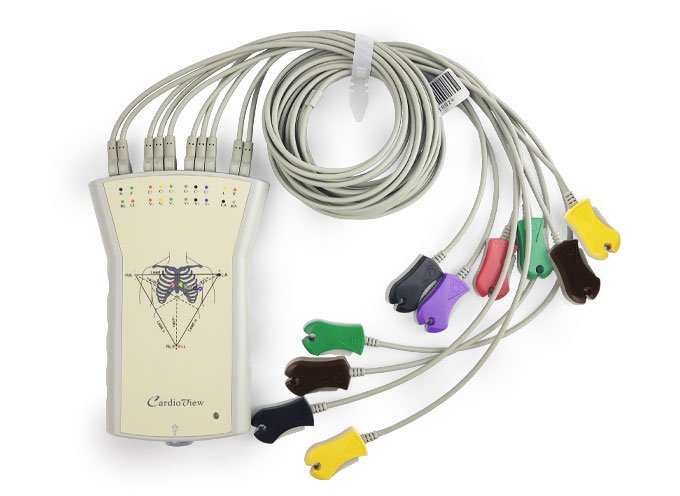

Cardios PC based ECG Machine
FREE SHIPPING! Delivery in 3 Days Cardios ® PC-based ECG provides you an affordable and portable 12-channel ECG solution with powerful data analysis functions. Optional advanced analysis functions secure clinical accuracy and maximum decision-making efficiency.

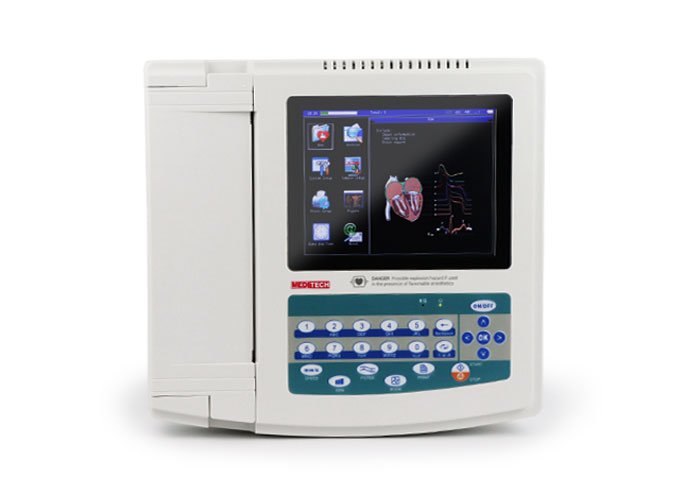

ECG Machine with 8 inch Touch and Color Screen ECG1212T
FREE SHIPPING! Delivery in 3 Days EKG 1212T ECG machine with 8 inch Touch and color screen,Multi-language report formats 12 channel ECG Machine , has large capacity (10 000 exam), 12 Leads ECG simultaneous acquisition,digital signal processor, Built in battery and AC/DC power supply. Download User Manual Download Catalogue

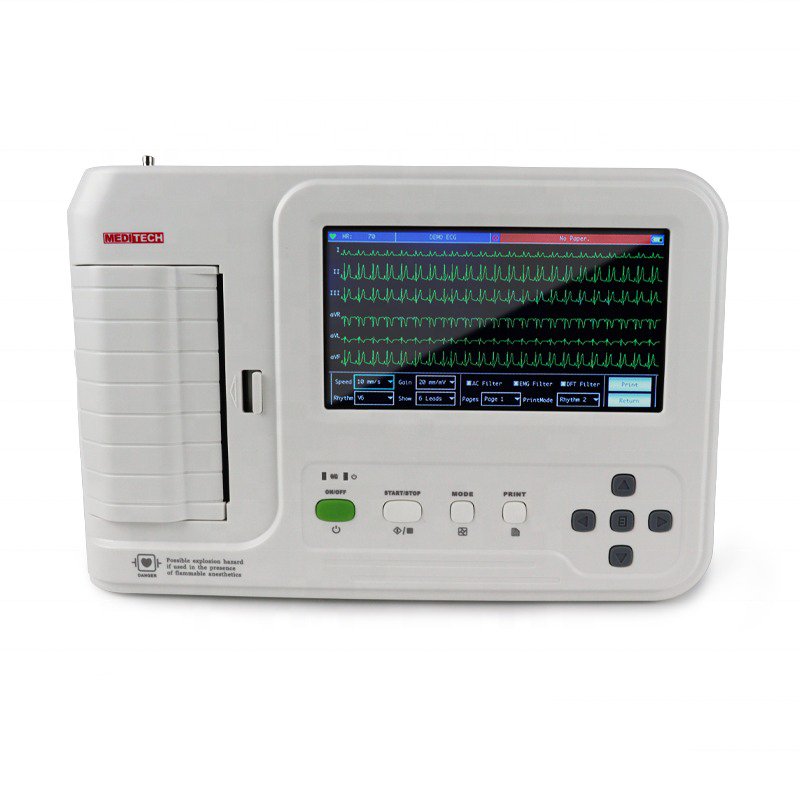

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
