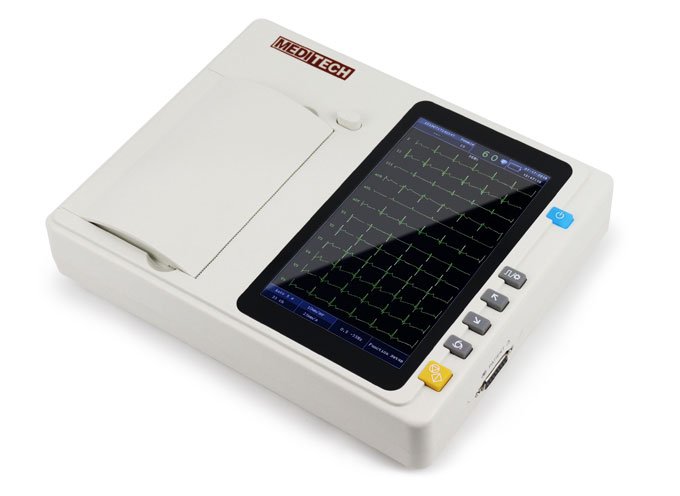

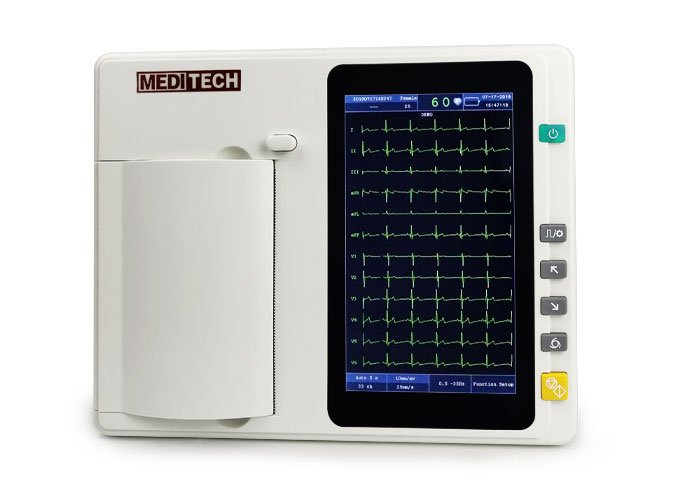

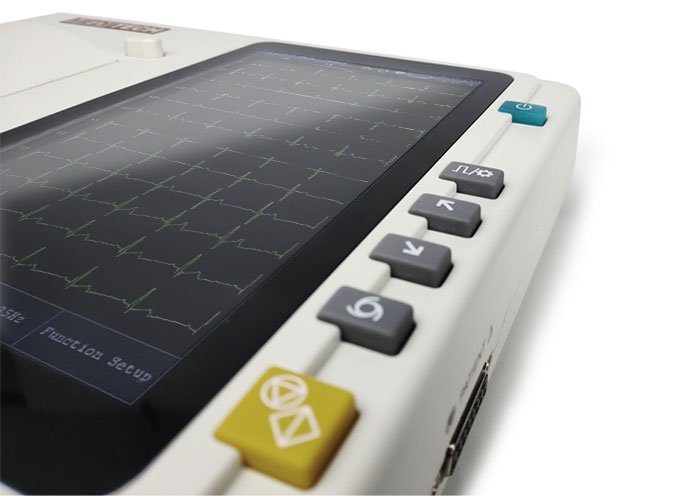

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
FREE SHIPPING! Delivery in 3 Days
EKG-3AÂ ECG deviceÂ
3 Channel ECG machine, Slim, Advanced and Light Weight
$850.00
Guaranteed Safe Checkout
Features & Compatibility
ECG Device 3 Channel ECG Machine, Slim, Advanced and Light Weight EKG-6A
Professional-grade 3-channel ECG system with 7-inch color touch screen, 12-lead simultaneous acquisition, and advanced auto-interpretation. Compact, portable design with built-in rechargeable battery for point-of-care diagnostics. Free shipping with 3-day delivery.
Clinical overview
The EKG-6A is a compact, advanced 3-channel ECG machine designed for rapid, accurate cardiac assessment in clinical and point-of-care settings. With simultaneous 12-lead acquisition and real-time waveform display on a large 7-inch color touch screen, clinicians can perform comprehensive ECG studies efficiently. The device features precise auto-interpretation software for arrhythmia detection and myocardial infarction screening, reducing interpretation time and improving diagnostic confidence.
Built-in rechargeable lithium-ion battery provides 2 hours of continuous operation, enabling portable deployment across departments or mobile clinics. Thermal matrix printing with 80 mm paper delivers high-quality hard-copy records. Advanced digital filtering eliminates EMG, AC, and baseline drift interference for clean, diagnostic-grade signals. Lead-off detection ensures electrode integrity, while defibrillator protection safeguards patient safety during emergency interventions.
Key features & surgeon benefits
12-Lead Simultaneous Capture
- Simultaneous 12-lead acquisition and asynchronous modes
- Real-time ECG waveform visualization on 7-inch color touch screen
- Multiple recording modes: automatic, manual, arrhythmia analysis
Efficient Patient Management
- Integrated keyboard for patient data entry (name, age, ID, sex)
- Precise auto-interpretation program for rapid diagnosis
- Thermal 80 mm paper printing with selectable paper speeds (6.25–50 mm/s)
Compact & Mobile Ready
- Built-in rechargeable Li-ion battery: 2 hours continuous operation
- Slim, lightweight design for point-of-care deployment
- Optional trolley and carrying case for transport
Digital Storage & Integration
- External USB/SD card storage: up to 1000 reports
- Network interface, USB Master/Slave, and RS232 connectivity
- Software upgrades automatically via USB
Technical specifications
| Indications | Cardiac arrhythmia detection, myocardial infarction screening, routine ECG monitoring |
|---|---|
| Lead Configuration | Standard 12 leads; simultaneous or asynchronous acquisition |
| Measurement Range | ±5 mVpp |
| Sensitivity | 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (selectable) |
| Input Impedance | ≥50 MΩ |
| Frequency Response | 0.05 Hz–150 Hz (−3 dB) |
| Time Constant | ≥3.2 s |
| Noise Level | <15 µVp-p |
| Patient Leakage Current | <10 µA (220V–240V) |
| CMRR | 100 dB |
| Sample Rate | 1000 sps/channel |
| Recording Paper | 80 mm × 30 m thermal roll |
| Paper Speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Power Supply (AC) | 100–240 V, 50/60 Hz, 30–100 VA |
| Power Supply (DC) | 14.8 V / 2200 mAh built-in lithium battery |
| Battery Runtime | 2 hours continuous operation |
| Safety Standard | IEC I/CF (defibrillator protection) |
| Data Storage | USB/SD card: up to 1000 reports |
| Interfaces | Network, USB Master/Slave, RS232, SD card |
| Display | 7-inch color touch screen |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard 12-lead chest electrode set | 6 |
| Clamp Electrode | Limb lead clamp electrodes | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| Ground Wire | Patient ground reference wire | 1 |
| Thermal Paper Roll | 80 mm × 30 m roll | 1 |
| Power Cable | AC mains power cable | 1 |
| Cleaning Cloth | Microfiber cleaning cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customization options, or arrange a demonstration of the EKG-6A. We offer fast delivery and comprehensive technical support.
