Advanced portable diagnostic device combining auscultation with real-time ECG, heart rate, SpO2, and pulse waveform monitoring. Lightweight, intuitive interface, and exceptional battery life for clinical and point-of-care applications.

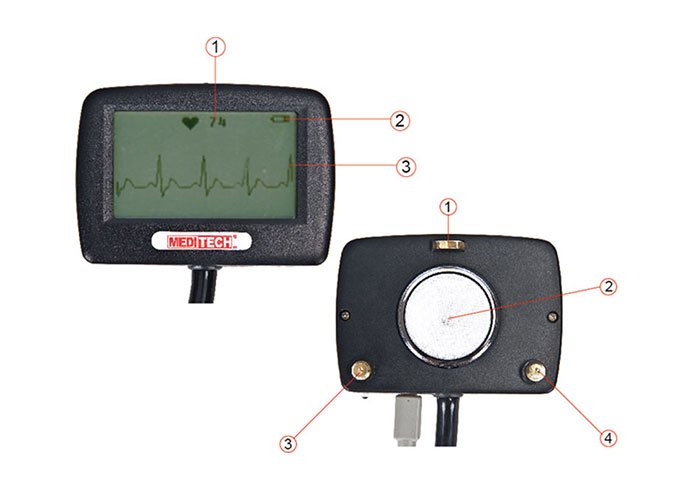

The Multi-functional Visual Stethoscope VS2 integrates traditional auscultation with modern digital diagnostics in a single, portable device. Clinicians can simultaneously monitor auscultation sound output, ECG waveforms, heart rate, SpO2 saturation, and pulse characteristics—enabling comprehensive cardiac and respiratory assessment at the bedside or in remote settings.
Designed for simplicity and reliability, the VS2 features a lightweight, ergonomic form factor (87 × 63 × 19 mm, 180 g), intuitive LCD display (160 × 96 resolution), and extended battery life (20+ hours per charge). Compliance with IEC 60601-1:2005 safety standards and low power consumption ensure clinical-grade performance with minimal operational burden.
| Indications | Cardiac auscultation, heart rate monitoring, oxygen saturation assessment, pulse rate measurement, ECG waveform analysis |
|---|---|
| Heart rate range | 30–300 bpm; Resolution ±1 bpm; Accuracy ±2 bpm |
| SpO2 range | 0–100%; Resolution 1%; Accuracy ±2% (70–100% range); ±4% in weak filling conditions |
| Pulse rate range | 30–250 bpm; Resolution 1 bpm; Accuracy ±2 bpm or ±2% (select larger) |
| Physical dimensions | 87 mm × 63 mm × 19 mm |
| Weight | 180 g (including battery) |
| Display | LCD 160 × 96 resolution; Display area 60 × 35 mm |
| Battery type | Rechargeable lithium; 3.6–4.2 V DC |
| Battery life | 20+ hours continuous operation at full charge |
| Power consumption | <0.3 VA |
| Operating temperature | 5–40 °C |
| Operating humidity | 20–80% relative humidity |
| Storage temperature | −10 to +50 °C |
| Storage humidity | 10–95% relative humidity |
| Safety standard | IEC 60601-1:2005 |
| EMC classification | Group I Class B |
| Electrical safety | Type B applied part; Internally powered equipment |
| Liquid protection | IPX1 (splash resistant) |
| Flammable gas suitability | Not suitable for use in presence of flammable gases |
| Operating mode | Continuous running equipment |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| SpO2 Cable (Adult) | Standard adult finger clip probe for oxygen saturation measurement | 1 |
| USB Cable | Charging and data transfer cable | 1 |
| USB Charger | AC power adapter for battery charging | 1 |
| Cleaning Cloth | Microfiber cloth for display and sensor maintenance | 1 |
| Probe Type | Patient Population / Application |
|---|---|
| SpO2 Cable (Newborn) | Neonatal patients |
| SpO2 Cable (Adult finger clip) | Standard adult measurement |
| SpO2 Cable (Child finger clip) | Pediatric patients |
| SpO2 Cable (Adult soft tip) | Adult comfort and extended wear |
| SpO2 Cable (Child soft tip) | Pediatric comfort and extended wear |
| SpO2 Cable (Infant soft tip) | Infant patients |
| SpO2 Cable (Neonate silicone wrap) | Neonatal protection and stability |
| SpO2 Cable (Multi-site Y type) | Simultaneous multi-site measurement |
| SpO2 Cable (With separate wrap) | Enhanced sensor protection |
| SpO2 Cable (Adult ear clip) | Alternative adult measurement site |
| SpO2 Cable (Veterinary tongue clip) | Animal diagnostics |
| SpO2 Cable (Multi-site clip) | Multiple simultaneous measurement points |
| SpO2 Cable (Adult forehead) | Alternative adult measurement site |
| SpO2 Cable (Multi-site Y type with foam wrap) | Multi-site measurement with enhanced comfort |
