Cardios PC based ECG Machine
- SKU
- OD-00409
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Cardios® PC-Based ECG Machine
Affordable and portable 12-channel ECG solution with powerful data analysis functions. Advanced analysis capabilities ensure clinical accuracy and maximum decision-making efficiency. Free shipping with delivery in 3 days.
Clinical overview
The Cardios® PC-based ECG machine delivers a comprehensive 12-lead simultaneous electrocardiography solution designed for clinical environments requiring portable, affordable diagnostic capability. With automatic measurement and interpretation, pacemaker analysis, and multi-form printing options, the system streamlines cardiac assessment workflows while maintaining diagnostic accuracy. The device features one-key operation for rapid patient setup and data acquisition, reducing operator training time and improving throughput in busy cardiology departments and general practices.
Advanced signal processing includes vector cardiography (VCG) and vector loop plotting (VLP) for enhanced diagnostic insight. Built-in anti-defibrillation and high-frequency protection ensure patient safety, while isolated USB connectivity enables seamless integration with existing hospital information systems and electronic health records. The independent 10-wire patient cable design simplifies electrode placement and maintenance, supporting efficient daily clinical operations.
Key features & surgeon benefits
High-Resolution Acquisition
- 12-lead simultaneous recording eliminates timing artifacts
- 24-bit A/D conversion with 0.4μV resolution for precise waveform capture
- 1000 SPS/channel recording rate with 24K SPS/channel sampling
- Automatic baseline adjustment optimizes recording range
Simplified Operation
- One-key operation reduces training and setup time
- Automatic measurement and interpretation accelerates diagnosis
- Real-time heart rate display (30–300 bpm) with beat-by-beat updates
- Multi-form printing supports diverse clinical documentation needs
Cost-Effective Solution
- Affordable entry-level 12-channel ECG platform
- Portable design reduces space requirements and capital investment
- Minimal consumables and maintenance costs
- USB interface eliminates proprietary hardware dependencies
Clinical-Grade Protection
- Built-in defibrillation protection and high-frequency filtering
- Patient current leakage <10μA ensures safety compliance
- Isolated USB connectivity for secure data exchange
- Pacemaker analysis for specialized cardiac assessment
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, pacemaker analysis, general electrocardiography |
|---|---|
| Recording channels | 8 channels (12-lead simultaneous acquisition) |
| Sampling rate | A/D: 24K SPS/channel; Recording: 1000 SPS/channel |
| Quantization precision | A/D: 24 bits; Recording: 16 bits |
| Resolution | 0.4μV |
| Frequency response | 0.05–250 Hz (±3dB) |
| Common mode rejection | >90dB |
| Input impedance | >10MΩ |
| Time constant | ≥3.2 seconds |
| Maximum electrode potential | ±300mV DC |
| Dynamic range | ±12mV |
| Isolation voltage | 4000V |
| Patient current leakage | <10μA |
| Recording speeds | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Sensitivity settings | 10 mm/mV, 5 mm/mV, 20 mm/mV |
| Heart rate display range | 30–300 bpm with beat-by-beat update |

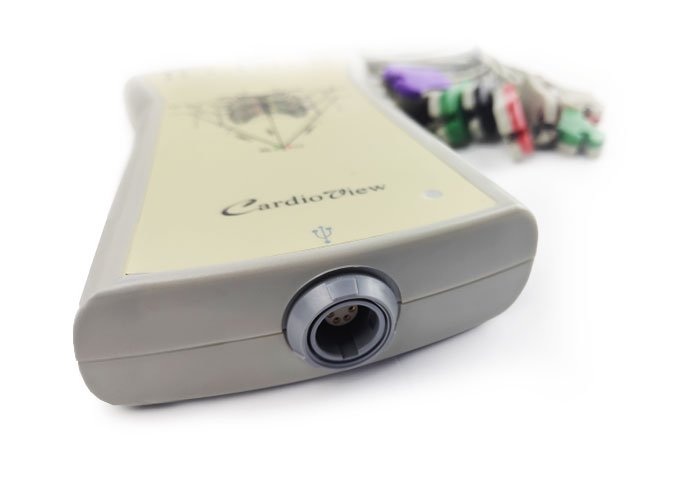

| PC interface | USB connector (isolated) |
| Data interface | One USB interface, 5V output voltage range |
| Protection | Built-in defibrillation protection, high-frequency filtering |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest electrodes | Precordial electrode set for V1–V6 leads | 6 |
| Clamp electrodes | Limb lead electrodes (RA, LA, LL, RL) | 4 |
| Cleaning cloth | Electrode maintenance and skin preparation cloth | 1 |

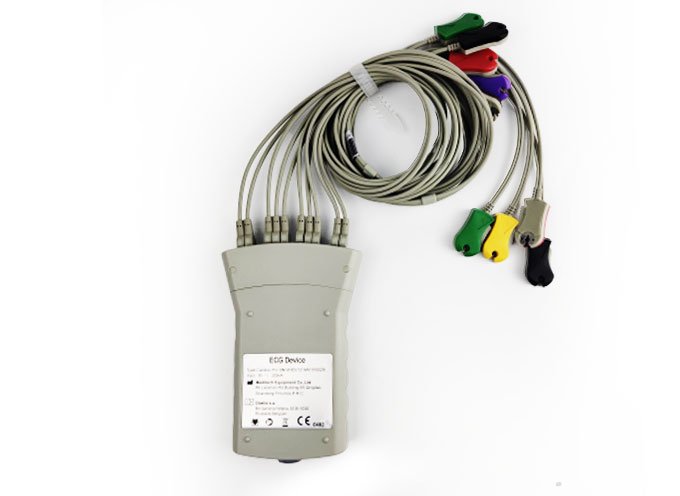

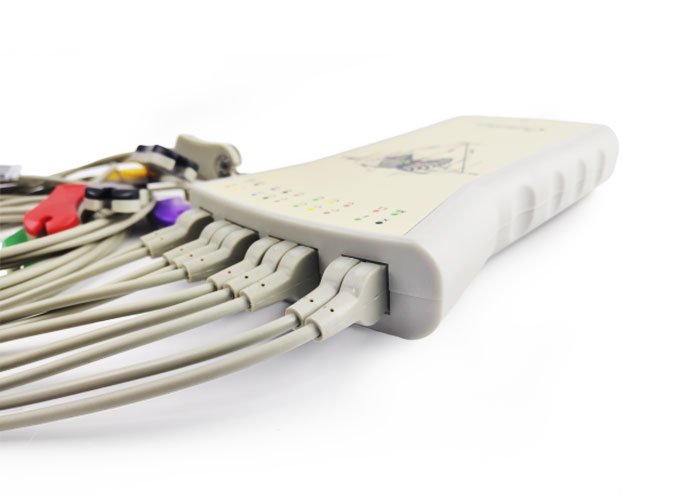

| Patient cable | 10-wire independent cable assembly (easy-remove design) | 1 |
| USB interface cable | Isolated USB connector for PC integration | 1 |
