Color&Touch Screen ECG Machine ECG312T
- SKU
- OD-00406
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

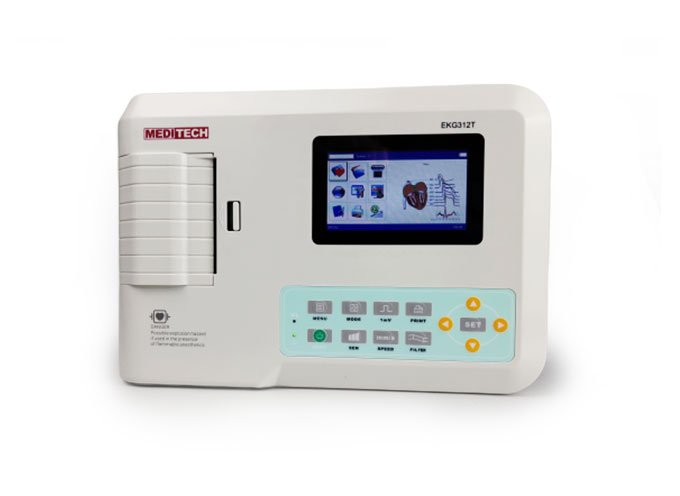

Color & Touch Screen ECG Machine ECG312T
Advanced 3-channel electrocardiograph with high-resolution TFT color display, simultaneous 12-lead capability, and auto-interpretation. Designed for rapid, reliable cardiac assessment in clinical and hospital settings with intuitive touch-screen operation and extensive internal memory.
Clinical overview
The ECG312T is a professional-grade electrocardiograph engineered for rapid, accurate cardiac assessment. Its 3-channel architecture with simultaneous 12-lead display capability enables comprehensive arrhythmia detection and rhythm analysis. The high-resolution TFT color screen (480 × 270 pixels, 16:9 aspect ratio) provides clear visualization of waveforms, while integrated AC, baseline, and EMG filtering ensures signal integrity even in challenging clinical environments.
Auto-analysis and auto-interpretation features reduce operator dependency and accelerate clinical decision-making. With capacity for over 1000 cases in internal memory and the ability to print 150 consecutive ECGs, the ECG312T supports high-throughput diagnostic workflows. Multi-language support (English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish) facilitates global deployment across diverse clinical settings.
Key features & surgeon benefits
High-Resolution Color Interface
- 480 × 270 pixel TFT color screen with 16:9 widescreen format
- Simultaneous 12-lead display for comprehensive rhythm assessment
- Touch-screen and soft keyboard control for intuitive operation
Advanced Filtering & Analysis
- AC, baseline, and EMG filters for robust signal conditioning
- Digital isolation technology and signal processing solution
- Auto-analysis and auto-interpretation of cardiac patterns
High-Capacity Recording & Storage
- Over 1000 cases in internal memory for extended patient databases
- Continuous printing capability: 90 minutes of recording, 150 consecutive ECGs
- 10+ printing modes for flexible output formats
Multi-Language & PC Connectivity
- 10 language options (English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish)

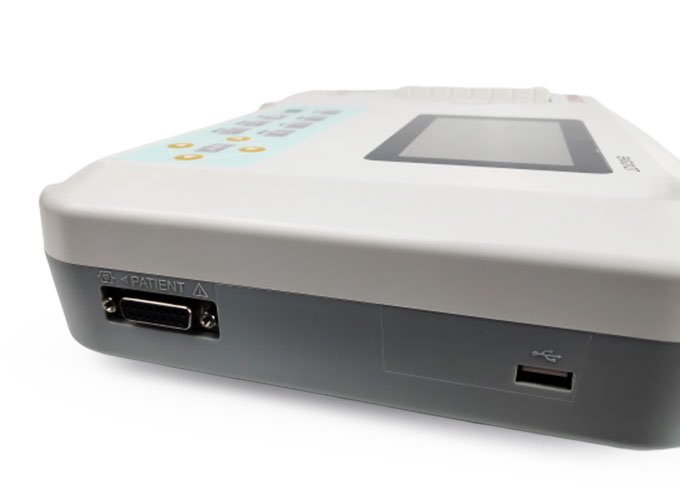

- Optional USB connectivity and ECG-Sync software for PC integration
- Rechargeable lithium battery (7.4V, 3700 mAh) for portable operation
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, electrocardiographic analysis |
|---|---|
| Lead Configuration | Standard 12 leads |
| Display | TFT Color screen, 480 × 270 pixels, 16:9 aspect ratio |
| Paper Speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Frequency Response | 1 Hz – 75 Hz |
| Input Impedance | ≥5 MΩ |
| Patient Leak Current | <10 μA |
| CMRR | >60 dB |
| EMG Filter | 25/35 Hz (-3 dB) |
| Time Constant | >3.2 s |
| Noise Level | ≤15 μVp-p |

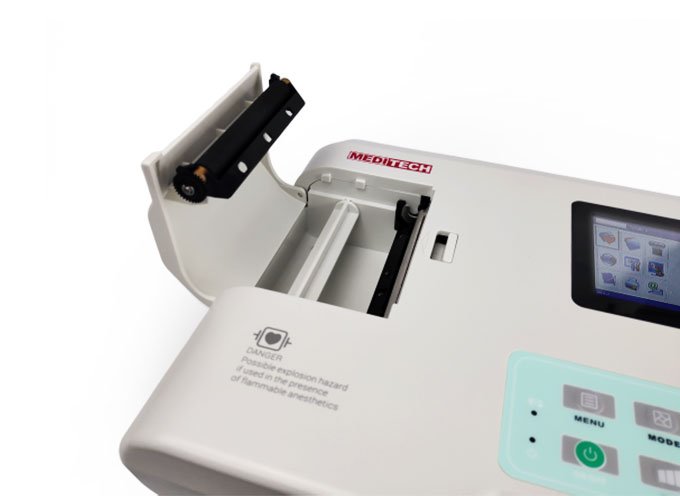

| Recording System | Thermal array printing system |
| Internal Memory | >1000 cases |
| Continuous Print Capacity | 90 minutes recording; 150 consecutive ECGs |
| Measurement Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Enduring Polarization Voltage | ±300 mV |

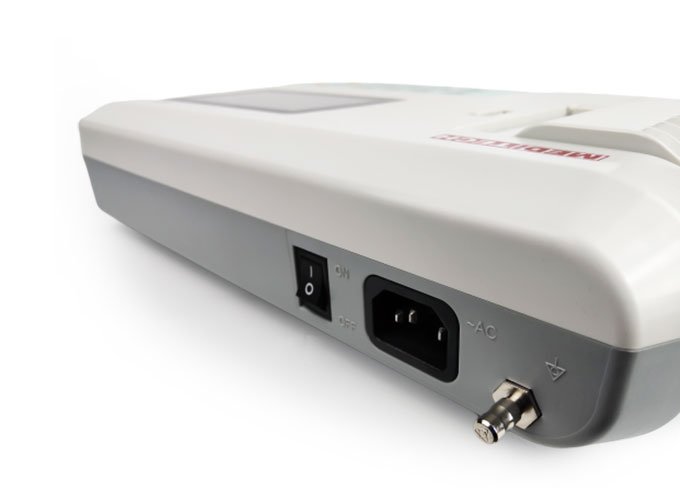

| Power Supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% relative humidity |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% relative humidity |
| Atmospheric Pressure (Operating) | 86 kPa – 106 kPa |
| Atmospheric Pressure (Storage) | 50 kPa – 106 kPa |
| Fuse Specification | 2 × φ5×20 mm AC time-lag; T1.6A/250V (110V/220V supply) |
| Languages Supported | English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest leads | 6 |
| Clamp Electrode | Limb lead clamps | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | PC connectivity cable | 1 |
| CD "CardioSoft pro" | Software for PC integration | 1 |
| Ground Wire | Patient ground reference | 1 |
| Paper Roll | Thermal recording paper | 1 |
| Power Cable | AC mains power cord | 1 |
| Cleaning Cloth | Screen and device maintenance | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Carrying Case | Protective transport case for device and accessories |
| Thermal Paper | Additional recording paper rolls |
| Trolley | Mobile stand for bedside or clinic deployment |
| PC Accessories | Computer integration and software support |
| Printer Accessories | Thermal printer maintenance and spare parts |
